ARIES 08-350000-11-RC

Cross Number:

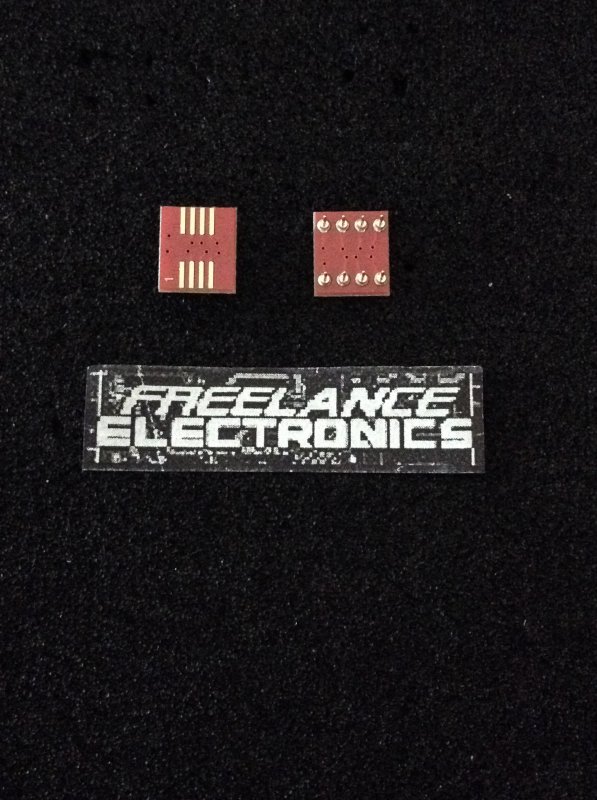

Item Description: SOCKET ADAPTER SOIC TO 8DIP 0.3
Additional Information:

Qty Price
1 - 4 $3.74088
5 - 9 $2.97570
10 - 14 $2.80566
15 - 19 $2.60728
20 + $2.32388





Related Items

ELCO CORP.
SOCKET

00-9072-240


VIKING
SOCKET

000300-1195

$24.35430
MOLEX
SOCKET

0039299202

$0.53777
Generic
SOCKET

02291-016


Generic
SOCKET

03-06-2122

$0.16500
WALDOM / MOLEX
SOCKET

03-09-2151

$0.90684


Manufacturer Date Code Qty Available Qty
ARIES
  • Freelance Stock: 23
    Ships Immediately







Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
INFO@ARIESELEC.COM
WWW.ARIESELEC.COM
FEATURES
A cost-effective means of upgrading to SOIC without changing your PCB layout
Available on 0.300 [7.62] centers. Consult Data Sheet 18011 for adapters on 0.400
[10.16] or 0.600 [15.24] centers
GENERAL SPECIFICATIONS
BOARD MATERIAL: 0.062 [1.58] thick FR-4 or IS410 per IPC4101A/26 with
1-oz. Cu traces, both sides
PADS: Finished with ENIG (Immersion Au over Electroless Ni)
PINS: Brass 360 1/2-hard per UNS C36000 ASTM-B16-00
PIN PLATING: 10µ [2.54µ] min. Au per MIL-G-45204 over 100µ [2.54µ] min. Ni
per SAE AMS-QQ-N-290
OPERATING TEMPERATURE: 105°C max.
MOUNTING CONSIDERATIONS
SUGGESTED PCB HOLE SIZE: 0.028 ±0.003 [0.71 ±0.08] dia.
18010RC
Rev. AB
Series 350000-11-RC RoHS/WEEE-Compliant
SOIC-to-DIP Adapter
P/N Pins Type Dim. “B” Centers “C” Dim. “E” Dim. “F” Dim. “G” Dim. “H”
08-350000-11-RC
8 SOIC 0.460 [11.68] 0.300 [7.62] 0.455 [11.56] 0.155 [3.94] 0.150 [3.81] 0.121 [3.07]
14-350000-11-RC
14 SOIC 0.450 [11.43] 0.300 [7.62] 0.420 [10.67] 0.138 [3.51] 0.500 [12.70] 0.180 [4.57]
16-350000-11-RC
16 SOIC 0.450 [11.43] 0.300 [7.62] 0.420 [10.67] 0.138 [3.51] 0.550 [13.97] 0.180 [4.57]
18-350000-11-RC
18 SOIC 0.450 [11.43] 0.300 [7.62] 0.420 [10.67] 0.138 [3.51] 0.550 [13.97] 0.180 [4.57]
20-350000-11-RC
20 SOIC 0.450 [11.43] 0.300 [7.62] 0.420 [10.67] 0.138 [3.51] 0.550 [13.97] 0.180 [4.57]
24-350000-11-RC
24 SOIC 0.450 [11.43] 0.300 [7.62] 0.420 [10.67] 0.138 [3.51] 0.550 [13.97] 0.180 [4.57]
20-350001-11-RC
20 SOJ 0.420 [10.67] 0.300 [7.62] 0.350 [8.89] 0.090 [2.29] 0.550 [13.97] 0.060 [1.52]
28-350002-11-RC
28 SOIC 0.400 [10.16] 0.300 [7.62] 0.350 [8.89] 0.090 [2.29] 0.650 [16.51] 0.375 [9.53]
ORDERING INFORMATION
(see Table below)
CUSTOMIZATION: In addition to the standard products shown
on this page, Aries specializes in custom design and production.
Special materials, platings, sizes, and configurations can be
furnished, depending on the quantity. NOTE: Aries reserves the
right to change product general specifications without notice.
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
A” = NO. OF PINS PER ROW X 0.100 [2.54]
“D” = (NO. OF PINS PER ROW - 1) X 0.100 [2.54]
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
