DO-214AA Package Symbolization
© 2004 Littelfuse, Inc. 2 - 3 http://www.littelfuse.com
SIDACtor
®
Data Book and Design Guide +1 972-580-7777
Data Sheets
DO-214AA Package Symbolization
Note: Date code is located below the symbolized part number.
Part Number Part Number Part Number
Catalog Symbolized Catalog Symbolized Catalog Symbolized
P0080SA P-8A P1101SA P01A P2500SD P25D
P0080SA MC P-8AM P1101SC P01C P2500SC MC P25CM
P0080SB P-8B P1200SA P12A P2600SA P26A
P0080SC P-8C P1200SB P12B P2600SB P26B
P0080SD P-8D P1200SC P12C P2600SC P26C
P0080SC MC P-8CM P1200SD P12D P2600SD P26D
P0300SA P03A P1200SC MC P12CM P2600SC MC P26CM
P0300SA MC P03AM P1300SA P13A P2602SA P262A
P0300SB P03B P1300SB P13B P2702CA P27A
P0300SC P03C P1300SC P13C P3002CA P30A
P0300SD P03D P1300SD P13D P3002CB P30B
P0300SC MC P03CM P1300SC MC P13CM P3002SA P30A
P0640SA P06A P1302SA P132A P3002SB P30B
P0640SB P06B P1402CA P14A P3100SA P31A
P0640SC P06C P1500SA P15A P3100SB P31B
P0640SD P06D P1500SB P15B P3100SC P31C
P0640SC MC P06CM P1500SC P15C P3100SD P31D
P0641CA2 P62A P1500SD P15D P3100SC MC P31CM
P0641SA P61A P1500SC MC P15CM P3500SA P35A
P0641SC P61C P1502SA P152A P3500SB P35B
P0720SA P07A P1602CA P16A P3500SC P35C
P0720SB P07B P1800SA P18A P3500SD P35D
P0720SC P07C P1800SB P18B P3500SC MC P35CM
P0720SD P07D P1800SC P18C P3502SA P352A
P0720SC MC P07CM P1800SD P18D P3602CA P36A
P0721CA2 P72A P1800SC MC P18CM P4202CA P42A
P0721SA P71A P1802SA P182A P4202SA P422A
P0721SC P71C P2000SA P20A P4802CA P48A
P0900SA P09A P2000SB P20B P4802SA P482A
P0900SB P09B P2000SC P20C P6002CA P60A
P0900SC P09C P2000SD P20D P6002CB P60B
P0900SD P09D P2000SC MC P20CM P6002SA P602A
P0900SC MC P09CM P2202CA P22A B1100CA B10A
P0901CA2 P92A P2300SA P23A B1100CC B10C
P0901SA P91A P2300SB P23B B1160CA B16A
P0901SC P91C P2300SC P23C B1160CC B16C
P1100SA P11A P2300SD P23D B1200CA B12A
P1100SB P11B P2300SC MC P23CM B1200CC B12C
P1100SC P11C P2302SA P232A B2050CA B25A

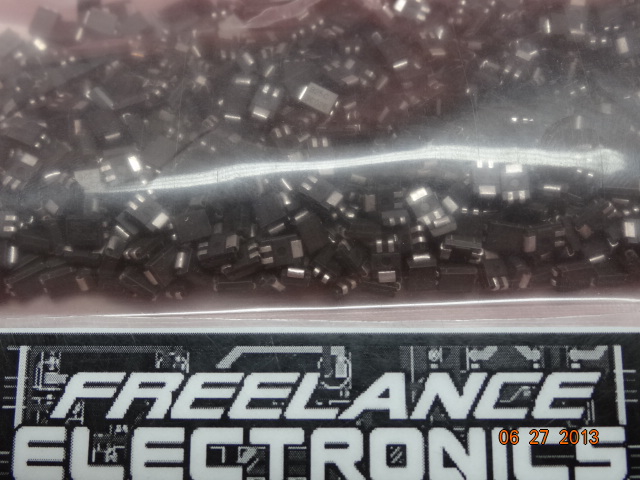

P1100SD P11D P2500SA P25A B2050CC B25C
P1100SC MC P11CM P2500SB P25B
P1101CA2 P02A P2500SC P25C
