CAY16-101J4LF

Part # CAY16-101J4LF
Description RES THKFLM ARY 1206 100 OHM 5% ISOL 8PIN CNVX SMD - Cut TR
Category RESISTOR
Availability In Stock
Qty 8895
Qty Price
1 - 1,867 $0.09950
1,868 - 3,735 $0.07915
3,736 - 5,603 $0.07463
5,604 - 7,471 $0.06935
7,472 + $0.06181
Manufacturer Available Qty
Bourns Inc.
Date Code: 0715
  • Shipping Freelance Stock: 8895
    Ships Immediately



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

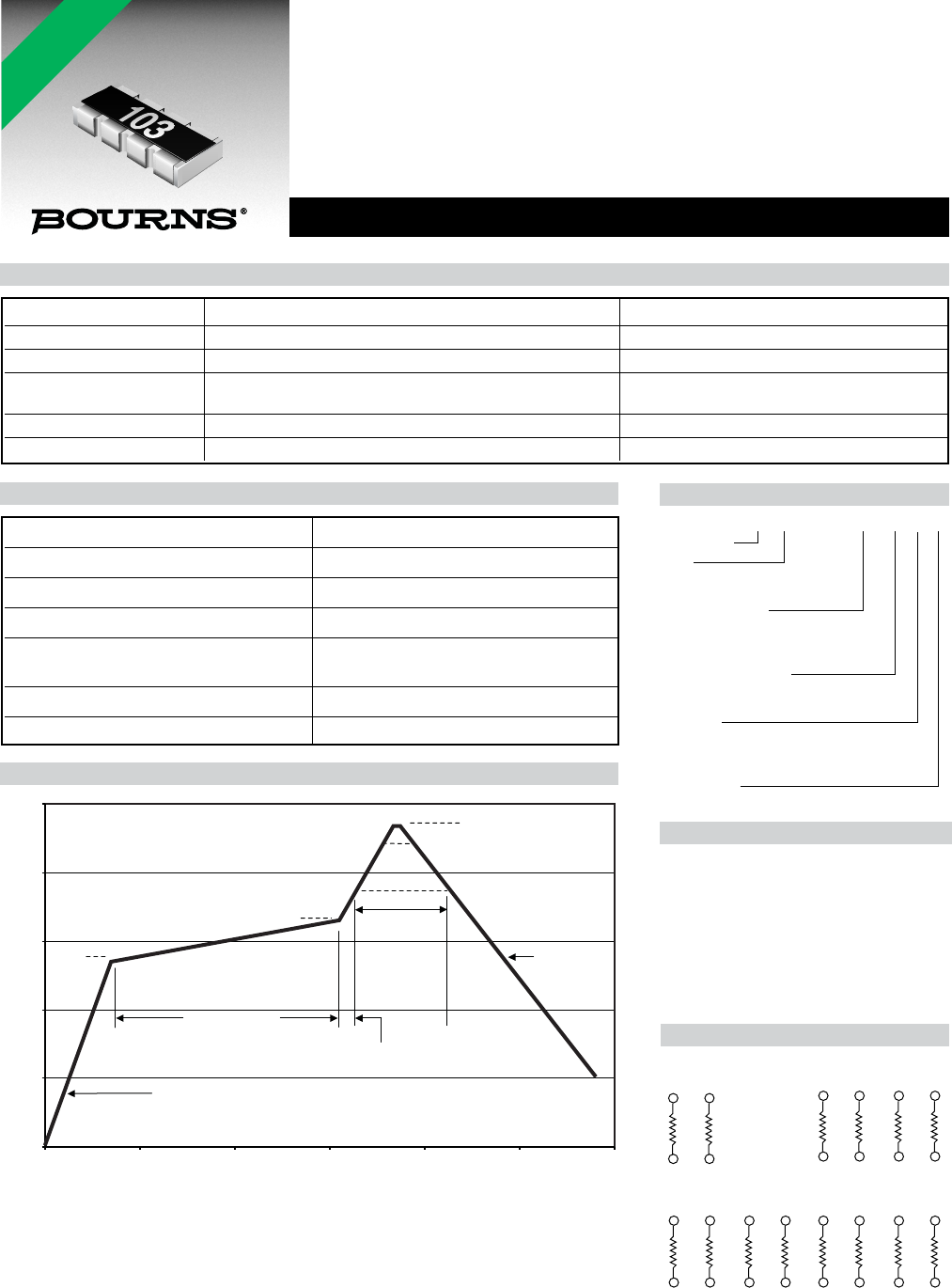

Features
RoHS compliant*
Convex and concave terminals
2, 4 or 8 isolated elements available
Resistance tolerance ±1 % and ±5 %
Resistance range: 10 ohms to 1 megohm
CAT/CAY 16 Series - Chip Resistor Arrays
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex.
Specifi cations are subject to change without notice.
Customers should verify actual device performance in their specifi c applications.
Specifi cations
How To Order
CA Y 16 - 103 J 4 LF
Chip Arrays
Type
• CAT16 = Concave Terminations
• CAY16 = Convex Terminations
Resistance Code
• 103 = 10 K ohms
• 1003 = 100 K ohms (1 % tolerance)
• 000 = Zero-ohm
Resistance Tolerance
• J = ±5 % (Use “J” for zero-ohm jumper)
• F = ±1 % (4 resistor pkg. and CAT16-F8)
Resistors
• 2 = 2 Isolated Resistors
• 4 = 4 Isolated Resistors
• 8 = 8 Isolated Resistors
Terminations
• LF = Tin-plated (RoHS compliant)
Requirement Characteristics Test Method
Short Time Overload ±2 % +0.1 ohm Rated Voltage X 2.5, 5 seconds
Soldering Heat ±2 % +0.1 ohm 260 °C ±5 °C, 10 seconds ±1 second
Temperature Cycling (5)
±1 % + 0.1 ohm
125 °C (30 minutes) - normal (15 minutes)
-55 °C (30 minutes) - normal (15 minutes)
Moisture Load Life ±3 % +0.1 ohm 1000 hours
Load Life ±3 % +0.1 ohm 1000 hours
Characteristics
Characteristics CAT16/CAY16
Number of Elements 2 (J2), 4 (F4, J4), 8 (F8, J8)
Power Rating Per Resistor 62 mW (31 mW for CAY16-J8)
Resistance Tolerance ±1 %, ±5 %
Resistance Range: E24 (J), E96 + E24 (F)
10 ohms - 1 megohm
Zero-Ohm Jumper < 0.05 ohm
Max. Working Voltage 50 V (25 V for CAY16-J8)
Operating Temp. Range -55 °C - 125 °C
Packaging Size
J2 .......... 0606 Package Size
F4, J4 .... 1206 Package Size
F8 .......... 2406 Package Size for CAT16
J8 .......... 2406 Package Size for CAT16;
1506 Package Size for CAY16
For Standard Values Used in Capacitors,
Inductors, and Resistors, click here.
Schematics
R
1
R
2
R
1
R
2
R
3
R
4
CAT16-F4, -J4
CAY16-F4, -J4
R
1
R
2
R
3
R
4
CAT16-F8, -J8
CAY16-J8
R
5
R
6
R
7
R
8
CAT16-J2
CAY16-J2
Soldering Profi le for RoHS Compliant Chip Resistors and Arrays
25
75
125
175
225
275
0 50 100 150 200 250 300
Time (seconds)
Temperature (°C)
60 - 120 seconds
60 - 90
seconds
260 °C peak
190 °C
150 °C
220 °C
Ramp Down
6 °C/second
255 °C
Maximum of 20 seconds between
+255 °C and +260 °C
Ramp Up
3 °C/second maximum
10 seconds minimum
<1>
<1>
*RoHS COMPLIANT
Specifi cations are subject to change without notice.
Customers should verify actual device performance in their specifi c applications.
CAT/CAY 16 Series - Chip Resistor Arrays

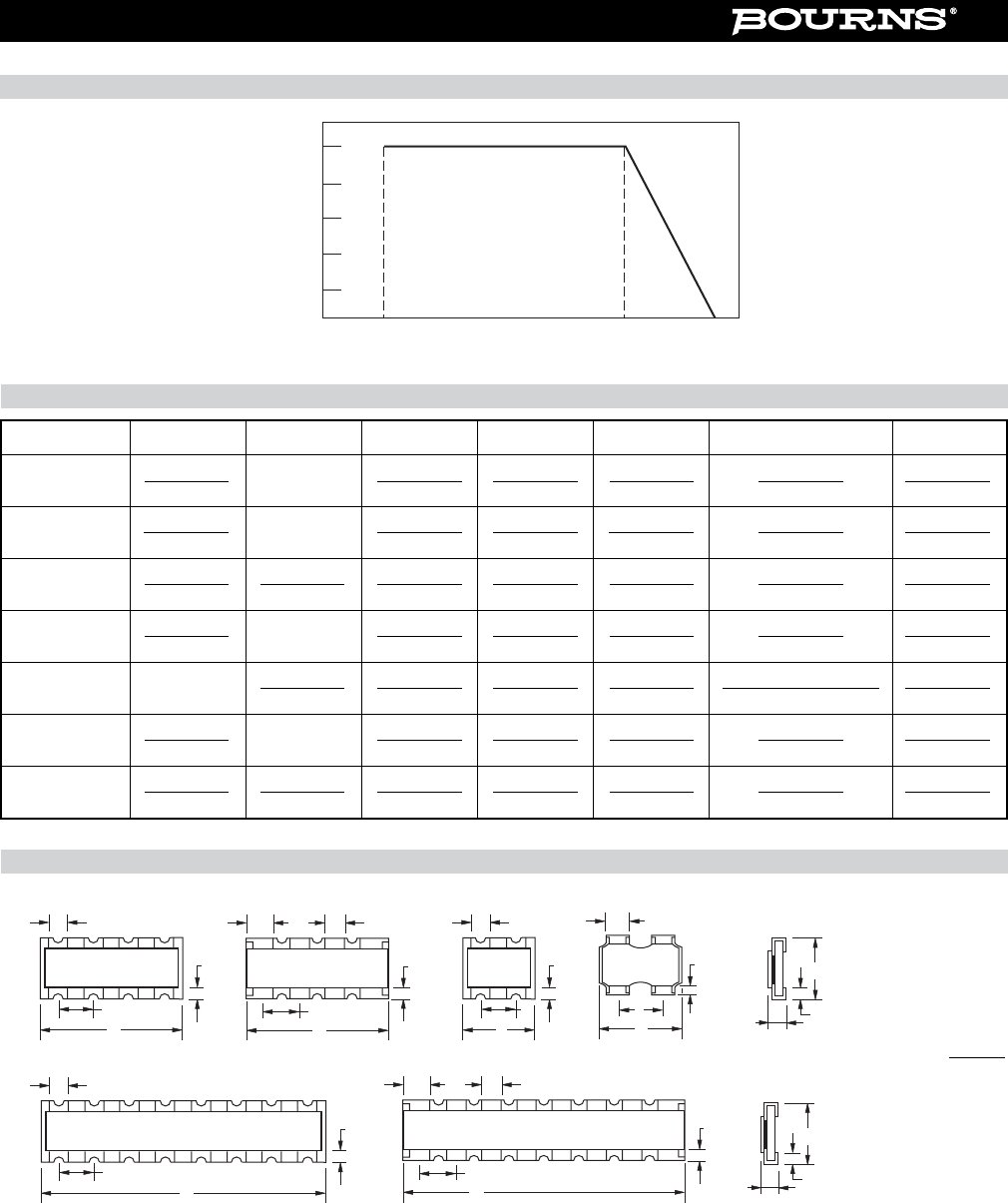

Derating Curve
Rated power in percentage (%)
Ambient Temperature (˚C)
0
-55 0 70 125
20
40
60
80
100
Dimensions
DIMENSIONS:
MM
(INCHES)
Model A A B C D E F
CAT16-F4
0.40 ± 0.15
3.20 ± 0.20 0.80 ± 0.10 1.60 ± 0.20 0.50 ± 0.10 0.30 ± 0.15
(.016 ± .006) (.126 ± .008) (.032 ± .004) (.063 ± .008) (.020 ± .004) (.012 ± .006)
CAT16-J4
0.40 ± 0.15
3.20 ± 0.20 0.80 ± 0.10 1.55 ± 0.25 0.50 ± 0.10 0.30 ± 0.20
(.016 ± .006) (.126 ± .008) (.032 ± ± .004) (.061 ± .0098) (.020 ± .004) (.012 ± .008)
CAY16-F4, -J4
0.50 ± 0.15 0.70 ± 0.10 3.20 ± 0.20 0.80 ± 0.05 1.60 ± 0.20 0.50 ± 0.10 0.30 ± 0.20
(.002 ± .006) (.027 ± .004) (.126 ± .008) (.032 ± .002) (.063 ± .008) (.020 ± .004) (.012 ± .008)
CAT16-J2
0.40 ± 0.15
1.60 ± 0.15 0.80 ± 0.05 1.60 ± 0.15 0.60 ± 0.15 0.30 ± 0.20
(.016 ± .006) (.063 ± .006) (.032 ± .002) (.063 ± .006) (.024 ± .006) (.012 ± .008)
CAY16-J2 —
0.60 ± 0.15 1.60 ± 0.15 0.76 ± 0.10 1.60 ± 0.15 0.45 +0.15/-0.10 0.30 ± 0.20
(.024 ± .006) (.063 ± .006) (.030 ± .004) (.063 ± .006) (.018 +0.006/-0.004) (.012 ± .008)
CAT16-F8, -J8
0.40 ± 0.15
6.40 ± 0.20 0.80 ± 0.15 1.60 ± 0.20 0.60 ± 0.15 0.30 ± 0.20
(.016 ± .006) (.252 ± .008) (.032 ± .006) (.063 ± .008) (.024 ± .006) (.012 ± .008)
CAY16-J8
0.30 ± 0.15 0.30 ± 0.15 3.80 ± 0.20 0.50 ± 0.05 1.60 ± 0.20 0.50 ± 0.10 0.30 ± 0.15
(.012 ± .006) (.012 ± .006) (.15 ± .008) (.02 ± .002) (.063 ± .008) (.02 ± .004) (.012 ± .006)
Confi gurations
A
C
B
F
D
F
E
CAT16-F4, -J4
A
C
B
F
CAT16-J2
AA'
C
B
F
CAY16-F4, -J4
A'
C
B
F
CAY16-J2
D
F
E
A
C
B
F
CAT16-F8, -J8
AA'
C
B
F
CAY16-J8
Specifi cations are subject to change without notice.
Customers should verify actual device performance in their specifi c applications.
CAT/CAY 16 Series - Chip Resistor Arrays

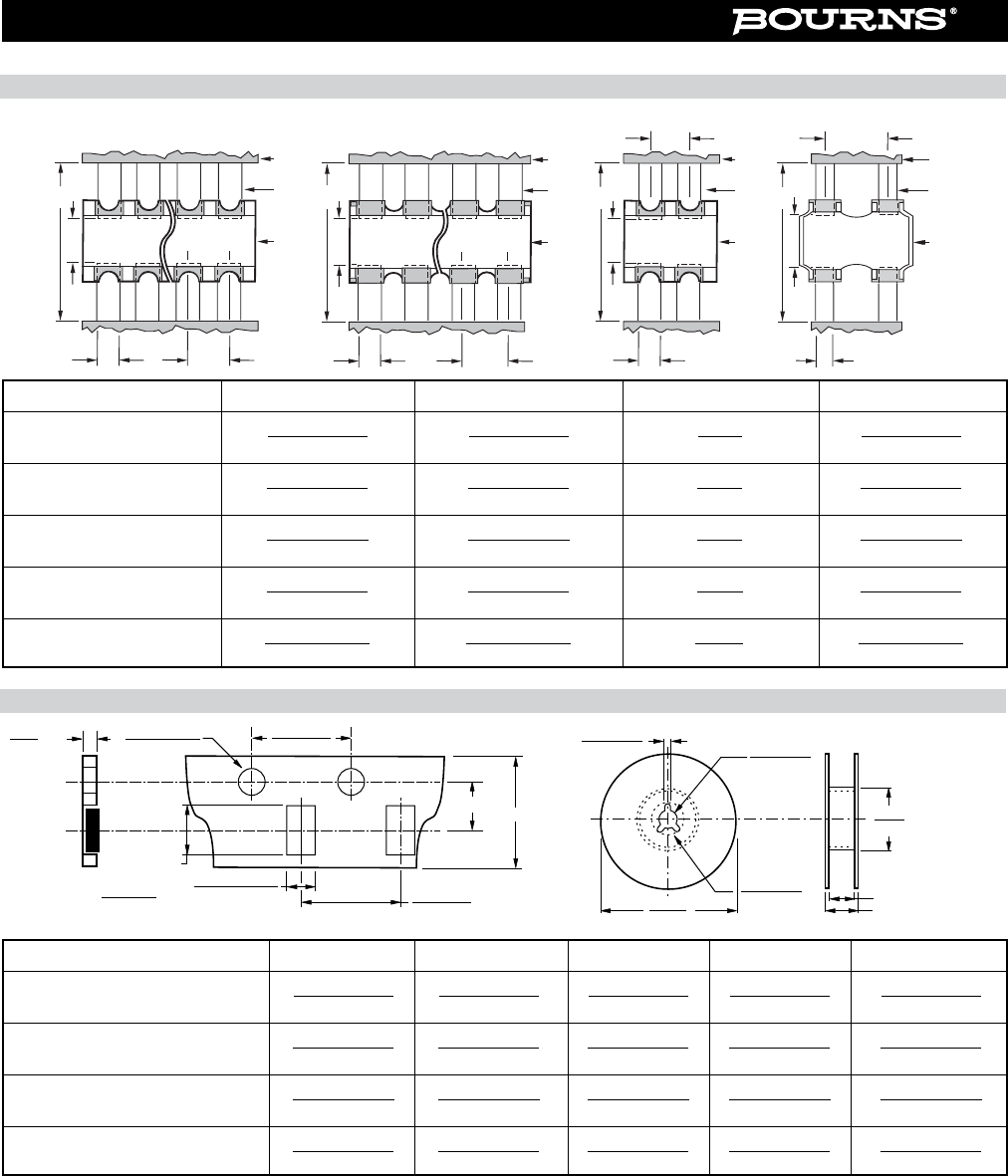

Land Patterns
a
f
b
p
Solder
resist
Land
Chip
resistor
array
a
f
bp
Solder
resist
Land
Chip
resistor
array
a
f
b
Solder
resist
Land
Chip
resistor
array
p
a
f
b
p
Solder
resist
Land
Chip
resistor
array
CAT16-F4, -J4, -F8, -J8 CAY16-F4, -J4, -J8 CAT16-J2 CAY16-J2
Model a b p f
CAT16-F4, -J4, -F8, -J8
0.7 to 0.9 0.4 to 0.45 0.80 2.2 to 2.6
(.028 to .035) (.016 to .0178) (.032) (.087 to .102)
CAY16-F4, -J4
0.7 to 0.9 0.4 to 0.45 0.80 2.4 to 2.8
(.028 to .035) (.016 to .0178) (.032) (.094 to .11)
CAY16-J8
0.7 to 0.9 0.3 to 0.35 0.50 2.0 to 2.2
(.028 to .035) (.012 to .014) (.020) (.079 to .087)
CAT16-J2
0.7 to 0.9 0.4 to 0.45 0.80 2.2 to 2.6
(.028 to .035) (.016 to .0178) (.032) (.087 to .102)
CAY16-J2
0.7 to 0.9 0.4 to 0.5 0.80 2.0 to 2.6
(.028 to .035) (.016 to .020) (.032) (.079 to .102)
Packaging Dimensions
4.0 ± 0.1
(.158 ± .004)
2.0 + 0.1/-0.2
(.08 + .004/-.008)
4.0 ± 0.1
(.157 ± .004)
1.0
(.039)
MAX.
a
c
b
1.5 + 0.1 - 0
(.059 + .004 - 0)
180
(7.087)
2.0 ± 0.5
(.079 ± .020)
60
(2.362)
21.0 ± 0.8
(.827 ± .031)
13.0 ± 0.5
(.511 ± .020)
d
e
DIMENSIONS:
MM
(INCHES)
Model a b c d e
CAT16-F4, -J4 & CAY16-F4, J4
3.60 ± 0.20 3.50 ± .005 8.0 ± 0.3 9.0 ± 0.3 11.4 ± 1.0
(.142 ± .008) (.138 ± .004) (.315 ± .012) (.354 ± .012) (.449 ± .040)
CAT16-J2 & CAY16-J2
1.80 ± 0.10 3.50 ± .005 8.0 ± 0.3 9.0 ± 0.3 11.4 ± 1.0
(.070 ± .004) (.138 ± .004) (.315 ± .012) (.354 ± .012) (.449 ± .040)
CAT16-F8, -J8
6.90 ± 0.20 5.50 ± 0.10 12.0 ± 0.2 13.0 ± 0.2 15.4 ± 1.0
(.272 ± .008) (.217 ± .004) (.472 ± .008) (.512 ± .008) (.606 ± .040)
CAY16-J8
4.10 ± 0.15 3.50 ± 0.05 8.0 ± 0.3 9.0 ± 0.3 11.4 ± 1.0
(.161 ± .012) (.138 ± .002) (.315 ± .012) (.354 ± .012) (.449 ± .040)
5,000 pcs. per reel (J2, J4, CAY16-J8)
4,000 pcs. per reel (CAT16-F8, -J8)
• Paper tape
REV. 08/10
