Data Sheet No. PD 10035 revK

Series PVG612PbF

Microelectronic Power IC

HEXFET

Power MOSFET Photovoltaic Relay

Single Pole, Normally Open, 0-60V, 1.0A AC/ 2.0 A DC

General Description

The PVG612 Series Photovoltaic Relay is a sin gle-

pole, normally open solid-state re lay that can replace

electromechani cal re lays in many applications. It util-

izes International Rectier’s proprietary HEXFET power

MOSFET as the output switch, driven by an inte grated

circuit photovoltaic gen erator of novel construction. The

output switch is con trolled by radiation from a GaAlAs

light emit ting diode (LED) which is optically isolated

from the photovol taic generator.

These units exceed the performance capabilities of

electromechanical relays in operating life, sensitivity,

stability of on-resistance, miniaturization, insensitivity to

magnetic elds and ruggedess. The compact PVG612

is particularly suited for isolated switching of high

currents from 12 to 48 Volt AC or DC power sources.

Series PVG612 Relays are packaged in a 6-pin,

molded DIP package with either thru-hole or surface

mount (gull-wing) termi nals. It is avail able in standard

plastic ship ping tubes or on tape-and-reel. Please refer

to Part Identica tion in formation opposite.

Features

 Bounce-free operation

High load current capacity

High off-state resistance

Linear AC/DC operation

4,000 V

RMS

I/O Isolation

Solid-State reliability

 UL recognized

 ESD Tolerance:

4000V Human Body Model

500V Machine Model

Applications

 Programmable Logic Controllers

 Computers and Peripheral Devices

 Audio Equipment

 Power Supplies and Power Distribution

 Control of Displays and Indicators

Industrial Automation

Part Identication

PVG612PbF thru-hole

PVG612SPbF surface-mount

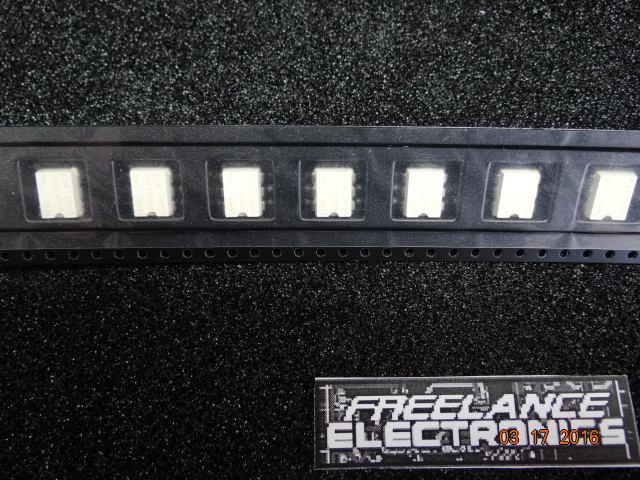

PVG612S-TPbF surface-mount, tape

and reel

(HEXFET is the registered trademark for International Rectier Power MOSFETs)

www.irf.com 1

Series PVG612PbF

www.irf.com 2

INPUT CHARACTERISTICS Limits Units

Minimum Control Current (see gure 1) 5.0 mA

Maximum Control Current for Off-State Resistance @ TA = +25°C 0.4 mA

Control Current Range (Caution: current limit input LED, see gure 6) 5.0 to 25 mA

Maximum Reverse Voltage 6.0 V

OUTPUT CHARACTERISTICS Limits Units

Operating Voltage Range 0 to ±60 V(DC or AC peak)

Maximum Load Current @ T

= +40°C, 10mA Control (see gure 1)

A Connection 1.0 A (AC or DC)

B Connection 1.5 A (DC)

C Connection 2.0 A (DC)

Maximum Pulsed Load Current @ T

=+25°C (100 ms @ 10% Duty Cycle)

A Connection 2.4A (AC or DC)

Maximum On-State Resistance @TA =+25°C

For 1A pulsed load, 10mA Control (see gure 4) A Connection 500 mΩ

B Connection 250 mΩ

C Connection 150 mΩ

Minimum Off-State Resistance @T

A =+25°C, ±48V (see gure 5) 10

Ω

Maximum Turn-On Time @TA =+25°C (see gure 7)

For 500mA, 50 VDC load, 10mA Control 2.0 ms

Maximum Turn-Off Time @TA =+25°C (see gure 7)

For 500mA, 50 VDC load, 10mA Control 0.5 ms

Maximum Output Capacitance @ 50VDC (see gure 2) 130 pF

Electrical Specications (-40°C ≤ TA ≤ +85°C unless otherwise specied)

GENERAL CHARACTERISTICS

Limits Units

Minimum Dielectric Strength, Input-Output 4000 VRMS

Minimum Insulation Resistance, Input-Output, @TA =+25°C, 50%RH, 100VDC 10

Ω

Maximum Capacitance, Input-Output 1.0 pF

Maximum Pin Soldering Temperature (10 seconds maximum) +260

Ambient Temperature Range: Operating -40 to +85 °C

Storage -40 to +100

Connection Diagrams

International Rectier does not recommend the use of this product in aerospace, avionics, military or life support applications.

Users of this International Rectier product in such applications assume all risks of such use and indemnify International

Rectier against all damages resulting from such use.

Series PVG612PbF

www.irf.com 3

Max. Load Current (A)

Amb ient Temperature (deg. C)

20 40 60 80 10

0.25

0.50

1.00

1.25

0.75

LED

10 mA

5 mA

'A' Connection

Figure 1. Current Derating Curves* Figure 2. Typical Output Capacitance

Typical Cap acitance (pF)

Vdd, Drain to Drain Voltage (V)

15 30 45 6

450

300

150

600

'A' Connection

Loa d Current (A)

@25C, pulsed

10 mA Control

-0.1-0.2-0.3-0.4-0.5

0.50

1.25

1.00

0.25

0.75

-0.25

-1.25

-1.00

-0.75

-0.50

0.40.30.20.1

Connec tion 'A' Voltage Drop (Vdd )

Rd-on (Normalized t o 25 deg. C)

Ambient Temperature (d eg. C)

2.5

2.0

1.5

1.0

0.5

-50 -25

0 25 50 75 100 12

10 mA Control

= 500 m A

'A' Connec tion

Figure 3. Linearity Characteristics Figure 4. Typical Normalized On-Resistance

* Derating of ‘B’ and ‘C’ connection at +85°C will be 70% of that specied at +40°C and is linear from +40°C to +85°C.
