F1772-410-2000

Part # F1772-410-2000
Description Cap Film 0.1uF 310VAC PET 10%17.5 X 8.5 X 15mm RDL 15mm B
Category RELAY
Availability In Stock
Qty 1820
Qty Price
1 - 382 $0.42222
383 - 764 $0.33585
765 - 1,146 $0.31666
1,147 - 1,528 $0.29427
1,529 + $0.26229
Manufacturer Available Qty
ERD
  • Shipping Freelance Stock: 323
    Ships Immediately
ERD
Date Code: 0006
  • Shipping Freelance Stock: 97
    Ships Immediately
VISHAY ROEDERSTEIN
Date Code: 0006
  • Shipping Freelance Stock: 325
    Ships Immediately
Vishay
Date Code: 0006
  • Shipping Freelance Stock: 1075
    Ships Immediately



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

F1772 X2
www.vishay.com
Vishay Roederstein
Revision: 15-Apr-14
10
Document Number: 28161
For technical questions, contact: rfi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SUB-GROUP C3
4.13.1 Initial measurements Capacitance
Tangent of loss angle:
For C 1 µF at 10 kHz
For C > 1 µF at 1 kHz
4.13 Impulse voltage 3 successive impulses, full wave, peak
voltage:
X2: 2.5 kV for C 1 µF
X2: 2.5 kV/C for C > 1 µF
Max. 24 pulses
No self healing breakdowns or flash-over
4.14 Endurance Duration: 1000 h
1.25 x U
RAC
at 110 °C
Once in every hour the voltage is increased to
1000 V (RMS) for 0.1 s via resistor of
47 ± 5 %
4.14.7 Final measurements Visual examination No visible damage
Legible marking
Capacitance |C/C| 5 % compared to values measured
in 4.13.1
Tangent of loss angle Increase of tan
0.008 for: C 1 µF or
0.005 for: C > 1 µF
Compared to values measured in 4.13.1
Voltage proof
1350 V
DC
; 1 min between terminations
2120 V
AC
; 1 min between terminations and
case
No permanent breakdown or flash-over
Insulation resistance 50 % of values specified in section
“Insulation Resistance” of this specification
SUB-GROUP C4
4.15 Charge and discharge 10 000 cycles
Charged to 435 V
DC
Discharge resistance:
4.15.1 Initial measurements Capacitance
Tangent of loss angle:
For C 1 µF at 10 kHz
For C > 1 µF at 1 kHz
4.13.3 Final measurements Capacitance |C/C| 10 % compared to values measured
in 4.15.1
Tangent of loss angle Increase of tan
0.008 for: C 1 µF or
0.005 for: C > 1 µF
Compared to values measured in 4.15.1
Insulation resistance 50 % of values specified in section
“Insulation Resistance” of this specification
GROUP C INSPECTION REQUIREMENTS
SUB-CLAUSE NUMBER AND TEST CONDITIONS PERFORMANCE REQUIREMENTS
R
435 V
DC
1.5 x C dU dt
------------------------------------------
=
F1772 X2
www.vishay.com
Vishay Roederstein
Revision: 15-Apr-14
11
Document Number: 28161
For technical questions, contact: rfi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SUB-GROUP C5
4.16 Radio frequency characteristic Resonance frequency 0.9 times the value as specified in section
“Resonant Frequency” of this specification.
SUB-GROUP C6
4.17 Passive flammability
Class C
Bore of gas jet: Ø 0.5 mm
Fuel: Butane
Test duration for actual volume V in mm:
V 250: 5 s
250 < V 500: 10 s
500 < V 1750: 20 s
V > 1750: 30 s
One flame application
After removing test flame from capacitor, the
capacitor must not continue to burn for more
than 30 s. No burning particle must drop from
the sample.
SUB-GROUP C7
4.18 Active flammability 20 cycles of 2.5 kV discharges on the test
capacitor connected to U
RAC
.
The cheese cloth around the capacitors shall
not burn with a flame.
No electrical measurements are required.
GROUP C INSPECTION REQUIREMENTS
SUB-CLAUSE NUMBER AND TEST CONDITIONS PERFORMANCE REQUIREMENTS

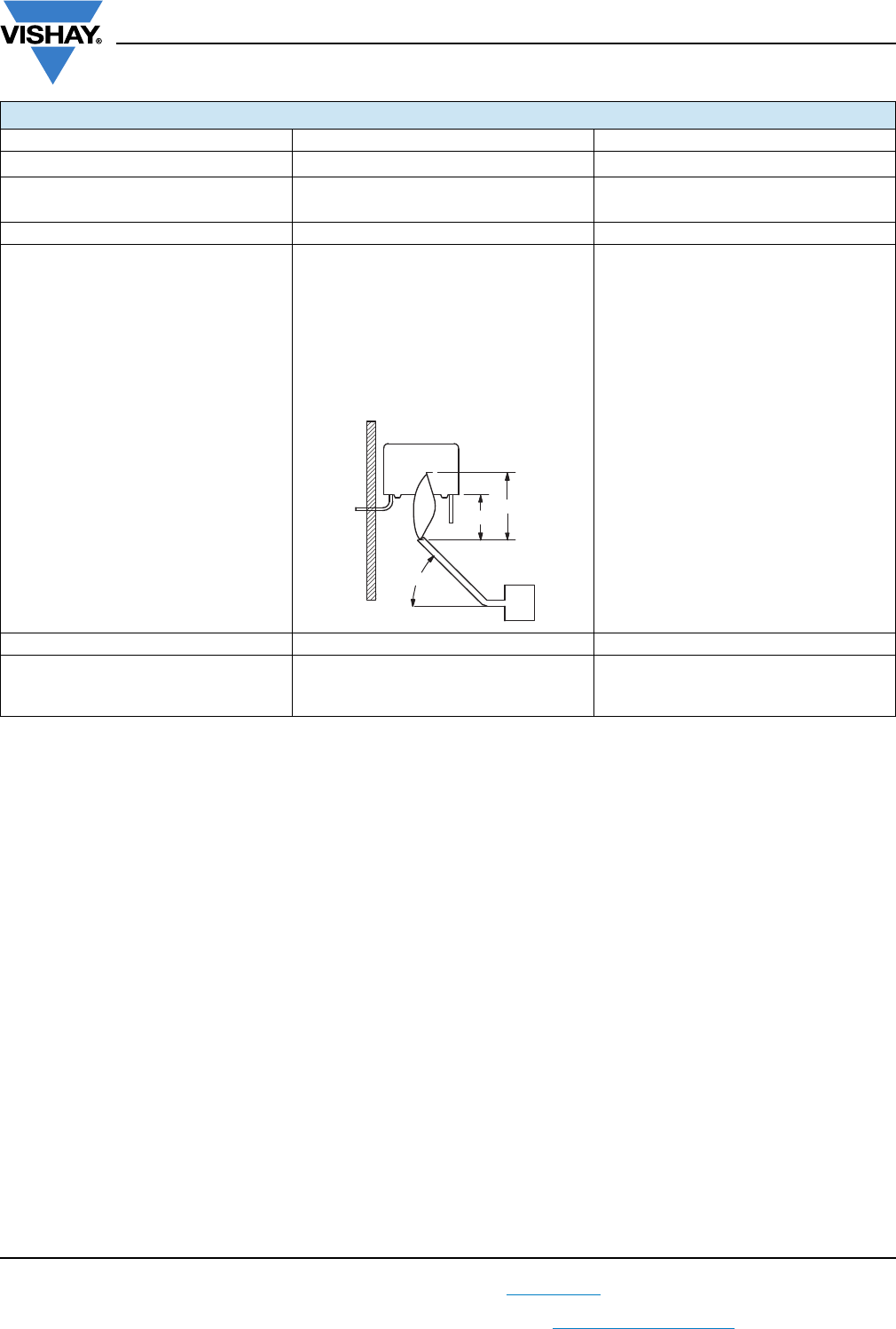

45.0°
~ 8 mm
12 mm
