F1772 X2
www.vishay.com
Vishay Roederstein
Revision: 15-Apr-14
4
Document Number: 28161
For technical questions, contact: rfi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Notes
SPQ = Standard Packing Quantity
For detailed tape specifications refer to packaging information: www.vishay.com/doc?28139
(1)
For further packaging see table “Composition of Catalog Number”.
(2)
Further information about packaging quantities with different lead length and/or taped versions, see document “Packing Quantities”
www.vishay.com/doc?27608
(3)
Weight for short lead product only
310
d
t
= 0.80 mm ± 0.08 mm; C-TOL. = ± 20 %
0.15 15 8.5 x 15.0 x 17.5 2.7 325 F17724152260
0.15 22.5 6.0 x 15.5 x 26.0 3.3 260 F17724152200
0.22 15 10.0 x 16.5 x 17.5 4.5 300 F17724222260
0.22 22.5 7.0 x 16.5 x 26.0 4.1 235 F17724222200
0.33 15 13.5 x 22.5 x 18.0 5.5 185 F17724332260
0.33 22.5 8.5 x 18.0 x 26.0 5.3 190 F17724332200
0.47 22.5 10.0 x 19.5 x 26.0 6.7 170 F17724472260
0.47 27.5 9.0 x 19.0 x 31.5 6.8 160 F17724472200
0.68 22.5 12.0 x 22.0 x 26.0 13.4 110 F17724682260
0.68 27.5 11.0 x 21.0 x 31.0 12.9 125 F17724682200
1.0 22.5 15.5 x 26.5 x 26.5 13.5 110 F17725102260
1.0 27.5 15.0 x 25.0 x 31.5 15.0 100 F17725102200
1.5 27.5 18.0 x 28.0 x 31.5 19.0 85 F17725152260
1.5 37.5 14.5 x 24.5 x 41.5 18.9 80 F17725152200
2.2 27.5 21.0 x 31.0 x 31.0 28.0 70 F17725222260
2.2 37.5 15.5 x 28.5 x 41.5 24.0 70 F17725222200
APPROVALS
SAFETY APPROVALS X2 VOLTAGE VALUE FILE NUMBERS LINK
EN 60384-14 (ENEC)
(= IEC 60384-14 ed-3)
310 V
AC
0.01 µF to 2.2 µF X2 40005079 www.vishay.com/doc?28196
UL 60384-14 310 V
AC
0.01 µF to 2.2 µF X2 E354331
www.vishay.com/doc?28191
CSA-E 384-14 310 V
AC
0.01 µF to 2.2 µF X2 E354331
CB test-certificate 310 V
AC
0.01 µF to 2.2 µF X2 DE 1-40110/A1 www.vishay.com/doc?28195
The ENEC-approval together with the CB-certificate replace all national marks of the following countries (they have already signed the
ENEC-agreement): Austria; Belgium; Czech. Republic; Denmark; Finland; France; Germany; Greece; Hungary; Ireland; Italy; Luxembourg;
Netherlands; Norway; Portugal; Slovenian; Spain; Sweden; Switzerland and United Kingdom.
ELECTRICAL DATA AND ORDERING INFORMATION
U
RAC
(V)
CAP.
(μF)
PITCH
(mm)
DIMENSIONS
w x h x l
MAX. (mm)
MASS
(3)
(g)
SPQ
(pieces)
SHORT LEAD
ORDERING CODE
BULK
LEAD LENGTH
6 mm - 1 mm
(1)(2)
F1772 X2
www.vishay.com
Vishay Roederstein
Revision: 15-Apr-14
5
Document Number: 28161
For technical questions, contact: rfi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
MOUNTING
Normal Use
The capacitors are designed for mounting on printed-circuit boards. The capacitors packed in bandoliers are designed for
mounting in printed-circuit boards by means of automatic insertion machines.
For detailed tape specifications refer to packaging information: www.vishay.com/doc?28139.
Specific Method of Mounting to Withstand Vibration and Shock
In order to withstand vibration and shock tests, it must be ensured that stand-off pips are in good contact with the printed-circuit
board:
For pitches 15 mm capacitors shall be mechanically fixed by the leads
For larger pitches the capacitors shall be mounted in the same way and the body clamped

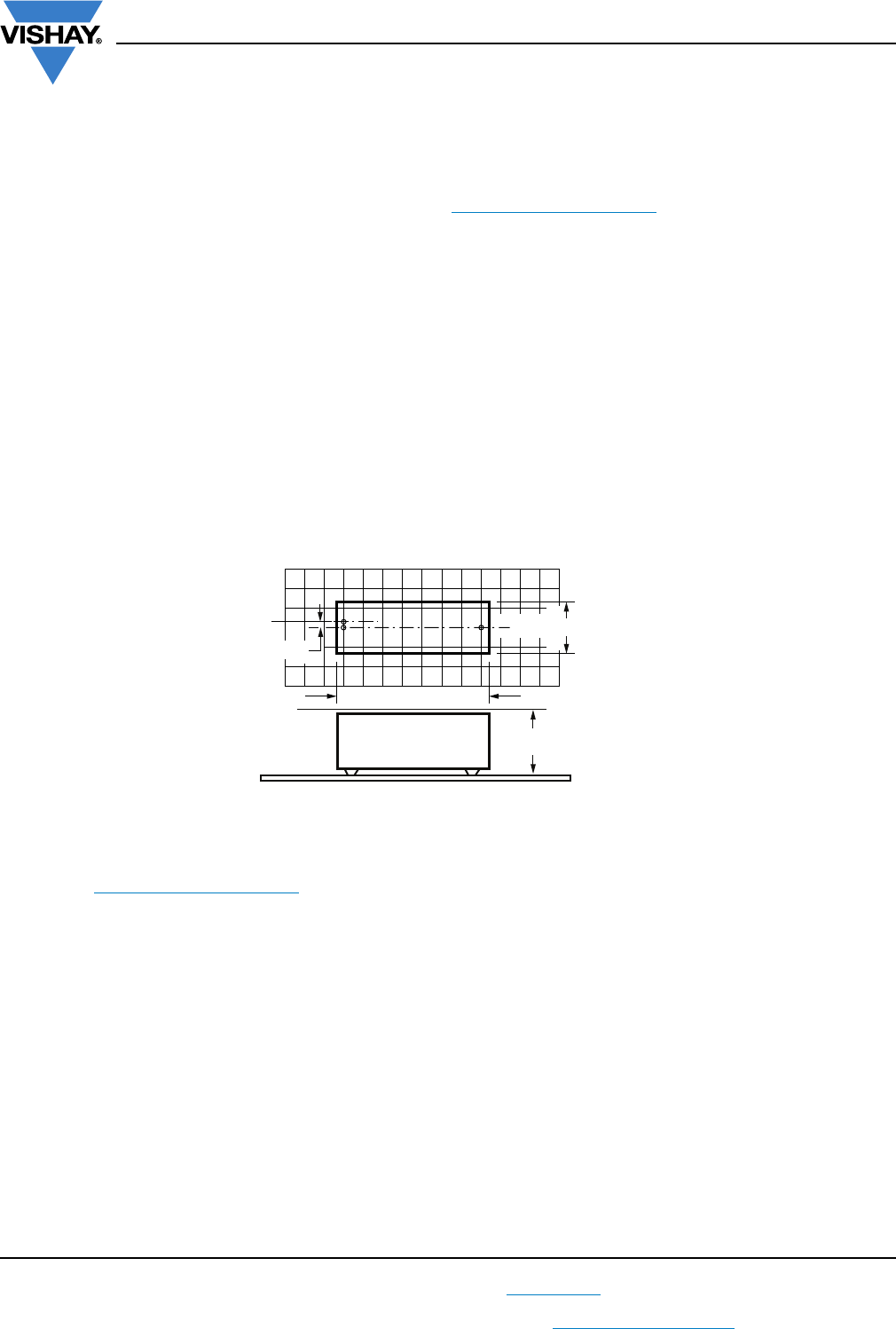

Space Requirements on Printed Circuit Board
The maximum space for length (I
max.
), width (w
max.
) and height (h
max.
) of film capacitors to take in account on the printed circuit
board is shown in the drawings.
For products with pitch 15 mm, w = l = 0.3 mm; h = 0.1 mm
For products with 15 mm < pitch 27.5 mm, w = l = 0.5 mm; h = 0.1 mm
For products with pitch = 37.5 mm, w = l = 0.7 mm; h = 0.5 mm
Eccentricity defined as in drawing. The maximum eccentricity is smaller than or equal to the lead diameter of the product
concerned.
SOLDERING CONDITIONS
For general soldering conditions and wave soldering profile, we refer to the application note: “Soldering Guidelines for Film
Capacitors”: www.vishay.com/doc?28171
Storage Temperature
T
stg
= -25 °C to +35 °C with RH maximum 75 % without condensation
Ratings and Characteristics Reference Conditions
Unless otherwise specified, all electrical values apply to an ambient temperature of 23 °C ± 1 °C, an atmospheric pressure of
86 kPa to 106 kPa and a relative humidity of 50 % ± 2 %.
For reference testing, a conditioning period shall be applied over 96 h ± 4 h by heating the products in a circulating air oven at
the rated temperature and a relative humidity not exceeding 20 %.
CBA116
Eccentricity
w
max.
= w + Δw
h
max.
= h + Δh
I
max.
= I + ΔI
Seating plane
F1772 X2
www.vishay.com
Vishay Roederstein
Revision: 15-Apr-14
6
Document Number: 28161
For technical questions, contact: rfi@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

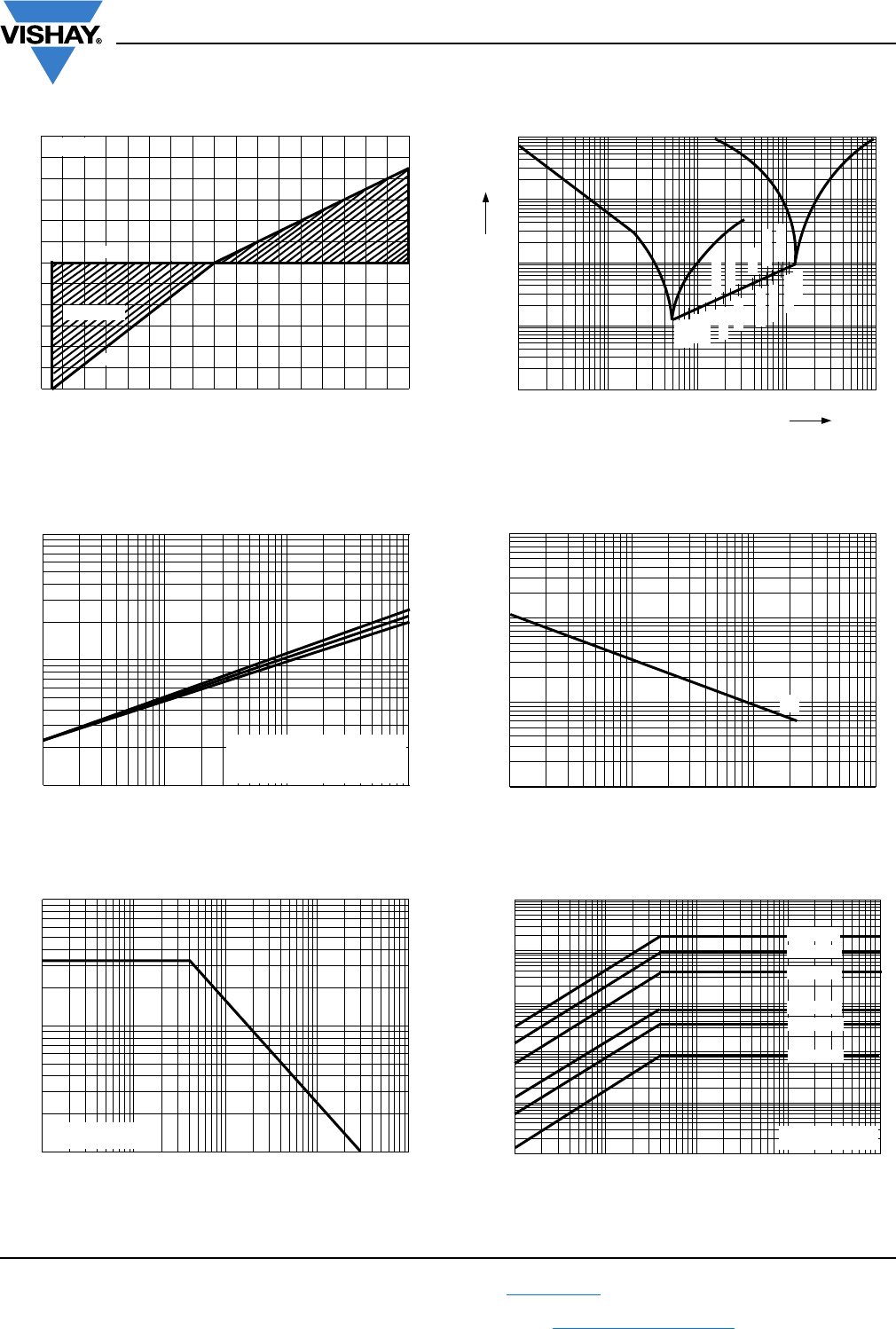

CHARACTERISTICS
Capacitance as a function of ambient temperature
(typical curve)
Impedance as a function of frequency
(typical curve)
Tangent of loss angle as a function of frequency
(typical curve)
Resonant frequency as a function of capacitance
(typical curve)
Max. RMS voltage as a function of frequency Max. RMS current as a function of frequency
- 60 - 20 20
ΔC/C
(%)
2
- 2
- 4
- 6
0
60 100T
amb
(°C)
4
6
min.
max.
1 kHz
typical
Z (Ω)
10
1
0.01
0.05
1.0
5.0
10
50
100
10
0
10
-1
10
-2
10
-3
0.1
0.5
2.2 µF
0.47 µF
1.5 µF
0.22 µF
1.0 µF
0.1 µF
0.68 µF
0.047 µF
0.33 µF
0.022 µF
0.15 µF
0.068 µF
0.033 µF
0.015 µF
0.01 µF
f (MHz)
Dissipation factor
(x 10
-4
)
10
1
10
2
10
3
f (Hz)
10
2
10
3
10
4
10
5
3
2
1
C 0.33 µF (curve 1)
0.33 µF < C 1.2 µF (curve 2)
1.2 µF < C 2.2 µF (curve 3)
10
1
10
2
10
3
10
4
C (nF)
f (MHz)
10
-1
10
0
10
1
10
2
X2
T
amb
110 °C
AC voltage
(V)
10
3
10
2
10
1
f (Hz)
10
1
10
2
10
3
10
4
10
5
f (Hz)
AC current (mA)
T
amb
110 °C
2200 nF
10
1
10
2
10
3
10
4
10
5
10
-1
10
0
10
1
10
2
10
3
10
4
1000 nF
470 nF
100 nF
47 nF
10 nF
