DIN rail Mount Solid State Relays

CKR

10-30Amp

120/240/480/600 Vac

SCR AC Switch Output

Zero Cross or Random Turn-on

LED Status Indicator

Slim Package, Only 22mm Wide

Crydom’s proprietary thermal management

technology makes for an efﬁcient and compact

package. Safe and easy-to-use box clamp terminals

with integral heat sink complete the package. Model

choices include zero-voltage or random turn-on

(phase controllable) switching (add sufﬁx -10).

UL 508A SCCR Approved, consult Crydom for actual

ratings.

Line Load Control Control Must Surge

Voltage Current Voltage Current Release Current

Range Range Range @ 12Vdc Voltage 1-Cycle

Vrms Arms Vdc mA Vdc Apk

CKRD2410 24-280 .15-10 4.5-32 15 1.0 120

UL, CSA, VDE

CKRD2420 24-280 .15-20 4.5-32 15 1.0 250

UL, CSA, VDE

CKRD2430 24-280 .15-30 4.5-32 15 1.0 625

UL, CSA, VDE

CKRD4810 48-530 .15-10 4.5-32 15 1.0 120

UL, CSA, VDE

CKRD4820 48-530 .15-20 4.5-32 15 1.0 250

UL, CSA, VDE

CKRD4830 48-530 .15-30 4.5-32 15 1.0 625

UL, CSA, VDE

CKRD6010 48-660 10 4.0-32 12 1.0 120

UL, CSA, VDE

CKRD6020 48-660 20 4.0-32 12 1.0 250

UL, CSA, VDE

CKRD6030 48-660 30 4.0-32 12 1.0 625

UL, CSA, VDE

Line Load Control Control Must Surge

Voltage Current Voltage Current Release Current

Range Range Range @120Vrms Voltage 1-Cycle

Vrms Arms Vrms mA Vrms

Apk

CKRA2410 24-280 .15-10 90-280 2 10 120

UL, CSA, VDE

CKRA2420 24-280 .15-20 90-280 2 10 250

UL, CSA, VDE

CKRA2430 24-280 .15-30 90-280 2 10 625

UL, CSA, VDE

CKRA4810 48-530 .15-10 90-280 2 10 120

UL, CSA, VDE

CKRA4820 48-530 .15-20 90-280 2 10 250

UL, CSA, VDE

CKRA4830 48-530 .15-30 90-280 2 10 625

UL, CSA, VDE

CKRA6010 48-660 10 90-280 2 10 120

UL, CSA, VDE

CKRA6020 48-660 20 90-280 2 10 250

UL, CSA, VDE

CKRA6030 48-660 30 90-280 2 10 625

UL, CSA, VDE

Operating Temperature Range: -40˚C to 80˚C Isolation Voltage: 4000 Vrms

24Vac input versions available (E sufﬁx)

HPF

20-30Amp

120/240/480 Vac

SCR AC Switch Output

Zero Cross or Random Turn-on

Low Leakage

The HPF series offers an efﬁcient and compact

package capable of switching up to 660Vac. Box

clamp terminals with integral heat sink complete the

package. Options include zero-voltage or random

turn-on (R sufﬁx) phase controllable switching.

Line Load Control Control Must Surge

Voltage Current Voltage Current Release Current

Range Range Range @ 5Vdc Voltage 1-Cycle

Vrms Arms Vdc mA Vdc Apk

HPF240D20 12-280 .15-20 4-32 5 1.0 250 UL, CSA

HPF240D30 12-280 .15-30 4-32 5 1.0 625 CSA

HPF480D20 48-660 .15-20 4.5-32 5 1.0 250 CSA

HPF480D30 48-660 .15-30 4.5-32 5 1.0 625 CSA

Operating Temperature Range: -40˚C to 80˚C Isolation Voltage: 4000 Vrms

CMR

35-65Amp

120/240/480/600 Vac

SCR AC Switch

Output

Zero Cross or Random Turn-on

Crydom’s Coolpak™ integral heat sink technology

creates a package that is efﬁcient with the

convenience of DIN rail mounting. These SPST-NO

solid state relays offer box clamp connections for

safety and ease-of-use. The on-board LED provides

visible status indication. Model choices include

zero-voltage or random turn-on (phase controllable)

switching (add sufﬁx -10). UL 508A SCCR Approved,

consult Crydom for actual ratings

Line Load Control Control Must Surge

Voltage Current Voltage Current Release Current

Range Range Range @ 5Vdc Voltage 1-Cycle

Vrms Arms Vdc mA Vdc Apk

CMRD2435 24-280 .15-35 3-32 17 1.0 250

UL, CSA, VDE

CMRD2445 24-280 .15-45 3-32 17 1.0 625

UL, CSA, VDE

CMRD2455 24-280 .25-55 3-32 17 1.0 1000

UL, CSA, VDE

CMRD2465 24-280 .25-65 3-32 17 1.0 1200

UL, CSA, VDE

CMRD4835 48-530 .15-35 4-32 14 1.0 250

UL, CSA, VDE

CMRD4845 48-530 .15-45 4-32 14 1.0 625

UL, CSA, VDE

CMRD4855 48-530 .25-55 4-32 14 1.0 1000

UL, CSA, VDE

CMRD4865 48-530 .25-65 4-32 14 1.0 1200

UL, CSA, VDE

CMRD6035 48-660 .15-35 4-32 14 1.0 250

UL, CSA, VDE

CMRD6045 48-660 .15-45 4-32 14 1.0 625

UL, CSA, VDE

CMRD6055 48-660 .25-55 4-32 14 1.0 1000

UL, CSA, VDE

CMRD6065 48-660 .25-65 4-32 14 1.0 1200

UL, CSA, VDE

Line Load Control Control Must Surge

Voltage Current Voltage Current Release Current

Range Range Range @120Vrms V

oltage 1-Cycle

Vrms Arms Vrms mA Vrms Apk

CMRA2435 24-280 .15-35 90-140 15 10 250

UL, CSA, VDE

CMRA2445 24-280 .15-45 90-140 15 10 625

UL, CSA, VDE

CMRA2455 24-280 .25-55 90-140 15 10 1000

UL, CSA, VDE

CMRA2465 24-280 .25-65 90-140 15 10 1200

UL, CSA, VDE

CMRA4835 48-530 .15-35 90-140 15 10 250

UL, CSA, VDE

CMRA4845 48-530 .15-45 90-140 15 10 625

UL, CSA, VDE

CMRA4855 48-530 .25-55 90-140 15 10 1000

UL, CSA, VDE

CMRA4865 48-530 .25-65 90-140 15 10 1200

UL, CSA, VDE

CMRA6035 48-660 .15-35 90-140 15 10 250

UL, CSA, VDE

CMRA6045 48-660 .15-45 90-140 15 10 625

UL, CSA, VDE

CMRA6055 48-660 .25-55 90-140 15 10 1000

UL, CSA, VDE

CMRA6065 48-660 .25-65 90-140 15 10 1200

UL, CSA, VDE

Operating Temperature Range: -40˚C to 80˚C Isolation Voltage: 4000 Vrms

24Vac input versions available (E sufﬁx)

MS11

LED Status Indicator (Input)

DIN rail Mount for PCB products

Line Load Control Control Must Surge

Must Surge

Voltage Voltage

Voltage

Current Curre nt Release Current

Range Range Range

@ 5/24Vdc

Voltage 1-Cycle

AC Output

Vrms Arms Vdc mA

Vdc Apk

MS11-CX240D5 12-280 .06 -5 3-15 15 1.0 250

MS11-CXE240D5 12-280 .06 -5 15-32 15 1.0 250

Line Load Control Control

Voltage Curre Curre nt Release Current

Range Range Range @5Vdc Voltage 10ms

DC Output Vdc Adc Vdc Vdc Apk

MS11-CMX60D5 0-60 0-5 3-10 15 1.0 60

MS11-CMX60D10 0-60 0-10 3-10 15 1.0 100

MS11-CMX100D6 0-100 0-6 3-10 15 1.0 100

MS11-CMX200D3 0-200 0-3 3-10 15 1.0 30

Designed speciﬁcally for a variety of Crydom’s PCB mount solid state relays, the

MS11 provides a secure and convenient DIN rail mount with an input status LED.

Other Crydom products and competitive part number cross-reference available at: www.crydom.com

DIN Rail Mount

DSD, DLD

Solid State Time Delay Control Relay

10-50Amp

120/240 Vac

SCR AC Switch Output

Externally Adjustable

Line Load Control Control Must Surge

Voltage Current Voltage Current Release Current

Range Range Range @ 5Vdc Voltage 1-Cycle

These “on-operate” (pull-in) time-delay solid state relays are housed in a single

industry standard package. AC output is controlled by a DC input and has an externally

adjustable time delays. Choices include models with two time-delay ranges (DSD

models: 0.1 sec to 8.3 sec.; DLD models: 1.6 sec. to 133 sec.)

Vrms Arms Vdc mA Vdc Apk

DSD2410 48-280 .04-10 3.5-15 3.4 1.0 120

DSD2425 48-280 .04-25 3.5-15 3.4 1.0 250

DSD2450 48-280 .04-50 3.5-15 3.4 1.0 625

DLD2410 48-280 .04-10 3.5-15 3.4 1.0 120

DLD2425 48-280 .04-25 3.5-15 3.4 1.0 250

DLD2450 48-280 .04-50 3.5-15 3.4 1.0 625

Timing Resistances

0 (Short) 10KΩ 100KΩ 470KΩ 1.0MΩ

DSD

0.10 sec 0.19 sec 0.94 sec 4.0 sec 8.3 sec

DLD 1.6 sec 3.1sec 15 sec 64 sec 133 sec

Operating Temperature Range: -30˚C to 80˚C Isolation Voltage: 4000 Vrms

SST

Solid State Soft-Start

Control Module/Relay

10-90Amp

SCR AC Switch Output

120/240 Vac

Line Load Control Control Must Surge Crydom

Voltage Current Voltage Current Release Current Solid State

Range Range Range @ 5Vdc Voltage 1-Cycle Relay (Incl.)

Vrms Arms Vdc mA Vdc Apk Part No.

SST120* 90-140 * 3.5-10 1.6 1.0 * none

10SST120 90-140 .04-10 3.5-10 1.6 1.0 120 D2410-10

25SST120 90-140 .04-25 3.5-10 1.6 1.0 250 D2425-10

50SST120 90-140 .04-50 3.5-10 1.6 1.0 625 D2450-10

SST240* 180-280 * 3.5-10 1.6 1.0 * none

10SST240 180-280 .04-10 3.5-10 1.6 1.0 120 D2410-10

25SST240 180-280 .04-25 3.5-10 1.6 1.0

250 D2425-10

50SST240 180-280 .04-50 3.5-10 1.6 1.0 625 D2450-10

75SST240 180-280 .04-75 3.5-10 1.6 1.0 1000 D2475-10

90SST240 180-280 .04-90 3.5-10 1.6 1.0 1200 D2490-10

* Control Module Only, Must be used with -10 (Series 1) DC input relay

Operating Temperature Range: -30˚C to 80˚C Isolation Voltage: 4000 Vrms

Control Relays

Solid State Control Relays

Crydom’s recognized global leadership in solid-state relays

(SSRs) is taken a step further with our extensive line of solid

state control relays. They can incorporate control circuitry,

intelligence, indication and feedback to an SSR function, further

enhancing the cost-performance beneﬁts for the end user.

Housed in familiar electrically isolated-base packages, many

commonly used power switching/control functions are

incorporated into a single relay. Crydom’s renowned advanced

thermal management techniques are utilized to ensure ease of

mounting and cooling for long life and reliable operation.

Signiﬁcant cost savings are realized from reductions in design,

volume, cooling, ﬁled maintenance, parts count, acquisition and

inventory costs.

Typical Applications

Appliances

Blow Molding Equipment

Centrifuges

Closed Loop Control

Conveyors

DC-choppers

Elevator controls

Furnaces

Gaming Equipment

Heater controls

HVAC controls

Incubators

Inverters

Lamp controls

Light Dimmers

Marine Equipment

Medical electronics

Motor controls, AC

Motor controls, Induction

Custom Designs

Crydom’s Sales and Technical Support teams will work closely

with you to deﬁne and develop customized solutions for your

unique requirements. We can help you get that competitive

edge necessary to be a leader in your industry. In-house

capabilities include ceramic substrate production, SMT

(surface mount technology) placement/insertion robotics

assembly and elevated/low temperature monitored testing. All

this interprets into fast-track design, prepare prototypes, test,

evaluate, adjust and ﬁnalize as necessary to achieve the stated

performance criteria. Upon ﬁnal customer approval we can

quickly gear up to meet your production schedules in our

ISO9001 certiﬁed manufacturing environment.

Motor controls, Universal

Motor-starter

Ovens

Polishing Equipment

Power supplies

Printing Equipment

Pump Controls

Reﬂow Soldering

Slow-start controls

Steamers

Sterilizers

Temperature Controls

Three-phase switching

Traction

Transformer Switching

Transportation

UPS systems

Welding

UL,

cUL

UL,

cUL

UL,

cUL

UL,

cUL

UL,

cUL

UL,

cUL

UL,

cUL

UL,

cUL

UL,

cUL

UL,

cUL

UL,

cUL

UL,

cUL

UL,

cUL

UL,

cUL

Questions? Call or e-mail

+1 (877) 502 5500

+44 (0) 1202 606030

sales@crydom.com

sales-europe@crydom.com

Americas

Europe

Models SST120 and SST240 control modules gradually apply power to the load when

energized by the control voltage. They must be used with Crydom Series 1 random

turn-on solid state relays. Consult factory for SST wiring diagrams and about use with

480 Vac loads. For a complete set (control module and solid state relay) order

10SST120, 25SST120, etc.

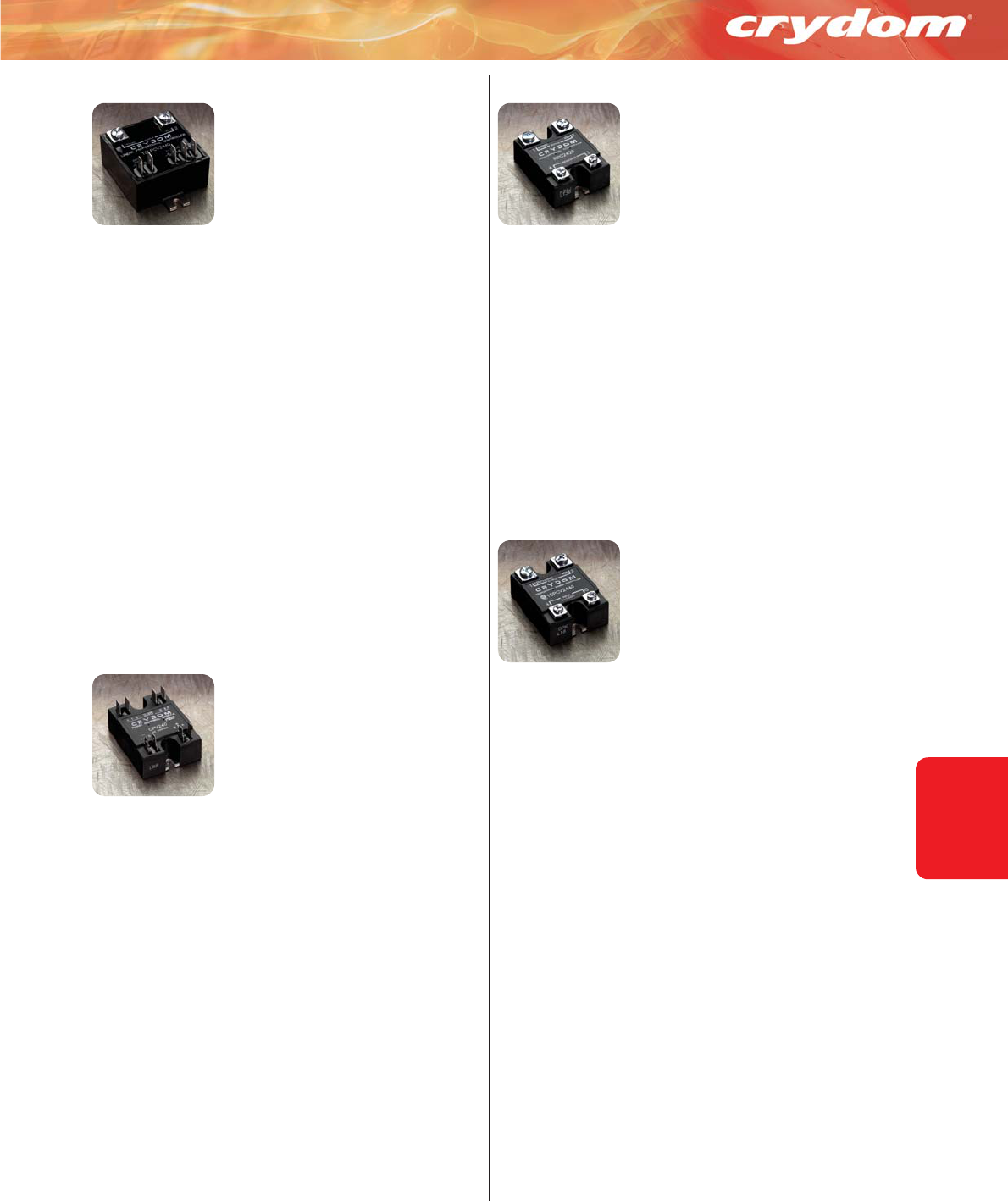

Solid State Control Relays

LPCV

Solid State Linear Proportional

Control Relay

15-110Amp

120/240 Vac

SCR AC Switch Output

Precise Proportional Load Control

egruSdaoLeniL

Voltage Current Control

Turn-On Input

Current

Range Range Range Threshold Impedance 1-Cycle

kpAsmhOsmrAsmrV

5LPCV2415 20-300 .10-15 0-5Vdc .25Vdc 12.7K 150

5LPCV2425 20-300 .10-25 0-5Vdc .25Vdc 12.7K 250

5LPCV2440 20-300 .10-40 0-5Vdc .25Vdc 12.7K 625

5LPCV2475 20-300 .15-75 0-5Vdc .25Vdc 12.7K 1000

5LPCV24110 20-300 .20-110 0-5Vdc .25Vdc 12.7K 1500

10LPCV2415 20-300 .10-15 0-10Vdc .5Vdc 25K 150

10LPCV2425 20-300 .10-25 0-10Vdc .5Vdc 25K 250

10LPCV2440 20-300 .10-40 0-10Vdc .5Vdc 25K 625

10LPCV2475 20-300 .15-75 0-10Vdc .5Vdc 25K 1000

10LPCV24110 20-300 .20-110 0-10Vdc .5Vdc 25K 1500

20LPCV2415 20-300 .10-15 4-20mA 4.5mA 460 150

20LPCV2425 20-300 .10-25 4-20mA 4.5mA 460 250

20LPCV2440 20-300 .10-40 4-20mA 4.5mA 460 625

20LPCV2475 20-300 .15-75 4-20mA 4.5mA 460 1000

20LPCV24110 20-300 .20-110 4-20mA 4.5mA 460 1500

Operating Temperature Range: -30˚C to 80˚C, Isolation Voltage: 2500 Vrms

CPV

Solid State Phase Control

Module/Relay

10-90Amp

120/240 Vac

0-5Vdc Phase Control

Line Load Logic Control Surge Crydom

Voltage Current Supply Voltage Current Solid State

Range Range Voltage Range 1-Cycle Relay (Incl.)

Models CPV120 and CPV240 solid state control modules provide control of the

phased turn-on of a solid state relay, in response to the application of a 0-5 Vdc

control signal. They must be used with Crydom Series 1 random turn-on solid

state relays. Consult factory for wiring diagrams and about use with 480 Vac

loads. For acomplete set (control relay and solid state relay) order 10CPV120,

25CPV120, etc.

Vrms Arms Vdc Vdc Apk Part No.

CPV120* 90-140 * 3.5-10 0-5 * none

10CPV120 90-140 .04-10 3.5-10 0-5 120 D1210-10

25CPV120 90-140 .04-25 3.5-1

0 0-5 250 D1225-10

40CPV120 90-140 .04-40 3.5-10 0-5 625 D1240-10

CPV240* 180-280 * 3.5-10 0-5 * none

10CPV240 180-280 .04-10 3.5-10 0-5 120 D2410-10

25CPV240 180-280 .04-25 3.5-10 0-5 250 D2425-10

50CPV240 180-280 .04-50 3.5-10 0-5 625 D2450-10

75CPV240 180-280 .04-75 3.5-10 0-5 1000 D2475-10

90CPV240 180-280 .04-90 3.5-10 0-5 1200 D2490-10

* Control Module Only, Must be used with -10 (Series 1) DC input relay

Operating Temperature Range: -30˚C to 80˚C Isolation Voltage: 4000 Vrms

RPC

Solid State Proportional Control

15-40Amp

120/240/480 Vac

Economical Potentiometer Control

egruSdaoLeniL

Voltage Current Off-State

Potentiometer Potentiometer

Current

Range Range Leakage Resistance Wattage 1-Cycle

The RPC series provides a cost effective method of controlling power in many

different application such as heaters or incandescent lamps. A customer provided

potentiometer is all that is required for control. All RPC products are supplied with

KS100 protective cover.

Vrms Arms mA Ohms W Apk

RPC1215 90-130 .07-15 10 150K 1 150

RPC1225 90-130 .08-25 10 150K 1 250

RPC1240 90-130 .09-40 10 150K 1 625

RPC2415 200-240 .07-15 7 1 Meg .5 150

RPC2425 200-240 .08-25 7 1 Meg .5 250

RPC2440 200-240 .09-40 7 1 Meg .5 625

RPC4815 400-480 .07-15 3 1 Meg .5 150

RPC4825 400-480 .08-25 3 1 Meg .5 250

RPC4840 400-480 .09-40 3 1 Meg .5 625

Operating Temperature Range: -30˚C to 80˚C Isolation Voltage: 2500 Vrms (Load to baseplate only)

Note:

Control to load is not isolated, exercise care in handling this product to avoid the risk of electric shock.

PCV

Solid State Analog Input Power

Control Relays

15-90Amp

120/240 Vac

SCR AC Switch Output

The PCV Series solid state proportional control relays are self contained power control

relays integrating a complete phase ﬁred logic control system and a solid state

relay in the same standard package.

Line Load Control Control Surge

Voltage Current Off-State Voltage Current Current

Range Range Leakage Range @ 5Vdc 1-Cycle

Vrms Arms mA Vdc mA Apk

7PCV2415 100-240 .15-15 10 2-7 4 150

7PCV2425 100-240 .15-25 15 2-7 4 250

10PCV2415 100-240 .15-15 10 2-10 4 150

10PCV2425 100-240 .15-25 15 2-10 4 250

10PCV2450 100-240 .15-50 20 2-10 4 625

10PCV2475 100-240 .15-75 20 2-10 4 1000

10PCV2490 100-240 .15-90

20 2-10 4 1200

Operating Temperature Range: -30˚C to 80˚C Isolation Voltage: 2500 Vrms

Control Relays

UL, CSA

Other Crydom products and competitive part number cross-reference available at: www.crydom.com

The LPCV solid state linear proportional control relays control loads up to 110 amps.

Changes in the input signal linearly vary the ﬁring angle of the thyristor load control

device.

Control circuitry and power switch are in a single package.

PS-120 (120V), PS-240 (240V) These power supplies are designed for use with the Series

LPCV control relays to provide the 20Vac required in addition to the control voltage.

Part #	D2D12
Description	Relay SSR 28mA 32V DC-IN 12A200V DC-OUT 4-Pin
Category	RELAY
Availability	In Stock
Qty	1

D2D12

Related Items

Technical Document
