D2D12

Part # D2D12
Description Relay SSR 28mA 32V DC-IN 12A200V DC-OUT 4-Pin
Category RELAY
Availability In Stock
Qty 1
Qty Price
1 + $38.06789
Manufacturer Available Qty
CRYDOM
Date Code: 9609
  • Shipping Freelance Stock: 1
    Ships Immediately

Related Items

0052A1H0B
ARI
RELAY
0052A1H0B

01142.0-00
Stego
RELAY
01142.0-00
$26.60361
02227-0010970
SOILD STATE
RELAY
02227-0010970

034368
EG&G ROTRON
RELAY
034368
$365.09374
035-014CS
ELECTRONIC SPECIALTY CORP
RELAY
035-014CS
$2.74773
04763-M3
WIMA
RELAY
04763-M3



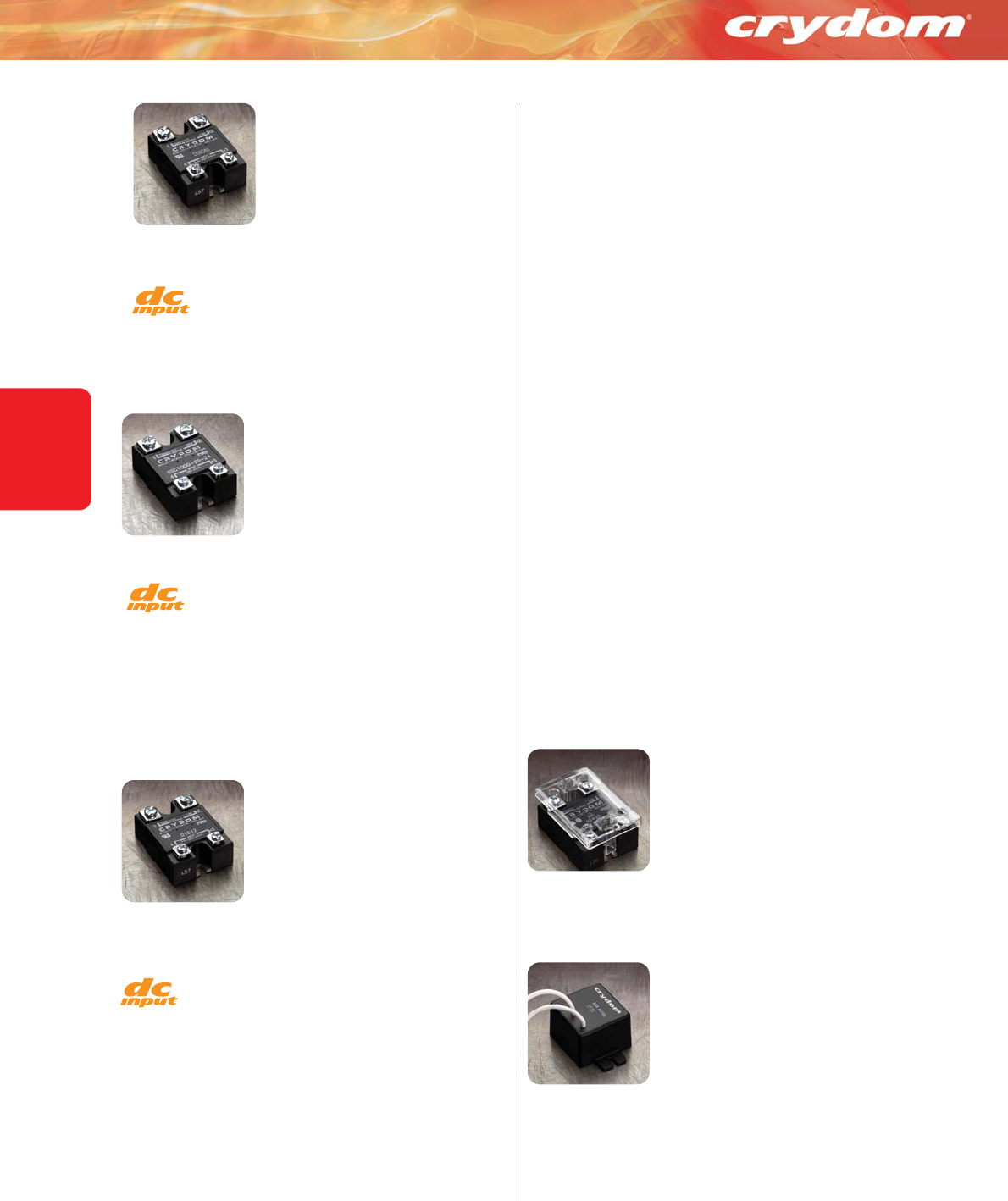

Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

Panel Mount
HD60, HA60
25-125Amp
600 Vac
Zero Voltage or Random Turn-on
Ultra Low Control Current
Crydom's HD60 (DC control) and HA60 (AC control) relays incorporate the same
proven technologies as the HD/HA products with up to 660 Vac load voltage
range, preferred choice in Canada. All models come with 1200 volts blocking as
standard and are available in either zero-cross or random turn-on and phase
controllable (-10) switching versions.
Line Load Control Control Must Surge
Voltage Current Voltage Current Release Current
Range Range Range @ 5Vdc Voltage 1-Cycle
Vrms Arms Vdc mA Vdc Apk
HD6025 48-660 .04-25 3-32 2.0 1.0 250
UL, CSA, VDE
HD6050 48-660 .04-50 3-32 2.0 1.0 625
UL, CSA, VDE
HD6090 48-660 .04-90 3-32 2.0 1.0 1200
UL, CSA, VDE
HD60125 48-660 .15-125 3-32 2.0 1.0 1750
UL, CSA
Line Load Control Control Must Surge
Voltage Current Voltage Current Release Current
Range Range Range
@120Vrms
Voltage 1-Cycle
Vrms Arms Vrms mA Vrms Apk
HA6025 48-660 .04-25 90-280 2.0 10.0 250
UL, CSA, VDE
HA6050 48-660 .04-50 90-280 2.0 10.0 625
UL, CSA, VDE
HA6090 48-660 .04-90 90-280 2.0 10.0 1200
UL, CSA, VDE
HA60125 48-660 .15-125 90-280 2.0 10.0 1750
UL, CSA
Operating Temperature Range: -40˚C to 80˚C,
Isolation Voltage: 4000 Vrms, Minimum Off-State dv/dt: 500V/μsec
24 Vac input versions available (E suffix)
Panel Mount Solid State Relays - AC Output
CMD, CMA
25-125Amp
120/240/480/600 Vac
SCR AC Switch Output
Zero Cross or Random Turn-on
These Propack SPST-NO solid state relays offer box clamp connections for safety
and ease-of-use. The on-board LED provides visible status indication. Also
available with DIN rail mount and integral heat sink, (see CMR products on page 14).
Model choices include zero-voltage or random turn-on (phase controllable)
switching (add suffix -10).
Line Load Control Control Must Surge
Voltage Current Voltage Current Release Current
Range Range Range @ 5Vdc Voltage 1-Cycle
Vrms Arms Vdc mA Vdc Apk
CMD2425 24-280 .15-25 3-32 17 1.0 250
UL, CSA, VDE
CMD2450 24-280 .15-50 3-32 17 1.0 625
UL, CSA, VDE
CMD2475 24-280 .25-75 3-32 17 1.0 1000
UL, CSA, VDE
CMD2490 24-280 .25-90 3-32 17 1.0 1200
UL, CSA, VDE
CMD24110 24-280 .25-110 3-32 17 1.0 1500
UL, CSA
CMD24125 24-280 .25-125 3-32 17 1.0 1750
UL, CSA
CMD4825 48-530 .15-25 4-32 14 1.0 250
UL, CSA, VDE
CMD4850 48-530 .15-50 4-32 14 1.0 625
UL, CSA, VDE
CMD4875 48-530 .25-75 4-32 14 1.0 1000
UL, CSA, VDE
CMD4890 48-530 .25-90 4-32 14 1.0 1200
UL, CSA, VDE
CMD48110 48-530 .25-110 4-32 14 1.0 1500
UL, CSA
CMD48125 48-530 .25-125 4-32 14 1.0 1750
UL, CSA
CMD6025 48-660 .15-25 4-32 14 1.0 250
UL, CSA, VDE
CMD6050 48-660 .15-50 4-32 14 1.0 625
UL, CSA, VDE
CMD6075 48-660 .25-75 4-32 14 1.0 1000
UL, CSA, VDE
CMD6090 48-660 .25-90 4-32 14 1.0 1200
UL, CSA, VDE
CMD60110 48-660 .25-110 4-32 14 1.0 1500
UL, CSA
CMD60125 48-660 .25-125 4-32 14 1.0 1750
UL, CSA
Line Load Control Control Must Surge
Voltage Current Voltage Current Release Current
Range Range Range @120Vrms Voltage 1-Cycle
Vrms Arms Vrms mA Vrms Apk
CMA2425 24-280 .15-25 90-140 15 10 250
UL, CSA, VDE
CMA2450 24-280 .15-50 90-140 15 10 625
UL, CSA, VDE
CMA2475 24-280 .25-75 90-140 15 10 1000
UL, CSA, VDE
CMA2490 24-280 .25-90 90-140 15 10 1200
UL, CSA, VDE
CMA24110 24-280 .25-110 90-140 15 10 1500
UL, CSA
CMA24125 24-280 .25-125 90-140 15 10 1750
UL, CSA
CMA4825 48-530 .15-25 90-140 15 10 250
UL, CSA, VDE
CMA4850 48-530 .15-50 90-140 15 10 625
UL, CSA, VDE
CMA4875 48-530 .25-75 90-140 15 10 1000
UL, CSA, VDE
CMA4890 48-530 .25-90 90-140 15 10 1200
UL, CSA, VDE
CMA48110 48-530 .25-110 90-140 15 10 1500
UL, CSA
CMA48125 48-530 .25-125 90-140 15 10 1750
UL, CSA
CMA6025 48-660 .15-25 90-140 15 10 250
UL, CSA, VDE
CMA6050 48-660 .15-50 90-140 15 10 625
UL, CSA, VDE
CMA6075 48-660 .25-75 90-140 15 10 1000
UL, CSA, VDE
CMA6090 48-660 .25-90 90-140 15 10 1200
UL, CSA, VDE
CMA60110 48-660 .25-110 90-140 15 10 1500
UL, CSA
CMA60125 48-660 .25-125 90-140 15 10 1750
UL, CSA
Operating Temperature Range: -40˚C to 80˚C, Isolation Voltage: 4000 Vrms, Minimum Off-State dv/dt: 500V/μsec
24 Vac input versions available (E suffix)

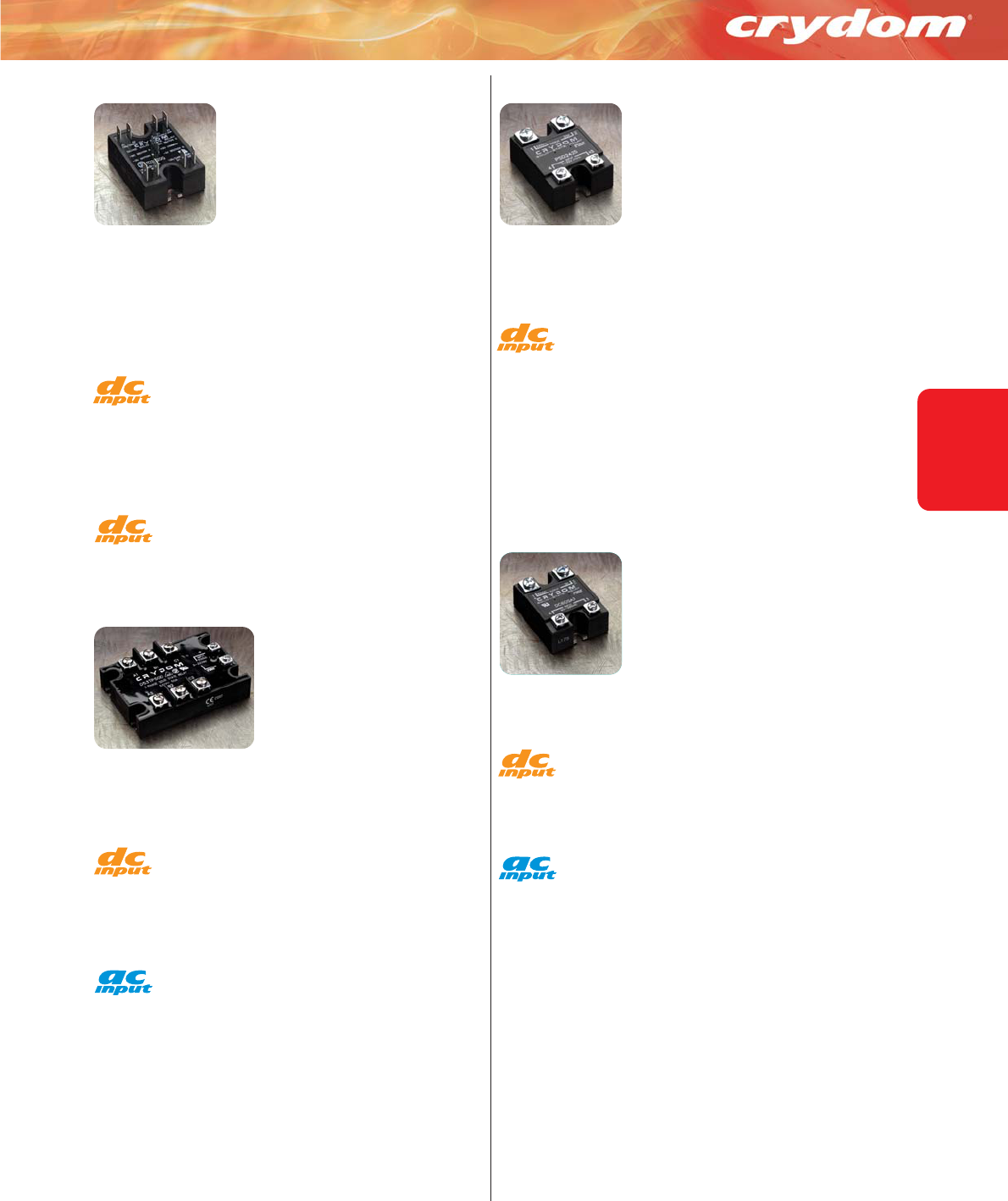

PRG
150Amp
120/240/480 Vac
SCR AC Switch Output
High Steady-State Current
Internal Snubber
Designed for the most demanding application, the PRG SPST-NO Solid State
Relays offer an exceptionally high (150 Arms current rating). They are designed
for a wide range of applications including; high-intensity incandescent lamp
dimming, motor speed control, reversing and switching, heater or pump controls
and more.
Line Load Control Control Must Surge
Voltage Current Voltage Current Release Current
Range Range Range @ 5Vdc Voltage 1-Cycle
Vrms Arms Vdc mA Vdc Apk
PRGD24150 24-280 .15-150 3-15 15 1.0 1750
PRGD24150-10 24-280 .15-150 3-15 15 1.0 1750
PRGD48150 48-530 .15-150 4-15 15 1.0 1750
PRGD48150-10 48-530 .15-150 4-15 15 1.0 1750
Line Load Control Control Must Surge
Voltage Current Voltage Current Release Current
Range Range Range @ 120Vrms Voltage 1-Cycle
Vrms Arms Vrms mA Vrms Apk
PRGA24150 24-280 .15-150 90-140 10 10 1750
PRGA24150-10 24-280 .15-150 90-140 10 10 1750
PRGA48150 48-530 .15-150 90-140 10 10 1750
PRGA48150-10 48-530 .15-150 90-140 10 10 1750
-10 suffix denotes random turn-on.
Operating Temperature Range: -30˚C to 80˚C Isolation Voltage: 4000 Vrms
10
Questions? Call or e-mail
+1 (877) 502 5500
+44 (0) 1202 606030
sales@crydom.com
sales-europe@crydom.com
Americas
Europe
53TP
25-50Amp 3 PHASE
120/240/480 Vac
SCR AC Switch Output
LED Status Indicator
Three-phase solid state relays switch up to 530 Vrms directly to loads such as
motors, transformers, heating elements, etc. Available with either AC or DC input
(coil) control in zero-voltage or random turn-on switching versions (add suffix -10).
For 24Vac Control (add suffix E).
Line Load* Control Control Must Surge*
Voltage Current Voltage Current Release Current
Range Range Range @ 5Vdc Voltage 1-Cycle
Vrms Arms Vdc mA Vdc Apk
D53TP25D 48-530 .05-25 3-32 10 1.0 250
UL, CSA, VDE
D53TP50D 48-530 .05-50 3-32 10 1.0 625
UL, CSA, VDE
D53DP25D** 48-530 .05-25 4-32 20 1.0 250
UL, cUL, VDE
D53DP50D** 48-530 .05-50 4-32 20 1.0 625
UL, cUL, VDE
Line Load* Control Control Must Surge*
Voltage Current Voltage Current Release Current
Range Range Range
@ 120Vrms
Voltage 1-Cycle
Vrms Arms Vrms mA Vrms Apk
A53TP25D 48-530 .05-25 90-280 2.2 10.0 250
UL, CSA, VDE
A53TP50D 48-530 .05-50 90-280 2.2 10.0 625
UL, CSA, VDE
A53DP25D** 48-530 .05-25 90-280 5 10.0 250
UL, cUL, VDE
A53DP50D** 48-530 .05-50 90-280 5 10.0 625
UL, cUL, VDE
* Current and Surge Ratings are per phase.
** DP is two controlled phases with the third connected straight through (A1 - A2).
Operating Temperature Range: 40˚C to 80˚C, Isolation Voltage: 4000 Vrms
Panel Mount Solid State Relays
Dual Relays, Quad Relays
120/240/480 Vac
SCR AC Switch Output
Industry Standard Package
Zero Cross or Random Turn-On
Two (Dual) or four (Quad) independent AC output relays come in a single standard
panel-mount package. Utilizing an AC switch output with internal snubber, relays
provide greater protection against false triggering. Model choices include zero
cross or random turn-on (phase controllable) switching (add suffix -10). For 24Vdc
Control (add suffix E). UL 508A SCCR Approved, consult Crydom for actual ratings.
Duals
Line Load Control Control Must Surge
Voltage Current Voltage Current Release Current
Range Range Range @ 5Vdc Voltage 1-Cycle
Vrms Arms Vdc mA Vdc Apk
D2425D 24-280 .15-25 4-15 13 1.0 250
UL, CSA, VDE
D2440D 24-280 .15-40 4-15 13 1.0 625
UL, CSA, VDE
H12D4825D 48-530 .15-25 4-15 13 1.0 250
UL, cUL, VDE
H12D4840D 48-530 .15-40 4-15 13 1.0 625
UL, cUL, VDE
Quads
Line Load Control Control Must Surge
Voltage Current Voltage Current Release Current
Range Range Range @ 5Vdc Voltage 1-Cycle
Vrms Arms Vdc mA Vdc Apk
TD2420Q 24-280 .15-20 4-15 12 1.0 250
UL, CSA
TD2420Q-10 24-280 .15-20 4-15 12 1.0 250
UL, CSA
Operating Temperature Range: -40˚C to 80˚C, Isolation Voltage: 4000 Vrms (Dual), 2500 Vrms (Quad)
PSD
10-90Amp
120/240/480 Vac
Peak Switching
Internal Snubber
Output consists of an SCR AC switch turning on at the next peak of sinusoidal AC
wave form after the input has been activated. Continuing to conduct normally until
the input is deactivated and then turning off at the next current zero cross.
Suitable for switching transformers and other highly inductive loads where
significant inrush current may otherwise cause problems.
Line Load Control Control Must Surge
Voltage Current Voltage Current Release Current
Range Range Range @5Vdc Voltage 1-Cycle
Vrms Arms Vdc mA Vdc Apk
PSD2410 90-280 .04-10 3-32 2.0 1.0 120 UL,
cUL
PSD2425 90-280 .04-25 3-32 2.0 1.0 250 UL,
cUL
PSD2450 90-280 .04-50 3-32 2.0 1.0 625 UL,
cUL
PSD2490 90-280 .04-90 3-32 2.0 1.0 1200 UL,
cUL
PSD4810 48-530 .04-10 4-32 8 1.0 140
PSD4825 48-530 .04-25 4-32 8 1.0 250
PSD4850 48-530 .04-50 4-32 8 1.0 625
PSD4890 48-530 .04-90 4-32 8 1.0 1200
Operating Temperature Range: -40˚C to 80˚C, Isolation Voltage: 4000 Vrms, Minimum Off-State dv/dt: 500V/μsec
DC60
3-7Amp
60 Vdc
DC Bipolar Output
AC or DC Control
Economical Panel Mount Package
The DC60 products provide bipolar transistor DC output switching with high
(4000 Vrms) isolation voltage. Only Crydom offers AC input/DC output relays in this
economical standard panel-mount package.
Line Load Control Control Must Surge
Voltage Current Voltage Current Release Current
Range Range Range @ 5Vdc Voltage 1 sec.
Vdc Adc Vdc mA Vdc Adc
DC60S3 3-60 .02-3 3.5-32 2.2 1.0 6 UL,
cUL
DC60S5 3-60 .02-5 3.5-32 2.2 1.0 10 UL,
cUL
DC60S7 3-60 .02-7 3.5-32 2.2 1.0 14 UL,
cUL
Line Load Control Control Must Surge
Voltage Current Voltage Current Release Current
Range Range Range @120Vrms Voltage 1 sec.
Vdc Adc Vrms mA Vrms Adc
DC60SA3 3-60 .02-3 90-280 2 10 6 UL,
cUL
DC60SA5 3-60 .02-5 90-280 2 10 10 UL,
cUL
DC60SA7 3-60 .02-7 90-280 2 10 14 UL,
cUL
Operating Temperature Range: -30˚C to 80˚C Isolation Voltage:4000 Vrms
Normally closed (Form B) versions available (-B suffix)
Panel Mount - DC Output
Panel Mount
11
Other Crydom products and competitive part number cross-reference available at: www.crydom.com
SSC
25Amp
High Voltage, 0-1000 Vdc
Solid State DC Contactor
SSC solid state DC contactors feature IGBT technology for high voltage DC
switching applications.
Line Load Control Control Must Surge
Voltage Current Voltage Current Release Current
Range Range Range @12/24/36Vdc Voltage 10 ms
Vdc Adc Vdc mA Vdc Adc
SSC800-25-12 0-800 .02-25 8-16 15 1.0 75
SSC800-25-24 0-800 .02-25 20-28 15 1.0 75
SSC800-25-36 0-800 .02-25 32-40 15 1.0 75
SSC1000-25-12 0-1000 .02-25 8-16 15 1.0 75
SSC1000-25-24 0-1000 .02-25 20-28 15 1.0 75
SSC1000-25-36 0-1000 .02-25 32-40 15 1.0 75
Operating Temperature Range: -30˚C to 80˚C, Isolation Voltage: 2500 Vrms
SSC 800, includes overvoltage protection
Panel Mount Solid State Relays - DC Output
D1D, D2D, D4D, D5D
12
7-40Amp
0-500 Vdc
MOSFET Output
Low On-State Resistance
Paralleling Capability for Higher Currents
DC output relays feature MOSFET technology for low on-state resistance,
assuring easy paralleling and switching capabilities to 40 amps at 100 Vdc.
Lower current models are also available to 500 Vdc.
Line Load Control Control Must Surge
Voltage Current Voltage Current Release Current
Range Range Range @ 5Vdc Voltage 10 ms
Vdc Adc Vdc mA Vdc Adc
D1D07 0-100 .02-7 3.5-32 1.6 1.0 15
UL
D1D12 0-100 .02-12 3.5-32 1.6 1.0 28
UL
D1D20 0-100 .02-20 3.5-32 1.6 1.0 42
UL
D1D40 0-100 .02-40 3.5-32 1.6 1.0 106
UL
D2D07 0-200 .02-7 3.5-32 1.6 1.0 22
D2D12 0-200 .02-12 3.5-32 1.6 1.0 27
D2D40 0-200 .02-40 3.5-32 1.6 1.0 106
D4D07 0-400 .02-7 3.5-32 1.6 1.0 17
D4D12 0-400 .02-12 3.5-32 1.6 1.0 36
D5D07 0-500 .02-7 3.5-32 1.6 1.0 19
D5D10 0-500 .02-10 3.5-32 1.6 1.0 29
Operating Temperature Range: -30˚C to 80˚C Isolation Voltage:2500 Vrms
Heat Transfer Pads
Maximize Thermal Conductivity, 100% Grease-Free
Crydom Heat Transfer Pads offer a clean, easy-to-use and grease-free alternative
to conventional mica or grease while maximizing the thermal
conductivity.
Installation is simple, pads are die cut to fit perfectly with Crydom SSRs. To order heat
transfer pad attached to panel mount relays, add suffix “H” to part number.
TP01 All Single Phase Panel Mount SSRs TP03 Three Phase (53TP)
and Auxiliary Function Modules and
M50 Power Modules, non-adhesive
Protective Covers
KS100, KS300, KS100-SMR
TP01, TP03, TPEZ, TPCM
Protects Terminals for Safety
Custom Fit for Most Crydom SSRs
Made of durable, clear polycarbonate, these
removable covers provide additional protection from
electrical shock by covering the SSR terminals.
KS100 Standard Package, Single Phase SSRs
KS300 Three Phase (53TP)
KS100-SMR SMR, SMR-6 Series and MC Series
SSR Filters
Single and Three Phase
Suppresses EMI Noise
Simple Installation
All AC Solid State Relays generate low frequency
thyristor noise which may exceed some industrial
standards (e.g. EN50061) at the lower end of the
frequency spectrum (150-250kHz). Crydom’s
patented filter design connects easily and offer up to
50% reduction in thyristor noise
1F25 SSR Filter - Single Phase
3F20 SSR Filter - Three Phase (53TP)
3F20-4 SSR Filter - Three Phase (with neutral)
Panel Mount
D06D
60-100Amp
60 Vdc
DC MOSFET Output
Low On-State Resistance
The D06D products feature MOSFET technology and the proven durability of
the D1D models with up to 100 Amps output in a single industry standard package.
Line Load Control Control Must Surge
Voltage Current Voltage Current Release Current
Range Range Range @ 5Vdc Voltage 10 ms
Vdc Adc Vdc mA Vdc Adc
D06D60 0-60 .005-60 3.5-32 1.6 1.0 180
D06D80 0-60 .005-80 3.5-32 1.6 1.0 220
D06D100 0-60 .005-100 3.5-32 1.6 1.0 270
Operating Temperature Range: -30˚C to 80˚C Isolation Voltage:2500 Vrms
TPEZ EZ
TPCM CMD, CMA
Crydom Heat Sinks
Meet or Exceed Crydom’s Heat
Dissipation Requirements
Pre-Drilled and Tapped
Thermal management is a important consideration in the use of panel solid
state relays due to the contact dissipation (typically 1W per Amp). Crydom
heat sinks are engineered to match the heat dissipation requirements of Crydom
solid state relays. Pre-drilled and tapped for quick, seamless installations.
Panel Mount - Accessories
K/W SSR Mounting
2.1
1.5
0.7
0.4
HS-1
HS-2
HE-54
HE-90
Single Phase
Single Phase
Single Phase
(3) Single Phase or
(1) Three Phase
Panel Mount
Panel Mount
Panel Mount
Panel Mount
HS8.1
HS8.3
HE13DR
2.0
3.5
0.8
Single Phase
Single Phase
(3) Single Phase or (1) Three Phase
DIN Mount
DIN Mount
DIN Mount
MS1 1.4 Single Phase DIN Mount
MS2 2.5 Single Phase DIN Mount
MS3 1.0 (3) Single Phase or (1) Three Phase DIN Mount
MS4 4.5 Single Phase DIN Mount
Questions? Call or e-mail
+1 (877) 502 5500
+44 (0) 1202 606030
sales@crydom.com
sales-europe@crydom.com
Americas
Europe
PREVIOUS1234567NEXT
Address
Freelance Electronics
13197 Sandoval Street
Santa Fe Springs, CA 90670

Hours of Operation  (Holiday Hours)
Monday-Friday 7:30am-4:30pm PST
(Deadline for next day shipment 2:00pm PST)
Seal
Government Cage code#-1V4R6
Duns Number# 788130532
Certified Small Disadvantaged Business
Customer Service
Company
Information
Connect with Us
Twitter Facebook Instagra,
This site is protected by Trustwave's Trusted Commerce program
