AZ846-5

Part # AZ846-5

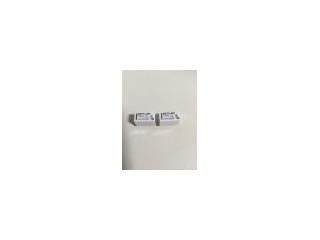

Description AZ846 Series Microminiature Polarized 2 A DPDT 5 VDC PCB M
Category RELAY
Availability In Stock
Qty 30
Qty Price
1 - 6 $1.91273
7 - 12 $1.52149
13 - 18 $1.43455
19 - 25 $1.33312
26 + $1.18821
Manufacturer Available Qty
ZELTLER
Date Code: 9831
  • Shipping Freelance Stock: 30
    Ships Immediately



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

GENERAL DATA
Life Expectancy Minimum operations
Mechanical 1 x 10
8
at 3Hz
Electrical 1 x 10
5
at 0.5 A, 125 VAC, Res.
2 x 10
5
at 1.0 A, 30 VDC, Res.
Operate Time 2 ms at nominal coil voltage
(typical)
Release Time (typical) 1 ms at nominal coil voltage
(with no coil suppression)
Bounce (typical) At 10 mA contact current
1 ms at operate or release
Capacitance < 1 pF at 10 KHz—open contacts
< 1 pF at 10 KHz—adjacent contact sets
Dielectric Strength See table
(at sea level)
Dropout Greater than 10% of nominal coil voltage
Insulation Resistance 10
9
ohms min. at 25°C, 500 VDC,
50% RH
Ambient Temperature At nominal coil voltage
Operating -40°C (-40°F) to 95°C (203°F) (3–12 VDC)
Storage -40°C (-40°F) to 90°C (194°F) (24 VDC)
-40°C (-40°F) to 115°C (239°F)
Vibration Operational, 20 g, 10–55 Hz
Non-destructive, 30 g, 10–55 Hz
Shock Operational, 50 g min., 11 ms
Non-destructive, 100 g min., 11 ms
Max. Solder Temp. 350°C (662°F) for 3 seconds
Temp./Time 260°C (500°F) for 10 seconds
Max. Solvent Temp. 80°C (176°F)
Max. Immersion Time 30 seconds
Weight 1.8 grams
Enclosure P.B.T. polyester
Terminals Tinned copper alloy, P.C.
AZ
3/14/01W
AZ846
MICROMINIATURE
POLARIZED RELAY
FEATURES
Microminiature size: up to 50% less board area than
previous generation telecom relays
High dielectric and surge voltage:
2.5 KV surge (per Bellcore TANWT001089)
1.5 KV surge (per FCC Part 68)
1,000 Vrms, open contacts
Low power consumption: 79 mW pickup
Stable contact resistance for low level signal switching
Epoxy sealed for automatic wave soldering and cleaning
UL file E43203; CSA file 700339
All plastics meet UL94 VO, 30 min. oxygen index
CONTACTS
Arrangement DPDT (2 Form C)
Bifurcated crossbar contacts
Ratings Resistive load:
Max. switched power: 60 W or 62.5 VA
Max. switched current: 2.0 A
Max. switched voltage: 220 VDC or 250 VAC
Rated Load
UL/CSA 0.5 A at 125 VAC
2.0 A at 30 VDC
0.3 A at 110 VDC
Material Silver alloy; gold clad
Resistance < 100 milliohms initially at 6 V, 1 A
COIL (Polarized)
Power
At Pickup Voltage 79 mW (312 VDC)
(typical) 113 mW (24 VDC)
Max. Continuous 1.0 W at 20°C (68°F)
Dissipation 0.78 W at 40°C (104°F)
Temperature Rise At nominal coil voltage
18°C (32°F) (312 VDC)
25°C (45°F) (24 VDC)
Temperature Max. 115°C (239°F)
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than Must Operate value.
3. Relay has fixed coil polarity.
4. Specifications subject to change without notice.
RELAY ORDERING DATA
STANDARD RELAYS
Nominal Coil Max. Continuous Coil Resistance Must Operate
ORDER NUMBER
VDC VDC ± 10% VDC
3 6.9 64 2.25 AZ8463
4.5 10.4 145 3.38 AZ8464
5 11.5 178 3.75 AZ8465
6 13.8 257 4.5 AZ8466
9 20.8 579 6.75 AZ8469
12 27.7 1,028 9.0 AZ84612
24 46.3 2,880 18.0 AZ84624
AZ
3/14/01W
AZ846
INITIAL DIELECTRIC STRENGTH (minimum) SURGE
VRMS, 1 min. Peak (V) Rise Time (µS) DecayTime* (9µS) (1/2 peak)
Between open contacts 1,000 1,500 10 160
Between contact sets 1,000 1,500 2 160
Between coil and contacts 1,800 2,500 2 10
Mechanical Data Maximum Switching Capacity
* Decay time measured from beginning of surge.
Dimensions in inches with metric equivalents in parentheses. Tolerance: ±0.010
.366
(9.2)
.579 (14.7)
.291
(7.4)
.010 (0.26)
.016
(0.4)
.020 (0.5)
.126 ± .016
(3.2)
.100
(2.54)
.200
(5.08)
.041 (1.05)
8-Ø.039
(8-Ø1.0)
345
10 9
8
1
12
WIRING DIAGRAM
PC BOARD LAYOUT
Viewed toward terminals
Viewed toward terminals
DC RESISTIVE
LOAD
AC RESISTIVE
LOAD
200100
0
0.1
0.3
0.5
1.0
2.0
30
Contact Voltage
Cont. Current
