Package mechanical data LD1117 series
30/38
Note: The DPAK package coming from the two subcontractors (Fujitsu and IDS) are fully
compatible with the ST's package suggested footprint.

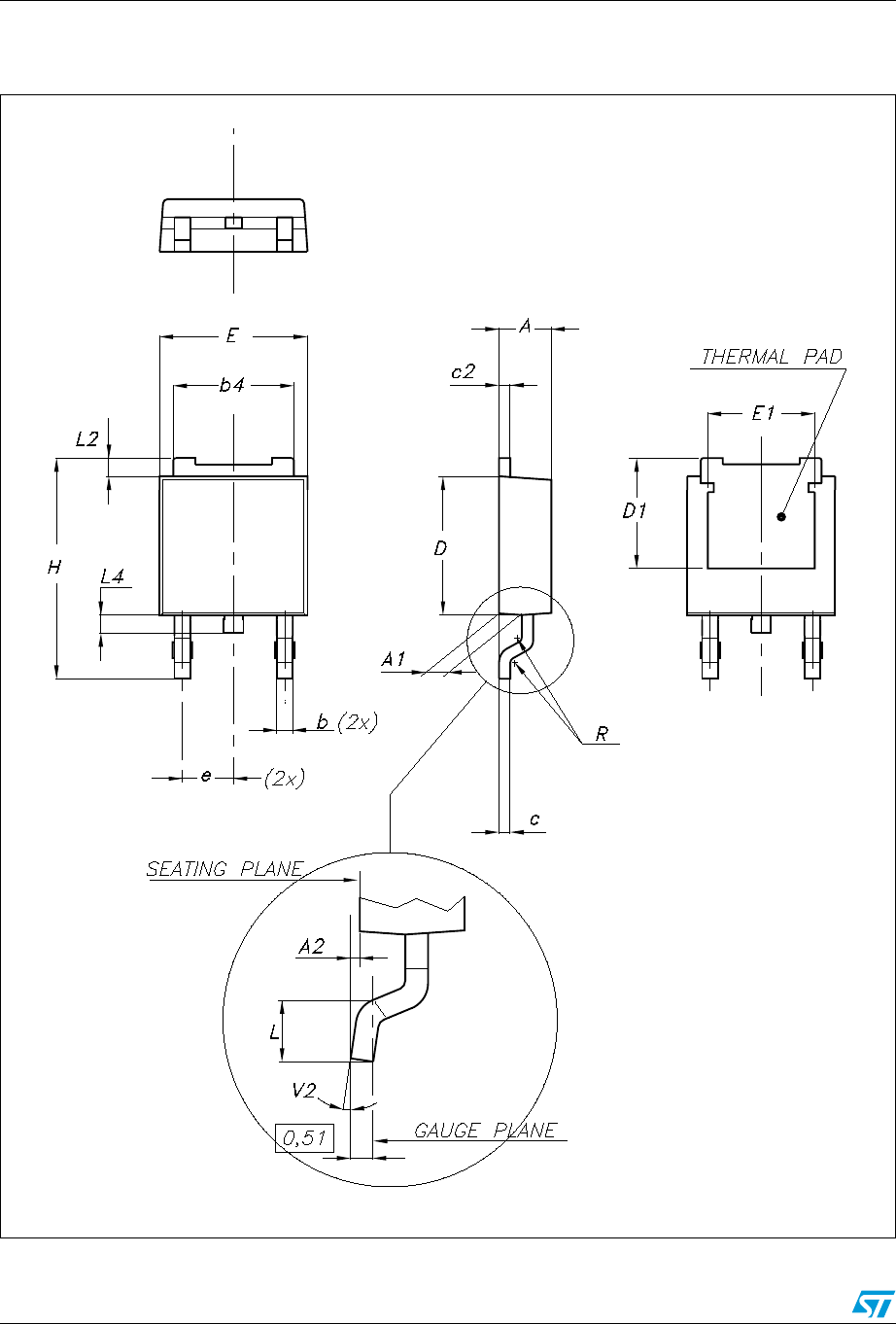

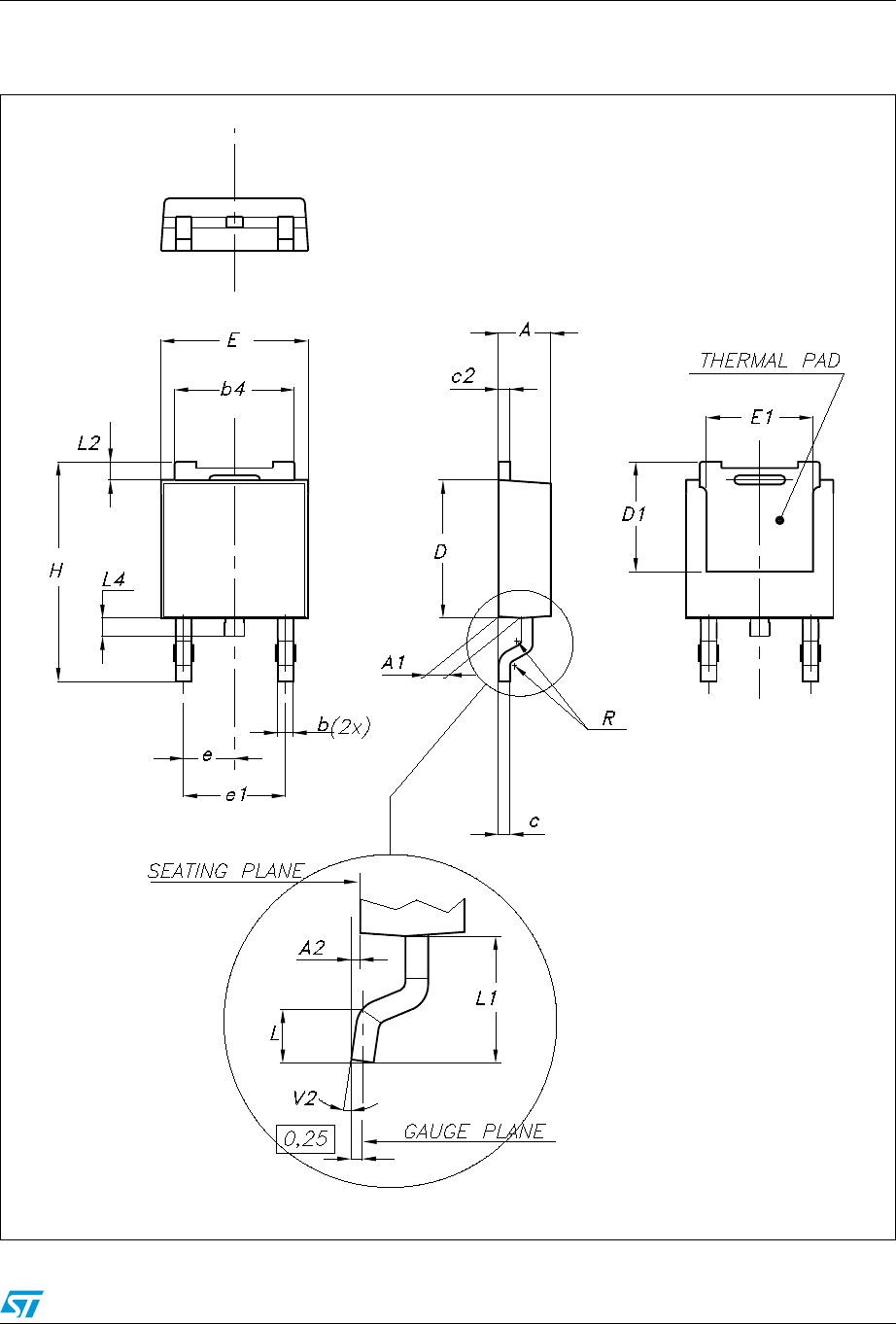

Table 18. DPAK MECHANICAL DATA
DIM.
TYPE STD-ST TYPE FUJITSU-SUBCON. TYPE IDS-SUBCON
mm. mm. mm.
MIN. TYP. MAX. MIN. TYP. MAX. MIN. TYP. MAX.
A 2.20 2.40 2.25 2.30 2.35 2.19 2.38
A1 0.90 1.10 0.96 1.06 0.89 1.14
A2 0.03 0.23 0 0.10 0.03 0.23
b 0.64 0.90 0.76 0.86 0.64 0.88
b4 5.20 5.40 5.28 5.38 5.21 5.46
c 0.45 0.60 0.46 0.56 0.46 0.58
c2 0.48 0.60 0.46 0.56 0.46 0.58
D 6.00 6.20 6.05 6.15 5.97 6.22
D1 5.10 5.27 5.47 5.20
E 6.40 6.60 6.55 6.60 6.65 6.35 6.73
E1 4.70 4.77 4.70
e 2.28 2.23 2.28 2.33 2.28
e1 4.40 4.60 4.51 4.61
H 9.35 10.10 9.90 10.30 9.40 10.42
L 1.00 1.40 1.60 0.90
L1 2.80 2.50 2.65
L2 0.80 1.03 1.13 0.89 1.27
L4 0.60 1.00 0.70 0.90 0.64 1.02
R 0.20 0.40 0.20
V2 0° 8° 0° 8° 0° 8°
