Name: LD1117DT50CTR
SKU: LD1117DT50CTR
Price: 0.09594 USD
Availability: InStock

LD1117DT50CTR

Part #

LD1117DT50CTR

Description

REG LDO LIN FIX POS 5V 1.3A 3PIN DPAK - Cut TR (SOS)

Category

RECTIFIER

Availability

In Stock

Qty

Qty

Price

1 +

$0.09594

Manufacturer

Available

Qty

SGS Thomson

Date Code: 9940

Freelance Stock: 12
Ships Immediately

Technical Document

DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

LD1117 series Package mechanical data

31/38

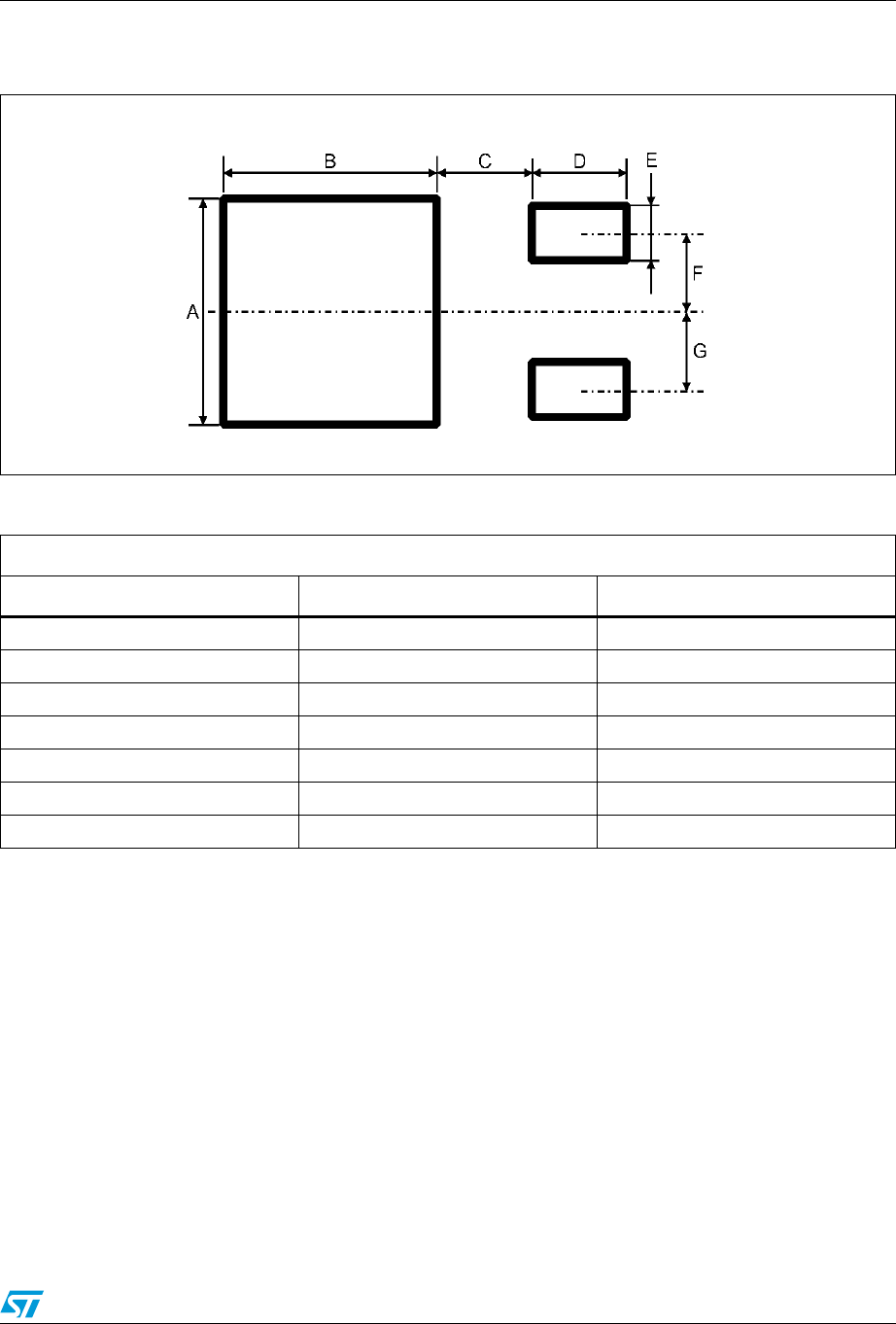

Figure 15. DPAK FOOTPRINT RECOMMENDED DATA

Table 19. FOOTPRINT DATA

VALUES

mm. inch.

A 6.70 0.264

B6.700.64

C1.80.070

D3.00.118

E 1.60 0.063

F 2.30 0.091

G 2.30 0.091

Package mechanical data LD1117 series

32/38

DIM.

mm. inch

MIN. TYP MAX. MIN. TYP. MAX.

A 4.40 4.60 0.173 0.181

C 1.23 1.32 0.048 0.051

D 2.40 2.72 0.094 0.107

D1 1.27 0.050

E 0.49 0.70 0.019 0.027

F 0.61 0.88 0.024 0.034

F1 1.14 1.70 0.044 0.067

F2 1.14 1.70 0.044 0.067

G 4.95 5.15 0.194 0.203

G1 2.4 2.7 0.094 0.106

H2 10.0 10.40 0.393 0.409

L2 16.4 0.645

L4 13.0 14.0 0.511 0.551

L5 2.65 2.95 0.104 0.116

L6 15.25 15.75 0.600 0.620

L7 6.2 6.6 0.244 0.260

L9 3.5 3.93 0.137 0.154

DIA. 3.75 3.85 0.147 0.151

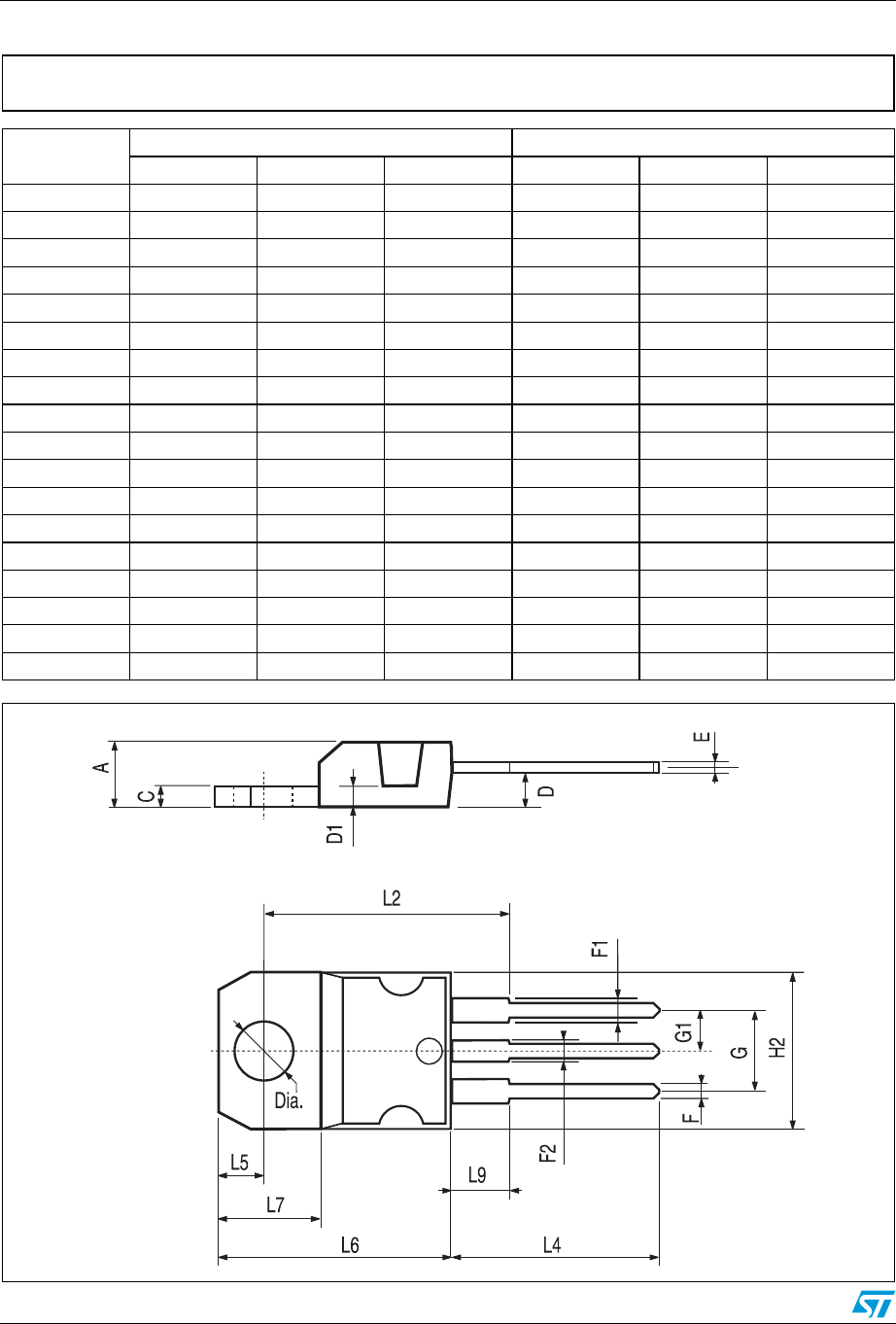

TO-220 MECHANICAL DAT

P011C

LD1117 series Package mechanical data

33/38

DIM.

mm. inch

MIN. TYP MAX. MIN. TYP. MAX.

A 330 12.992

C 12.8 13.0 13.2 0.504 0.512 0.519

D20.2 0.795

N60 2.362

T 14.4 0.567

Ao 6.73 6.83 6.93 0.265 0.269 0.273

Bo 7.32 7.42 7.52 0.288 0.292 0.296

Ko 1.78 2 0.070 0.078

Po 3.9 4.0 4.1 0.153 0.157 0.161

P 7.9 8.0 8.1 0.311 0.315 0.319

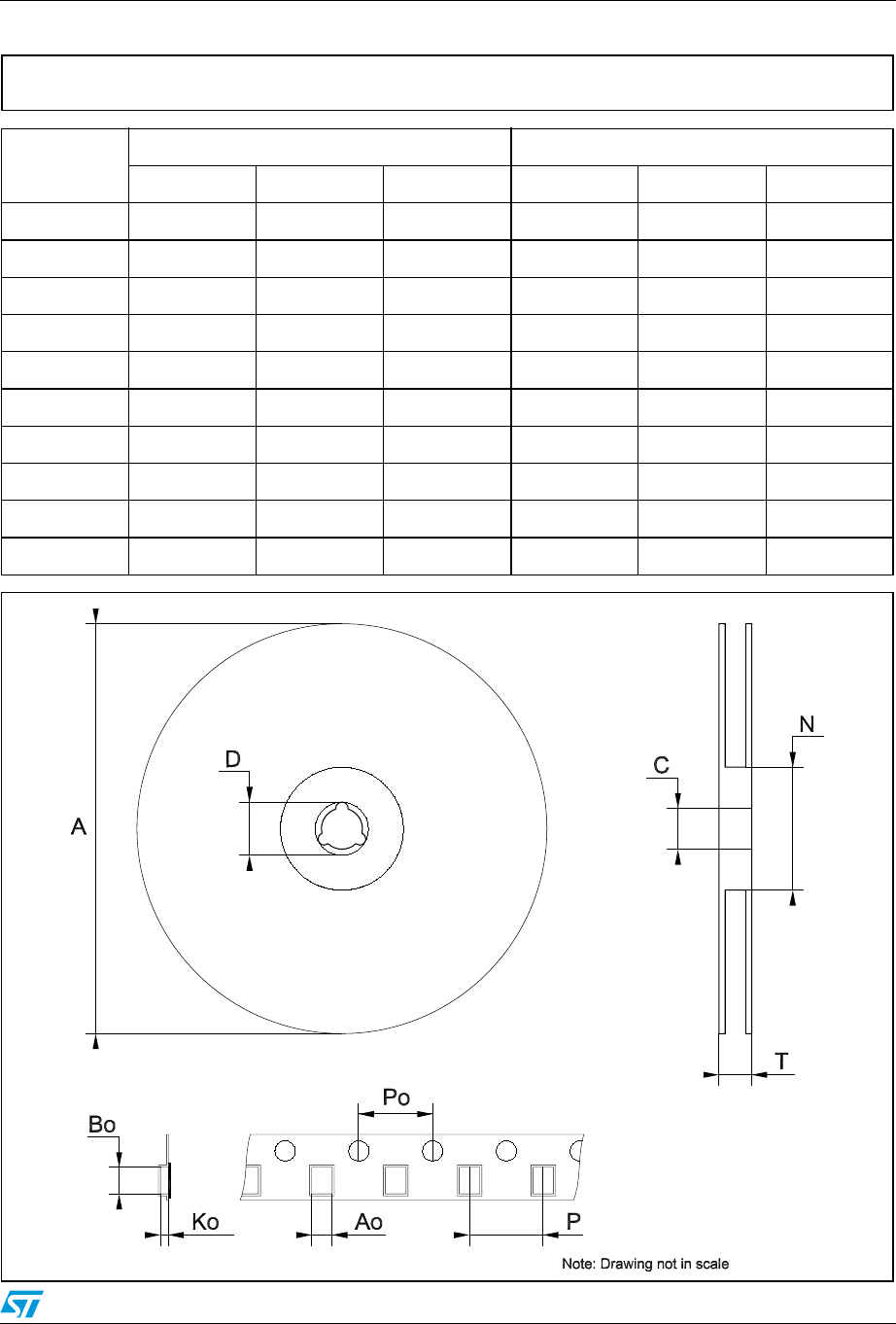

Tape & Reel SOT223 MECHANICAL DATA

LD1117DT50CTR
