Z-Rec
TM
RectifieRs and ZeRo-RecoveRy
®
RectifieRs
D
a
t
a
s
h
e
e
t
:
C
3
D
A
L
L
,
R
e
v
.
G
Power Product Line
V
RRM
(V)
I
F(AVG)
(A)
(
T
c
=150°C
)
I
F(AVG)
(A)
(
T
c
=100°C
)
V
F(T
J
=25°C)
Typ Max
V
F(T
J
=175°C)
Typ Max
T
J(Max)
(°C)
Package
Type
Recommended
for new designs?
CSD01060A 600 1 2.7 1.6 1.8 2.0 2.4 175 TO-220-2 YES
CSD01060E 600 1 2.7 1.6 1.8 2.0 2.4 175 DPAK YES
C3D02060A 600 2 5.6 1.5 1.7 1.8 2.4 175 TO-220-2 YES
C3D02060E 600 2 5.6 1.5 1.7 1.8 2.4 175 DPAK YES
C3D02060F 600 2 2.7 1.5 1.7 1.8 2.4 175 Full-Pak YES
C3D03060A 600 3 7.8 1.5 1.7 1.8 2.4 175 TO-220-2 YES
C3D03060E 600 3 7.8 1.5 1.7 1.8 2.4 175 DPAK YES
C3D03060F 600 3 3.3 1.5 1.7 1.8 2.4 175 Full-Pak YES
C3D04060A 600 4 10.8 1.5 1.7 1.8 2.4 175 TO-220-2 YES
C3D04060E 600 4 10.8 1.5 1.7 1.8 2.4 175 DPAK YES
C3D04060F 600 4 4 1.5 1.7 1.8 2.4 175 Full-Pak YES
C3D06060A 600 6 12.6 1.6 1.8 1.9 2.4 175 TO-220-2 YES
C3D06060G 600 6 12.6 1.6 1.8 1.9 2.4 175 D
2
PAK YES
C3D02060F 600 6 4.5 1.6 1.8 1.9 2.4 175 Full-Pak YES
C3D08060A 600 8 15.5 1.6 1.8 1.9 2.4 175 TO-220-2 YES
C3D08060G 600 8 15.5 1.6 1.8 1.9 2.4 175 D
2
PAK YES
C3D10060A 600 10 20.3 1.5 1.8 2.0 2.4 175 TO-220-2 YES
C3D10060G 600 10 20.3 1.5 1.8 2.0 2.4 175 D
2
PAK YES
C3D20060D 600 20 40 1.5 1.8 2.0 2.4 175 TO-247-3 YES
C3D04065A 650 4 10.8 1.5 1.7 1.8 2.4 175 TO-220-2 YES
C3D06065A 650 6 12.6 1.6 1.8 1.9 2.4 175 TO-220-2 YES
C3D08065A 650 8 15.5 1.6 1.8 1.9 2.4 175 TO-220-2 YES
C3D10065A 650 10 20.3 1.5 1.8 2.0 2.4 175 TO-220-2 YES
Fig. 1 TO-220-2

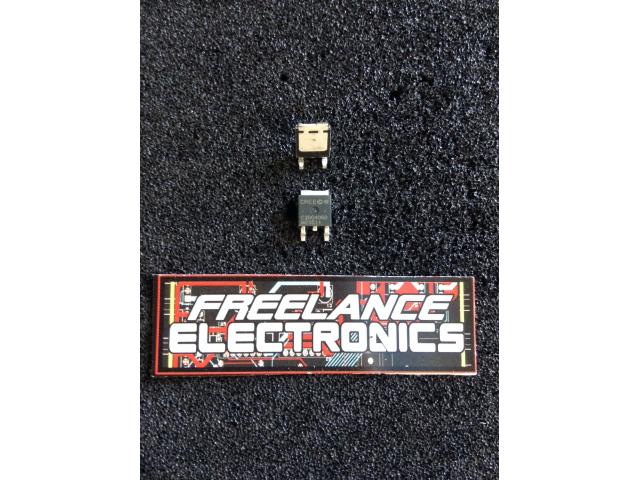

Fig. 2 DPAK
Fig. 3 D
2
PAK
Fig. 4 TO-247-3
Fig. 5 Full-Pak
