Document No. 008-0256-0 Page 1- 3 Rev. G
Model CB3 & CB3LV
HCMOS/TTL Clock Oscillator
• Standard 7.0mm x 5.0mm 4-Pad Surface Mount Package
• HCMOS/TTL Compatible Output
• Fundamental and 3
Overtone Crystal Designs
• Frequency Range 1 – 200 MHz
• Frequency Stability ±50 ppm Standard, ±25 ppm and ±20 ppm Available
• Operating Voltages +5.0Vdc or +3.3Vdc
• Operating Temperature to -40°C to +85°C
• Output Enable Standard
• Tape & Reel Packaging
• RoHS/Green Compliant (6/6)
Applications for Model CB3 and CB3LV include digital video, networking equipment, wireless communications,
broadband access, Ethernet/Gigabit Ethernet, microprocessors/DSP/FPGA, storage area networks, fiber channel,
computers and peripherals, test and measurement, SONET/SDH/DWDM, base stations and Pico cells.
4] CTS Distributors may add a -T or -1 at the end of the part number to indicate Tape and Reel packaging.
Not all performance combinations and frequencies may be available.
Contact your local CTS Representative or CTS Customer Service for availability.
6 = ± 20 ppm
5 = ± 25 ppm
3 = ± 50 ppm [std]
7 = ± 32 ppm
2 = ± 100 ppm
C = -20°C to +70°C [standard]
I = -40°C to +85°C
1] 6I Stability/Temperature combination is not available.
3] Frequency is recorded with only leading significant digits before the ‘M’ and 4 - 6 significant digits after the ‘M’ (including zeros).
[Ex. 3.579545 MHz, code as 3M579545; 14.31818 MHz, code as 14M31818; 125 MHz, code as 125M0000]
LV = +3.3Vdc
Blank = +5.0Vdc
M - indicates MHz and decimal point.
FREQUENCY STABILITY OPERATING TEMPERATURE RANGE
SUPPLY VOLTAGE FREQUENCY IN MHz
2] These stabilities are not recommended for new designs.

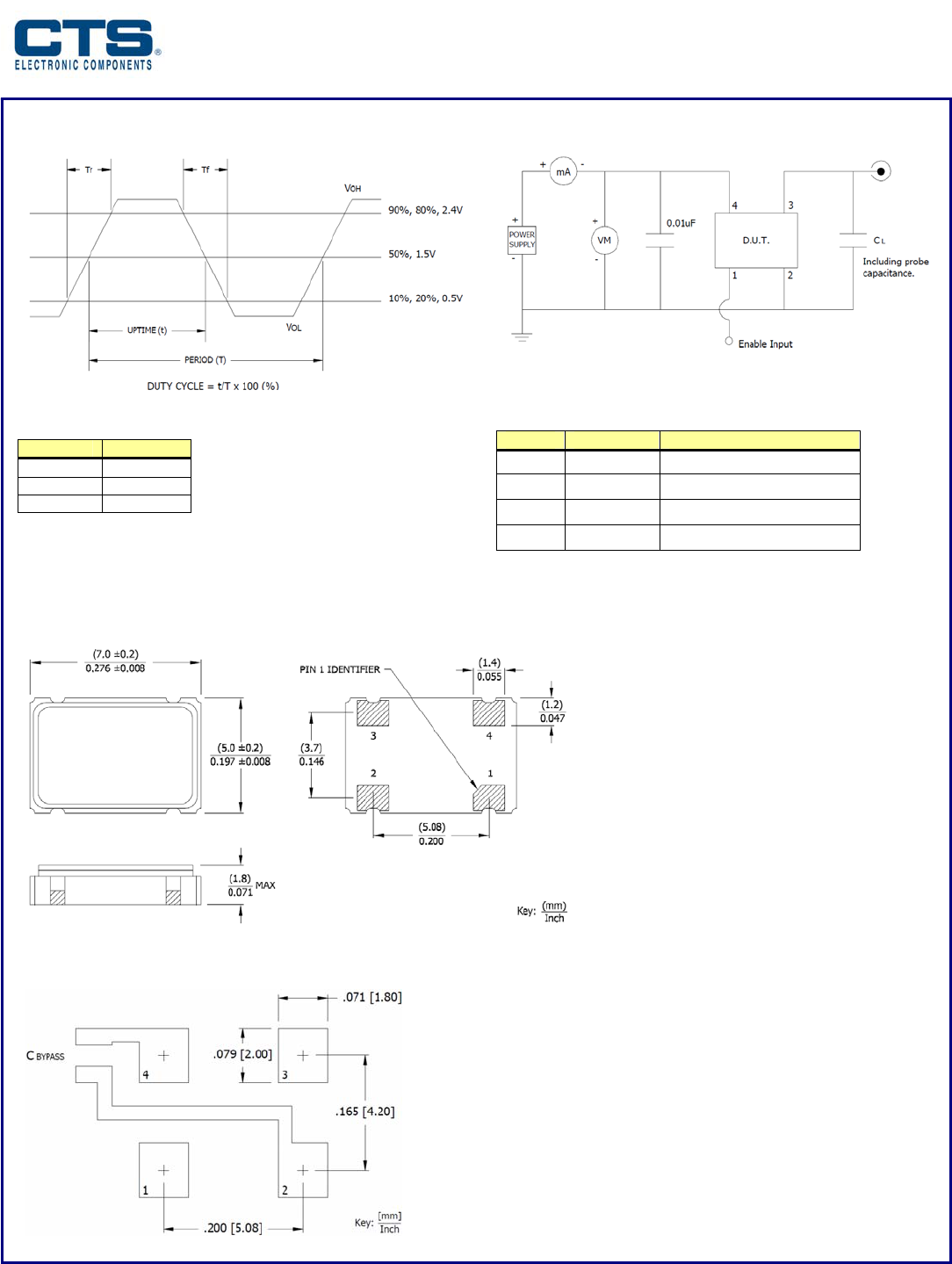

PACKAGING INFORMATION [reference]
Device quantity is 1,000 pieces maximum per reel.
