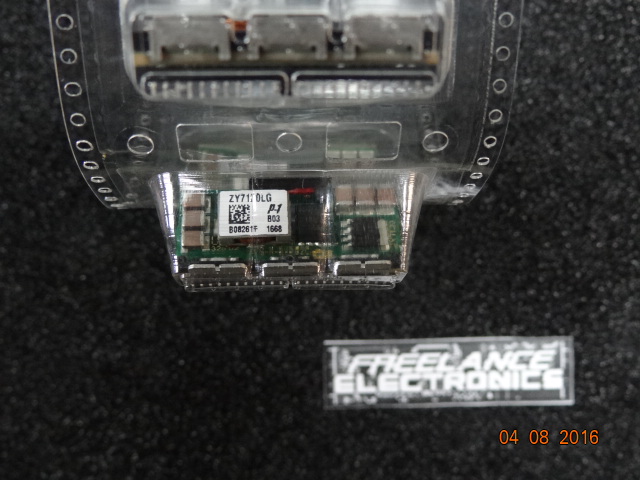

ZY7120LG-T2

Part # ZY7120LG-T2
Description PROGBL CONV DC-DC 20A OUT SMD
Category MODULE
Availability In Stock
Qty 157
Qty Price
1 - 5 $44.10552
6 - 14 $35.08393
15 - 30 $33.07914
31 - 65 $30.74021
66 + $27.39888
Manufacturer Available Qty
POWER ONE
Date Code: 0720
  • Shipping Freelance Stock: 100
    Ships Immediately
POWER ONE
  • Shipping Freelance Stock: 3
    Ships Immediately
POWER-ONE
  • Shipping Freelance Stock: 23
    Ships Immediately
POWER-ONE
  • Shipping Freelance Stock: 4
    Ships Immediately
POWER-ONE
  • Shipping Freelance Stock: 27
    Ships Immediately



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

ZY7120 20A DC-DC Intelligent POL Data Sheet
3V to 13.2V Input
0.5V to 5.5V Output
Member of the Family
Applications
Low voltage, high density systems with
Intermediate Bus Architectures (IBA)
Point-of-load regulators for high performance DSP,
FPGA, ASIC, and microprocessor applications
Desktops, servers, and portable computing
Broadband, networking, optical, and
communications systems
Active memory bus terminators
Benefits
Integrates digital power conversion with intelligent
power management
Eliminates the need for external power
management components
Completely programmable via industry-standard
I
2
C communication bus
One part that covers all applications
Reduces board space, system cost and
complexity, and time to market
Features
RoHS lead free and lead-solder-exempt products are
available
Wide input voltage range: 3V–13.2V
High continuous output current: 20A
Wide programmable output voltage range: 0.5V–5.5V
Active digital current share
Single-wire serial communication bus for frequency
synchronization, programming, and monitoring
Optimal voltage positioning with programmable slope
of the VI line
Overcurrent, overvoltage, undervoltage, and
overtemperature protections with programmable
thresholds and types
Programmable fixed switching frequency 0.5-1.0MHz
Programmable turn-on and turn-off delays
Programmable turn-on and turn-off voltage slew rates
with tracking protection
Programmable feedback loop compensation
Power Good signal with programmable limits
Programmable fault management
Start up into the load pre-biased up to 100%
Full rated current sink
Real time voltage, current, and temperature
measurements, monitoring, and reporting
Small footprint SMT package: 8x32mm
Low profile of 14mm
Compatible with conventional pick-and-place
equipment
Wide operating temperature range
UL60950 recognized, CSA C22.2 No. 60950-00
certified, and TUV EN60950-1:2001 certified
Description
The ZY7120 is an intelligent, fully programmable step-down point-of-load DC-DC module integrating digital power
conversion and intelligent power management. When used with ZM7000 Series Digital Power Managers, the
ZY7120 completely eliminates the need for external components for sequencing, tracking, protection, monitoring,
and reporting. All parameters of the ZY7120 are programmable via the industry-standard I
2
C communication bus
and can be changed by a user at any time during product development and service.
REV. 2.1 MAR 14, 2007 www.power-one.com Page 1 of 34
ZY7120 20A DC-DC Intelligent POL Data Sheet
3V to 13.2V Input
0.5V to 5.5V Output
Reference Documents:
ZM7XXX Digital Power Manager. Data Sheet
ZM7XXX Digital Power Manager. Programming Manual
Z-One
®
Graphical User Interface
ZM00056-KIT USB to I
2
C Adapter Kit. User Manual
1. Ordering Information
ZY 71 20 x y zz
Product
family:
Z-One
Module
Series:
Intelligent
POL
Converter
Output
Current:
20A
Output voltage setpoint
accuracy:
L – 1.0% or 20mV,
whichever is greater.
H
1
– 1.0% or 10mV,
whichever is greater
RoHS compliance:
No suffix - RoHS
compliant with Pb
solder exemption
2
G - RoHS compliant
for all six substances
Dash
Packaging Option
3
:
T1 – 500pcs T&R
T2 – 100pcs T&R
T3 – 50pcs T&R
Q1 – 1pc sample for
evaluation only
______________________________________
1
Contact factory for availability.
2
The solder exemption refers to all the restricted materials except lead in solder. These materials are Cadmium (Cd), Hexavalent chromium
(Cr6+), Mercury (Hg), Polybrominated biphenyls (PBB), Polybrominated diphenylethers (PBDE), and Lead (Pb) used anywhere except in
solder.
3
Packaging option is used only for ordering and not included in the part number printed on the POL converter label.
4
The evaluation board is available in only one configuration: ZM7300-KIT-HKS.
Example: ZY7120HG-T2: A 100-piece reel of RoHS compliant POL converters with the output voltage setpoint of
1.0% or 10mV, whichever is greater. Each POL converter is labeled ZY7120HG.
2. Absolute Maximum Ratings
Stresses in excess of the absolute maximum ratings may cause performance degradation, adversely affect long-
term reliability, and cause permanent damage to the converter.
Parameter Conditions/Description Min Max Units
Operating Temperature Controller case temperature -40 105
°C
Input Voltage 250ms Transient 15 VDC
Output Current (See Output Current Derating Curves) -20 20 ADC
3. Environmental and Mechanical Specifications
Parameter Conditions/Description Min Nom Max Units
Ambient Temperature Range -40 85
°C
Storage Temperature (Ts) -55 125
°C
Weight 15 grams
MTBF Calculated Per Telcordia Technologies SR-332 6.14 MHrs
Peak Reflow Temperature ZY7120 220
°C
Peak Reflow Temperature ZY7120G 245 260
°C
Lead Plating ZY7120 and ZY7120G 1.5µm Ag over 1.5µm Ni
Moisture Sensitivity Level JEDEC J-STD-020C 3
REV. 2.1 MAR 14, 2007 www.power-one.com Page 2 of 34
ZY7120 20A DC-DC Intelligent POL Data Sheet
3V to 13.2V Input
0.5V to 5.5V Output
4. Electrical Specifications
Specifications apply at the input voltage from 3V to 13.2V, output load from 0 to 20A, ambient temperature from -
40°C to 85°C, 100µF output capacitance, and default performance parameters settings unless otherwise noted.
4.1 Input Specifications
Parameter Conditions/Description Min Nom Max Units
Input voltage (V
IN
)
At V
IN
<4.75V, VLDO pin needs to be
connected to an external voltage source
higher than 4.75V
3 13.2 VDC
Input Current (at no load)
V
IN
4.75V, VLDO pin connected to VIN
50 mADC
Undervoltage Lockout (VLDO
connected to VIN)
Ramping Up
Ramping Down
4.2
3.75
VDC
VDC
Undervoltage Lockout (VLDO
connected to V
AUX
=5V)
Ramping Up
Ramping Down
3.0
2.5
VDC
VDC
External Low Voltage Supply Connect to VLDO pin when V
IN
<4.75V 4.75 13.2 VDC
VLDO Input Current
Current drawn from the external low
voltage supply at V
LDO
=5V
50 mADC
4.2 Output Specifications
Parameter Conditions/Description Min Nom Max Units
Output Voltage Range (V
OUT
)
Programmable
1
Default (no programming)
0.5
0.5
5.5
VDC
VDC
Output Voltage Setpoint Accuracy
V
IN
=12V, I
OUT
=0.5*I
OUT MAX
,
F
SW
=500kHz, room temperature
(See Ordering Information)
Output Current (I
OUT
) V
IN MIN
to V
IN MAX
-20
2
20 ADC
Line Regulation V
IN MIN
to V
IN MAX
±0.3 %V
OUT
Load Regulation 0 to I
OUT MAX
±0.2 %V
OUT
Dynamic Regulation
Peak Deviation
Settling Time
Slew rate 1A/µs, 50 -100% load step
C
OUT
=330µF, F
SW
=1MHz
to 10% of peak deviation
75
50
mV
µs
Output Voltage Peak-to-Peak
Ripple and Noise
BW=20MHz
Full Load
V
IN
=5.0V, V
OUT
=0.5V
V
IN
=5.0V, V
OUT
=2.5V
V
IN
=13.2V, V
OUT
=0.5V
V
IN
=13.2V, V
OUT
=2.5V
V
IN
=13.2V, V
OUT
=5.0V
10
20
15
35
50
mV
mV
mV
mV
mV
Temperature Coefficient V
IN
=12V, I
OUT
=0.5*I
OUT MAX
20 ppm/°C
Switching Frequency
Default
Programmable, 250kHz steps
500
500
1,000
kHz
kHz
Duty Cycle Limit
Default
Programmable, 1.56% steps
0
90.5
95
%
%
1
ZY7120 is a step-down converter, thus the output voltage is always lower than the input voltage as show in Figure 1.
2
At the negative output current (bus terminator mode) efficiency of the ZY7120 degrades resulting in increased internal power dissipation.
Therefore maximum allowable negative current under specific conditions is 20% lower than the current determined from the derating curves
shown in paragraph 5.5.
REV. 2.1 MAR 14, 2007 www.power-one.com Page 3 of 34
