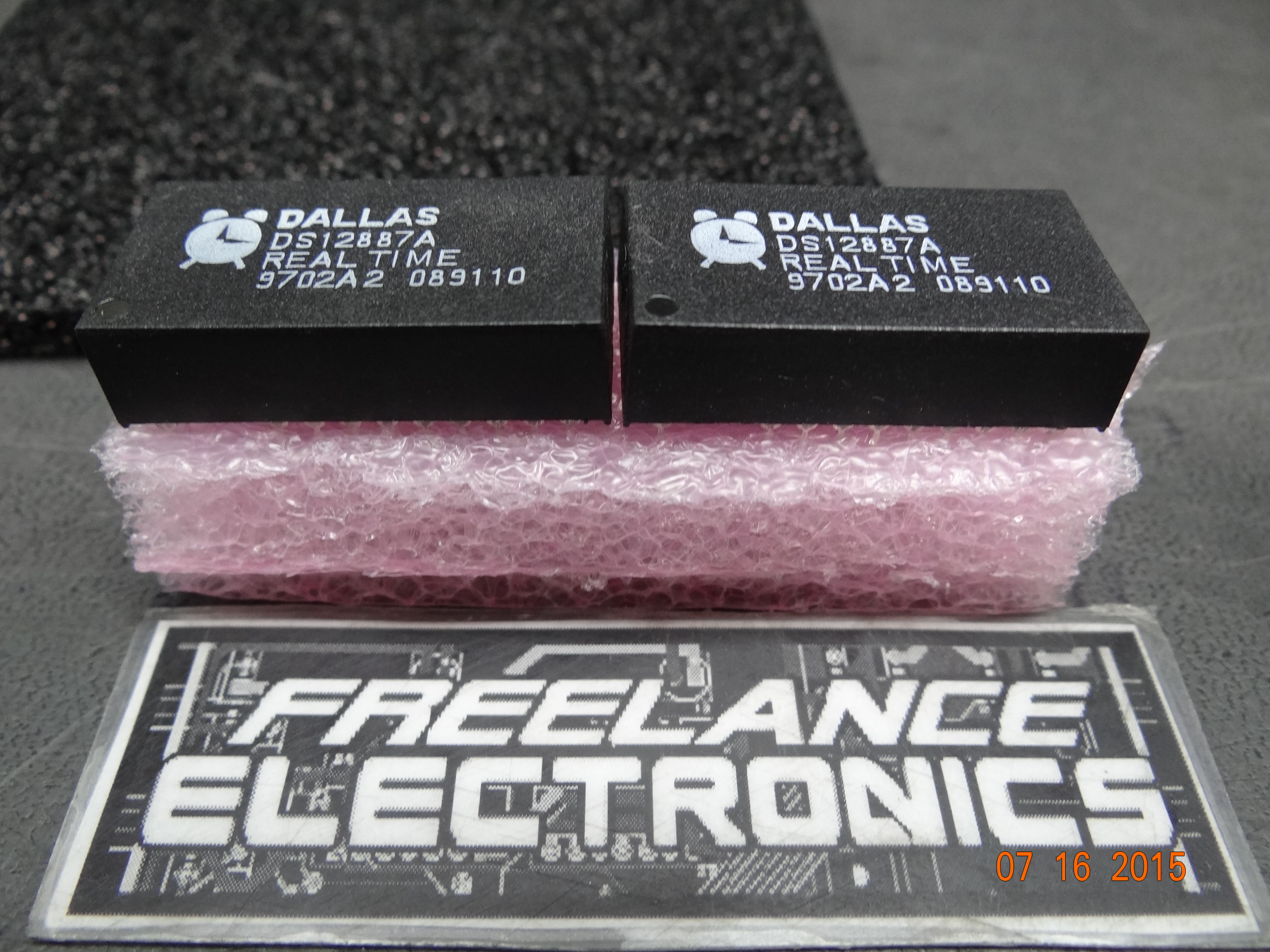

DS12887A

Part # DS12887A
Description IC RTC CLK/CALENDAR PAR 24-EDIP
Category MODULE
Availability Out of Stock
Qty 0
Qty Price
1 + $6.84400



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

1 of 2 073102
Note: Some revisions of this device may incorporate deviations from published specifications known as errata. Multiple revisions of any device
may be simultaneously available through various sales channels. For information about device errata, click here: http://www.maxim-ic.com/errata.
FEATURES
§ Drop-in replacement for IBM AT computer
clock/calendar
§ Pin compatible with the MC146818B and
DS1287A
§ Totally nonvolatile with over 10 years of
operation in the absence of power
§ Self-contained subsystem includes lithium,
quartz, and support circuitry
§ Counts seconds, minutes, hours, days, day of
the week, date, month, and year with leap-
year compensation valid up to 2100
§ Binary or BCD representation of time,
calendar, and alarm
§ 12-hour or 24-hour clock with AM and PM
in 12-hour mode
§ Daylight Savings Time option
§ Selectable between Motorola and Intel bus
timing
§ Multiplex bus for pin efficiency
§ Interfaced with software as 128 RAM
locations
– 14 bytes of clock and control registers
– 114 bytes of general-purpose RAM
§ Programmable square-wave output signal
§ Bus-compatible interrupt signals (IRQ)
§ Three interrupts are separately software-
maskable and testable
– Time-of-day alarm once/second to
once/day
– Periodic rates from 122ms to 500ms
– End-of-clock update cycle
§ Underwriters Laboratory (UL) recognized
PIN ASSIGNMENT (Top View)
Package Dimension Information
http://www.maxim-ic.com/TechSupport/DallasPackInfo.htm
PIN DESCRIPTION
AD0–AD7 - Multiplexed Address/Data Bus
N.C. - No Connect
MOT - Bus Type Selection
CS - RTC Chip-Select Input
AS - Address Strobe
R/
W - Read/Write Input
DS - Data Strobe
RESET - Reset Input
IRQ - Interrupt Request Output
SQW - Square-Wave Output
V
CC
- +5V Main Supply
RCLR - RAM Clear
GND - Ground
ORDERING INFORMATION
PART PIN-PACKAGE TOP MARK TEMP RANGE
DS12887A 24 PDIP Module DS12887A 0°C to +70°C
MOT
1
2
3
4
5
6
7
8
9
10
11
12
23
DS12887A
24 PDIP Module (700mil)
N.C.
AD1
AD3
AD4
AD5
AD6
AD7
GND
V
CC
SQW
NC
N.C.
IRQ
RESET
DS
N.C.
R/W
A
S
CS
24
22
21
20
19
18
17
16
15
14
13
N.C.
AD0
AD2
RCLR
DS12887A
Real-Time Clock
www.maxim-ic.com
www.maxim-ic.com
DS12887A
2 of 2
DESCRIPTION
The DS12887A real-time clock plus RAM is designed to be a direct replacement for the DS1287A. The
DS12887A is identical in form, fit, and function to the DS1287A, and includes additional 64 bytes of
general-purpose RAM. Access to this additional RAM space is determined by the logic level presented on
AD6 during the address portion of an access cycle. The
RCLR pin is used to clear (set to logic 1) all 114
bytes of general-purpose RAM but does not affect the RAM associated with the real-time clock. In order
to clear the RAM,
RCLR must be forced to an input logic 0 (-0.3V to +0.8V) during battery-backup mode
when V
CC
is not applied. The RCLR function is designed to be used by human interface (shorting to
ground manually or by switch) and not to be driven with external buffers.
For a complete description of operating conditions, electrical characteristics, bus timing and pin
descriptions other than
RCLR , refer to the DS12887 data sheet.
Note: Pins 2, 3, 16, 20, and 22 are missing by design. This device cannot be stored or shipped in conductive material that will give a continuity
path between the RAM clear pin and ground.
TYPICAL OPERATING CIRCUIT
