1/4E / 11260 / A
www.sensortechnics.com
Ten-X
®

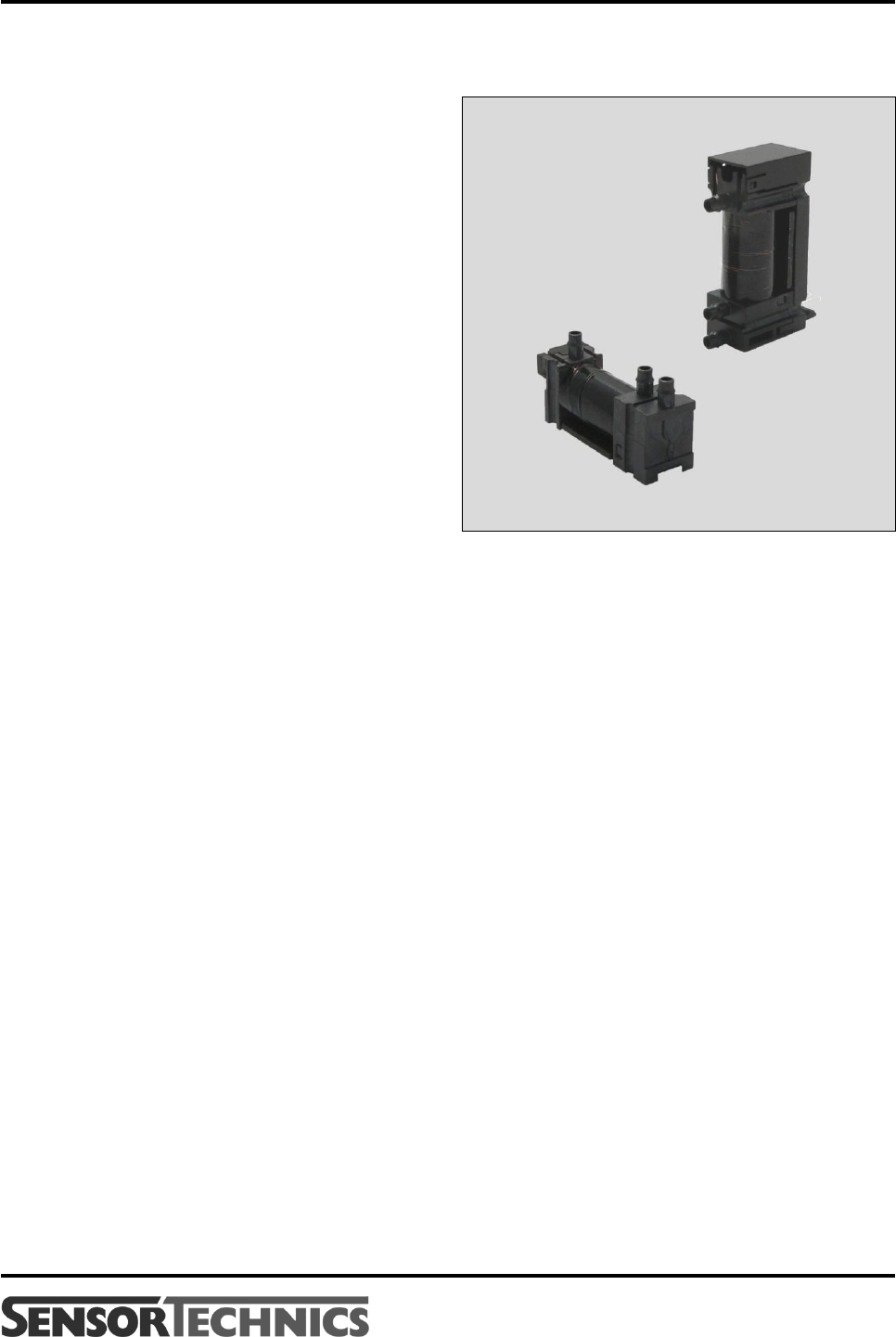

10 mm switching soleniod valve
FEATURES
· 3-way, 2 position (NO, NC & Distributor)
· Optional ‘Hit and Hold’ drive electronics
using pulse width modulation (PWM)
at 25-32 kHz
· Minimum flow of 8 lpm @ 6 psi and
22 lpm @ 30 psi
· 10 mm single piece body design
· Barbed pressure ports allow for direct
tubing or manifold assemblies
· RoHS compliant
PHYSICAL PROPERTIES
Operating environment (continuous duty) 0 to 50 °C
Storage temperature -40 to 70 °C
Spacing 10 mm (centerline)
Porting Barbs for 1.98 mm (0.078 in) I.D. tubing
or manifold mount with gasket
Weight
without electronics 10.7 g
with electronics 12 g
Internal volume 0.131 cm
3
(0.0080 in
3
)
MEDIA COMPATIBILITY
Non-reactive gases
ELECTRICAL
Power 0.5 W
Voltage 5, 12, 24 V
DC
Electrical connections PC pins
WETTED MATERIALS
PBT (polybutylene terephthalate) glass filled;
430FR series stainless steel; 302 series stainless
steel; Viton (FKM) or silicone elastomer
Ten-X is a registered trademark of Parker Hannifin Corporation.
2/4E / 11260 / A
www.sensortechnics.com
Ten-X
®
10 mm switching soleniod valve
.ontraP erusserP wolfmuminiM
/sezisecifirO
CtnelaviuqE
V
1
etarkaeL
2
e
snopseR
...1-419
)remotsaleenocilis(
isp6...0
,isp6@mpl8
isp03@mpl22
/)mm25.1("060.0
C240.0
V
mccs610.0
sm5<
gnilcyc
...2-419
)remotsalenotiV(
,isp6...0
,isp02...0
isp03...0
mccs2.0
sm02<
gnilcyc

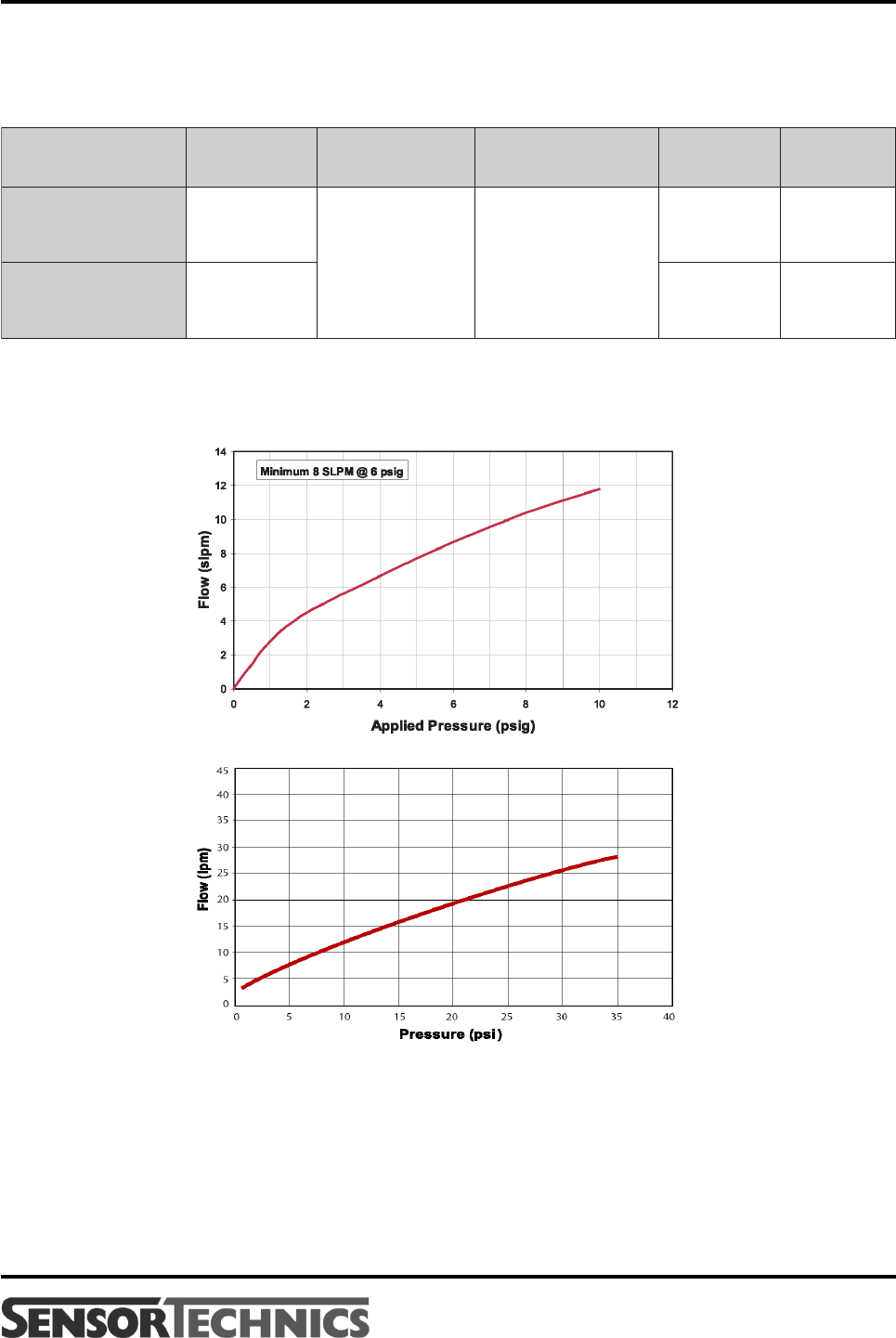

PERFORMANCE CHARACTERISTICS
FLOW CURVES (typical air flow at 24 °C)
3
Notes:
1
The C
V
value is the volume flow in US gallons/min under specific flow conditions and describes the relative flow capacity of a
valve. If several valves with the same nominal diameter are compared, the valve with the highest C
V
value has the best flow
dynamics design. The equivalent european measure is the k
V
value expressed in m
3
/h (k
V
= 0.86 C
V
).
2
sccm denotes Standard Cubic Centimeters per Minute. It is a unit for the flow rate at standard conditions of temperature and
pressure. 1000 sccm = 1 slpm.
3
slpm denotes Standard Liters per Minute. It is a unit for the flow rate at standard conditions of temperature and pressure.
1 slpm = 1000 sccm.
6 psi devices
20 psi and 30 psi
devices
3/4E / 11260 / A
www.sensortechnics.com
Ten-X
®
10 mm switching soleniod valve

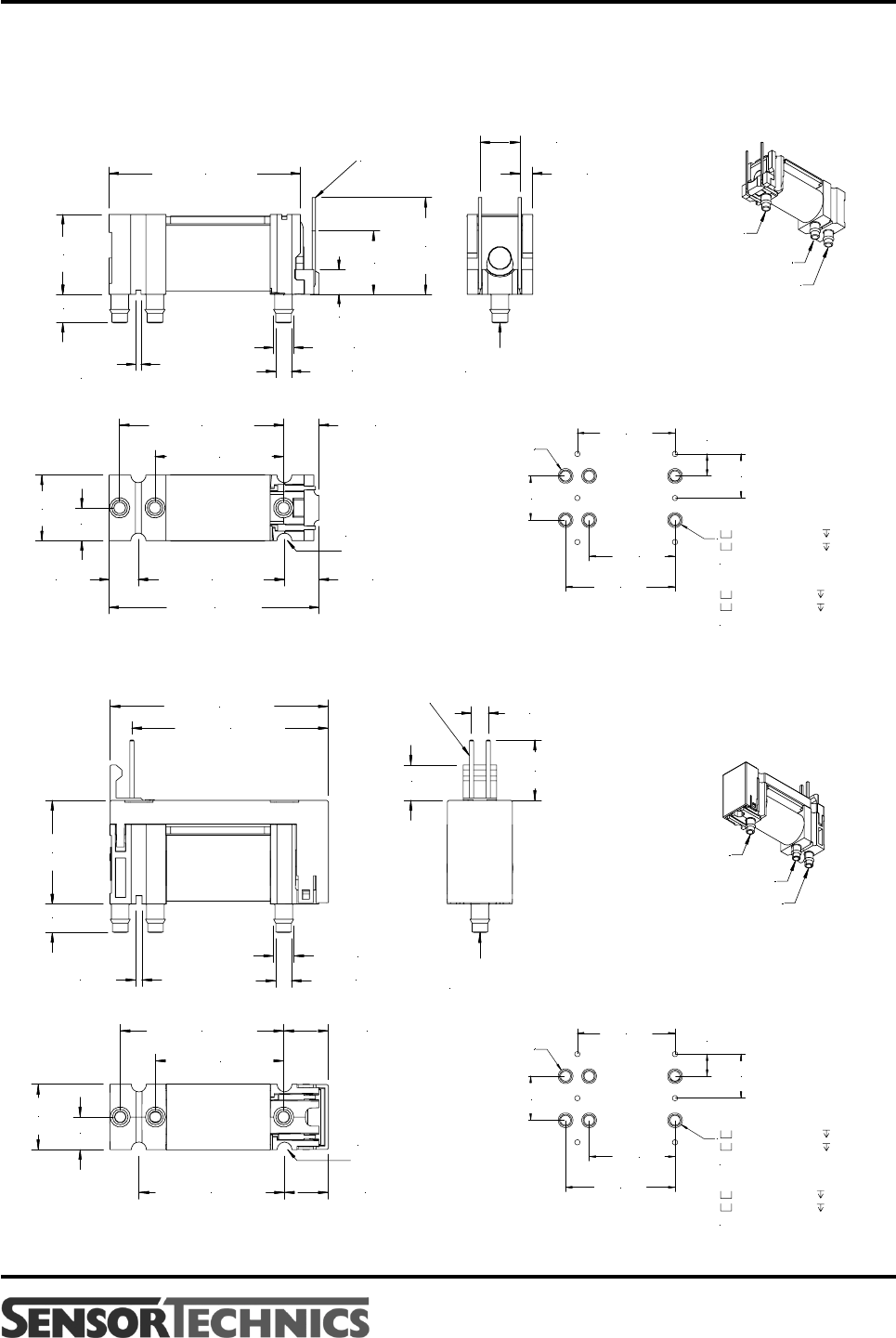

OUTLINE DRAWING AND MANIFOLD MOUNT DIAGRAM
dimensions in inches (mm)
6 psi devices
20 psi and 30 psi devices with electronics
0.212
(5.38)
0.361
(9.17)
0.100
(2.54)
1.303 (33.10)
1.174 (29.81)
0.619
(15.72)
0.170
(4.32)
0.035 (0.89)
Ø 0.093 (2.36)
Ø 0.120 (3.05)
0.976 (24.79)
0.195
(4.95)
0.390
(9.91)
0.267 (6.78)
0.262 (6.65)0.870 (22.10)
Feature for
2-56 screw for
valve mounting
0.766 (19.46)
Barb fittings for
0.078 I.D.
polyurethane tubing
0.025 (0.64)
sq. pins
0.475
(12.07)
1.139 (28.93)
0.148 (3.75)
0.170
(4.32)
0.976 (24.79)
0.195
(4.95)
0.390
(9.91)
0.236 (6.00)
0.575
(14.61)
Long pin
0.375
(9.53)
Short pin
0.077 (1.96)
0.020 (0.5)
sq. pins
0.212 (5.38)
0.766 (19.46)
0.030 (0.76)
for use with wire hold down
for PCB mounting
1.25 (31.78)
0.207 (5.26)0.870 (22.10)0.174 (4.42)
Barb fittings for
0.078 (1.98) I.D.
polyurethane tubing
Ø 0.093 (2.36)
Ø 0.120 (3.05)
Feature for
2-56 screw for
valve mounting
Normally open port
Common port
Normally closed port
Normally closed port
Common port
Normally open port
0.394
(10.01)
0.871
(22.12)
0.197
(5.0)
0.976
(24.79)
0.766
(19.46)
2-56
UNC-2B
0.394
(10.01)
(Ø 2.29
Ø 3.35 ±0.025 x 4.57
Ø 3.91 ±0.076 x 1.4 ±0.05
c'drill 40° to Ø 3.35)
Ø 0.090
Ø 0.132 ±0.001 x 0.180
Ø 0.154 ±0.003 x 0.055 ±0.002
c'drill 40° to Ø 0.132
dimensions in inches (mm)
0.394
(10.01)
0.871
(22.12)
0.197
(5.0)
0.976
(24.79)
0.766
(19.46)
2-56
UNC-2B
0.394
(10.01)
(Ø 2.29
Ø 3.35 ±0.025 x 4.57
Ø 3.91 ±0.076 x 1.4 ±0.05
c'drill 40° to Ø 3.35)
Ø 0.090
Ø 0.132 ±0.001 x 0.180
Ø 0.154 ±0.003 x 0.055 ±0.002
c'drill 40° to Ø 0.132
