W91590 SERIES
24-MEMORY TONE/PULSE SWITCHABLE DIALER
WITH HANDFREE, HOLD AND LOCK FUNCTIONS
Publication Release Date: July 1995
- 1 - Revision A3
GENERAL DESCRIPTION
The W91590 series dialers Si-gate CMOS IC tone/pulse switchable dialers with a 24-channel
automatic dialing memory, including a 16-digit × 3 emergency dialing memory, a 16-digit × 20
channel repertory memory that provides one-touch and three-touch dialing, and a 32-digit mercury
memory. These dialers also provide flash, clear, hold, and one-key redial functions.
FEATURES
DTMF/Pulse switchable dialer
32-digit LNB (last number buffer) memory (both tone and pulse mode)
32-digit mercury memory (tone/pulse mode)
16-digit × 3 one-touch direct repertory memory (tone/pulse mode)
16-digit × 20 direct or indirect repertory memory (tone/pulse mode)
Uses 9 × 5 keyboard
Flash time: 98 mS, 305 mS, or 600 mS (selectable by keypad option)
Pause time: 3.6 sec.
Pause PT (pulse-to-tone) can be stored as a digit in memory
Minimum tone output duration: 93 mS
Minimum intertone pause: 93 mS
On-chip power-on reset
Uses 3.579545 MHz crystal or ceramic resonator
Packaged in 22, 24 or 28-pin plastic DIP
The different dialers in the W91590 series are shown in the following table:
TYPE NO. PULSE
(ppS)
MEMORY MERCURY
MEMORY
HOLD HANDFREE LOCK
FUNCTION
PACKAGE
W91590 10 20 - - - - 22
W91590L 10 20 - - - Yes 22
W91590A 10 20 - - Yes - 24
W91590AL 10 20 - - Yes Yes 24
W91590B 10/20 24 Yes Yes Yes - 28
W91590BL 10/20 24 Yes Yes Yes Yes 28
W91590C 10/20 24 Save Memory Yes Yes - 28
W91590CL 10/20 24 Save Memory Yes Yes Yes 28
W91590 SERIES
- 2 -

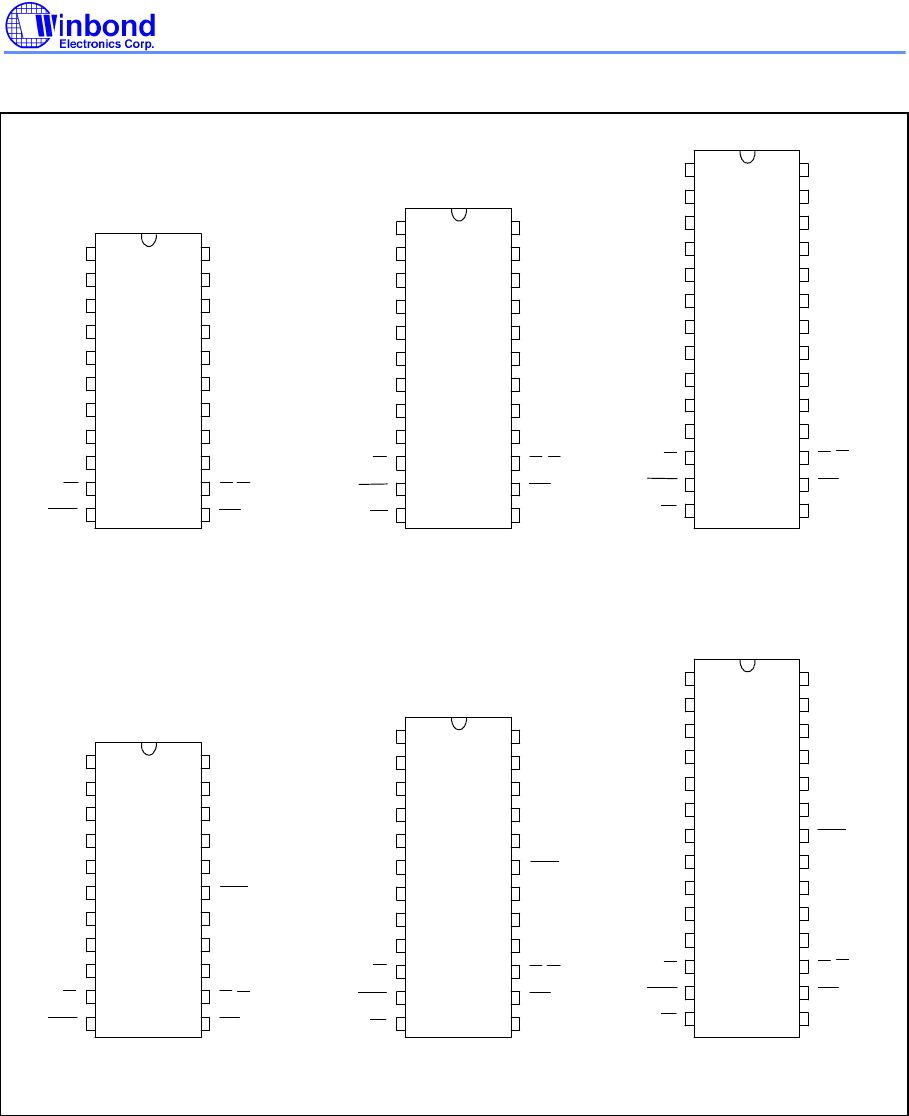

PIN CONFIGURATIONS
R2
R1
R4
1
2
3
4
5 18
19
20
21
22C1
C3
C4
C5
C2
C6
C7
6
7
8
9 14
15
16
17
MODE
DTMF
10
11 12
13
XT
R3
V
DD
V
SS
R5
XT
T/P MUTE
HKS
DP/C9
NC
R2
R1
R4
1
2
3
4
5 20
21
22
23
24C1
C3
C4
C5
C2
C6
C7
6
7
8
9 16
17
18
19
MODE
DTMF
10
11
12
13
14
15
XT
HFO
R3
V
DD
V
SS
R5
XT
T/P MUTE
HFI
HKS
DP/C9
NC
R2
R1
R4
1
2
3
4
5 24
25
26
27
28
C1
C3
C4
C5
C2
C6
C7
6
7
8
9 20
21
22
23
MODE
DTMF
10
11
12 17
18
19
XT
R3
V
DD
V
SS
R5
XT
DP/C9
HKS
13
14 15
16
HFO
T/P MUTE
HFI
C8
KT
DRS
HPM MUTE
NC
W91590
W91590A
W91590B/C
R2
R1
R4
1
2
3
4
5 18
19
20
21
22C1
C3
C4
C5
C2
C6
C7
6
7
8
9 14
15
16
17
MODE
DTMF
10
11 12
13
XT
R3
V
DD
V
SS
R5
XT
T/P MUTE
HKS
DP/C9
LOCK
R2
R1
R4
1
2
3
4
5 20
21
22
23
24C1
C3
C4
C5
C2
C6
C7
6
7
8
9 16
17
18
19
MODE
DTMF
10
11
12
13
14
15
XT
HFO
R3
V
DD
V
SS
R5
XT
T/P MUTE
HFI
HKS
DP/C9
LOCK
R2
R1
R4
1
2
3
4
5 24
25
26
27
28C1
C3
C4
C5
C2
C6
C7
6
7
8
9 20
21
22
23
MODE
DTMF
10
11
12 17
18
19
XT
R3
V
DD
V
SS
R5
XT
DP/C9
HKS
13
14 15
16
HFO
T/P MUTE
HFI
C8
KT
DRS
HPM MUTE
W91590BL/CL
W91590AL
W91590L
LOCK
W91590 SERIES
Publication Release Date: July 1995
- 3 - Revision A3
PIN DESCRIPTION
SYMBOL 22-PIN 24-PIN 28-PIN I/O FUNCTION
Column-
Row
Inputs
17
&
1822
17
&
2024
18
&
2428
I The keyboard input may be from either the
standard 9 × 5 keyboard or an inexpensive
single contact (form A) keyboard. Electronic
input from a µC can also be used.
A valid key entry is defined by a single row
being connected to a single column.
XT,
XT
9, 10 9, 10 11, 12 I, O A built-in inverter provides oscillation with an
inexpensive 3.579545 MHz crystal or
ceramic resonator.
T/P
MUTE
11 11 13 O
The T/P
MUTE
is a conventional CMOS
N-channel open drain output.
The output transistor is switched on during
pulse and tone mode dialing sequence and
flash break. Otherwise, it is switched off.
HPM
MUTE
- - 23 O The HPM MUTE is a conventional inverter
output. During pulse dialing, flash, hold, and
mercury mute functions, this pin will output
an active high. It remains in a low state at all
other times.
MODE 15 17 19 I Pulling mode pin to VSS places the dialer in
tone mode.
Pulling mode pin to VDD places the dialer in
pulse mode (M/B = 2:3).
Leaving mode pin floating places the dialer
in pulse mode (M/B = 1:2).
HKS
12 14 16 I Hook switch input.
HKS
= 1: On-hook state. Chip in sleeping
mode, no operation.
HKS
= 0: Off-hook state. Chip enabled for
normal operation.
HKS
pin is pulled to VDD by internal resistor.
DP
/
C9
13 15 17 O N-channel open drain dialing pulse output
(Figure 1).
Flash key causes
DP
to go active when in
pulse mode and tone mode.
NC 17
(W91590)
19
(W91590A)
22
(W91590B/C)
- No connection.
