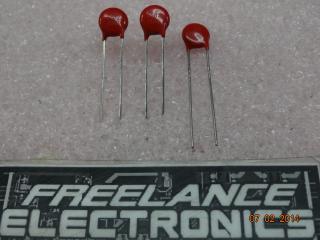

V250LC4

Part # V250LC4
Description VARISTOR 354V 1.2KA DISC 7MM
Category Microcircuit
Availability Out of Stock
Qty 0
Qty Price
1 + $0.43332



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 05/23/14
Varistor Products
Radial Lead Varistors > LA Series
LA Series
Description
The LA Series of transient voltage surge suppressors are
radial leaded varistors (MOVs) that are designed to be
operated continuously across AC power lines. These UL
recognized varistors require very little mounting space,
and are offered in various standard lead form options.
The LA Series varistors are available in four model
sizes: 7mm, 10mm, 14mm and 20mm; and have a
V
M(AC)RMS
voltage range from 130V to 1000V, and an
energy absorption capability up to 360J. Some LA Series
model numbers are available with clamping voltage
selections, designated by a model number suffix of
either A or B. The 'A' selection is the standard model;
the 'B' selection provides a lower clamping voltage.
See LA Series Device Ratings and Specifications
Table for part number and brand information.
Features
• Lead–free,Halogen-
Free and RoHS
compliant.
• Energyabsorption
capability (W
TM
)
up to 360J
• Wideoperating
voltage range
V
M(AC)RMS
130V to 1000V
• Noderatingupto
85ºC ambient
• Availableintapeand
reel or bulk pack
Agency Approvals
Absolute Maximum Ratings
•Forratingsofindividualmembersofaseries,seeDeviceRatingsandSpecicationschart
Agency Agency File Number
E320116, E135010
116895
LR91788
42201-006
Continuous
LA Series Units
Steady State Applied Voltage:
AC Voltage Range (V
M(AC)RMS
) 130 to 1000 V
DC Voltage Range (V
M(DC)
) 175 to 1200 V
Transients:
Peak Pulse Current (I
TM
)
For 8/20µs Current Wave (See Figure 2) 1200 to 6500 A
Single Pulse Energy Range
For 10/1000µs Current Wave (W
TM
) 11 to 360 J
Operating Ambient Temperature Range (T
A
) -55 to +85
O
C
Storage Temperature Range (T
STG
) -55 to +125
O
C
Temperature Coefficient (a
V
) of Clamping Voltage (V
C
) at Specified Test Current <0.01 %/
O
C
Hi-Pot Encapsulation (COATING Isolation Voltage Capability)
(Dielectric must withstand indicated DC voltage for one minute per MIL-STD 202, Method 301)
2500 V
COATING Insulation Resistance 1000
CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only
rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is
not implied.
LA Varistor Series
RoHS
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 05/23/14
Varistor Products
Radial Lead Varistors > LA Series
LA Series Ratings & Specifications
Part
Number
Branding
Model Size
Disc Dia.
(mm)
Maximum Rating (85°C) Specifications (25°C)
Continuous Transient
Varistor
Voltage at
1mA
DC Test
Current
Maximum
Clamping
Voltage
8 x 20 µs
Typical
Capaci-
tance f =
1MHz
V
RMS
V
DC
Energy 10
x 1000µs
Peak
Current 8
x 20µs
V
M(AC)
V
M(DC)
W
TM
I
TM
V
NOM
Min
V
NOM
Max
V
C
I
PK
C
(V) (V) (J) (A) (V) (V) (V) (A) (pF)
V130LA1P P1301 7 130 175 11 1200 198 242 390 10 180
V130LA2P P1302 7 130 175 11 1200 184.5 225.5 340 10 180
V130LA5P P1305 10 130 175 20 2500 184.5 225.5 340 25 450
V130LA10AP P130L10 14 130 175 38 4500 184.5 225.5 340 50 1000
V130LA20AP P130L20 20 130 175 70 6500 184.5 225.5 340 100 1900
V130LA20BP P130L20B 20 130 175 70 6500 190 220 325 100 1900
V140LA2P P1402 7 140 180 12 1200 198 242 360 10 160
V140LA5P P1405 10 140 180 22 2500 198 242 360 25 400
V140LA10AP P140L10 14 140 180 42 4500 198 242 360 50 900
V140LA20AP P140L20 20 140 180 75 6500 198 242 340 100 1750
V150LA1P P1501 7 150 200 13 1200 225 275 430 10 150
V150LA2P P1502 7 150 200 13 1200 216 264 395 10 150
V150LA5P P1505 10 150 200 25 2500 216 264 395 25 360
V150LA10AP P150L10 14 150 200 45 4500 216 264 395 50 800
V150LA20AP P150L20 20 150 200 80 6500 216 264 395 100 1600
V150LA20BP P150L20B 20 150 200 80 6500 216 243 360 10 0 1600
V175LA2P P1752 7 175 225 15 1200 243 297 455 10 130
V175LA5P P1755 10 175 225 30 2500 243 297 455 25 350
V175LA10AP P175L10 14 175 225 55 4500 243 297 455 50 700
V175LA20AP P175L20 20 175 225 90 6500 243 297 455 100 1400
V230LA4P P2304 7 230 300 20 1200 324 396 595 10 10 0
V230LA10P P230L 10 230 300 35 2500 324 396 595 25 250
V230LA20AP P230L20 14 230 300 70 4500 324 396 595 50 550
V230LA40AP P230L40 20 230 300 122 6500 324 396 595 10 0 110 0
V250LA2P P2502 7 250 330 21 1200 369 451 730 10 90
V250LA4P P2504 7 250 330 21 1200 351 429 650 10 90
V250LA10P P250L 10 250 330 40 2500 351 429 650 25 220
V250LA20AP P250L20 14
250 330 72 4500 351 429 650 50 500
V250LA40AP P250L40 20 250 330 130 6500 351 429 650 10 0 1000
V250LA40BP P250L40B 20 250 330 130 6500 354 413 620 100 1000
V275LA2P P2752 7 275 369 23 1200 405 495 775 10 80
V275LA4P P2754 7 275 369 23 1200 387 473 710 10 80
V275LA10P P275L 10 275 369 45 2500 387 473 710 25 200
V275LA20AP P275L20 14 275 369 75 4500 387 473 710 50 450
V275LA40AP P275L40 20 275 369 140 6500 387 473 710 100 900
V275LA40BP P275L40B 20 275 369 140 6500 389 453 680 10 0 900
V300LA2P P3002 7 300 405 25 1200 441 539 870 10 70
V300LA4P P3004 7 300 405 25 1200 423 517 775 10 70
V300LA10P P300L 10 300 405 46 2500 423 517 775 25 180
V300LA20AP P300L20 14 300 405 77 4500 423 517 775 50 400
V300LA40AP P300L40 20 300 405 165 6500 423 517 775 100 800
V320LA7P P3207 7 320 420 25 1200 459 561 850 10 65
V320LA10P P320L 10 320 420 48 2500 459 561 850 25 170
V320LA20AP P320L20 14 320 420 80 4500 459 561 850 50 380
V320LA40BP P320L40 20 320 420 150 6500 462 540 810 100 750
V385LA7P P3857 7 385 505 27 1200 558 682 1025 10 60
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 05/23/14
Varistor Products
Radial Lead Varistors > LA Series
LA Series
Part
Number
Branding
Model Size
Disc Dia.
(mm)
Maximum Rating (85°C) Specifications (25°C)
Continuous Transient
Varistor
Voltage at
1mA
DC Test
Current
Maximum
Clamping
Voltage
8 x 20 µs
Typical
Capaci-
tance f =
1MHz
V
RMS
V
DC
Energy 10
x 1000µs
Peak
Current 8
x 20µs
V
M(AC)
V
M(DC)
W
TM
I
TM
V
NOM
Min
V
NOM
Max
V
C
I
PK
C
(V) (V) (J) (A) (V) (V) (V) (A) (pF)
V385LA10P P385L 10 385 505 51 2500 558 682 1025 25 160
V385LA20AP P385L20 14 385 505 85 4500 558 682 1025 50 360
V385LA40BP P385L40 20 385 505 160 6500 558 682 1025 100 700
V420LA7P P4207 7 420 560 30 1200 612 74 8 112 0 10 55
V420LA10P P420L 10 420 560 55 2500 612 74 8 1120 25 140
V420LA20AP P420L20 14 420 560 90 4500 612 74 8 112 0 50 300
V420LA40BP P420L40 20 420 560 160 6500 610 720 1060 100 600
V460LA7P P4607 7 460 615 37 1200 643.5 786.5 119 0 10 55
V460LA10P P460L 10 460 615 56 2500 643.5 786.5 119 0 25 120
V460LA20AP P460L20 14 460 615 100 4500 643.5 786.5 119 0 50 280
V460LA40BP P460L40 20 460 615 170 6500 643.5 755.5 1110 100 560
V480LA7P P4807 7 480 640 35 1200 675 825 1240 10 50
V480LA10P P480L 10 480 640 60 2500 675 825 1240 25 120
V480LA40AP P480L40 14 480 640 105 4500 675 825 1240 50 270
V480LA80BP P480L80 20 480 640 180 6500 675 790 1160 100 550
V510LA10P P510L 10 510 675 63 2500 738 902 1350 25 100
V510LA40AP P510L40 14 510 675 110 4500 738 902 1350 50 250
V510LA80BP P510L80 20 510 675 190 6500 738 860 1280 100 500
V575LA10P P575L 10 575 730 65 2500 819 1001 1500 25 90
V575LA40AP P575L40 14 575 730 120 4500 819 10 01 1500 50 220
V575LA80BP P575L80 20 575 730 220 6500 819 960 1410 10 0 450
V625LA10P P625L 10 625 825 67 2500 900 110 0 1650 25 80
V625LA40AP P625L40 14 625 825 125 4500 900 110 0 1650 50 210
V625LA80BP P625L80 20 625 825 230 6500 900 110 0 1650 100 425
V680LA10P P680L 10 680 875 75 2500 990 1210 1875 25 65
V680LA80AP P680L80 14 680 875 145 4500 990 1210 1875 50 190
V680LA100BP P680L100 20 680 875 260 6500 990 113 0 1700 100 380
V660LA10P P660L 10
660 850 70 2500 972 118 8 1820 25 70
V660LA50AP P660L50 14 660 850 140 4500 972 1188 1820 50 200
V660LA100BP P660L100 20 660 850 250 6500 940 110 0 1650 100 400
V1000LA80AP P1000L8 14 1000 1200 220 4500 1500 1800 2700 50 130
V1000LA160BP P1000L16 20 1000 1200 360 6500 1425 1600 2420 100 250
LA Series Ratings & Specifications (Continued...)
NOTE: Average power dissipation of transients not to exceed 0.25W, 0.4W, 0.6W or 1W for model sizes 7mm, 10mm, 14mm and 20mm, respectively.
Phenolic Coating Option -- LA Series Varistors for Hi-Temperature Operating Conditions:
• Phenolic–coatedLASeriesdevicesareavailablewithimprovedmaximumoperatingmaximumtemperature125°C.
• Thesedevicesalsohaveimprovedtemperaturecyclingperformancecapability.
• RatingsandSpecicationsareasperstandardLASeriesexceptHi–PotEncapsulation(IsolationVoltageCapability)=500V.
• ThesedevicesarenotUL,CSA,VDEorCECCcertied.
• Toorder:addX1347toendofpartnumber(e.g.V230LA20APX1347)
• Productmarking:
LF 9
P230P20
YYWW
Phenolic Coated
Option
Identifier
Lead-Free,
Halogen-Free
& RoHS Compliant
Indicator
