Serial Peripheral Interface (SPI)
Technical Data MC68HC908AZ60A — Rev 2.0
298 Serial Peripheral Interface (SPI) MOTOROLA

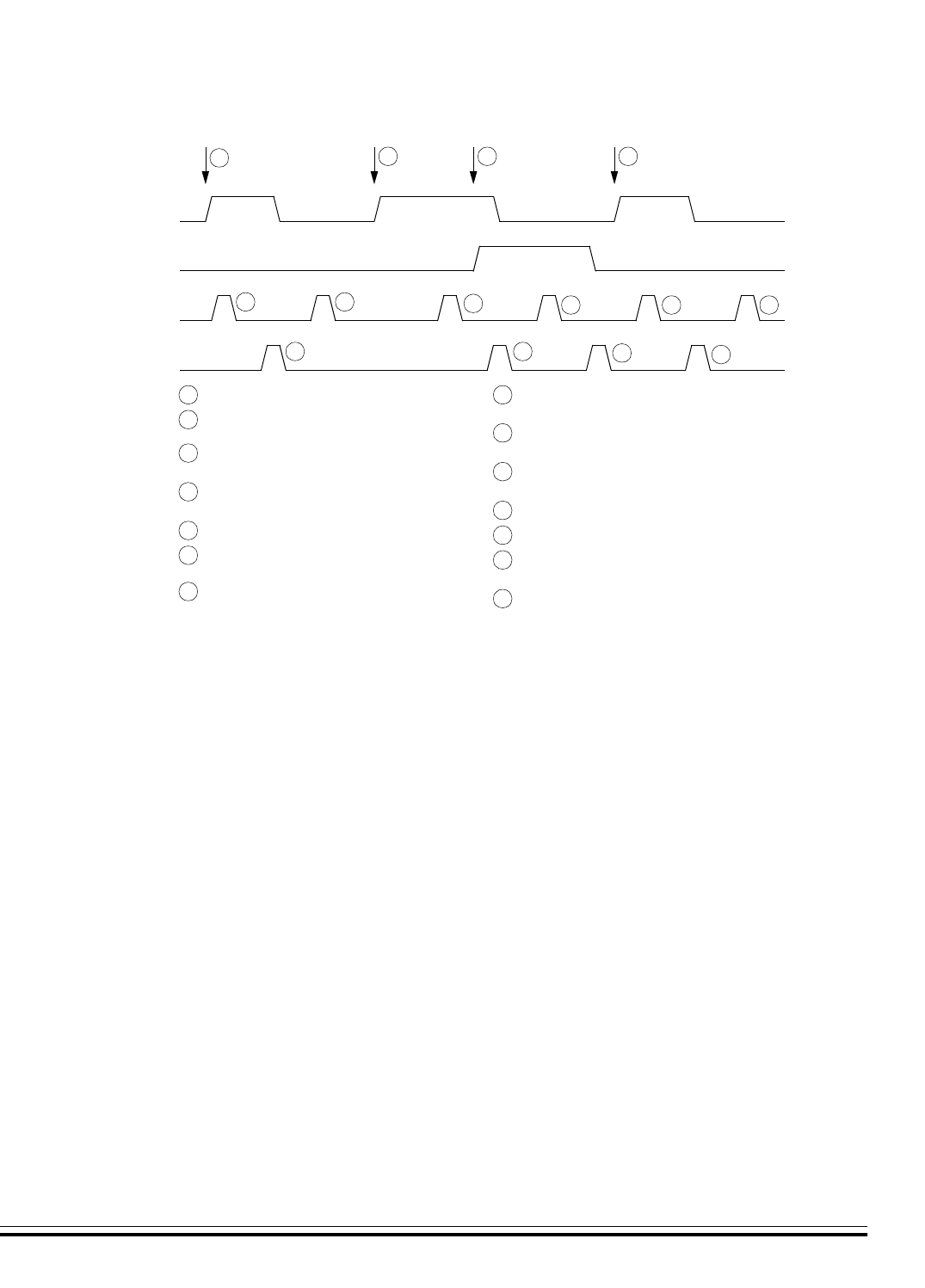

Figure 19-6. Missed Read of Overflow Condition
The first part of Figure 19-6 shows how to read the SPSCR and SPDR
to clear the SPRF without problems. However, as illustrated by the
second transmission example, the OVRF flag can be set in between the
time that SPSCR and SPDR are read.
In this case, an overflow can be easily missed. Since no more SPRF
interrupts can be generated until this OVRF is serviced, it will not be
obvious that bytes are being lost as more transmissions are completed.
To prevent this, either enable the OVRF interrupt or do another read of
the SPSCR after the read of the SPDR. This ensures that the OVRF was
not set before the SPRF was cleared and that future transmissions will
complete with an SPRF interrupt. Figure 19-7 illustrates this process.
Generally, to avoid this second SPSCR read, enable the OVRF to the
CPU by setting the ERRIE bit (SPSCR).
READ SPDR
READ SPSCR
OVRF
SPRF
BYTE 1 BYTE 2 BYTE 3 BYTE 4
BYTE 1 SETS SPRF BIT.
CPU READS SPSCR WITH SPRF BIT SET
CPU READS BYTE 1 IN SPDR,
BYTE 2 SETS SPRF BIT.
CPU READS SPSCRW WITH SPRF BIT SET
BYTE 3 SETS OVRF BIT. BYTE 3 IS LOST.
CPU READS BYTE 2 IN SPDR, CLEARING SPRF BIT,
BYTE 4 FAILS TO SET SPRF BIT BECAUSE
1
1
2
3
4
5
6
7
8
2
3
4
5
6
7
8
CLEARING SPRF BIT.
BUT NOT OVRF BIT.
OVRF BIT IS SET. BYTE 4 IS LOST.
AND OVRF BIT CLEAR.
AND OVRF BIT CLEAR.
Serial Peripheral Interface (SPI)
Error Conditions
MC68HC908AZ60A — Rev 2.0 Technical Data
MOTOROLA Serial Peripheral Interface (SPI) 299
Figure 19-7. Clearing SPRF When OVRF Interrupt Is Not Enabled
19.7.2 Mode Fault Error
For the MODF flag (in SPSCR) to be set, the mode fault error enable bit
(MODFEN in SPSCR) must be set. Clearing the MODFEN bit does not
clear the MODF flag but does prevent MODF from being set again after
MODF is cleared.
MODF generates a receiver/error CPU interrupt request if the error
interrupt enable bit (ERRIE in SPSCR) is also set. The SPRF, MODF,
and OVRF interrupts share the same CPU interrupt vector. MODF and
OVRF can generate a receiver/error CPU interrupt request. (See Figure
19-8). It is not possible to enable only MODF or OVRF to generate a
receiver/error CPU interrupt request. However, leaving MODFEN low
prevents MODF from being set.
READ SPDR
READ SPSCR
OVRF
SPRF
BYTE 1 BYTE 2 BYTE 3 BYTE 4
1
BYTE 1 SETS SPRF BIT.
CPU READS SPSCR WITH SPRF BIT SET
CPU READS BYTE 1 IN SPDR,
CPU READS SPSCR AGAIN
BYTE 2 SETS SPRF BIT.
CPU READS SPSCR WITH SPRF BIT SET
BYTE 3 SETS OVRF BIT. BYTE 3 IS LOST.
CPU READS BYTE 2 IN SPDR,
CPU READS SPSCR AGAIN
CPU READS BYTE 2 SPDR,
BYTE 4 SETS SPRF BIT.
CPU READS SPSCR.
CPU READS BYTE 4 IN SPDR,
CPU READS SPSCR AGAIN
1
2
3
CLEARING SPRF BIT.
4
TO CHECK OVRF BIT.
5
6
7
8
9
CLEARING SPRF BIT.
TO CHECK OVRF BIT.
10
CLEARING OVRF BIT.
11
12
13
14
2
3
4
5
6
7
8
9
10
11
12
13
14
CLEARING SPRF BIT.
TO CHECK OVRF BIT.
SPI RECEIVE
COMPLETE
AND OVRF BIT CLEAR.
AND OVRF BIT CLEAR.
Serial Peripheral Interface (SPI)
Technical Data MC68HC908AZ60A — Rev 2.0
300 Serial Peripheral Interface (SPI) MOTOROLA
In a master SPI with the mode fault enable bit (MODFEN) set, the mode
fault flag (MODF) is set if SS goes to logic 0. A mode fault in a master
SPI causes the following events to occur:
If ERRIE = 1, the SPI generates an SPI receiver/error CPU
interrupt request.
The SPE bit is cleared.
The SPTE bit is set.
The SPI state counter is cleared.
The data direction register of the shared I/O port regains control of
port drivers.
NOTE: To prevent bus contention with another master SPI after a mode fault
error, clear all data direction register (DDR) bits associated with the SPI
shared port pins.
NOTE: Setting the MODF flag (SPSCR) does not clear the SPMSTR bit.
Reading SPMSTR when MODF = 1 will indicate a MODE fault error
occurred in either master mode or slave mode.
When configured as a slave (SPMSTR = 0), the MODF flag is set if SS
goes high during a transmission. When CPHA = 0, a transmission begins
when SS
goes low and ends once the incoming SPSCK returns to its idle
level after the shift of the eighth data bit. When CPHA = 1, the
transmission begins when the SPSCK leaves its idle level and SS
is
already low. The transmission continues until the SPSCK returns to its
IDLE level after the shift of the last data bit. (See Transmission
Formats on page 292).
NOTE: When CPHA = 0, a MODF occurs if a slave is selected (SS is at logic 0)
and later deselected (SS is at logic 1) even if no SPSCK is sent to that
slave. This happens because SS at logic 0 indicates the start of the
transmission (MISO driven out with the value of MSB) for CPHA = 0.
When CPHA = 1, a slave can be selected and then later deselected with
no transmission occurring. Therefore, MODF does not occur since a
transmission was never begun.
In a slave SPI (MSTR = 0), the MODF bit generates an SPI
receiver/error CPU interrupt request if the ERRIE bit is set. The MODF
PREVIOUS93949596979899100101102103104105106NEXT
