Serial Peripheral Interface (SPI)
Transmission Formats
MC68HC908AZ60A — Rev 2.0 Technical Data
MOTOROLA Serial Peripheral Interface (SPI) 295
19.6.4 Transmission Initiation Latency
When the SPI is configured as a master (SPMSTR = 1), transmissions
are started by a software write to the SPDR ($0012). CPHA has no effect
on the delay to the start of the transmission, but it does affect the initial
state of the SCK signal. When CPHA = 0, the SCK signal remains
inactive for the first half of the first SCK cycle. When CPHA = 1, the first
SCK cycle begins with an edge on the SCK line from its inactive to its
active level. The SPI clock rate (selected by SPR1–SPR0) affects the
delay from the write to SPDR and the start of the SPI transmission. (See
Figure 19-5). The internal SPI clock in the master is a free-running
derivative of the internal MCU clock. It is only enabled when both the
SPE and SPMSTR bits (SPCR) are set to conserve power. SCK edges
occur half way through the low time of the internal MCU clock. Since the
SPI clock is free-running, it is uncertain where the write to the SPDR will
occur relative to the slower SCK. This uncertainty causes the variation
in the initiation delay shown in Figure 19-5. This delay will be no longer
than a single SPI bit time. That is, the maximum delay between the write
to SPDR and the start of the SPI transmission is two MCU bus cycles for
DIV2, eight MCU bus cycles for DIV8, 32 MCU bus cycles for DIV32, and
128 MCU bus cycles for DIV128.
Serial Peripheral Interface (SPI)
Technical Data MC68HC908AZ60A — Rev 2.0
296 Serial Peripheral Interface (SPI) MOTOROLA

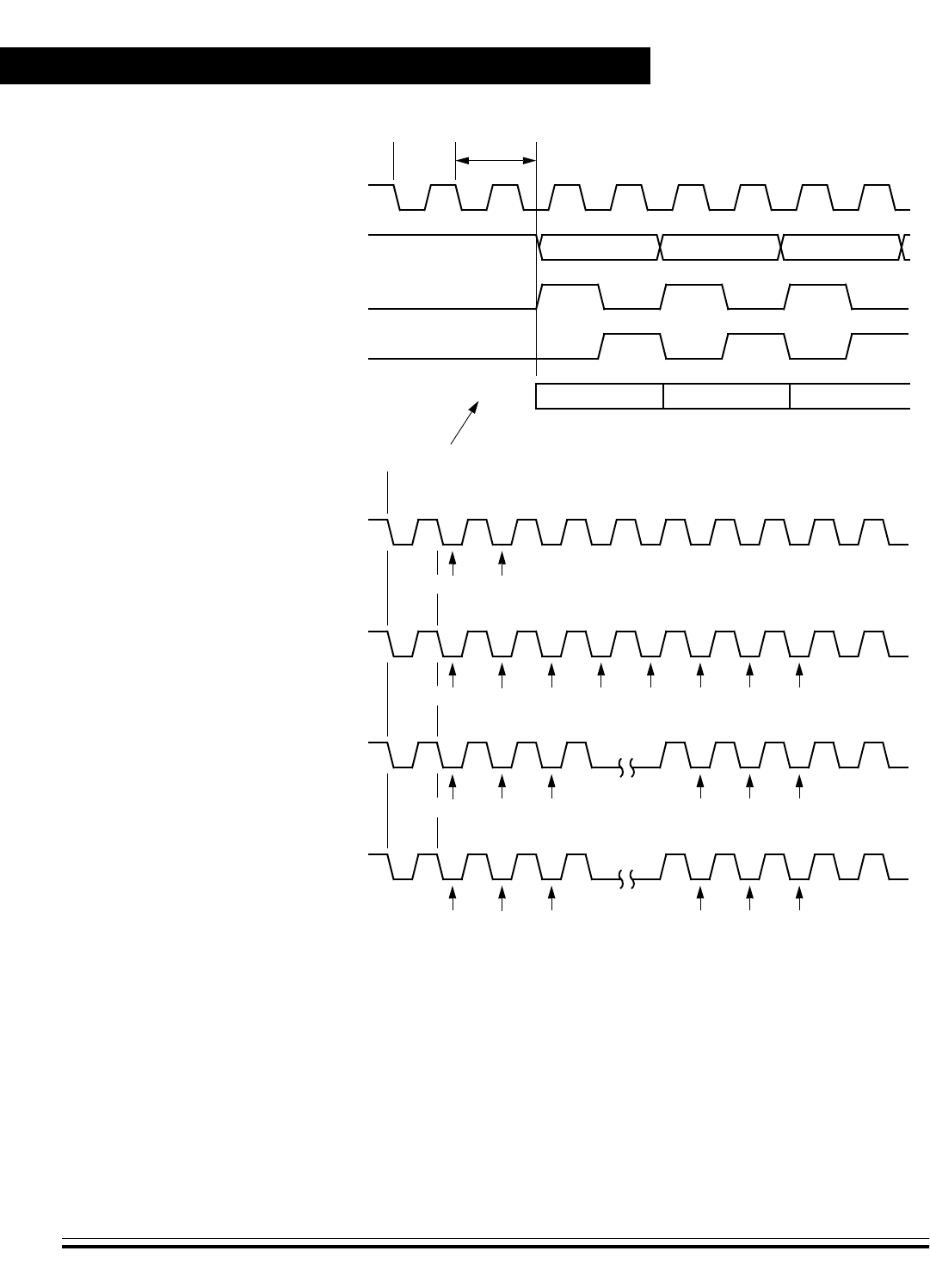

Figure 19-5. Transmission Start Delay (Master)
WRITE
TO SPDR
INITIATION DELAY
BUS
MOSI
SCK
CPHA = 1
SCK
CPHA = 0
SCK CYCLE
NUMBER
MSB BIT 6
12
CLOCK
WRITE
TO SPDR
EARLIEST
LATEST
SCK = INTERNAL CLOCK ÷ 2;
EARLIEST LATEST
2 POSSIBLE START POINTS
SCK = INTERNAL CLOCK ÷ 8;
8 POSSIBLE START POINTS
EARLIEST LATESTSCK = INTERNAL CLOCK ÷ 32;
32 POSSIBLE START POINTS
EARLIEST LATESTSCK = INTERNAL CLOCK ÷ 128;
128 POSSIBLE START POINTS
WRITE
TO SPDR
WRITE
TO SPDR
WRITE
TO SPDR
BUS
CLOCK
BIT 5
3
BUS
CLOCK
BUS
CLOCK
BUS
CLOCK
INITIATION DELAY FROM WRITE SPDR TO TRANSFER BEGIN
Serial Peripheral Interface (SPI)
Error Conditions
MC68HC908AZ60A — Rev 2.0 Technical Data
MOTOROLA Serial Peripheral Interface (SPI) 297
19.7 Error Conditions
Two flags signal SPI error conditions:
1. Overflow (OVRF in SPSCR) — Failing to read the SPI data
register before the next byte enters the shift register sets the
OVRF bit. The new byte does not transfer to the receive data
register, and the unread byte still can be read by accessing the
SPI data register. OVRF is in the SPI status and control register.
2. Mode fault error (MODF in SPSCR) — The MODF bit indicates
that the voltage on the slave select pin (SS
) is inconsistent with the
mode of the SPI. MODF is in the SPI status and control register.
19.7.1 Overflow Error
The overflow flag (OVRF in SPSCR) becomes set if the SPI receive data
register still has unread data from a previous transmission when the
capture strobe of bit 1 of the next transmission occurs. (See Figure 19-
3 and Figure 19-4.) If an overflow occurs, the data being received is not
transferred to the receive data register so that the unread data can still
be read. Therefore, an overflow error always indicates the loss of data.
OVRF generates a receiver/error CPU interrupt request if the error
interrupt enable bit (ERRIE in SPSCR) is also set. MODF and OVRF can
generate a receiver/error CPU interrupt request. (See Figure 19-8). It is
not possible to enable only MODF or OVRF to generate a receiver/error
CPU interrupt request. However, leaving MODFEN low prevents MODF
from being set.
If an end-of-block transmission interrupt was meant to pull the MCU out
of wait, having an overflow condition without overflow interrupts enabled
causes the MCU to hang in wait mode. If the OVRF is enabled to
generate an interrupt, it can pull the MCU out of wait mode instead.
If the CPU SPRF interrupt is enabled and the OVRF interrupt is not,
watch for an overflow condition. Figure 19-6 shows how it is possible to
miss an overflow.
PREVIOUS9293949596979899100101102103104105NEXT
