Serial Peripheral Interface (SPI)
Functional Description
MC68HC908AZ60A — Rev 2.0 Technical Data
MOTOROLA Serial Peripheral Interface (SPI) 289
Figure 19-1. SPI Module Block Diagram
The SPI module allows full-duplex, synchronous, serial communication
between the MCU and peripheral devices, including other MCUs.
Software can poll the SPI status flags or SPI operation can be interrupt
driven. All SPI interrupts can be serviced by the CPU.
The following paragraphs describe the operation of the SPI module.
TRANSMITTER CPU INTERRUPT REQUEST
RECEIVER/ERROR CPU INTERRUPT REQUEST
76543210
SPR1
SPMSTR
TRANSMIT DATA REGISTER
SHIFT REGISTER
SPR0
CLOCK
SELECT
÷ 2
CLOCK
DIVIDER
÷ 8
÷ 32
÷ 128
CLOCK
LOGIC
CPHA CPOL
SPI
SPRIE
SPE
SPWOM
SPRF
SPTE
OVRF
M
S
PIN
CONTROL
LOGIC
RECEIVE DATA REGISTER
SPTIE
SPE
INTERNAL BUS
BUS CLOCK
MODFEN
ERRIE
CONTROL
MODF
SPMSTR
MOSI
MISO
SPSCK
SS
Serial Peripheral Interface (SPI)
Technical Data MC68HC908AZ60A — Rev 2.0
290 Serial Peripheral Interface (SPI) MOTOROLA
19.5.1 Master Mode
The SPI operates in master mode when the SPI master bit, SPMSTR
(SPCR $0010), is set.
NOTE: Configure the SPI modules as master and slave before enabling them.
Enable the master SPI before enabling the slave SPI. Disable the slave
SPI before disabling the master SPI. See SPI Control Register on page
310.
Only a master SPI module can initiate transmissions. Software begins
the transmission from a master SPI module by writing to the SPI data
register. If the shift register is empty, the byte immediately transfers to
the shift register, setting the SPI transmitter empty bit, SPTE (SPSCR
$0011). The byte begins shifting out on the MOSI pin under the control
of the serial clock. (See Table 19-4).
The SPR1 and SPR0 bits control the baud rate generator and determine
the speed of the shift register. (See SPI Status and Control Register
on page 312). Through the SPSCK pin, the baud rate generator of the
master also controls the shift register of the slave peripheral.

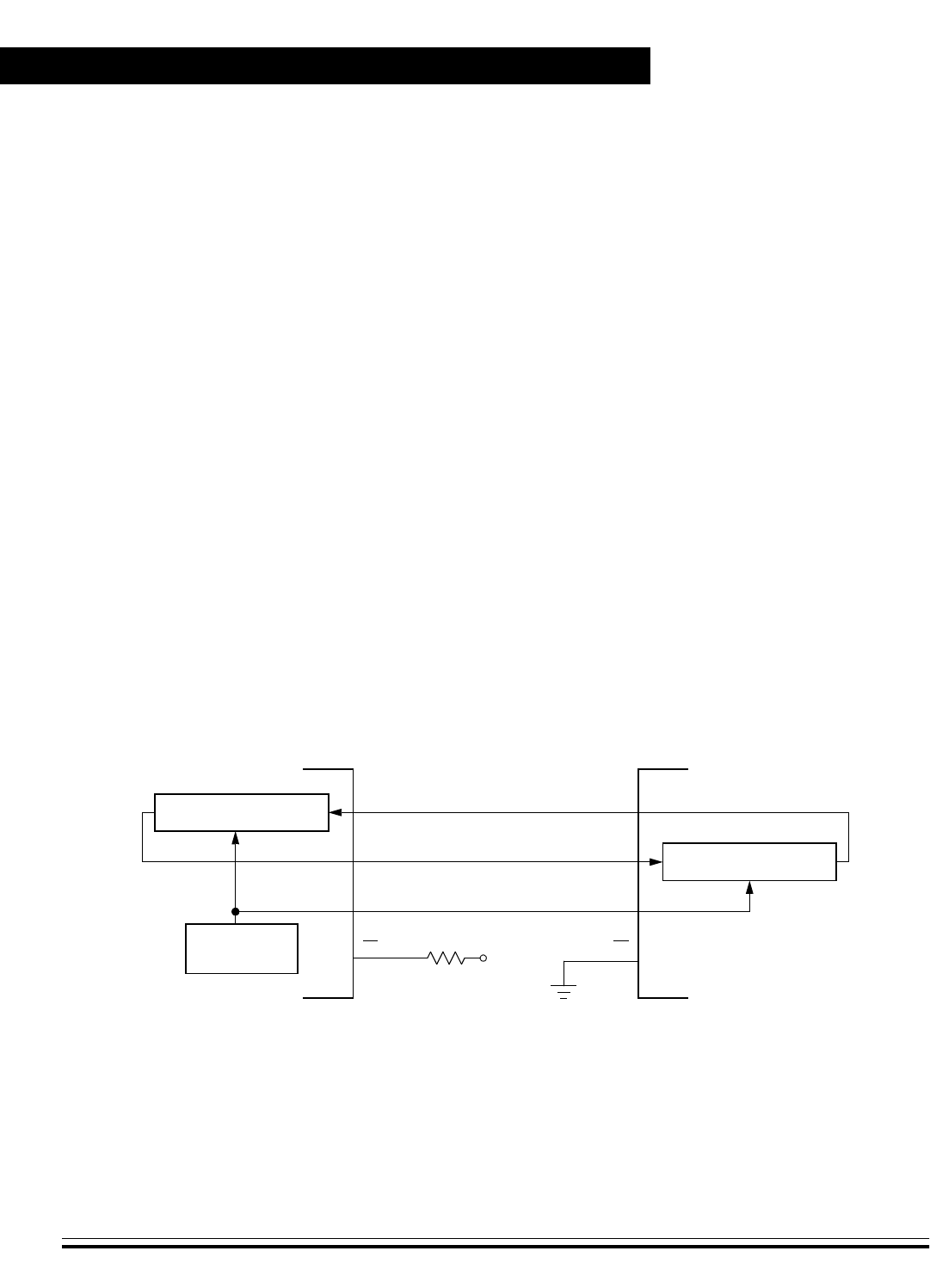

Figure 19-2. Full-Duplex Master-Slave Connections
SHIFT REGISTER
SHIFT REGISTER
BAUD RATE
GENERATOR
MASTER MCU SLAVE MCU
V
DD
MOSI MOSI
MISO MISO
SPSCK SPSCK
SS
SS
Serial Peripheral Interface (SPI)
Functional Description
MC68HC908AZ60A — Rev 2.0 Technical Data
MOTOROLA Serial Peripheral Interface (SPI) 291
As the byte shifts out on the MOSI pin of the master, another byte shifts
in from the slave on the master’s MISO pin. The transmission ends when
the receiver full bit, SPRF (SPSCR), becomes set. At the same time that
SPRF becomes set, the byte from the slave transfers to the receive data
register. In normal operation, SPRF signals the end of a transmission.
Software clears SPRF by reading the SPI status and control register and
then reading the SPI data register. Writing to the SPI data register clears
the SPTIE bit.
19.5.2 Slave Mode
The SPI operates in slave mode when the SPMSTR bit (SPCR, $0010)
is clear. In slave mode the SPSCK pin is the input for the serial clock
from the master MCU. Before a data transmission occurs, the SS pin of
the slave MCU must be at logic 0. SS
must remain low until the
transmission is complete. (See Mode Fault Error on page 299).
In a slave SPI module, data enters the shift register under the control of
the serial clock from the master SPI module. After a byte enters the shift
register of a slave SPI, it is transferred to the receive data register, and
the SPRF bit (SPSCR) is set. To prevent an overflow condition, slave
software then must read the SPI data register before another byte enters
the shift register.
The maximum frequency of the SPSCK for an SPI configured as a slave
is the bus clock speed, which is twice as fast as the fastest master
SPSCK clock that can be generated. The frequency of the SPSCK for an
SPI configured as a slave does not have to correspond to any SPI baud
rate. The baud rate only controls the speed of the SPSCK generated by
an SPI configured as a master. Therefore, the frequency of the SPSCK
for an SPI configured as a slave can be any frequency less than or equal
to the bus speed.
When the master SPI starts a transmission, the data in the slave shift
register begins shifting out on the MISO pin. The slave can load its shift
register with a new byte for the next transmission by writing to its transmit
data register. The slave must write to its transmit data register at least
one bus cycle before the master starts the next transmission. Otherwise
the byte already in the slave shift register shifts out on the MISO pin.
