RF SAW Filter
Part Number Package Application Last Modified
861-RF1842.5M-C 2.5 x 2.0 SMD PCN Mar. 2, 2007
TYPE :
PCN, Balanced RF SAW Filter
PART NUMBER :
861-RF1842.5M-C
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS Condition Minimum Typical Maximum Units
Center Frequency (Fo) -
- 1842.5 - MHz
Maximum Insertion Loss 1805.0~ 1880.0 MHz
- 2.8 4.0 dB
Attenuation: D.C.~ 1200.0 MHz
40 48 -
dB
1200.0~1705.0 MHz
30 33 -
1705.0~ 1785.0MHz
9 14.5 -
1920.0~ 1980.0 MHz
10 22.5 -
1980.0~ 2000.0 MHz
20 23.5 -
2200.0~ 3000.0 MHz
30 36 -
3000.0~ 6000.0 MHz
40 44 -
Symmetry in Band 1805.0~ 1880.0 MHz
-
Output Amplitude Balance (l S31/S21 l) -
-1.8 0 1.4 dB
Output Phase Balance (
φ
(S31)-
φ
(S21)+180º)
-
-12 0 12 degree
Source Impedence (single ended)* -
- 50 - ohm
Load Impendance (Balanced ended)* -
- 200//18nH - ohm

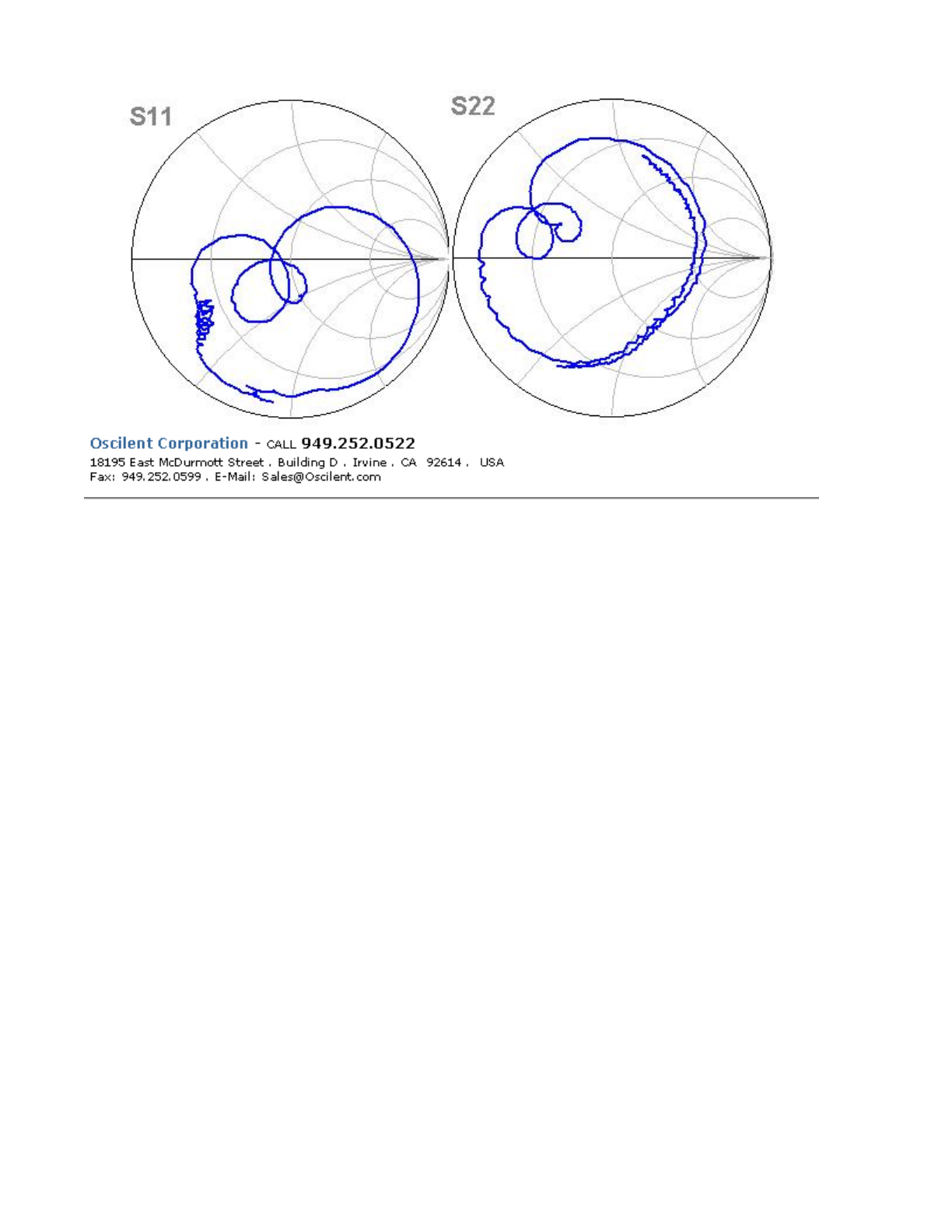

Input/Output VSWR 1805.0~ 1880.0 MHz
- 2.0 2.5 -
Amplitude Ripple 1805.0~ 1880.0 MHz
- 0.7 1.5 dBp-p
Maximum DC Voltage -
- - 5 V
Maximum Input Power -
- - 12 dBm
Operating Temperature -
-20 - +75 ºC
*With Matching Network
PACKAGE OUTLINE (mm)
PIN LAYOUT
A -
B Ground
C Out
D Out
E Ground
F -
G In

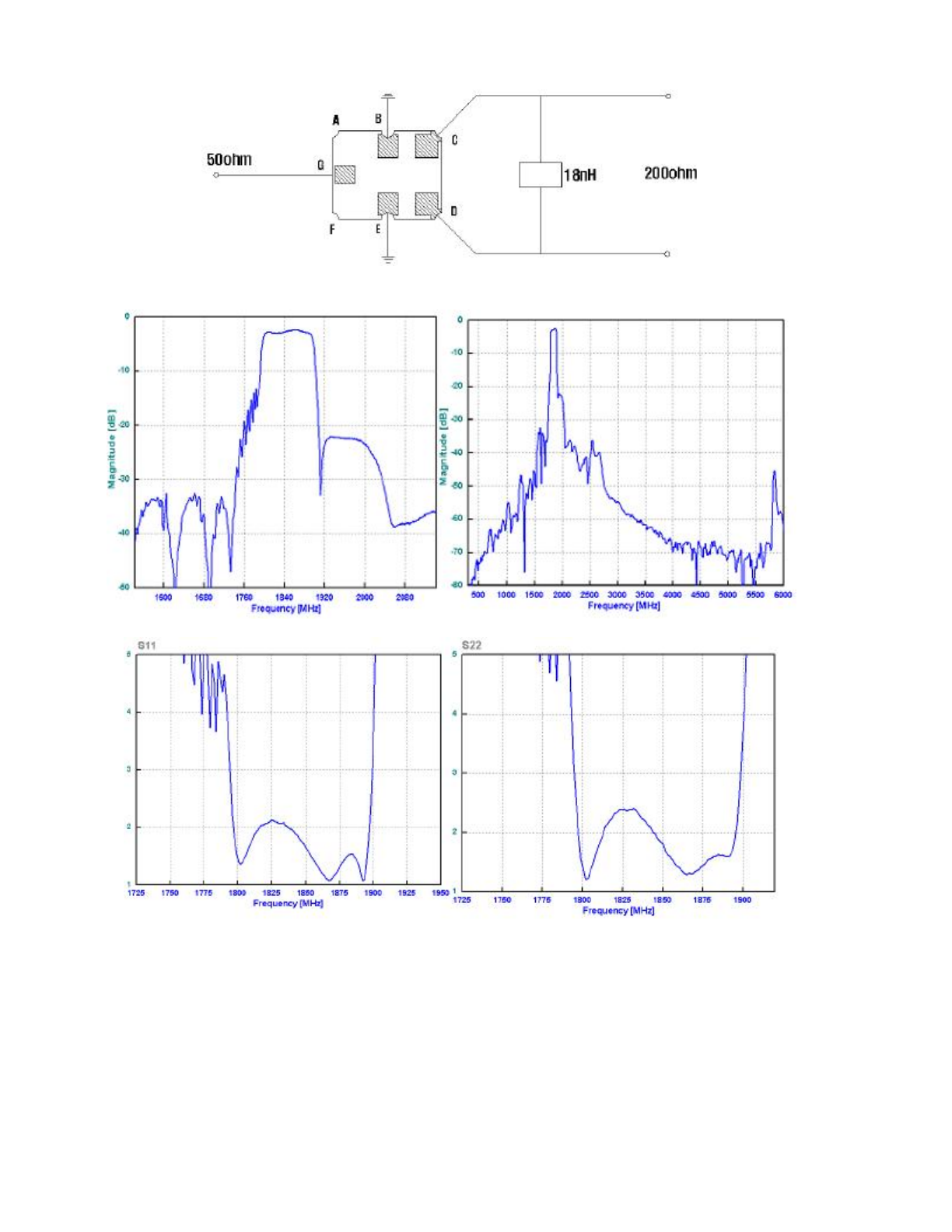

TEST FIXTURE
