1. Anode
2. Cathode
3. Emitter
4. Collector
PIN CONNECTION
(Top View)
43
12
The mark <R> shows major revised points.
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
DESCRIPTION
The PS2861B-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon
phototransistor.
The package has a shield effect to cut off ambient light, and is mounted in a Shrink SOP (Small Outline Package)
for high density applications.
Due to the high isolation voltage between the input and output, the PS2861B-1 is suitable for interface and signal
transfer circuits that require surface or high-density mounting.
FEATURES
• Operating ambient temperature: 110°C
Isolation distance (0.4 mm MIN.)
High isolation voltage (BV = 3 750 Vr.m.s.)
Shrink SOP (Small Outline Package) type
High-speed switching (t
r = 4
μ
s TYP., tf = 5
μ
s TYP.)
Embossed tape product: PS2861B-1-F3: 3 500 pcs/reel
• Pb-Free product
• Safety standards
UL approved: No. E72422
CSA approved: No. CA 101391 (CA5A, CAN/CSA-C22.2 60065, 60950)
BSI approved: No. 8979/8980
SEMKO approved: No. 908508
DIN EN60747-5-2 (VDE0884 Part2) approved: No. 40024453 (Option)
APPLICATIONS
• Power supply
Programmable logic controllers
<R>
<R>
DATA SHEET
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
PHOTOCOUPLER
PS2861B-1
4-PIN SSOP PHOTOCOUPLER
OPERATING AMBIENT TEMPERATURE 110°C
NEPOC Series
Document No. PN10742EJ02V0DS (2nd edition)
Date Published March 2010 NS
Printed in Japan

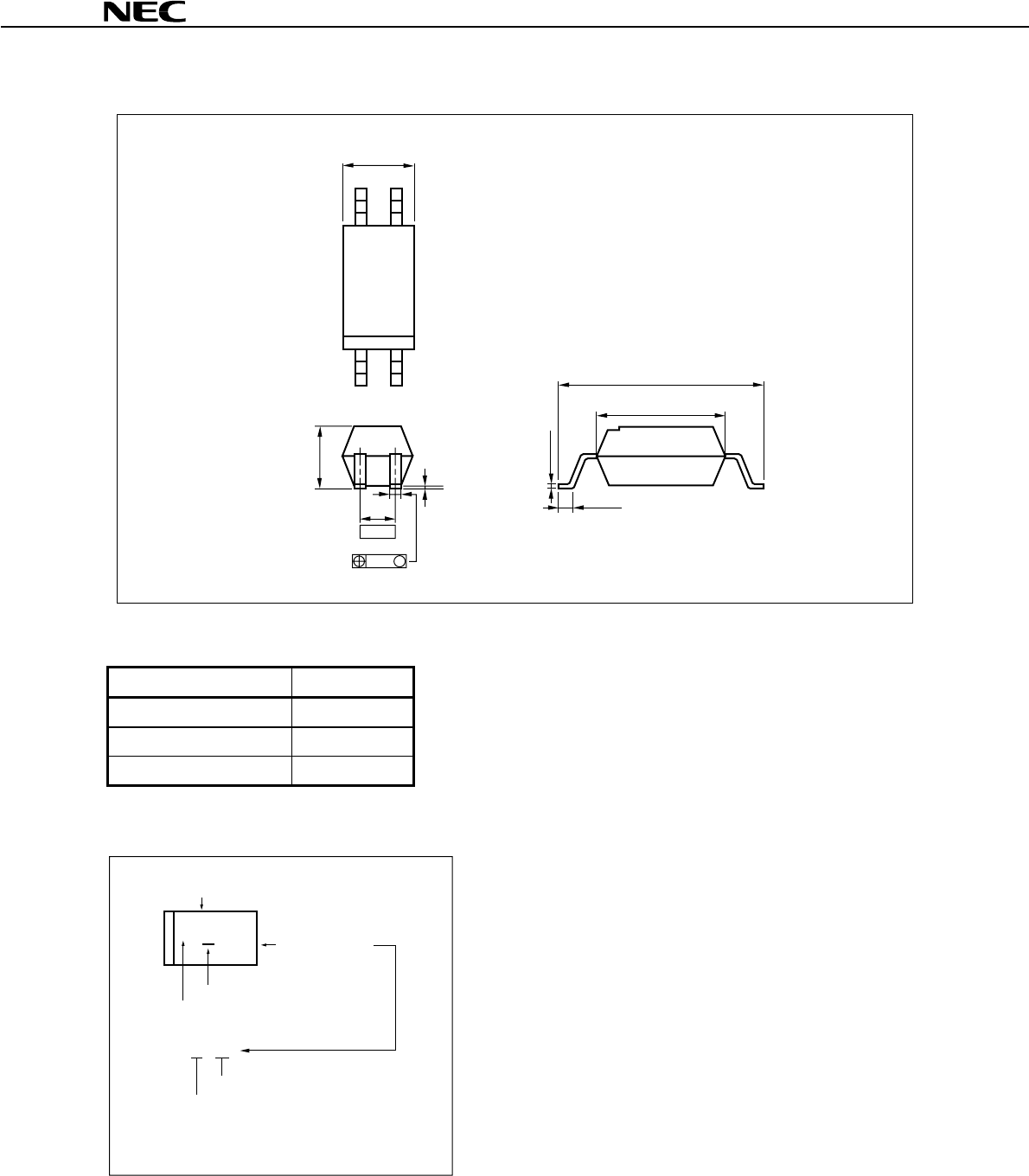

PACKAGE DIMENSIONS (UNIT : mm)
M
0.12
0.4±0.1
1.27
2.7±0.3
4.4
7.0±0.3
0.5±0.3
0.15
+0.10
–0.05
2.0
±0.1
0.1±0.1
1
2
4
3
PHOTOCOUPLER CONSTRUCTION
Parameter Unit (MIN.)
Air Distance 5.0 mm
Creepage Distance 5.0 mm
Isolation Distance 0.4 mm
MARKING EXAMPLE
031
Year Assembled
(Last 1 Digit)
Week Assembled
Assembly Lot
Last Number of Type Number: 1B
N1B
An initial of "NEC"
*1
*1 Bar: Pb-Free and Halogen Free
031
<R>
Data Sheet PN10742EJ02V0DS
2
PS2861B-1
ORDERING INFORMATION
Part Number Order Number Solder Plating
Specification etc.
Packing Style Safety Standard
Approval
Application
Part Number
*1
PS2861B-1 PS2861B-1Y-A
Pb-Free and
Magazine case 100 pcs Standard products
PS2861B-1
PS2861B-1-F3 PS2861B-1Y-F3-A
Halogen Free
Embossed Tape 3 500 pcs/reel
(UL, CSA, BSI,
SEMKO approved)
PS2861B-1-V PS2861B-1Y-V-A Magazine case 100 pcs
DIN EN60747-5-2
PS2861B-1-V-F3 PS2861B-1Y-V-F3-A Embossed Tape 3 500 pcs/reel
(VDE0884 Part2)
approved (Option)
*1 For the application of the Safety Standard, following part number should be used.
ABSOLUTE MAXIMUM RATINGS (TA = 25°C, unless otherwise specified)
Parameter Symbol Ratings Unit
Diode Forward Current (DC) IF 50 mA
Reverse Voltage VR 6 V
Power Dissipation Derating
Δ
PD/°C 0.6 mW/°C
Power Dissipation PD 60 mW
Peak Forward Current1
*1
IFP1 2.5 A
Peak Forward Current2
*2
IFP2 1.0
Transistor Collector to Emitter Voltage VCEO 70 V
Emitter to Collector Voltage VECO 5 V
Collector Current IC 50 mA
Power Dissipation Derating
Δ
PC/°C 1.2 mW/°C
Power Dissipation PC 120 mW
Isolation Voltage
*3
BV 3 750 Vr.m.s.
Operating Ambient Temperature TA –55 to +110 °C
Storage Temperature Tstg –55 to +150 °C
*1 PW = 10
μ
s, Duty Cycle = 1%
*2 PW = 100
μ
s, Duty Cycle = 1%
*3 AC voltage for 1 minute at T
A = 25°C, RH = 60% between input and output.
Pins 1-2 shorted together, 3-4 shorted together.
<R>
Data Sheet PN10742EJ02V0DS
3
PS2861B-1
