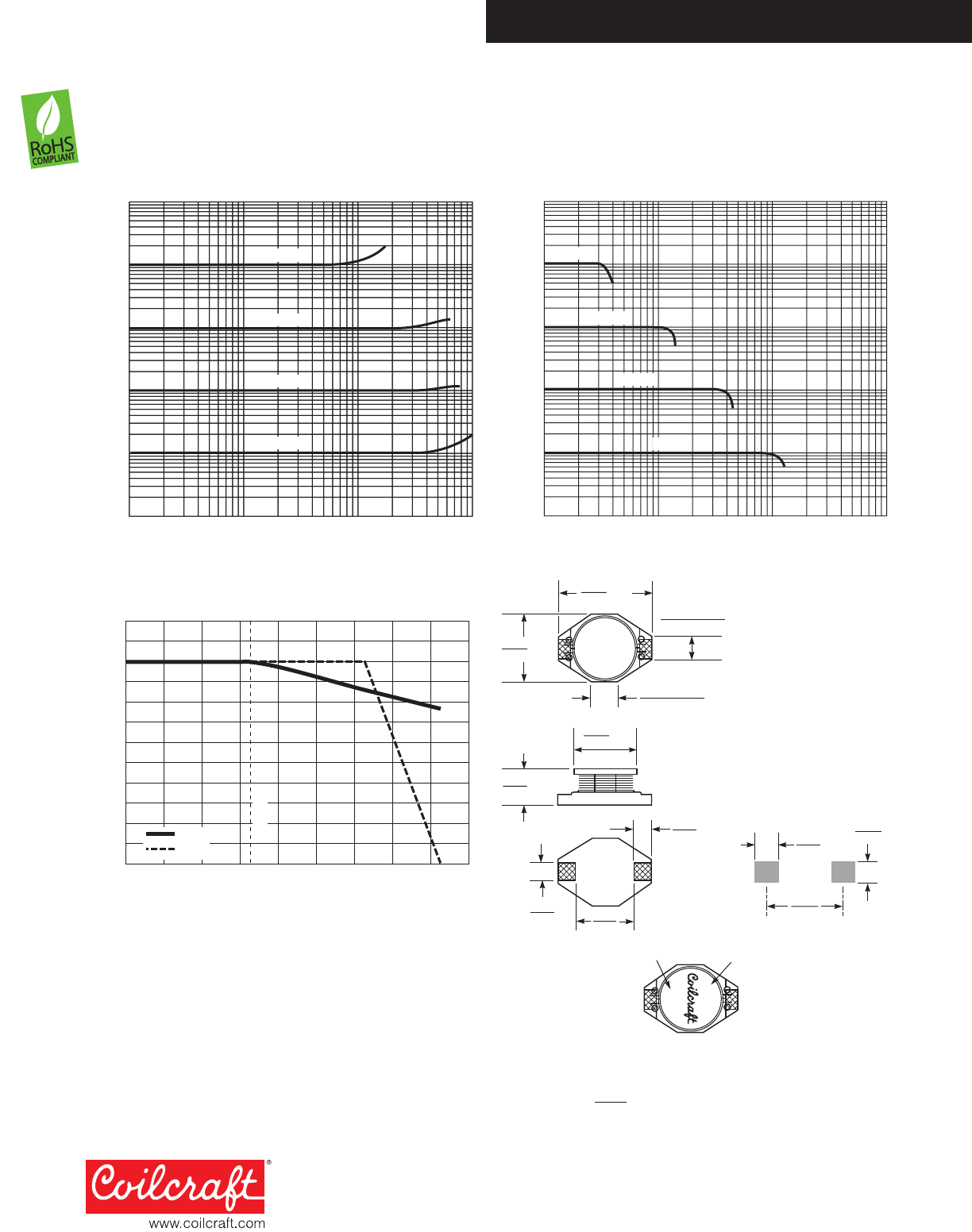

SMT Power Inductors
–
DO3316P Series
Document 179-1
Document 179-1 Revised 09/25/12
DCR SRF
Part
L
2
Percent max
typ
4
Isat
5
Irms
6
number
1
(µH) tol
3
(Ohms) (MHz) (A) (A)
DO3316P-102ML_ 1.0 20 0.009 100 9.0 6.8
DO3316P-152ML_ 1.5 20 0.010 90 8.0 6.4
DO3316P-222_L_ 2.2 20,10 0.012 80 7.0 6.1
DO3316P-332_L_ 3.3 20,10 0.015 65 6.4 5.4
DO3316P-472_L_ 4.7 20,10 0.018 45 5.4 4.8
DO3316P-682_L_ 6.8 20,10 0.027 38 4.6 4.4
DO3316P-103_L_ 10 20,10 0.038 30 3.8 3.9
DO3316P-153_L_ 15 20,10 0.046 27 3.0 3.1
DO3316P-223_L_ 22 20,10 0.085 19 2.3 2.7
DO3316P-333_L_ 33 20,10 0.10 15 2.0 2.1
DO3316P-473_L_ 47 20,10 0.14 12 1.6 1.8
DO3316P-683_L_ 68 20,10 0.20 10 1.4 1.5
DO3316P-104_L_ 100 20,10 0.28 9 1.2 1.3
DO3316P-154_L_ 150 20,10 0.40 6 1.0 1.0
DO3316P-224_L_ 220 20,10 0.61 5 0.80 0.80
DO3316P-334_L_ 330 20,10 1.02 4.5 0.60 0.60
DO3316P-474_L_ 470 20,10 1.27 3.5 0.50 0.50
DO3316P-684_L_ 680 20,10 2.02 2.5 0.40 0.40
DO3316P-105_L_ 1000 20,10 3.00 2.0 0.30 0.30
DO3316P-155_L_ 1500 20,10 4.49 1.7 0.29 0.27
DO3316P-335_L_ 3300 20,10 8.97 1.1 0.19 0.17
1. When ordering, specify tolerance, termination and packaging codes:
DO3316P-105MLD
Tolerance: M = 20%, K = 10% (Table shows stock tolerances in bold.)
Termination: L = RoHS compliant gold over nickel over phos bronze.
Special order: T = RoHS tin-silver-copper (95.5/4/0.5)
or S = non-RoHS tin-lead (63/37).
Packaging: D = 13″ machine-ready reel. EIA-481 embossed plastic
tape (1000 parts per full reel).
B = Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter D instead.
2. Tested at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/HP 4263B LCR
meter or equivalent.
3. Tolerances in bold are stocked for immediate shipment.
4. SRF >13 MHz measured using Agilent/HP 8753D network analyzer;
<13 MHz using Agilent/HP 4192A.
5. DC current at which inductance drops 10% (typ) from its value without
current.
6. Current that causes a 40°C temperature rise from 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Designer’s Kit C378 contains 3 of each 20% part
Core material Ferrite
Core and winding loss See www.coilcraft.com/coreloss
Terminations RoHS compliant gold over nickel over phos bronze.
Other terminations available at additional cost.
Weight 0.92 – 1.23 g
Ambient temperature –40°C to +85°C with Irms current, +85°C to
+125°C with derated current
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging 1000 per 13″ reel Plastic tape: 24 mm wide,
0.33 mm thick, 12 mm pocket spacing, 5.8 mm pocket depth
PCB washing Only pure water or alcohol recommended
• High energy storage and very low resistance
• Most values available with 10% tolerance
• High inductance values are perfect for EL driver applications.
