TL/F/9482
54F/74F153 Dual 4-Input Multiplexer
December 1994
54F/74F153
Dual 4-Input Multiplexer
General Description
The ’F153 is a high-speed dual 4-input multiplexer with com-
mon select inputs and individual enable inputs for each sec-
tion. It can select two lines of data from four sources. The
two buffered outputs present data in the true (non-inverted)
form. In addition to multiplexer operation, the ’F153 can
generate any two functions of three variables.
Features
Y
Guaranteed 4000V minimum ESD protection
Commercial Military
Package
Package Description
Number
74F153PC N16E 16-Lead (0.300
×
Wide) Molded Dual-In-Line
54F153DM (Note 2) J16A 16-Lead Ceramic Dual-In-Line
74F153SC (Note 1) M16A 16-Lead (0.150
×
Wide) Molded Small Outline, JEDEC
74F153SJ (Note 1) M16D 16-Lead (0.300
×
Wide) Molded Small Outline, EIAJ
54F153FM (Note 2) W16A 16-Lead Cerpack
54F153LM (Note 2) E20A 20-Lead Ceramic Leadless Chip Carrier, Type C
Note 1: Devices also available in 13
×
reel. Use suffix
e
SCX and SJX.
Note 2: Military grade device with environmental and burn-in processing. Use suffix
e
DMQB, FMQB and LMQB.
Logic Symbols Connection Diagrams
TL/F/94823
IEEE/IEC
TL/F/94825
Pin Assignment
for DIP, SOIC and Flatpak
TL/F/94821
Pin Assignment
for LCC
TL/F/94822
TRI-STATE
É
is a registered trademark of National Semiconductor Corporation.
C
1995 National Semiconductor Corporation RRD-B30M75/Printed in U. S. A.
Unit Loading/Fan Out
54F/74F
Pin Names Description
U.L. Input I
IH
/I
IL
HIGH/LOW Output I
OH
/I
OL
I
0a
–I
3a
Side A Data Inputs 1.0/1.0 20 mA/
b
0.6 mA
I
0b
–I
3b
Side B Data Inputs 1.0/1.0 20 mA/
b
0.6 mA
S
0
,S
1
Common Select Inputs 1.0/1.0 20 mA/
b
0.6 mA
E
a
Side A Enable Input (Active LOW) 1.0/1.0 20 mA/
b
0.6 mA
E
b
Side B Enable Input (Active LOW) 1.0/1.0 20 mA/
b
0.6 mA
Z
a
Side A Output 50/33.3
b
1 mA/20 mA
Z
b
Side B Output 50/33.3
b
1 mA/20 mA
Functional Description
The ’F153 is a dual 4-input multiplexer. It can select two bits
of data from up to four sources under the control of the
common Select inputs (S
0
,S
1
). The two 4-input multiplexer
circuits have individual active LOW Enables (E
a
,E
b
) which
can be used to strobe the outputs independently. When the
Enables (E
a
,E
b
) are HIGH, the corresponding outputs (Z
a
,
Z
b
) are forced LOW. The ’F153 is the logic implementation
of a 2-pole, 4-position switch, where the position of the
switch is determined by the logic levels supplied to the two
Select inputs. The logic equations for the outputs are as
follows:
Z
a
e
E
a
#
(I
0a
#
S
1
#
S
0
a
I
1a
#
S
1
#
S
0
a
I
2a
#
S
1
#
S
0
a
I
3a
#
S
1
#
S
0
)
Z
b
e
E
b
#
(I
0b
#
S
1
#
S
0
a
I
1b
#
S
1
#
S
0
a
I
2b
#
S
1
#
S
0
a
I
3b
#
S
1
#
S
0
)
The ’F153 can be used to move data from a group of regis-
ters to a common output bus. The particular register from
which the data came would be determined by the state of
the Select inputs. A less obvious application is as a function
generator. The ’F153 can generate two functions of three
variables. This is useful for implementing highly irregular
random logic.
Truth Table
Select
Inputs (a or b) Output
Inputs
S
0
S
1
E I
0
I
1
I
2
I
3
Z
XXHXXXX L
LLLLXXX L
LLLHXXX H
HLLXLXX L
HLLXHXX H
LHLXXLX L
LHLXXHX H
HHLXXXL L
HHLXXXH H
H
e
HIGH Voltage Level
L
e
LOW
X
e
Immaterial
2

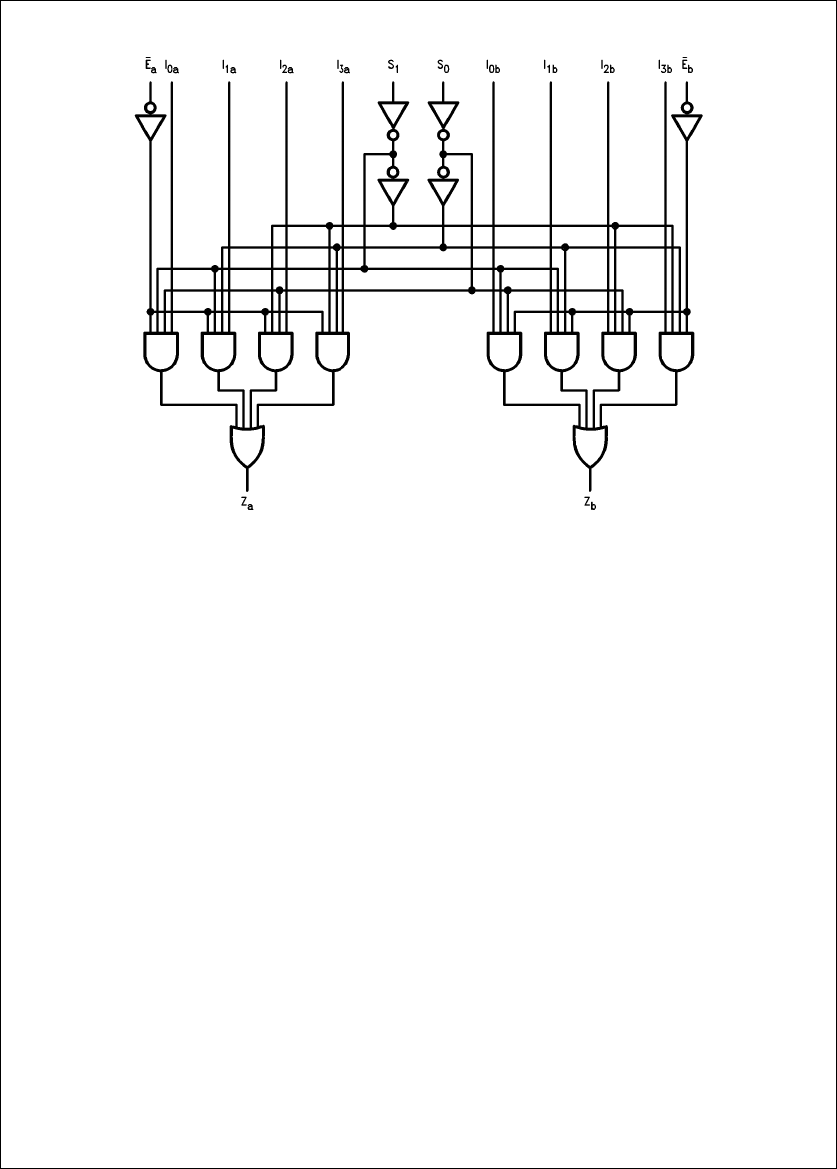

Logic Diagram
TL/F/94824
Please note that this diagram is provided only for the understanding of logic operations and should not be used to estimate propagation delays.
3
