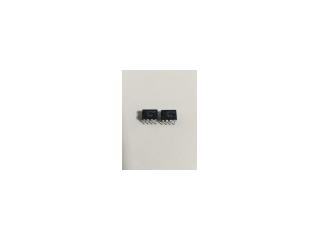

LM358DR

Part # LM358DR
Description SOIC T/R - Tape and Reel (Al
Category IC
Availability In Stock
Qty 172
Qty Price
1 + $0.04280
Manufacturer Available Qty
Texas Instruments
  • Shipping Freelance Stock: 172
    Ships Immediately



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

   
   
  
SLOS068P − JUNE 1976 − REVISED SEPTEMBER 2004
1
POST OFFICE BOX 655303 DALLAS, TEXAS 75265
D Wide Supply Range:
− Single Supply ...3 V to 32 V
(26 V for LM2904)
− or Dual Supplies . . . +1.5 V to +16 V
(+13 V for LM2904)
D Low Supply-Current Drain, Independent of
Supply Voltage . . . 0.7 mA Typ
D Common-Mode Input Voltage Range
Includes Ground, Allowing Direct Sensing
Near Ground
D Low Input Bias and Offset Parameters:
− Input Offset Voltage ...3 mV Typ
A Versions ...2 mV Typ
− Input Offset Current ...2 nA Typ
− Input Bias Current . . . 20 nA Typ
A Versions . . . 15 nA Typ
D Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage ...32 V
(26 V for LM2904)
D Open-Loop Differential Voltage
Amplification . . . 100 V/mV Typ
D Internal Frequency Compensation
description/ordering information
These devices consist of two independent,
high-gain, frequency-compensated operational
amplifiers designed to operate from a single
supply over a wide range of voltages. Operation from split supplies also is possible if the difference between
the two supplies is 3 V to 32 V (3 V to 26 V for the LM2904), and V
CC
is at least 1.5 V more positive than the
input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply
voltage.
Applications include transducer amplifiers, dc amplification blocks, and all the conventional operational
amplifier circuits that now can be implemented more easily in single-supply-voltage systems. For example,
these devices can be operated directly from the standard 5-V supply used in digital systems and easily can
provide the required interface electronics without additional ±5-V supplies.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Copyright 2004, Texas Instruments Incorporated
  !" # $%&" !#  '%()$!" *!"&+
*%$"# $ " #'&$$!"# '& ",& "&#  &-!# #"%&"#
#"!*!* .!!"/+ *%$" '$&##0 *&# " &$&##!)/ $)%*&
"&#"0  !)) '!!&"&#+
1
2
3
4
8
7
6
5
1OUT
1IN−
1IN+
GND
V
CC
2OUT
2IN−
2IN+
LM158, LM158A ...JG PACKAGE
LM258, LM258A . . . D, DGK, OR P PACKAGE
LM358 . . . D, DGK, P, PS, OR PW PACKAGE
LM358A . . . D, DGK, P, OR PW PACKAGE
LM2904 . . . D, DGK, P, PS, OR PW PACKAGE
(TOP VIEW)
3212019
910111213
4
5
6
7
8
18
17
16
15
14
NC
2OUT
NC
2IN−
NC
NC
1IN−
NC
1IN+
NC
LM158, LM158A . . . FK PACKAGE
(TOP VIEW)
NC
1OUT
NC
NC NC
NC
GND
NC
CC+
V
2IN+
NC − No internal connection
 '*%$"# $')!" " 11 !)) '!!&"&# !& "&#"&*
%)&## ",&.#& "&*+  !)) ",& '*%$"# '*%$"
'$&##0 *&# " &$&##!)/ $)%*& "&#"0  !)) '!!&"&#+
   
   
  
SLOS068P − JUNE 1976 − REVISED SEPTEMBER 2004
2
POST OFFICE BOX 655303 DALLAS, TEXAS 75265
description/ordering information (continued)
ORDERING INFORMATION
T
A
V
IO
max
AT 25°C
MAX
TESTED
V
CC
PACKAGE
ORDERABLE
PART NUMBER
TOP-SIDE
MARKING
PDIP (P) Tube of 50 LM358P LM358P
SOIC (D)
Tube of 75 LM358D
LM358
SOIC (D)
Reel of 2500 LM358DR
LM358
7 mV 30 V
SOP (PS) Reel of 2000 LM358PSR L358
7 mV
30 V
TSSOP (PW)
Tube of 150 LM358PW
L358
TSSOP (PW)
Reel of 2000 LM358PWR
L358
0°C to 70°C
MSOP/VSSOP (DGK) Reel of 2500 LM358DGKR M5_
0 C to 70 C
PDIP (P) Tube of 50 LM358AP LM358AP
SOIC (D)
Tube of 75 LM358AD
LM358A
3 mV
30 V
SOIC (D)
Reel of 2500 LM358ADR
LM358A
3 mV 30 V
TSSOP (PW)
Tube of 150 LM358APW
L358A
TSSOP (PW)
Reel of 2000 LM358APWR
L358A
MSOP/VSSOP (DGK) Reel of 2500 LM358ADGKR M6_
PDIP (P) Tube of 50 LM258P LM258P
5 mV
30 V
SOIC (D)
Tube of 75 LM258D
LM258
5 mV 30 V SOIC (D)
Reel of 2500 LM258DR
LM258
−25°C to 85°C
MSOP/VSSOP (DGK) Reel of 2500 LM258DGKR M2_
−25°C to 85°C
PDIP (P) Tube of 50 LM258AP LM258AP
3 mV
30 V
SOIC (D)
Tube of 75 LM258AD
LM258A
3 mV 30 V SOIC (D)
Reel of 2500 LM258ADR
LM258A
MSOP/VSSOP (DGK) Reel of 2500 LM258ADGKR M3_
PDIP (P) Tube of 50 LM2904P LM2904P
SOIC (D)
Tube of 75 LM2904D
LM2904
SOIC (D)
Reel of 2500 LM2904DR
LM2904
7 mV 26 V
SOP (PS) Reel of 2000 LM2904PSR L2904
7 mV
26 V
TSSOP (PW)
Tube of 150 LM2904PW
L2904
−40°C to 125°C
TSSOP (PW)
Reel of 2000 LM2904PWR
L2904
−40 C to 125 C
MSOP/VSSOP (DGK) Reel of 2500 LM2904DGKR MB_
7 mV
32 V
SOIC (D) Reel of 2500 LM2904VQDR L2904V
7 mV 32 V
TSSOP (PW) Reel of 2000 LM2904VQPWR L2904V
2 mV
32 V
SOIC (D) Reel of 2500 LM2904AVQDR L2904AV
2 mV 32 V
TSSOP (PW) Reel of 2000 LM2904AVQPWR L2904AV
5 mV
30 V
CDIP (JG) Tube of 50 LM158JG LM158JG
−55°C to 125°C
5 mV 30 V
LCCC (FK) Tube of 55 LM158FK LM158FK
−55
°
C to 125
°
C
2 mV
30 V
CDIP (JG) Tube of 50 LM158AJG LM158AJG
2 mV
30 V
LCCC (FK) Tube of 55 LM158AFK LM158AFK
Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at
www.ti.com/sc/package.
The actual top-side marking has one additional character that designates the assembly/test site.
   
   
  
SLOS068P − JUNE 1976 − REVISED SEPTEMBER 2004
3
POST OFFICE BOX 655303 DALLAS, TEXAS 75265
symbol (each amplifier)
IN+
IN−
OUT
+
schematic (each amplifier)
V
CC+
OUT
GND (or V
CC−
)
To Other Amplifier
IN−
IN+
6-µA
Current
Regulator
6-µA
Current
Regulator
100-µA
Current
Regulator
50-µA
Current
Regulator
Epi-FET
Diodes
Resistors
Transistors
Capacitors
COMPONENT COUNT
1
2
7
51
2
