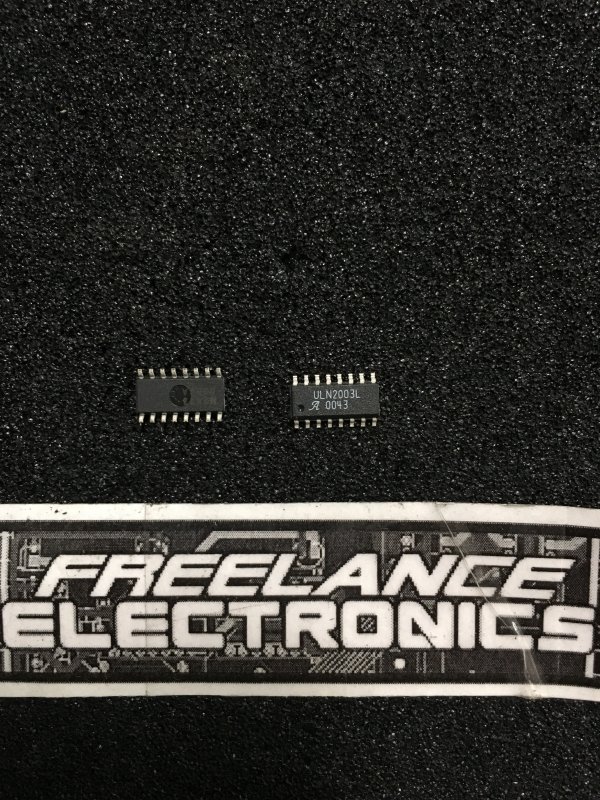

Allegro Microsystems ULN2003L

Cross Number:

Item Description: RELAY DRIVER SINK 7CH5V, TSSOP-1
Additional Information:

Qty Price
1 - 192 $0.77880
193 - 484 $0.61950
485 - 941 $0.58410
942 - 1,427 $0.54280
1,428 + $0.48380





Related Items

SGS Thomson
IC

ULN2001A

$0.20660
STMicroelectronics
IC

ULN2002A

$0.31680
SPRAGUE
IC

ULN2003A

$0.18620
Texas Instruments
IC

ULN2003AD

$0.32617
Texas Instruments
IC

ULN2003ADR

$0.29608
Texas Instruments
IC

ULN2003AJ/883B

$2.12540


Manufacturer Date Code Qty Available Qty
Allegro Microsystems 0043
  • Freelance Stock: 2102
    Ships Immediately


Allegro Microsystems 9312
  • Freelance Stock: 428
    Ships Immediately







Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

2003
THRU
2024
x = digit to identify specific device. Characteristic shown applies to family of
devices with remaining digits as shown. See matrix on next page.
Data Sheet
29304F
Ideally suited for interfacing between low-level logic circuitry and
multiple peripheral power loads, the Series ULN20xxA/L high-voltage,
high-current Darlington arrays feature continuous load current ratings
to 500 mA for each of the seven drivers. At an appropriate duty cycle
depending on ambient temperature and number of drivers turned ON
simultaneously, typical power loads totaling over 230 W (350 mA x 7,
95 V) can be controlled. Typical loads include relays, solenoids,
stepping motors, magnetic print hammers, multiplexed LED and
incandescent displays, and heaters. All devices feature open-collector
outputs with integral clamp diodes.
The ULN2003A/L and ULN2023A/L have series input resistors
selected for operation directly with 5 V TTL or CMOS. These devices
will handle numerous interface needs — particularly those beyond the
capabilities of standard logic buffers.
The ULN2004A/L and ULN2024A/L have series input resistors for
operation directly from 6 to 15 V CMOS or PMOS logic outputs.
The ULN2003A/L and ULN2004A/L are the standard Darlington
arrays. The outputs are capable of sinking 500 mA and will withstand
at least 50 V in the OFF state. Outputs may be paralleled for higher
load current capability. The ULN2023A/L and ULN2024A/L will
withstand 95 V in the OFF state.
These Darlington arrays are furnished in 16-pin dual in-line plastic
packages (suffix “A”) and 16-lead surface-mountable SOICs (suffix
“L”). All devices are pinned with outputs opposite inputs to facilitate
ease of circuit board layout. All devices are rated for operation over the
temperature range of -20°C to +85°C. Most (see matrix, next page) are
also available for operation to -40°C; to order, change the prefix from
“ULN” to “ULQ”.
FEATURES
TTL, DTL, PMOS, or CMOS-Compatible Inputs
Output Current to 500 mA
Output Voltage to 95 V
Transient-Protected Outputs
Dual In-Line Plastic Package or Small-Outline IC Package
HIGH-VOLTAGE, HIGH-CURRENT
DARLINGTON ARRAYS
Dwg. No. A-9594
16
15
14
13
12
611
710
89
1
2
3
4
5
Note that the ULN20xxA series (dual in-line
package) and ULN20xxL series (small-outline
IC package) are electrically identical and share
a common terminal number assignment.
ABSOLUTE MAXIMUM RATINGS
Output Voltage, V
CE
(ULN200xA and ULN200xL) ........ 50 V
(ULN202xA and ULN202xL) ........ 95 V
Input Voltage, V
IN
................................ 30 V
Continuous Output Current,
I
C
................................................. 500 mA
Continuous Input Current, I
IN
........... 25 mA
Power Dissipation, P
D
(one Darlington pair)..................... 1.0 W
(total package) ....................... See Graph
Operating Temperature Range,
T
A
.................................. -20°C to +85°C
Storage Temperature Range,
T
S
................................. -55°C to +150°C
2003 THRU 2024
HIGH-VOLTAGE,
HIGH-CURRENT
DARLINGTON ARRAYS
115 Northeast Cutoff, Box 15036
Worcester, Massachusetts 01615-0036 (508) 853-5000
V
CE(MAX)
50 V 95 V
I
C(MAX)
500 mA 500 mA
Logic Part Number
5V ULN2003A* ULN2023A*
TTL, CMOS ULN2003L* ULN2023L
6-15 V ULN2004A* ULN2024A
CMOS, PMOS ULN2004L* ULN2024L
*Also available for operation between -40°C and +85°C. To order, change
prefix from “ULN” to “ULQ”.
Dwg. No. A-9651
COM
7.2K
3K
2.7K
X = Digit to identify specific device. Specification shown applies to family of
devices with remaining digits as shown. See matrix above.
Copyright © 1974, 1998 Allegro MicroSystems, Inc.
Dwg. No. A-9898A
ULN20x4A/L (Each Driver)
COM
7.2K
3K
10.5K
50 75 100 125 150
2.5
0.5
0
ALLOWABLE PACKAGE POWER DISSIPATION IN WATTS
AMBIENT TEMPERATURE IN °C
2.0
1.5
1.0
25
SUFFIX 'L', R = 90°C/W
θJA
Dwg. GP-006A
SUFFIX 'A', R = 60°C/W
θJA
ULN20x3A/L (Each Driver)
DEVICE PART NUMBER DESIGNATION
PARTIAL SCHEMATICS
2003 THRU 2024
HIGH-VOLTAGE,
HIGH-CURRENT
DARLINGTON ARRAYS
www.allegromicro.com
Test Applicable Limits
Characteristic Symbol Fig. Devices Test Conditions Min. Typ. Max. Units
Output Leakage Current I
CEX
1A All V
CE
= 50 V, T
A
= 25°C < 1 50 µA
V
CE
= 50 V, T
A
= 70°C < 1 100 µA
1B ULN2004A/L V
CE
= 50 V, T
A
= 70°C, V
IN
= 1.0 V < 5 500 µA
Collector-Emitter V
CE(SAT)
2AllI
C
= 100 mA, I
B
= 250 µA 0.9 1.1 V
Saturation Voltage
l
C
= 200 mA, I
B
= 350 µA 1.1 1.3 V
I
C
= 350 mA, I
B
= 500 µA 1.3 1.6 V
Input Current I
IN(ON)
3 ULN2003A/L V
IN
= 3.85 V 0.93 1.35 mA
ULN2004A/L V
IN
= 5.0 V 0.35 0.5 mA
V
IN
= 12 V 1.0 1.45 mA
I
IN(OFF)
4Alll
C
= 500 µA, T
A
= 70°C5065µA
Input Voltage V
IN(ON)
5 ULN2003A/L V
CE
= 2.0 V, l
C
= 200 mA 2.4 V
V
CE
= 2.0 V, I
C
= 250 mA 2.7 V
V
CE
= 2.0 V, l
C
= 300 mA 3.0 V
ULN2004A/L V
CE
= 2.0 V, l
C
= 125 mA 5.0 V
V
CE
= 2.0 V, l
C
= 200 mA 6.0 V
V
CE
= 2.0 V, I
C
= 275 mA 7.0 V
V
CE
= 2.0 V, l
C
= 350 mA 8.0 V
Input Capacitance C
IN
—All 1525pF
Turn-On Delay t
PLH
8 All 0.5 E
IN
to 0.5 E
OUT
0.25 1.0 µs
Turn-Off Delay t
PHL
8 All 0.5 E
IN
to 0.5 E
OUT
0.25 1.0 µs
Clamp Diode I
R
6AllV
R
= 50 V, T
A
= 25°C—50µA
Leakage Current
V
R
= 50 V, T
A
= 70°C 100 µA
Clamp Diode V
F
7AllI
F
= 350 mA 1.7 2.0 V
Forward Voltage
Complete part number includes suffix to identify package style: A = DIP, L = SOIC.
Types ULN2003A, ULN2003L, ULN2004A, and ULN2004L
ELECTRICAL CHARACTERISTICS at +25°C (unless otherwise noted).
