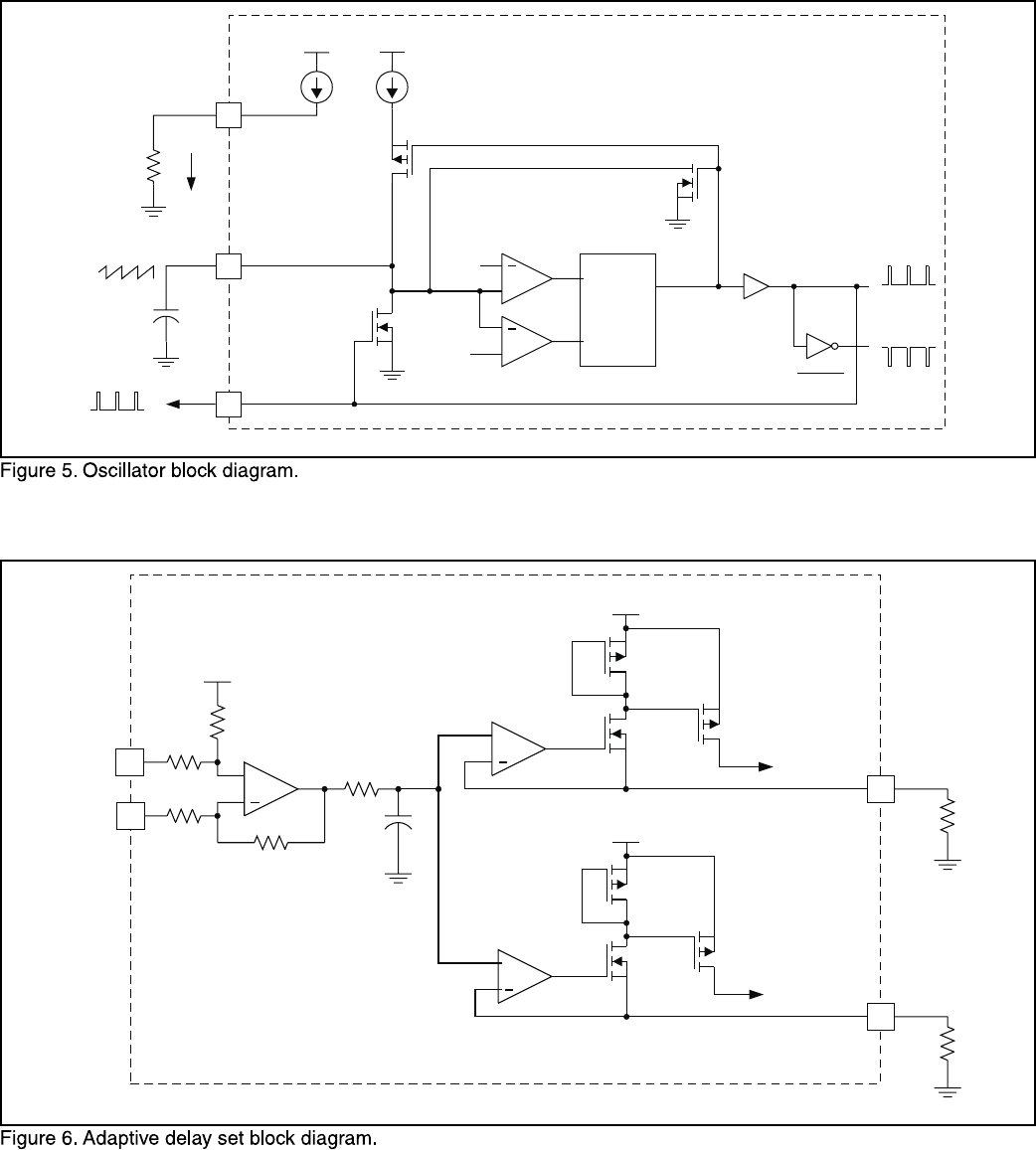

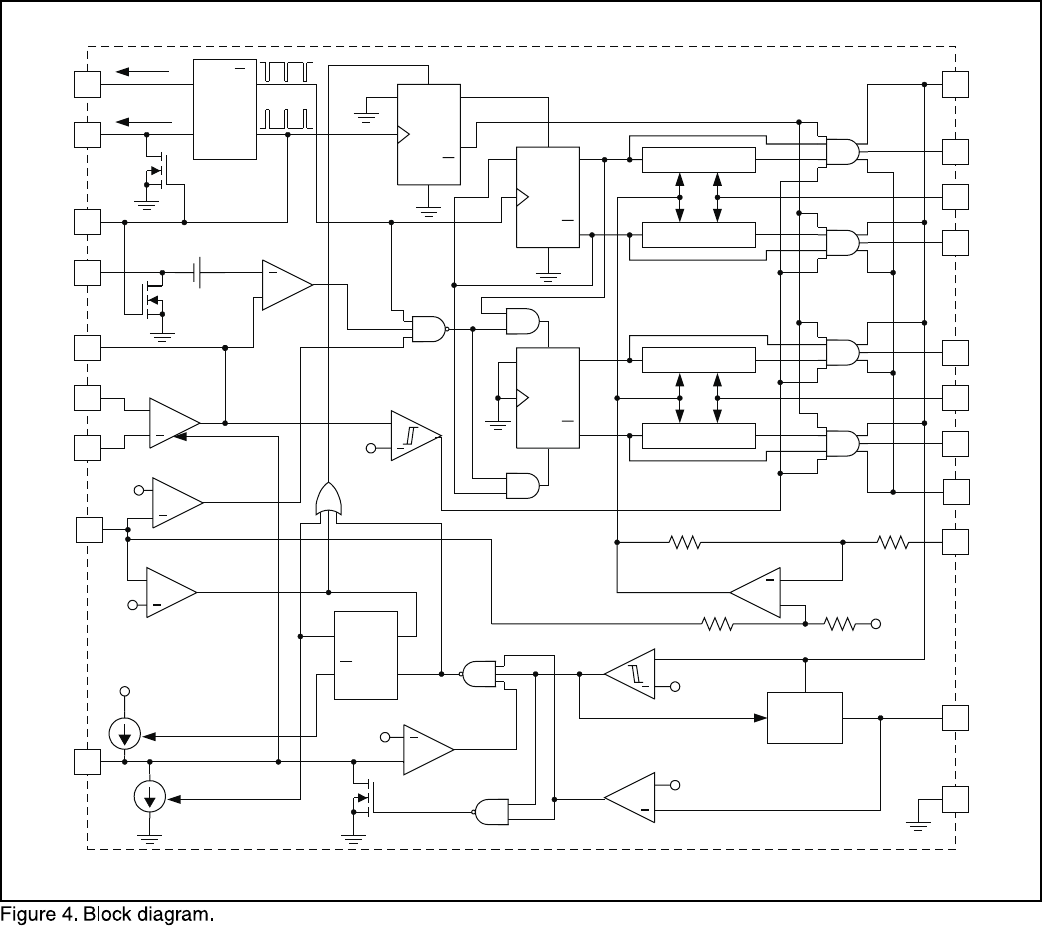

The Adaptive Delay Set feature (ADS) allows the user to
vary the delay times between switch commands within
each of the converter’s two legs. The delay time modula
-
tion is implemented by connecting ADS (pin 11) to CS,
GND, or a resistive divider from CS to GND to set V
ADS
.
From the equation for V
DEL
above, if ADS is tied to GND
then V
DEL
rises in direct proportion to V
CS
, causing a de
-
crease in t
DELAY
as the load increases. In this condition
the maximum value of V
DEL
is 2V. If ADS is connected to
a resistive divider between CS and GND the term
(V
CS
-V
DS
) becomes smaller, reducing the level of V
DEL
.
This will decrease the amount of delay modulation. In the
limit of ADS tied to CS, V
DEL
=0.5V and no delay modula
-
tion occurs. In the case with maximum delay modulation
(ADS=GND), when the circuit goes from light load to
heavy load the variation of V
DEL
is from 0.5V to 2V. This
causes the delay times to vary by a 4:1 ratio as the load
is changed.
The ability to program an adaptive delay is a desirable
feature because the optimum delay time is a function of
the current flowing in the primary winding of the trans-
former, and can change by a factor of 10:1 or more as
circuit loading changes. Reference [1] delves into the
many interrelated factors for choosing the optimum delay
times for the most efficient power conversion, and illus-
trates an external circuit to enable adaptive delay set us-
ing the UC3879. Implementing this adaptive feature is
simplified in the UCC3895 controller, giving the user the
ability to tailor the delay times to suit a particular applica
-
tion with a minimum of external parts.
[1] L. Balogh,
Unitrode Power
Supply Design Seminar Manual, Unitrode Corporation,
1996, Topic 2.
APPLICATION INFORMATION (CONT.)
CLOCK
RAMP
&
COMP
PWM
SIGNAL
OUTPUT A
OUTPUT B
OUTPUT C
OUTPUT D
UDG-98138
00.51.0
100
1.5 2.0 2.5
200
300
400
500
A=1.0
A=0.8
A=0.6
A=0.4
A=0.2
A=0.1
CURRENT SENSE VOLTAGE (V)
DELAYTIME(ns)
A=V
ADS
/V
CS
R
DELAY
=10kW
