TPS767D301MPWPREP

Part # TPS767D301MPWPREP
Description LDO Regulator Pos 1.5V to 5.5V3.3V 1A/1A 28-Pin HTSSOP EP
Category IC
Availability Out of Stock
Qty 0
Qty Price
1 + $4.79955



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

V
I
V
res
See Note A.
V
res
t
t
t
V
O
Threshold
Voltage
RESET
Output
200-ms
Delay
200-ms
Delay
Output
Undefined
Output
Undefined
V
IT+
See Note B.
V
IT
V
IT
V
IT+
See Note B.
Less than 5% of the
output voltage
TPS767D301-EP
SGLS327A FEBRUARY 2006REVISED APRIL 2010
www.ti.com
TERMINAL FUNCTIONS
TERMINAL
I/O DESCRIPTION
NAME NO.
1GND 3 Regulator 1 ground
1EN 4 I Regulator 1 enable
1IN 5, 6 I Regulator 1 input supply voltage
2GND 9 Regulator 2 ground
2EN 10 I Regulator 2 enable
2IN 11, 12 I Regulator 2 input supply voltage
2OUT 17, 18 O Regulator 2 output voltage
2RESET 22 O Regulator 2 reset
1OUT 23, 24 O Regulator 1 output voltage
Regulator 1 output voltage feedback for adjustable version and no connect for fixed-output
1FB/NC 25 I
version
1RESET 28 O Regulator 1 reset
1, 2, 7, 8, 13–16,
NC No connection
19–21, 26, 27

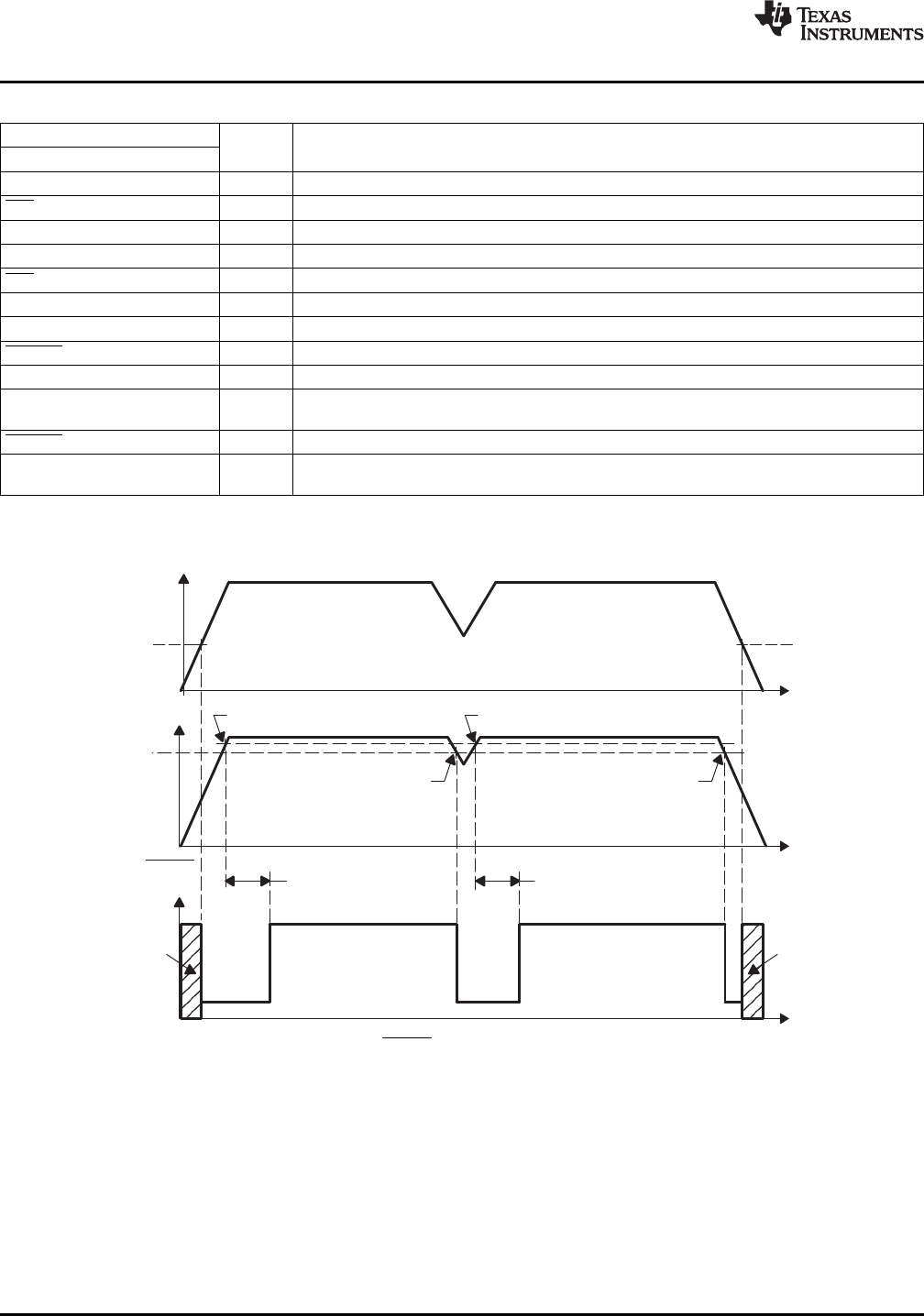

TIMING DIAGRAM
A. V
res
is the minimum input voltage for a valid RESET. The symbol V
res
is not currently listed within EIA or JEDEC
standards for semiconductor symbology.
B. V
IT
– Trip voltage typically is 5% lower than the output voltage (95% V
O
).
4 Submit Documentation Feedback Copyright © 2006–2010, Texas Instruments Incorporated
Product Folder Link(s): TPS767D301-EP
TPS767D301-EP
www.ti.com
SGLS327A FEBRUARY 2006REVISED APRIL 2010
Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)
(1)
MIN MAX UNIT
V
I
Input voltage range
(2)
–0.3 13.5 V
V
I
Input voltage range 1IN, 2IN, EN –0.3 V
I
+ 0.3 V
1OUT, 2OUT 7
V
O
Output voltage V
RESET 16.5
Peak output current Internally limited
HBM ESD rating 2 kV
Continuous total power dissipation See Dissipation Rating Table
T
J
Operating virtual junction temperature range –55 150 °C
T
stg
Storage temperature range –65 150 °C
(1) Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under recommended operating
conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) All voltage values are with respect to network ground terminal.
Table 2. DISSIPATION RATING TABLE
AIR FLOW T
A
25°C DERATING FACTOR T
A
= 70°C T
A
= 85°C
PACKAGE
(CFM) POWER RATING ABOVE T
A
= 25°C POWER RATING POWER RATING
0 3.58 W 35.8 mW/°C 1.97 W 1.43 W
PWP
(1)
250 5.07 W 50.7 mW/°C 2.79 W 2.03 W
(1) This parameter is measured with the recommended copper heat-sink pattern on a four-layer PCB, 1-oz copper on 4-in × 4-in ground
layer. For more information, refer to TI technical brief literature number SLMA002.
Recommended Operating Conditions
MIN MAX UNIT
V
I
Input voltage
(1)
1IN, 2IN 2.7 10 V
I
O
Output current for each LDO
(2)
0 1 A
V
O
Output voltage range 1OUT, 2OUT 1.5 5.5 V
T
J
Operating virtual junction temperature –55 125 °C
(1) To calculate the minimum input voltage for maximum output current, use the following equation:
V
I(min)
= V
O(max)
+ V
DO(max load)
(2) Continuous output current and operating junction temperature are limited by internal protection circuitry, but it is not recommended that
the device operate under conditions beyond those specified in this table for extended periods of time.
Copyright © 2006–2010, Texas Instruments Incorporated Submit Documentation Feedback 5
Product Folder Link(s): TPS767D301-EP
Line regulator
(
mV
)
+
ǒ
%ńV
Ǔ
V
O
ǒ
V
I
(
max
)
* 2.7 V
Ǔ
100
1000
TPS767D301-EP
SGLS327A FEBRUARY 2006REVISED APRIL 2010
www.ti.com
Electrical Characteristics
V
i
= V
O(nom)
+ 1 V, I
O
= 1 mA, EN = 0, C
O
= 10 mF (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
T
J
= 25°C V
O
1.5 V V
O
5.5 V,
Adjustable
T
J
= –55°C to
10 mA < I
O
< 1 A
0.97V
O
1.02V
O
125°C
V
O
Output voltage
(1)
V
T
J
= 25°C 3.3
4.3 V < V
I
< 10 V,
3.3-V output
T
J
= –55°C to
10 mA < I
O
< 1 A
3.201 3.366
125°C
10 µA < I
O
< 1 A, T
J
= 25°C 85
Quiescent current (GND current)
mA
for each LDO
(1)
I
O
= 1 A, T
J
= –55°C to 125°C 125
Output voltage line regulation 0.01
ΔV
O
/V
O
V
O
+ 1 V < V
I
10 V, T
J
= 25°C %/V
for each LDO
(1) (2)
BW = 200 Hz to 100 kHz, V
O
= 1.8 V,
Output noise voltage 55 µV
RMS
I
C
= 1 A, C
O
= 10 mF, T
J
= 25°C
Output current limit for each LDO V
O
= 0 V 1.7 2 A
Thermal shutdown junction temperature 150 °C
T
J
= 25°C 1
2.7 V < V
I
< 10 V,
Standby current for each LDO mA
T
J
= –55°C to
EN = V
I
10
125°C
FB input current Adjustable FB = 1.5 2 nA
High-level enable input voltage 2 V
Low-level enable input voltage 0.8 V
Power-supply ripple rejection
(1)
f = 1 KHz, T
J
= 25°C, C
O
= 10 mF 60 dB
Minimum input voltage
I
O(RESET)
= 300 mA 1.1 V
for valid RESET
Trip threshold voltage V
O
decreasing 92 98
%/V
O
Hysteresis voltage Measured at V
O
0.5
Reset
Output low voltage V
I
= 2.7 V, I
O(RESET )
= 1 mA 0.15 0.4 V
Leakage current V
(RESET)
= 7 V 1 mA
RESET time-out delay 200 mV
EN = 0 V –1 0 1
Input current EN mA
EN = V
I
–1 1
Load regulation 3 mV
T
J
= 25°C 350
Dropout voltage
(3)
V
O
= 3.3 V, I
O
= 1 A mV
T
J
= –55°C to
575
125°C
(1) The minimum IN operating voltage is 2.7 V or V
O(typ)
+ 1 V, whichever is greater. The maximum IN voltage is 10 V.
(2) If V
O
1.8 V then V
I(min)
= 2.7 V, V
I(max)
= 10 V:
If V
O
2.5 V, then V
I(min)
= V
O
+ 1 V, and V
I(max)
= 10 V:
(3) IN voltage equals V
O(typ)
– 100 mV; adjustable output voltage set to 3.3 V nominal with external resistor divider. Dropout voltage of 1.8 V
and 2.5 V is limited by input voltage-range limitations.
6 Submit Documentation Feedback Copyright © 2006–2010, Texas Instruments Incorporated
Product Folder Link(s): TPS767D301-EP
