TPS5430DDA

Part # TPS5430DDA
Description 5.5V -36V INPUT, 3-A STEP DOWN CONVERTER - Rail/Tube
Category IC
Availability Out of Stock
Qty 0
Qty Price
1 + $3.02424



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

www.ti.com
BOOT
NC
NC
VSENSE
PH
VIN
GND
ENA
VOUT
PH
Vin
TOPSIDE GROUND AREA
VIA to Ground Plane
OUTPUT
INDUCTOR
OUTPUT
FILTER
CAPACITOR
BOOT
CAPACITOR
INPUT
BYPASS
CAPACITOR
INPUT
BULK
FILTER
CATCH
DIODE
Signal VIA
Route feedback
trace under output
filter capacitor or on
other layer
RESISTOR
DIVIDER
TPS5430
SLVS632 JANUARY 2006
APPLICATION INFORMATION (continued)
Figure 9. Design Layout
10
www.ti.com
0.080
0.026
0.098
0.118
0.050
0.110
0.220
0.050
0.040
0.013 DIA 4 PL
All dimensions in inches
Application Circuits
+
PwPd
10.8 - 19.8 V
L1
15 Hm
6
4
9
5
2
3
GND
VSNS
VIN
NC
NC
ENA
BOOT
PH
7
1
8
C1
10 Fm
C3
220 Fm
D1
B340A
C2
0.01 Fm
VOUT
5 V
R2
3.24 kW
R1
10 kW
VIN
EN
U1
TPS5430DDA
Design Procedure
TPS5430
SLVS632 JANUARY 2006
APPLICATION INFORMATION (continued)

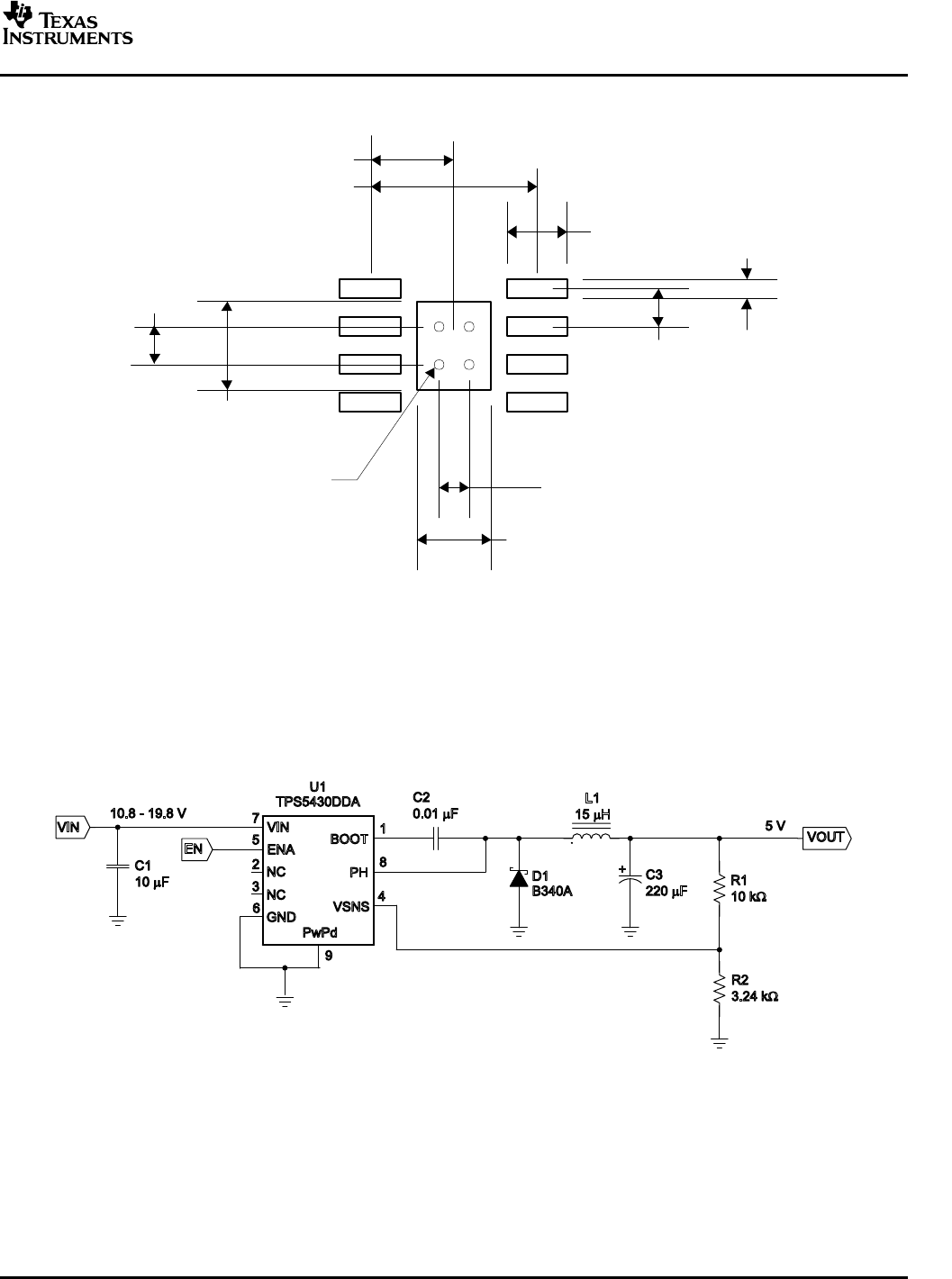

Figure 10. TPS5430 Land Pattern
Figure 11 shows the schematic for a typical TPS5430 application. The TPS5430 can provide up to 3-A output
current at a nominal output voltage of 5.0 V. For proper thermal performance the exposed PowerPAD
underneath the device must be soldered down to the printed circuit board.
Figure 11. Application Circuit, 12-V to 5.0-V
The following design procedure can be used to select component values for the TPS5430. Alternately, the
SWIFT Designer Software may be used to generate a complete design. The SWIFT Designer Software uses an
iterative design procedure and accesses a comprehensive database of components when generating a design.
This section presents a simplified discussion of the design process.
To begin the design process a few parameters must be decided upon. The designer needs to know the following:
11
www.ti.com
(2)
I
CIN
I
OUT(MAX)
2
(3)
TPS5430
SLVS632 JANUARY 2006
APPLICATION INFORMATION (continued)
Input voltage range
Output voltage
Input ripple voltage
Output ripple voltage
Output current rating
Operating frequency
Design Parameters
For this design example, use the following as the input parameters:
DESIGN PARAMETER
(1)
EXAMPLE VALUE
Input voltage range 10.8 V to 19.8 V
Output voltage 5.0 V
Input ripple voltage 300 mV
Output ripple voltage 30 mV
Output current rating 3 A
Operating frequency 500 kHz
(1) As an additional constraint, the design is set up to be small size and low component height.
Switching Frequency
The switching frequency for the TPS5430 is internally set to 500 kHz. It is not possible to adjust the switching
frequency.
Input Capacitors
The TPS5430 requires an input decoupling capacitor and, depending on the application, a bulk input capacitor.
The recommended value for the decoupling capacitor, C1, is 10 µ F. A high quality ceramic type X5R or X7R is
required. For some applications a smaller value decoupling capacitor may be used, so long as the input voltage
and current ripple ratings are not exceeded. The voltage rating must be greater than the maximum input voltage,
including ripple.
This input ripple voltage can be approximated by Equation 2 :
Where I
OUT(MAX)
is the maximum load current, f
SW
is the switching frequency, C
IN
is the input capacitor value and
ESR
MAX
is the maximum series resistance of the input capacitor.
The maximum RMS ripple current also needs to be checked. For worst case conditions, this can be
approximated by Equation 3 :
In this case the input ripple voltage would be 156 mV and the RMS ripple current would be 1.5 A. The maximum
voltage across the input capacitors would be VIN max plus delta VIN/2. The chosen input decoupling capacitor is
rated for 25 V and the ripple current capacity is greater than 3 A, providing ample margin. It is very important that
the maximum ratings for voltage and current are not exceeded under any circumstance.
Additionally some bulk capacitance may be needed, especially if the TPS5430 circuit is not located within about
2 inches from the input voltage source. The value for this capacitor is not critical but it also should be rated to
handle the maximum input voltage including ripple voltage and should filter the output so that input ripple voltage
is acceptable.
12
