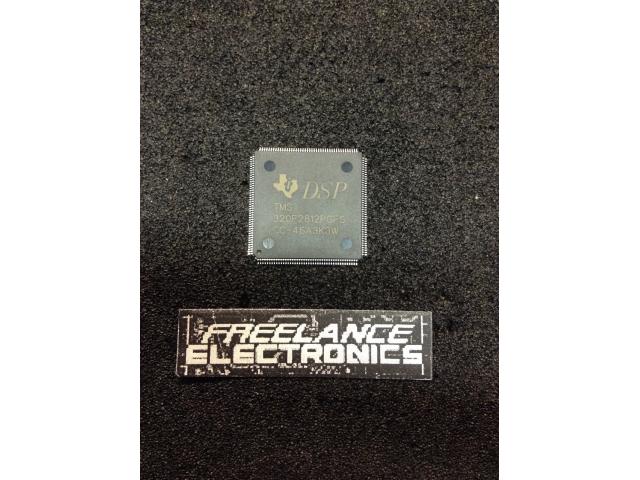

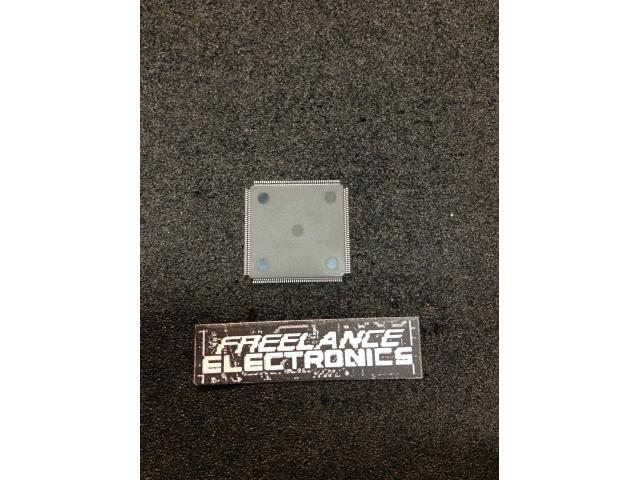

TMS320F2812PGFS

Part # TMS320F2812PGFS
Description MIXED-SIGNAL 28X DSPS EXTENDED TEMP
Category IC
Availability Out of Stock
Qty 0
Qty Price
1 + $17.62840



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

TMS320F2810, TMS320F2812
DIGITAL SIGNAL PROCESSORS
SPRS174B – APRIL 2001 – REVISED SEPTEMBER 2001
1
POST OFFICE BOX 1443 HOUSTON, TEXAS 77251–1443
D High-Performance Static CMOS Technology
– 150 MHz (6.67-ns Cycle Time)
– Low-Power (1.8-V Core, 3.3-V I/O) Design
– 3.3-V Flash Programming Voltage
D High-Performance CPU (C28x)
– 16 x 16 and 32 x 32 MAC Operations
– 16 x 16 Dual MAC
– Harvard Bus Architecture
– Atomic Operations
– Fast Interrupt Response and Processing
– Unified Memory Programming Model
– 4M Linear Program Address Reach
– 4G Linear Data Address Reach
– Code-Efficient (in C/C++ and Assembly)
– TMS320F24x/LF240x Processor Source
Code Compatible
D On-Chip Memory
– Up to 128K x 16 Flash
(8 x 4K and 6 x 16K Sectors)
– 2K x 16 OTP ROM
– L0 and L1: 2 Blocks of 4K x 16
Single-Access RAM (SARAM)
– H0: 1 Block of 8K x 16 SARAM
– M0 and M1: 2 Blocks of 1K x 16 SARAM
D Boot ROM (4K x 16)
– With Software Boot Modes
– Standard Math Tables
D External Interface (F2812)
– Up to 1.5M Total Memory
– Programmable Wait States
– Programmable Read/Write Strobe Timing
– Four Individual Chip Selects
D Clock and System Control
– Dynamic PLL Ratio Changes Supported
– On-Chip Oscillator
– Watchdog Timer Module
D Three External Interrupts
D Peripheral Interrupt Expansion (PIE) Block
That Supports 45 Peripheral Interrupts
D 128-Bit Security Key/Lock
– Protects Flash/OTP and L0/L1 SARAM
– Prevents Firmware Reverse Engineering
D Motor Control Peripherals
– Two Event Managers (EVA, EVB)
– Compatible to 240x Devices
D Three 32-Bit CPU-Timers
D Serial Port Peripherals
– Serial Peripheral Interface (SPI)
– Two Serial Communications Interfaces
(SCIs), Standard UART
– Enhanced Controller Area Network
(eCAN)
– Multichannel Buffered Serial Port
(McBSP) With SPI Mode
D 12-Bit ADC, 16 Channels
– 2 x 8 Channel Input Multiplexer
– Two Sample-and-Hold
– Single Conversion Time: 200 ns
– Pipeline Conversion Time: 60 ns
D Up to 56 Individually Programmable,
Multiplexed General-Purpose Input/Output
(GPIO) Pins
D Advanced Emulation Features
– Analysis and Breakpoint Functions
– Real-Time Debug via Hardware
D Development Tools Include
– ANSI C/C++ Compiler/Assembler/Linker
– Supports TMS320C24x/240x
Instructions
– Code Composer Studio IDE
– DSP BIOS
– JTAG Scan Controllers
(TI or Third-Party)
– Evaluation Modules
– Broad Third-Party Digital Motor Control
Support
D Low-Power Modes and Power Savings
– IDLE, STANDBY, HALT Modes Supported
– Disable Individual Peripheral Clocks
D Package Options
– 179-Pin MicroStar BGA With External
Interface (GHH) (F2812)
– 176-Pin Low-Profile Quad Flatpack
(LQFP) With External Interface (PGF)
(F2812)
– 128-Pin LQFP Without External Interface
(PBK) (F2810)
D Temperature Options:
– A: –40°C to 85°C
– S: –40°C to 125°C
PR
O
DU
C
T PREVIEW
Copyright 2001, Texas Instruments Incorporated
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
TMS320C24x, Code Composer Studio, and MicroStar BGA are trademarks of Texas Instruments.
All trademarks are the property of their respective owners.
IEEE Standard 1149.1–1990, IEEE Standard Test-Access Port
PRODUCT PREVIEW information concerns products in the formative or
design phase of development. Characteristic data and other
specifications are design goals. Texas Instruments reserves the right to
change or discontinue these products without notice.
TMS320F2810, TMS320F2812
DIGITAL SIGNAL PROCESSORS
SPRS174B APRIL 2001 REVISED SEPTEMBER 2001
2
POST OFFICE BOX 1443 HOUSTON, TEXAS 772511443
Device Summary 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Functional Block Diagram 4. . . . . . . . . . . . . . . . . . . . . . . .
Pin Functions 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Memory Map 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Description 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C28x CPU 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Memory Bus (Harvard Bus Architecture) 16. . . . . . . . .
Peripheral Bus 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Real-Time JTAG and Analysis 17. . . . . . . . . . . . . . . . . .
External Interface (XINTF) (F2812 Only) 17. . . . . . . . .
Flash 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
M0, M1 SARAMs 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
L0, L1, H0 SARAMs 17. . . . . . . . . . . . . . . . . . . . . . . . . . .
Boot ROM 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Security 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Peripheral Interrupt Expansion (PIE) Block 19. . . . . . .
External Interrupts (XINT1, 2, 13, XNMI) 19. . . . . . . . .
Oscillator and PLL 19. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Watchdog 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Peripheral Clocking 19. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Low-Power Modes 19. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Peripheral Frames 0, 1, 2 (PFn) 20. . . . . . . . . . . . . . . . .
General-Purpose Input/Output (GPIO) Multiplexer 20.
32-Bit CPU-Timers (0, 1, 2) 20. . . . . . . . . . . . . . . . . . . . .
Motor Control Peripherals 20. . . . . . . . . . . . . . . . . . . . . .
Serial Port Peripherals 21. . . . . . . . . . . . . . . . . . . . . . . . .
Register Map 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Device Emulation Registers 24. . . . . . . . . . . . . . . . . . . . . .
External Interface, XINTF (F2812 only) 27. . . . . . . . . . . .
Interrupts 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vector Table Mapping 36. . . . . . . . . . . . . . . . . . . . . . . . . .
PIE Vector Map 38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PIE Registers 39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PIE/CPU Interrupt Response 41. . . . . . . . . . . . . . . . . . .
External Interrupts 42. . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Control 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OSC and PLL Block 49. . . . . . . . . . . . . . . . . . . . . . . . . . . .
PLL-Based Clock Module 50. . . . . . . . . . . . . . . . . . . . . . . .
External Reference Oscillator Clock Option 50. . . . . . . .
Watchdog Block 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Low-Power Modes Block 54. . . . . . . . . . . . . . . . . . . . . . . .
Peripherals 56. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32-Bit CPU-Timers 0/1/2 56. . . . . . . . . . . . . . . . . . . . . . . .
Event Manager Modules (EVA, EVB) 61. . . . . . . . . . . . . .
Enhanced Analog-to-Digital Converter
(ADC) Module 67. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Enhanced Controller Area Network (eCAN) Module 71.
Multichannel Buffered Serial Port (McBSP) Module 75. .
Serial Communications Interface (SCI) Module 79. . . . .
Serial Peripheral Interface (SPI) Module 82. . . . . . . . . . .
GPIO Mux 85. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Development Support 95. . . . . . . . . . . . . . . . . . . . . . . . . . .
Documentation Support 97. . . . . . . . . . . . . . . . . . . . . . . . .
Absolute Maximum Ratings 98. . . . . . . . . . . . . . . . . . . . . .
Recommended Operating Conditions 98. . . . . . . . . . . . .
Electrical Characteristics Over Recommended
Operating Free-Air Temperature Range 99. . . . . . . .
Mechanical Data 100. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Table of Contents
PR
O
DU
C
T PREVIEW
TMS320F2810, TMS320F2812
DIGITAL SIGNAL PROCESSORS
SPRS174B APRIL 2001 REVISED SEPTEMBER 2001
3
POST OFFICE BOX 1443 HOUSTON, TEXAS 772511443
device summary
Note that throughout this data sheet, F2810 is used to denote TMS320F2810; F2812 is used to denote
TMS320F2812; and F28x is used to denote F2810 and F2812.
Table 1. Hardware Features of the F2810 and F2812 Devices
FEATURE F2810 F2812
Instruction Cycle (at 150 MHz) 6.67 ns 6.67 ns
Single-Access RAM (SARAM) (16-bit word) 18K 18K
3.3-V On-Chip Flash (16-bit word) 64K 128K
Code Security for On-Chip Flash/SARAM Yes Yes
Boot ROM Yes Yes
OTP ROM Yes Yes
External Memory Interface Yes
Event Managers A and B (EVA and EVB) EVA, EVB EVA, EVB
S General-Purpose (GP) Timers 4 4
S Compare (CMP)/PWM 16 16
S Capture (CAP)/QEP Channels 6/2 6/2
Watchdog Timer Yes Yes
12-Bit ADC Yes Yes
S Channels 16 16
32-bit CPU Timers 3 3
SPI Yes Yes
SCIA, SCIB SCIA, SCIB SCIA, SCIB
CAN Yes Yes
McBSP Yes Yes
Digital I/O Pins (Shared) 56 56
External Interrupts 3 3
Supply Voltage 1.8-V Core, 3.3-V I/O 1.8-V Core, 3.3-V I/O
Packaging 128-pin PBK
179-pin GHH
176-pin PGF
Product Status:
Product Preview (PP)
Advance Information (AI)
Production Data (PD)
PP PP
PR
O
DU
C
T PREVIEW
1234567NEXT
