TL03x, TL03xA
ENHANCED-JFET LOW-POWER LOW-OFFSET
OPERATIONAL AMPLIFIERS
SLOS180C FEBRUARY 1997 REVISED DECEMBER 2001
25
POST OFFICE BOX 655303 DALLAS, TEXAS 75265
PARAMETER MEASUREMENT INFORMATION
typical values
Typical values presented in this data sheet represent the median (50% point) of device parametric performance.
input bias and offset current
At the picoampere bias current level typical of the TL03x and TL03xA, accurate measurement of the bias current
becomes difficult. Not only does this measurement require a picoammeter, but test-socket leakages easily can
exceed the actual device bias currents. To accurately measure these small currents, Texas Instruments uses
a two-step process. The socket leakage is measured using picoammeters with bias voltages applied but with
no device in the socket. The device is then inserted into the socket and a second test that measures both the
socket leakage and the device input bias current is performed. The two measurements are then subtracted
algebraically to determine the bias current of the device.
noise
With the increasing emphasis on low noise levels in many of todays applications, the input noise voltage density
is performed at f = 1 kHz, unless otherwise noted.
TL03x, TL03xA
ENHANCED-JFET LOW-POWER LOW-OFFSET
OPERATIONAL AMPLIFIERS
SLOS180C FEBRUARY 1997 REVISED DECEMBER 2001
26
POST OFFICE BOX 655303 DALLAS, TEXAS 75265
TYPICAL CHARACTERISTICS
Table of Graphs
FIGURE
Distribution of TL03x input offset voltage 611
Distribution of TL03x input offset-voltage temperature coefficient 1214
Input bias current vs Common-mode input voltage 15
Input bias current and input offset current vs Free-air temperature 16
Common-mode input voltage vs Supply voltage 17
Common-mode input voltage vs Free-air temperature 18
Output voltage vs Differential input voltage 19, 20
Maximum peak output voltage vs Supply voltage 21
Maximum peak-to-peak output voltage vs Frequency 22
Maximum peak output voltage vs Output current 23, 24
Maximum peak output voltage vs Free-air temperature 25, 26
Large-signal differential voltage amplification vs Load resistance 27
Large-signal differential voltage amplification and Phase shift vs Frequency 28
Large-signal differential voltage amplification vs Free-air temperature 29
Output impedance vs Frequency 30
Common-mode rejection ratio vs Frequency 31, 32
Common-mode rejection ratio vs Free-air temperature 33
Supply-voltage rejection ratio vs Free-air temperature 34
Short-circuit output current vs Supply voltage 35
Short-circuit output current vs Time 36
Short-circuit output current vs Free-air temperature 37
Equivalent input noise voltage vs Frequency (TL031 and TL031A) 38
Equivalent input noise voltage vs Frequency (TL032 and TL032A) 39
Equivalent input noise voltage vs Frequency (TL034 and TL034A) 40
Supply current vs Supply voltage (TL031 and TL031A) 41
Supply current vs Supply voltage (TL032 and TL032A) 42
Supply current vs Supply voltage (TL034 and TL034A) 43
Supply current vs Free-air temperature (TL031 and TL031A) 44
Supply current vs Free-air temperature (TL032 and TL032A) 45
Supply current vs Free-air temperature (TL034 and TL034A) 46
Slew rate vs Load resistance 47, 48
Slew rate vs Free-air temperature 49, 50
Overshoot factor vs Load capacitance 51
Total harmonic distortion vs Frequency 52
Unity-gain bandwidth vs Supply voltage 53
Unity-gain bandwidth vs Free-air temperature 54
Phase margin vs Supply voltage 55
Phase margin vs Load capacitance 56
Phase margin vs Free-air temperature 57
Voltage-follower small-signal pulse response 58
Voltage-follower large-signal pulse response 59, 60
TL03x, TL03xA
ENHANCED-JFET LOW-POWER LOW-OFFSET
OPERATIONAL AMPLIFIERS
SLOS180C FEBRUARY 1997 REVISED DECEMBER 2001
27
POST OFFICE BOX 655303 DALLAS, TEXAS 75265
TYPICAL CHARACTERISTICS

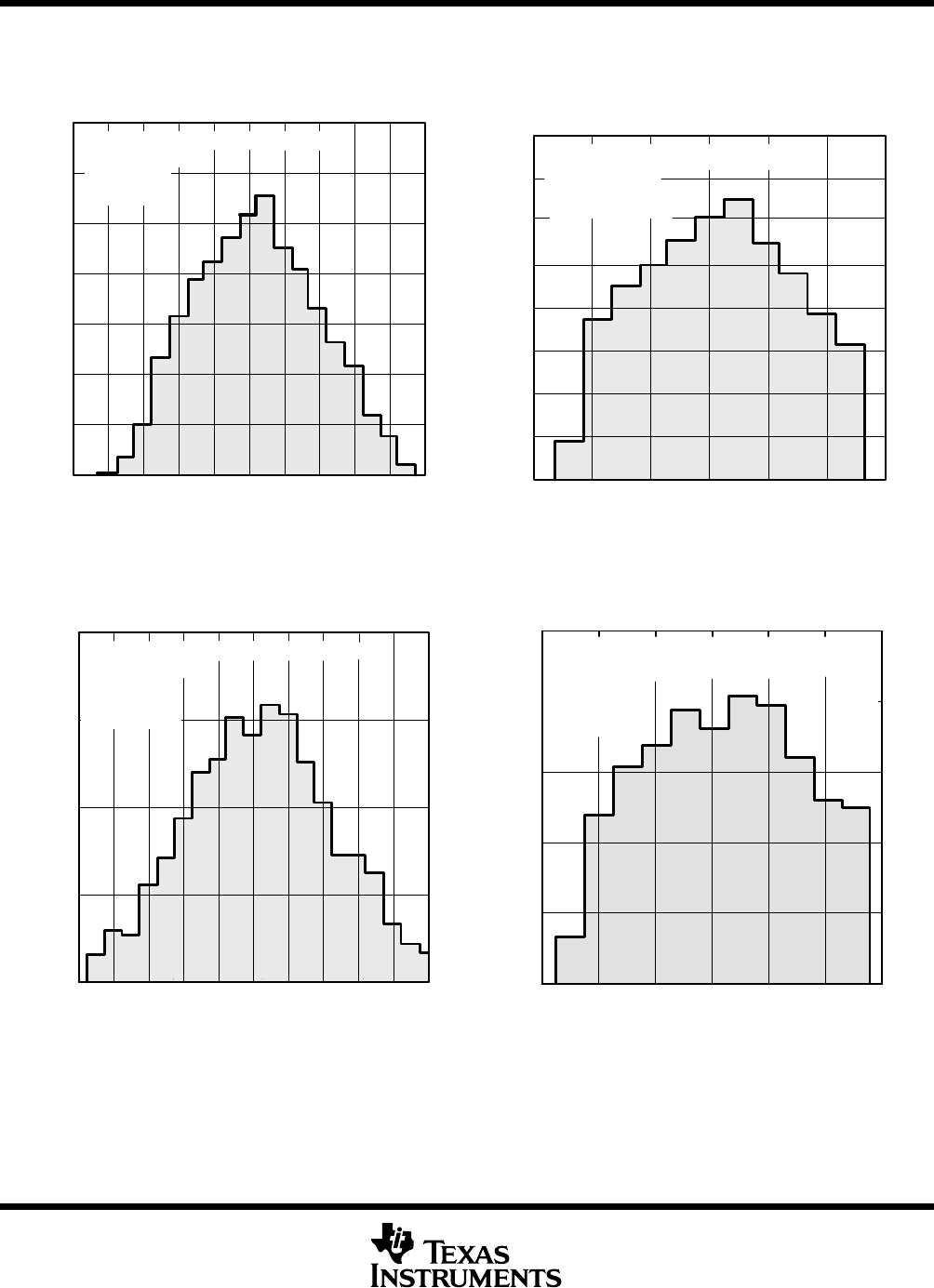

Figure 6
0
Percentage of Units %
V
IO
Input Offset Voltage mV
2
4
6
8
10
12
14
1.2 0.6 0 0.6 1.2
DISTRIBUTION OF TL031
INPUT OFFSET VOLTAGE
1681 Units Tested From 1 Wafer Lot
V
CC±
= ±15 V
T
A
= 25°C
P Package
Figure 7
0
900
Percentage of Units %
V
IO
Input Offset Voltage µV
2
4
6
8
10
12
14
16
600 0 300 600 900
1433 Units Tested From 1 Wafer Lot
V
CC±
= ±15 V
P Package
DISTRIBUTION OF TL031A
INPUT OFFSET VOLTAGE
T
A
= 25°C
300
Figure 8
1.2
0
Percentage of Amplification %
V
IO
Input Offset Voltage mV
12
0.6 0 0.6 1.2
3
6
9
DISTRIBUTION OF TL032
INPUT OFFSET VOLTAGE
1681 Amplifiers Tested From 1 Wafer Lot
T
A
= 25°C
P Package
V
CC±
= ±15 V
Figure 9
900
0
Percentage of Amplifiers %
V
IO
Input Offset Voltage µV
900
15
600 300 0 300 600
3
6
9
12
DISTRIBUTION OF TL032A
INPUT OFFSET VOLTAGE
1321 Amplifiers Tested From 1 Wafer Lot
V
CC±
= ±15 V
T
A
= 25°C
P Package
