Intel
£

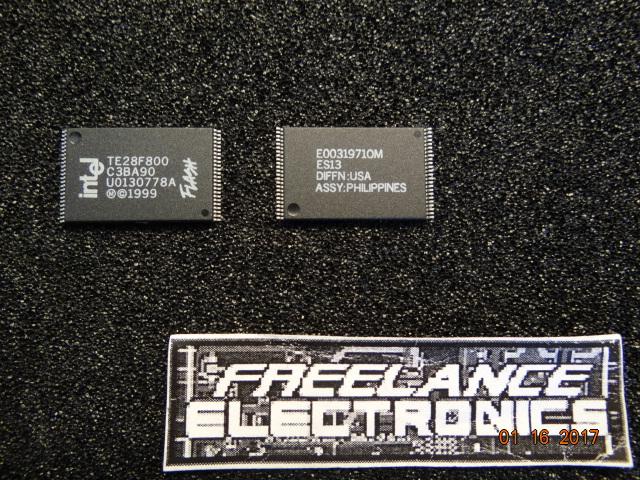

Advanced+ Boot Block Flash Memory (C3)
Datasheet 33
During program or erase modes, RP# transitioning low will abort the in-progress operation. The
memory contents of the address being programmed or the block being erased are no longer valid as
the data integrity has been compromised by the abort. During deep power-down, all internal
circuits are switched to a low-power savings mode (RP# transitioning to V
IL
or turning off power
to the device clears the status register).
6.5 Power and Reset Considerations
6.5.1 Power-Up/Down Characteristics
In order to prevent any condition that may result in a spurious write or erase operation, it is
recommended to power-up VCC and VCCQ together. Conversely, VCC and VCCQ must power-
down together.
It is also recommended to power-up VPP with or after VCC has reached VCC
min
. Conversely, VPP
must powerdown with or slightly before VCC.
If VCCQ and/or VPP are not connected to the VCC supply, then VCC should attain VCC
min
before
applying VCCQ and VPP. Device inputs should not be driven before supply voltage reaches
VCC
min
.
Power supply transitions should only occur when RP# is low.
6.5.2 RP# Connected to System Reset
The use of RP# during system reset is important with automated program/erase devices since the
system expects to read from the flash memory when it comes out of reset. If a CPU reset occurs
without a flash memory reset, proper CPU initialization will not occur because the flash memory
may be providing status information instead of array data. Intel recommends connecting RP# to the
system CPU RESET# signal to allow proper CPU/flash initialization following system reset.
System designers must guard against spurious writes when V
CC
voltages are above V
LKO
. Because
both WE# and CE# must be low for a command write, driving either signal to V
IH
will inhibit
writes to the device. The CUI architecture provides additional protection since alteration of
memory contents can only occur after successful completion of the two-step command sequences.
The device is also disabled until RP# is brought to V
IH
, regardless of the state of its control inputs.
By holding the device in reset during power-up/down, invalid bus conditions during power-up can
be masked, providing yet another level of memory protection.
6.5.3 V
CC
,V
PP
and RP# Transitions
The CUI latches commands as issued by system software and is not altered by V
PP
or CE#
transitions or WSM actions. Its default state upon power-up, after exit from reset mode or after
V
CC
transitions above V
LKO
(Lockout voltage), is read-array mode.
After any program or Block-Erase operation is complete (even after V
PP
transitions down to
V
PPLK
), the CUI must be reset to read-array mode via the Read Array command if access to the
flash-memory array is desired.
