2

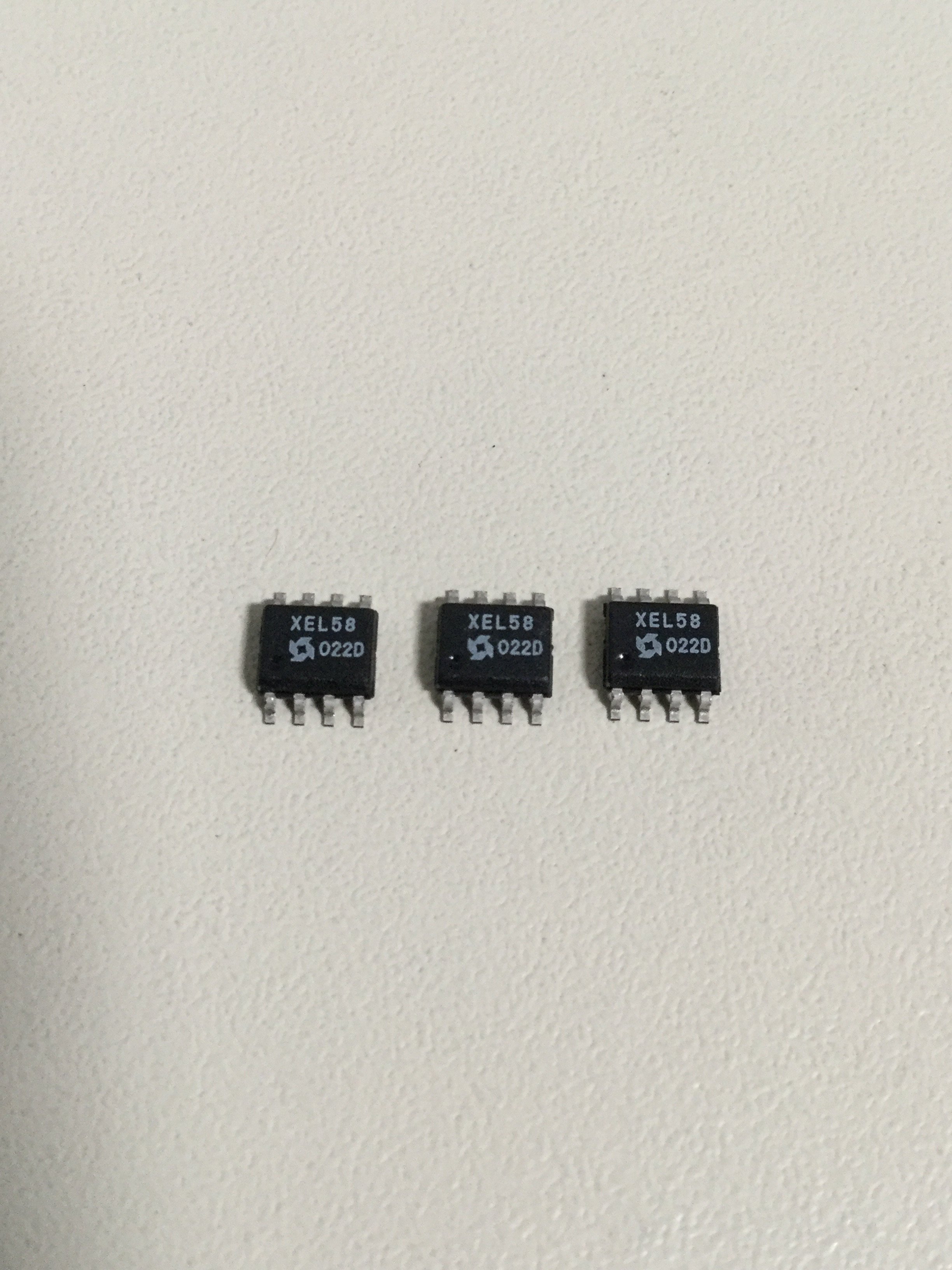

SY10EL58
SY100EL58
Micrel
AC ELECTRICAL CHARACTERISTICS
VEE = VEE (Min.) to VEE (Max.); VCC = GND
TA = -40°CTA = 0°CTA = +25°CTA = +85˚C
Symbol Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Unit
t
PLH Propagation Delay to 60 220 380 110 220 330 120 230 340 140 250 360 ps
tPHL Output D 90 250 410 140 250 360 150 260 370 170 280 390
t
r Output Rise/Fall Times Q 100 225 350 100 225 350 100 225 350 100 225 350 ps
tf (20% to 80%)
PRODUCT ORDERING CODE
Ordering Package Operating
Code Type Range
SY10EL58ZC Z8-1 Commercial
SY10EL58ZCTR Z8-1 Commercial
SY100EL58ZC Z8-1 Commercial
SY100EL58ZCTR Z8-1 Commercial
DC ELECTRICAL CHARACTERISTICS
TA = -40°CTA = 0°CTA = +25°CTA = +85˚C
Symbol Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Unit
I
EE Power Supply Current mA
10EL — 14 17 11 14 17 11 14 17 11 14 17
100EL — 14 17 11 14 17 11 14 17 13 16 19
V
EE Power Supply Voltage V
10EL –4.75 –5.2 –5.5 –4.75 –5.2 –5.5 –4.75 –5.2 –5.5 –4.75 –5.2 –5.5
100EL –4.20 –4.5 –5.5 –4.20 –4.5 –5.5 –4.20 –4.5 –5.5 –4.20 –4.5 –5.5
I
IH Input HIGH Current — — 150 — — 150 — — 150 — — 150 µA
VEE = VEE (Min.) to VEE (Max.); VCC = GND
