SNJ55183J

Part # SNJ55183J
Description IC, DUAL LINE DRIVER,DS
Category IC
Availability Out of Stock
Qty 0
Qty Price
1 + $10.21990



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

DS8830, SN55183, SN75183
DUAL DIFFERENTIAL LINE DRIVERS
SLLS093D – OCTOBER 1972 – REVISED APRIL 1998
7
POST OFFICE BOX 655303 DALLAS, TEXAS 75265
TYPICAL CHARACTERISTICS
Figure 2
– Input Threshold Voltage – V
INPUT THRESHOLD VOLTAGE
vs
FREE-AIR TEMPERATURE
T
A
– Free-Air Temperature – °C
V
CC
= 5 V
V
O
= 1.5 V
V
IL
max
AND Gate
NAND Gate
V
IH
min
V
T
2.4
2.2
2
1.8
1.6
1.4
1.2
1
0.8
0.6
0.4
–75 –50 –25 0 25 50 75 100 125
Figure 3
– High-Level Output Voltage – V
HIGH-LEVEL OUTPUT VOLTAGE
vs
HIGH-LEVEL OUTPUT CURRENT
50-Load
I
OH
– High-Level Output Current – mA
T
A
= 125°C
T
A
= – 55°C
T
A
= 25°C
200-Load
V
CC
= 5 V
V
OH
100-Load
4
3.5
3
2.5
2
1.5
1
0.5
0
–20 –40 –60 –80 –100 –120 –140 –1600
Figure 4
– Differential Output Voltage – V
DIFFERENTIAL OUTPUT VOLTAGE
vs
DIFFERENTIAL OUTPUT CURRENT
T
A
= 125°C
I
OD
– Differential Output Current – mA
V
OD
T
A
= 25°C
V
CC
= 5 V
T
A
= –55°C
4
3
2
1
0
25 50 75 100 1250
Figure 5
– Low-Level Output Voltage – V
LOW-LEVEL OUTPUT VOLTAGE
vs
LOW-LEVEL OUTPUT CURRENT
I
OL
– Low-Level Output Current – mA
T
A
= –55°C
T
A
= 125°C
T
A
= 25°C
V
CC
= 5 V
V
OL
3
2
1
0
40 80 120 160 2000 20 60 100 140 180
Operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied.
DS8830, SN55183, SN75183
DUAL DIFFERENTIAL LINE DRIVERS
SLLS093D – OCTOBER 1972 – REVISED APRIL 1998
8
POST OFFICE BOX 655303 DALLAS, TEXAS 75265

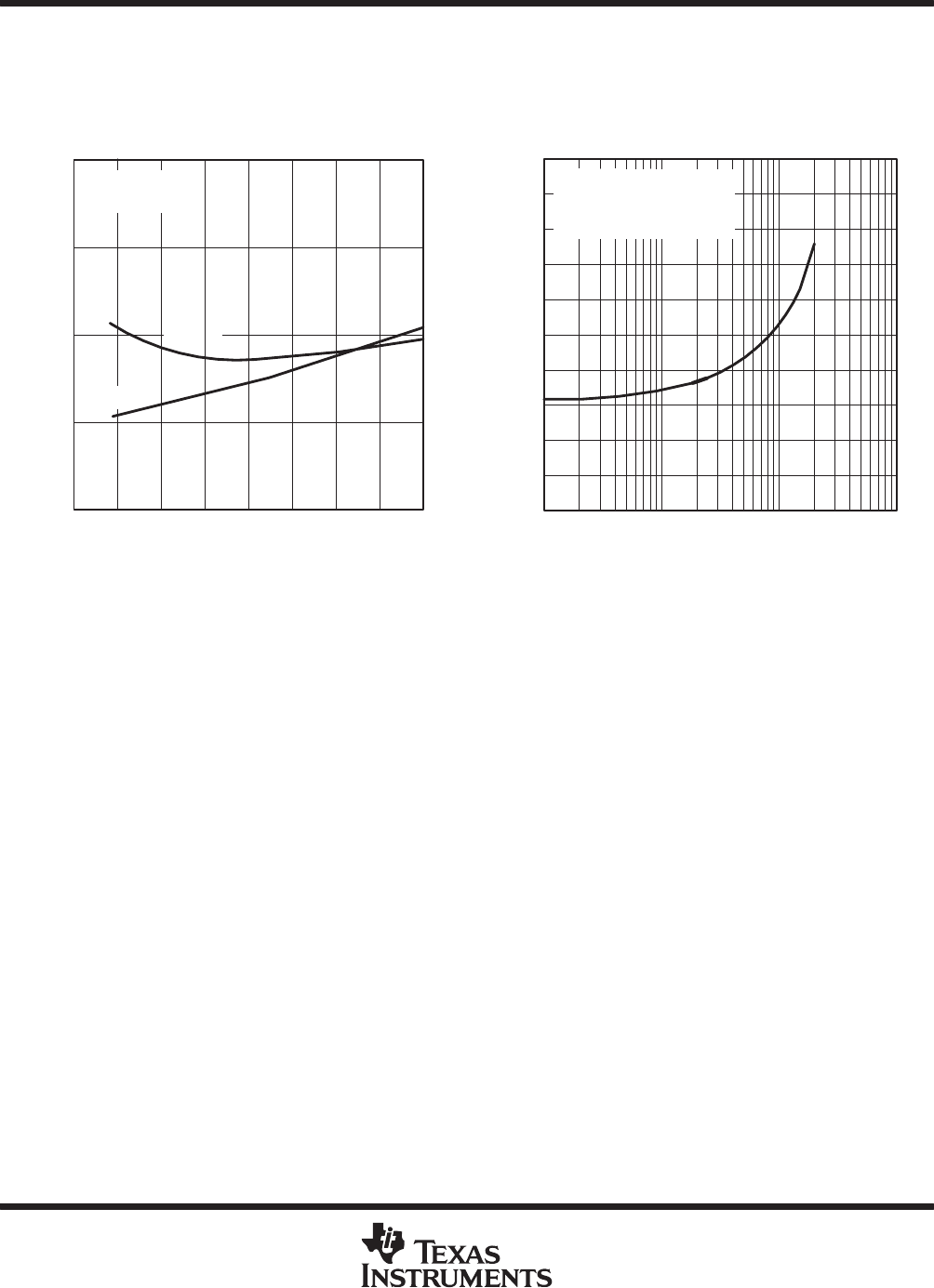

TYPICAL CHARACTERISTICS
Figure 6
T
A
– Free-Air Temperature – °C
– Propagation Delay Time – ns
PROPAGATION DELAY TIME
(DIFFERENTIAL OUTPUT)
vs
FREE-AIR TEMPERATURE
V
CC
= 5 V
See Figure 1(b)
t
PHL
t
PLH
t
pd
20
15
10
5
0
–50 –25 0 25 125–75 1007550
Figure 7
– Total Power Dissipation – mW
TOTAL POWER DISSIPATION
(BOTH DRIVERS)
vs
FREQUENCY
f – Frequency – MHz
P
D
V
CC
= 5 V
No Load
Input: 3-V Square Wave
T
A
= 25°C
240
220
200
180
160
140
120
100
80
60
40
0.1 10.4 4 10 40 100
Operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied.
DS8830, SN55183, SN75183
DUAL DIFFERENTIAL LINE DRIVERS
SLLS093D – OCTOBER 1972 – REVISED APRIL 1998
9
POST OFFICE BOX 655303 DALLAS, TEXAS 75265

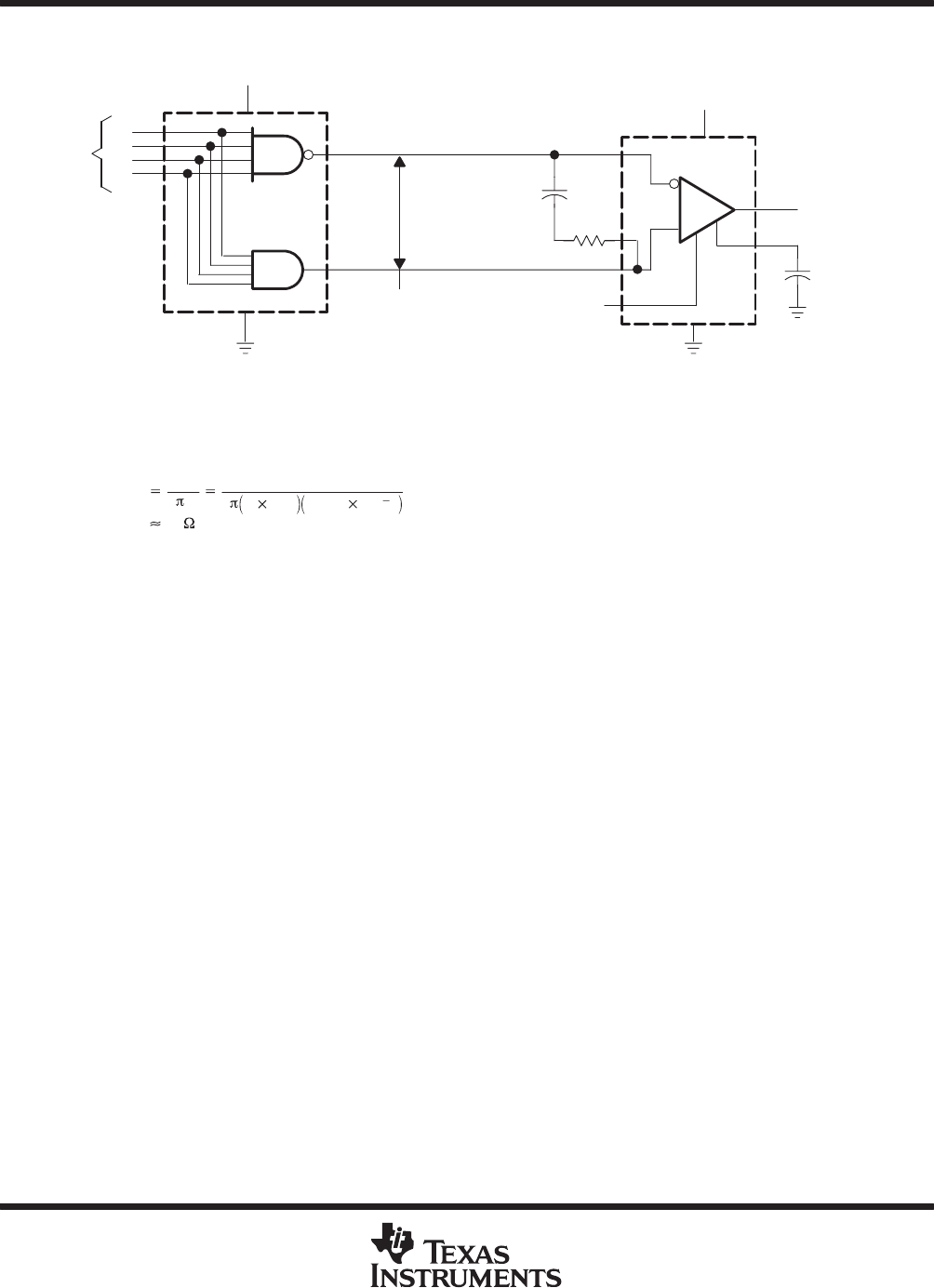

APPLICATION INFORMATION
Twisted
Pair
Resp Time Cont
Output
100 pF
(see Note B)
Noninverting
Input Strobe
0.002 µF
(see Note A)
1/2 ’182
V
CC
= 5 V
GND
Y
Z
GND
V
CC
= 5 V
1/2 ’183
Inputs
D
C
B
A
R
T
NOTES: A. When the inputs are open circuited, the output is high. A capacitor may be used for dc isolation of the line-terminating resistor.
At the frequency of operation, the impedance of the capacitor should be relatively small.
B. Use of a capacitor to control response time is optional.
Example: let f = 5 MHz
C = 0.002 µF
Z
(
circuit
)
16
Z
(
circuit
)
1
2 fC
1
2
5 10
6
0.002 10
6
Inverting
Input
Figure 8. Transmission of Digital Data Over Twisted-Pair Line
