SN74HC4040N

Part # SN74HC4040N
Description 12-BIT BINARY COUNTER - Bulk
Category IC
Availability In Stock
Qty 143
Qty Price
1 - 30 $0.38579
31 - 60 $0.30863
61 - 90 $0.25462
91 - 120 $0.23661
121 + $0.21090
Manufacturer Available Qty
Texas Instruments
  • Shipping Freelance Stock: 24
    Ships Immediately
Texas Instruments
  • Shipping Freelance Stock: 25
    Ships Immediately
Texas Instruments
Date Code: 8835
  • Shipping Freelance Stock: 4
    Ships Immediately
Texas Instruments
  • Shipping Freelance Stock: 25
    Ships Immediately
Texas Instruments
  • Shipping Freelance Stock: 22
    Ships Immediately
Texas Instruments
Date Code: 8835
  • Shipping Freelance Stock: 25
    Ships Immediately
Texas Instruments
Date Code: 8835
  • Shipping Freelance Stock: 9
    Ships Immediately
Texas Instruments
Date Code: 8345
  • Shipping Freelance Stock: 9
    Ships Immediately

Related Items

SN74H108N
Texas Instruments
IC
SN74H108N
$5.28738
SN74H183J
Texas Instruments
IC
SN74H183J
$6.22433
SN74H30J
Texas Instruments
IC
SN74H30J
$0.85642
SN74H30N
Texas Instruments
IC
SN74H30N
$1.69513
SN74H40N
Texas Instruments
IC
SN74H40N
$3.79304
SN74H53J
Texas Instruments
IC
SN74H53J
$13.66131


Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

 
   
SCLS160D − DECEMBER 1982 − REVISED SEPTEMBER 2003
4
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
timing requirements over recommended operating free-air temperature range (unless otherwise
noted)
V
CC
T
A
= 25°C SN54HC4040 SN74HC4040
UNIT
V
CC
MIN MAX MIN MAX MIN MAX
UNIT
2 V 5.5 3.7 4.3
f
clock
Clock frequency
4.5 V
28 19 22
MHz
f
clock
Clock frequency
6 V 33 22 25
MHz
2 V 90 135 115
CLK high or low
4.5 V 18 27 23
t
w
Pulse duration
CLK high or low
6 V 15 23 20
ns
t
w
Pulse duration
2 V 70 105 90
ns
CLR high
4.5 V 14 21 18
CLR high
6 V 12 18 15
2 V 60 90 75
t
su
Setup time, CLR inactive before CLK↓
4.5 V
12 18 15
ns
t
su
Setup time, CLR inactive before CLK↓
6 V 10 15 13
ns
switching characteristics over recommended operating free-air temperature range, C
L
= 50 pF
(unless otherwise noted) (see Figure 1)
PARAMETER
FROM
TO
V
CC
T
A
= 25°C SN54HC4040 SN74HC4040
UNIT
PARAMETER
FROM
(INPUT)
TO
(OUTPUT)
V
CC
MIN TYP MAX MIN MAX MIN MAX
UNIT
2 V 5.5 10 3.7 4.3
f
max
4.5 V 28 45 19 22
MHz
f
max
6 V 33 53 22 25
MHz
2 V 62 150 225 190
t
pd
CLK Q
A
4.5 V 16 30 45 38
ns
t
pd
CLK
Q
A
6 V 12 26 38 32
ns
2 V 63 140 210 175
t
PHL
CLR Any
4.5 V 17 28 42 35
ns
t
PHL
CLR
Any
6 V 13 24 36 30
ns
2 V 28 75 110 95
t
t
Any
4.5 V 8 15 22 19
ns
t
t
Any
6 V 6 13 19 16
ns
operating characteristics, T
A
= 25°C
PARAMETER TEST CONDITIONS TYP UNIT
C
pd
Power dissipation capacitance No load 88 pF
 
   
SCLS160D − DECEMBER 1982 − REVISED SEPTEMBER 2003
5
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

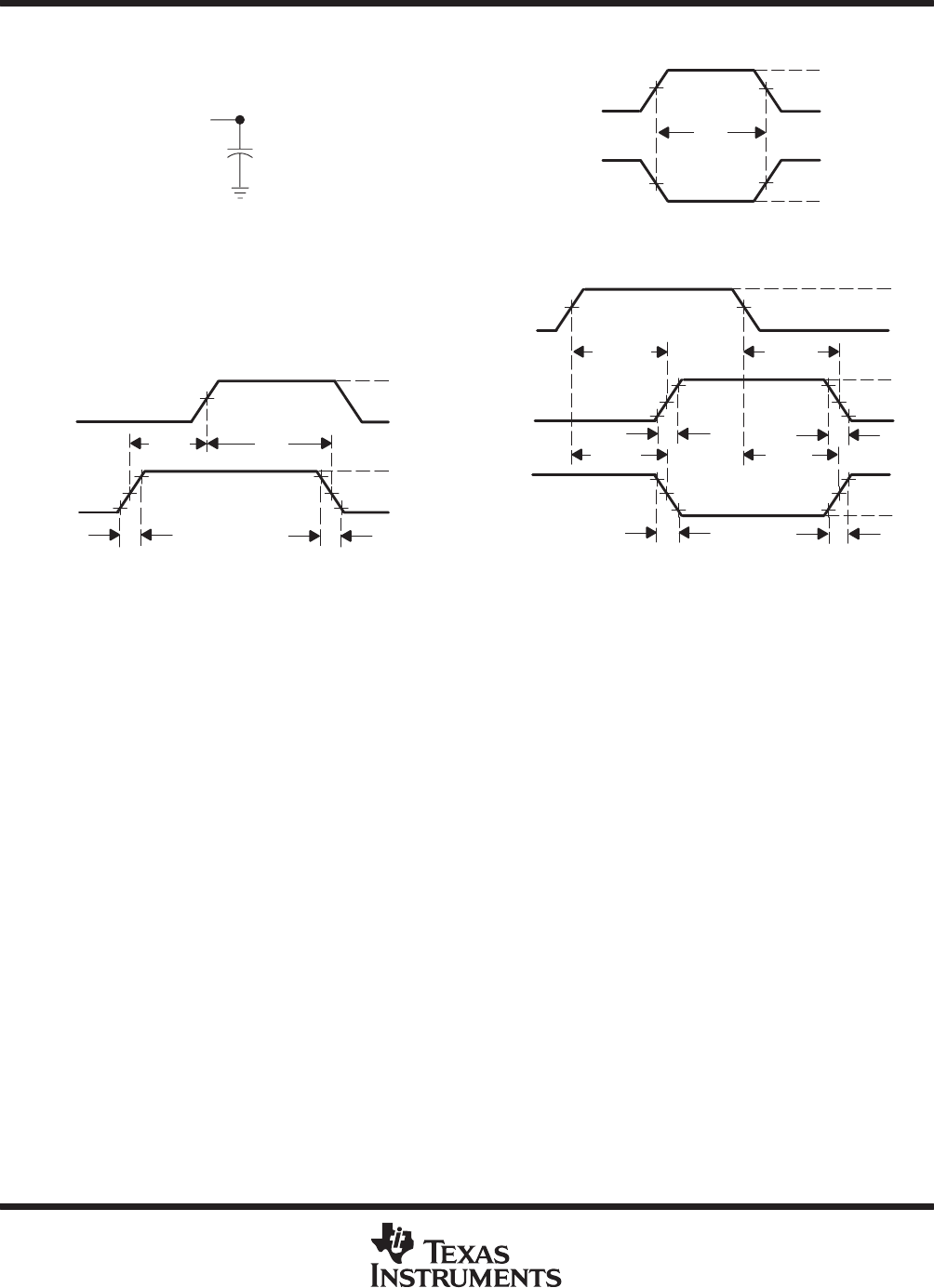

PARAMETER MEASUREMENT INFORMATION
VOLTAGE WAVEFORMS
SETUP AND HOLD AND INPUT RISE AND FALL TIMES
VOLTAGE WAVEFORMS
PULSE DURATIONS
t
h
t
su
50%
50%50%
10%10%
90% 90%
V
CC
V
CC
0 V
0 V
t
r
t
f
Reference
Input
Data
Input
50%
High-Level
Pulse
50%
V
CC
0 V
50%
50%
V
CC
0 V
t
w
Low-Level
Pulse
VOLTAGE WAVEFORMS
PROPAGATION DELAY AND OUTPUT TRANSITION TIMES
50%
50%50%
10%10%
90% 90%
V
C
C
V
O
H
V
O
L
0 V
t
r
t
f
Input
In-Phase
Output
50%
t
PLH
t
PHL
50% 50%
10% 10%
90%90%
V
O
H
V
O
L
t
r
t
f
t
PHL
t
PLH
Out-of-Phase
Output
NOTES: A. C
L
includes probe and test-fixture capacitance.
B. Phase relationships between waveforms were chosen arbitrarily. All input pulses are supplied by generators having the following
characteristics: PRR ≤ 1 MHz, Z
O
= 50 Ω, t
r
= 6 ns, t
f
= 6 ns.
C. For clock inputs, f
max
is measured when the input duty cycle is 50%.
D. The outputs are measured one at a time with one input transition per measurement.
E. t
PLH
and t
PHL
are the same as t
pd
.
Test
Point
From Output
Under Test
C
L
= 50 pF
(see Note A)
LOAD CIRCUIT
Figure 1. Load Circuit and Voltage Waveforms
PACKAGING INFORMATION
Orderable Device Status
(1)
Package
Type
Package
Drawing
Pins Package
Qty
Eco Plan
(2)
Lead/Ball Finish MSL Peak Temp
(3)
85004012A ACTIVE LCCC FK 20 1 TBD POST-PLATE N / A for Pkg Type
8500401EA ACTIVE CDIP J 16 1 TBD A42 SNPB N / A for Pkg Type
8500401FA ACTIVE CFP W 16 1 TBD A42 N / A for Pkg Type
SN54HC4040J ACTIVE CDIP J 16 1 TBD A42 SNPB N / A for Pkg Type
SN74HC4040D ACTIVE SOIC D 16 40 Green (RoHS &
no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
SN74HC4040DBLE OBSOLETE SSOP DB 16 TBD Call TI Call TI
SN74HC4040DBR ACTIVE SSOP DB 16 2000 Green (RoHS &
no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
SN74HC4040DBRE4 ACTIVE SSOP DB 16 2000 Green (RoHS &
no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
SN74HC4040DE4 ACTIVE SOIC D 16 40 Green (RoHS &
no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
SN74HC4040DG4 ACTIVE SOIC D 16 40 Green (RoHS &
no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
SN74HC4040DR ACTIVE SOIC D 16 2500 Green (RoHS &
no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
SN74HC4040DRE4 ACTIVE SOIC D 16 2500 Green (RoHS &
no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
SN74HC4040DRG4 ACTIVE SOIC D 16 2500 Green (RoHS &
no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
SN74HC4040DT ACTIVE SOIC D 16 250 Green (RoHS &
no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
SN74HC4040DTE4 ACTIVE SOIC D 16 250 Green (RoHS &
no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
SN74HC4040DWR OBSOLETE SOIC DW 16 TBD Call TI Call TI
SN74HC4040N ACTIVE PDIP N 16 25 Pb-Free
(RoHS)
CU NIPDAU N / A for Pkg Type
SN74HC4040N3 OBSOLETE PDIP N 16 TBD Call TI Call TI
SN74HC4040NE4 ACTIVE PDIP N 16 25 Pb-Free
(RoHS)
CU NIPDAU N / A for Pkg Type
SN74HC4040NSR ACTIVE SO NS 16 2000 Green (RoHS &
no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
SN74HC4040NSRE4 ACTIVE SO NS 16 2000 Green (RoHS &
no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
SN74HC4040PW ACTIVE TSSOP PW 16 90 Green (RoHS &
no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
SN74HC4040PWE4 ACTIVE TSSOP PW 16 90 Green (RoHS &
no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
SN74HC4040PWLE OBSOLETE TSSOP PW 16 TBD Call TI Call TI
SN74HC4040PWR ACTIVE TSSOP PW 16 2000 Green (RoHS &
no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
SN74HC4040PWRE4 ACTIVE TSSOP PW 16 2000 Green (RoHS &
no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
SN74HC4040PWT ACTIVE TSSOP PW 16 250 Green (RoHS &
no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
SN74HC4040PWTE4 ACTIVE TSSOP PW 16 250 Green (RoHS &
no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
PACKAGE OPTION ADDENDUM
