SCLS034F − DECEMBER 1982 − REVISED NOVEMBER 2004

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

D Wide Operating Voltage Range of 2 V to 6 V

D Outputs Can Drive Up To 10 LSTTL Loads

D Low Power Consumption, 20-µA Max I

D Typical t

= 14 ns

D ±4-mA Output Drive at 5 V

D Low Input Current of 1 µA Max

D Operation From Very Slow Input

Transitions

D Temperature-Compensated Threshold

Levels

D High Noise Immunity

D Same Pinouts as ’HC00

description/ordering information

Each circuit functions as a NAND gate, but

because of the Schmitt action, it has different input

threshold levels for positive- and negative-going

signals. The ’HC132 devices perform the Boolean

function Y = A

• B or Y = A + B in positive logic.

These circuits are temperature compensated and

can be triggered from the slowest of input ramps

and still give clean jitter-free output signals.

ORDERING INFORMATION

PACKAGE

†

ORDERABLE

PART NUMBER

TOP-SIDE

MARKING

PDIP − N Tube of 25 SN74HC132N SN74HC132N

Tube of 50 SN74HC132D

SOIC − D

Reel of 2500 SN74HC132DR

HC132

SOIC − D

Reel of 250 SN74HC132DT

HC132

−40°C to 85°C

SOP − NS Reel of 2000 SN74HC132NSR HC132

−40 C to 85 C

SSOP − DB Reel of 2000 SN74HC132DBR HC132

Tube of 90 SN74HC132PW

TSSOP − PW

Reel of 2000 SN74HC132PWR

HC132

TSSOP − PW

Reel of 250 SN74HC132PWT

HC132

CDIP − J Tube of 25 SNJ54HC132J SNJ54HC132J

−55°C to 125°C

CFP − W Tube of 150 SNJ54HC132W SNJ54HC132W

−55 C to 125 C

LCCC − FK Tube of 55 SNJ54HC132FK SNJ54HC132FK

†

Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are

available at www.ti.com/sc/package.

  !"#$ % &'!!($ #%  )'*+&#$ ,#$(-

!,'&$% &!" $ %)(&&#$% )(! $.( $(!"%  (/#% %$!'"($%

%$#,#!, 0#!!#$1- !,'&$ )!&(%%2 ,(% $ (&(%%#!+1 &+',(

$(%$2  #++ )#!#"($(!%-

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of

Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

GND

SN54HC132 ...J OR W PACKAGE

SN74HC132 . . . D, DB, N, NS, OR PW PACKAGE

(TOP VIEW)

3212019

910111213

GND

SN54HC132 . . . FK PACKAGE

(TOP VIEW)

NC − No internal connection

 )!,'&$% &")+#$ $ 34 #++ )#!#"($(!% #!( $(%$(,

'+(%% $.(!0%( $(,-  #++ $.(! )!,'&$% )!,'&$

)!&(%%2 ,(% $ (&(%%#!+1 &+',( $(%$2  #++ )#!#"($(!%-

 

  

  

SCLS034F − DECEMBER 1982 − REVISED NOVEMBER 2004

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

FUNCTION TABLE

(each gate)

INPUTS

OUTPUT

A B

OUTPUT

H H L

L XH

X L H

logic diagram (positive logic)

absolute maximum ratings over operating free-air temperature range (unless otherwise noted)

†

Supply voltage range, V

−0.5 V to 7 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Input clamp current, I

< 0 or V

> V

) (see Note 1) ±20 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Output clamp current, I

< 0 or V

> V

) (see Note 1) ±20 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Continuous output current, I

= 0 to V

) ±25 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Continuous current through V

or GND ±50 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Package thermal impedance, θ

(see Note 2): D package 86°C/W. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DB package 96°C/W. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

N package 80°C/W. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NS package 76°C/W. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PW package 113°C/W. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Storage temperature range, T

stg

−65°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

†

Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and

functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not

implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTES: 1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.

2. The package thermal impedance is calculated in accordance with JESD 51-7.

recommended operating conditions (see Note 3)

SN54HC132 SN74HC132

UNIT

MIN NOM MAX MIN NOM MAX

UNIT

Supply voltage 2 5 6 2 5 6 V

Input voltage 0 V

0 V

Output voltage 0 V

0 V

Operating free-air temperature −55 125 −40 85 °C

NOTE 3: All unused inputs of the device must be held at V

or GND to ensure proper device operation. Refer to the TI application report,

Implications of Slow or Floating CMOS Inputs, literature number SCBA004.

 

  

  

SCLS034F − DECEMBER 1982 − REVISED NOVEMBER 2004

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended operating free-air temperature range (unless

otherwise noted)

PARAMETER

TEST CONDITIONS

= 25°C SN54HC132 SN74HC132

UNIT

PARAMETER

TEST CONDITIONS

MIN TYP MAX MIN MAX MIN MAX

UNIT

2 V 0.7 1.2 1.5 0.7 1.5 0.7 1.5

T+

4.5 V 1.55 2.5 3.15 1.55 3.15 1.55 3.15

T+

6 V 2.1 3.3 4.2 2.1 4.2 2.1 4.2

2 V 0.3 0.6 1 0.3 1 0.3 1

T−

4.5 V 0.9 1.6 2.45 0.9 2.45 0.9 2.45

T−

6 V 1.2 2 3.2 1.2 3.2 1.2 3.2

2 V 0.2 0.6 1.2 0.2 1.2 0.2 1.2

T+

− V

T−

4.5 V 0.4 0.9 2.1 0.4 2.1 0.4 2.1

T+

− V

T−

6 V 0.5 1.3 2.5 0.5 2.5 0.5 2.5

2 V 1.9 1.998 1.9 1.9

= −20 µA

4.5 V 4.4 4.499 4.4 4.4

= V

or V

= −20 µA

6 V 5.9 5.999 5.9 5.9

= V

or V

= −4 mA 4.5 V 3.98 4.3 3.7 3.84

= −5.2 mA 6 V 5.48 5.8 5.2 5.34

2 V 0.002 0.1 0.1 0.1

= 20 µA

4.5 V 0.001 0.1 0.1 0.1

= V

or V

= 20 µA

6 V 0.001 0.1 0.1 0.1

= V

or V

= 4 mA 4.5 V 0.17 0.26 0.4 0.33

= 5.2 mA 6 V 0.15 0.26 0.4 0.33

= V

or 0 6 V ±0.1 ±100 ±1000 ±1000 nA

= V

or 0, I

= 0 6 V 2 40 20 µA

2 V to 6 V 3 10 10 10 pF

switching characteristics over recommended operating free-air temperature range, C

= 50 pF

(unless otherwise noted) (see Figure 1)

PARAMETER

FROM

= 25°C SN54HC132 SN74HC132

UNIT

PARAMETER

FROM

(INPUT)

(OUTPUT)

MIN TYP MAX MIN MAX MIN MAX

UNIT

2 V 60 120 186 156

A or B Y

4.5 V 18 25 37 31

A or B

6 V 14 21 32 27

2 V 28 75 110 95

Any

4.5 V 8 15 22 19

Any

6 V 6 13 19 16

operating characteristics, T

= 25°C

PARAMETER TEST CONDITIONS TYP UNIT

Power dissipation capacitance per gate No load 20 pF

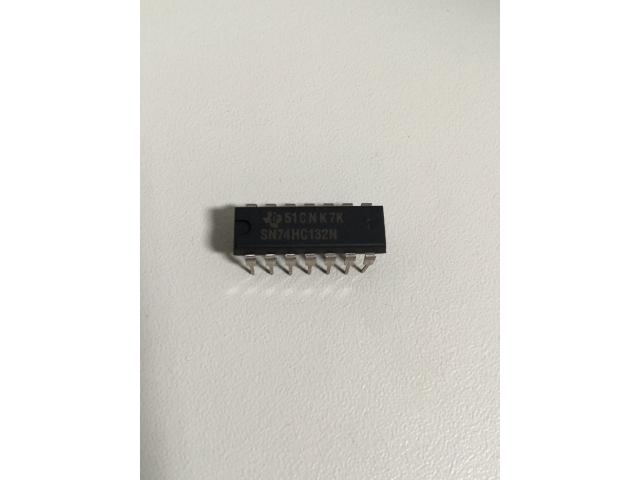

Part #	SN74HC132N
Description	QUAD 2-INPUT SCM/TRIG NAND
Category	IC
Availability	Out of Stock
Qty	0
