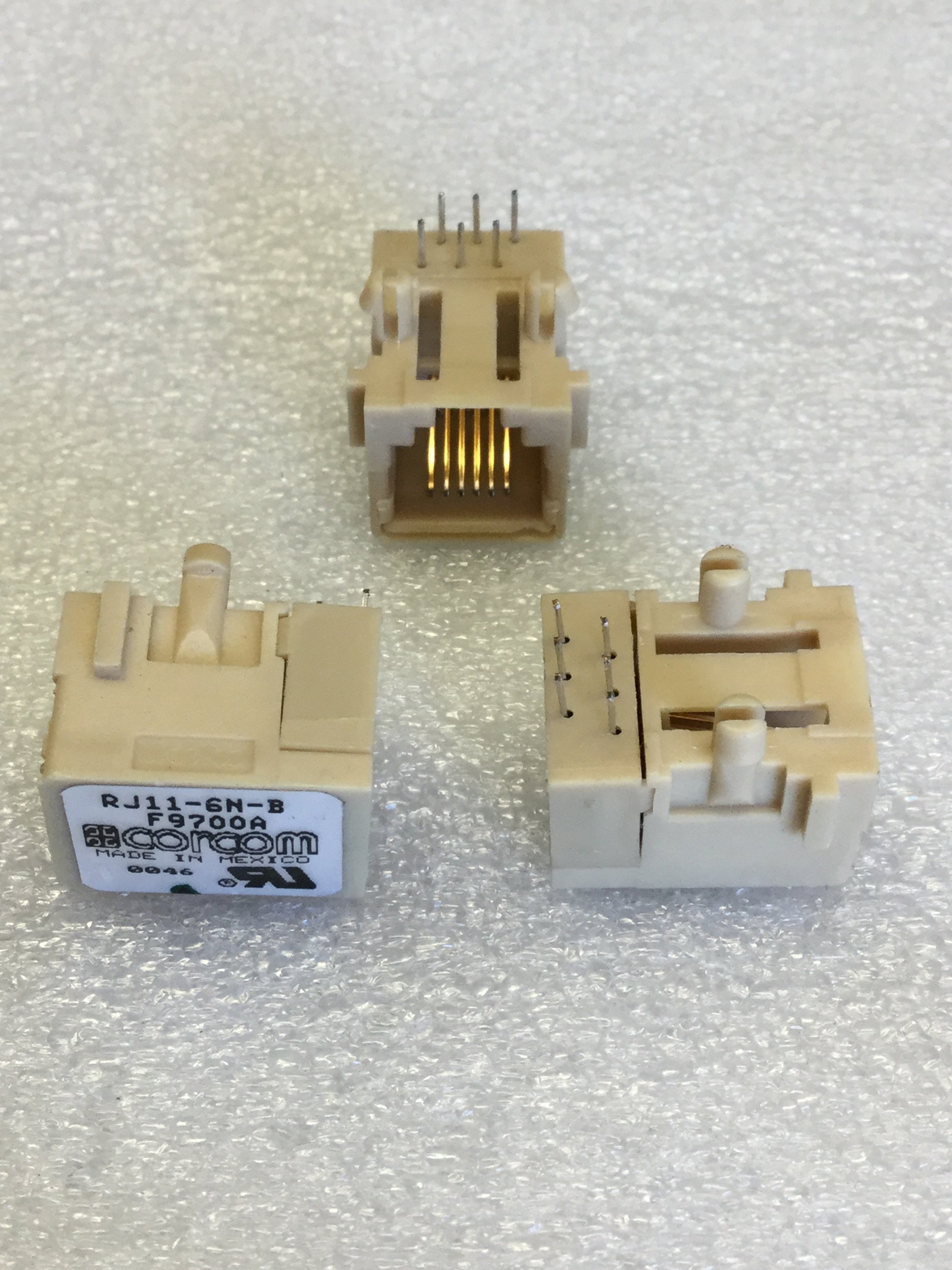

Low profile version of our Signal Sentry series. Available
with sleeve or block inductors and optional grounded
shielding. Grounded shielding allows connection to
grounded cables for additional RFI protection.
Specifications
Contacts
Material: Phosphor bronze
Plating: 50 microinches gold
Barrier underplating: 100 microinches nickel
Resistance:
Initial: 20 milliohms maximum
After durability testing
(500 mating cycles): 30 milliohms maximum
PCB Terminals
Solderability 60/40
Ferrites
Type: High resistivity, nickel zinc ceramic
Sleeves: Single-aperature cylinders
Block: Multi-aperature rectangular prism
Shield Material
Solder-plated phosphor bronze
Housing Material
Black glass-filled polyester (Valox 457)
Dielectric Withstanding Voltage
Line-to-line and line-to-ground 1000VAC for 60 seconds
Printed Circuit Board Retention
Before soldering: 1 lb. minimum
After soldering: 20 lb. minimum
N Series
Libertyville, IL (847) 680-7400
Pricing
Consult your local Corcom sales representative for pricing.
Part No. Part No.
RJ11-6N-B RJ45-8N-B
RJ11-6N-S RJ45-8N-S
RJ11-6N3-B RJ45-8N3-B
RJ11-6N3-S RJ45-8N3-S
RJ11-6N4-B RJ45-8N4-B
RJ11-6N4-S RJ45-8N4-S
Ferrite block Ferrite sleeve
Impedance in Ohms
N
128
Typical Impedance in Ohms
Frequency MHz
UL Recognized
CSA Certified
Model dimensions and PC board layout on pages 131 to 133.
