NC7WV07P6X

Part # NC7WV07P6X

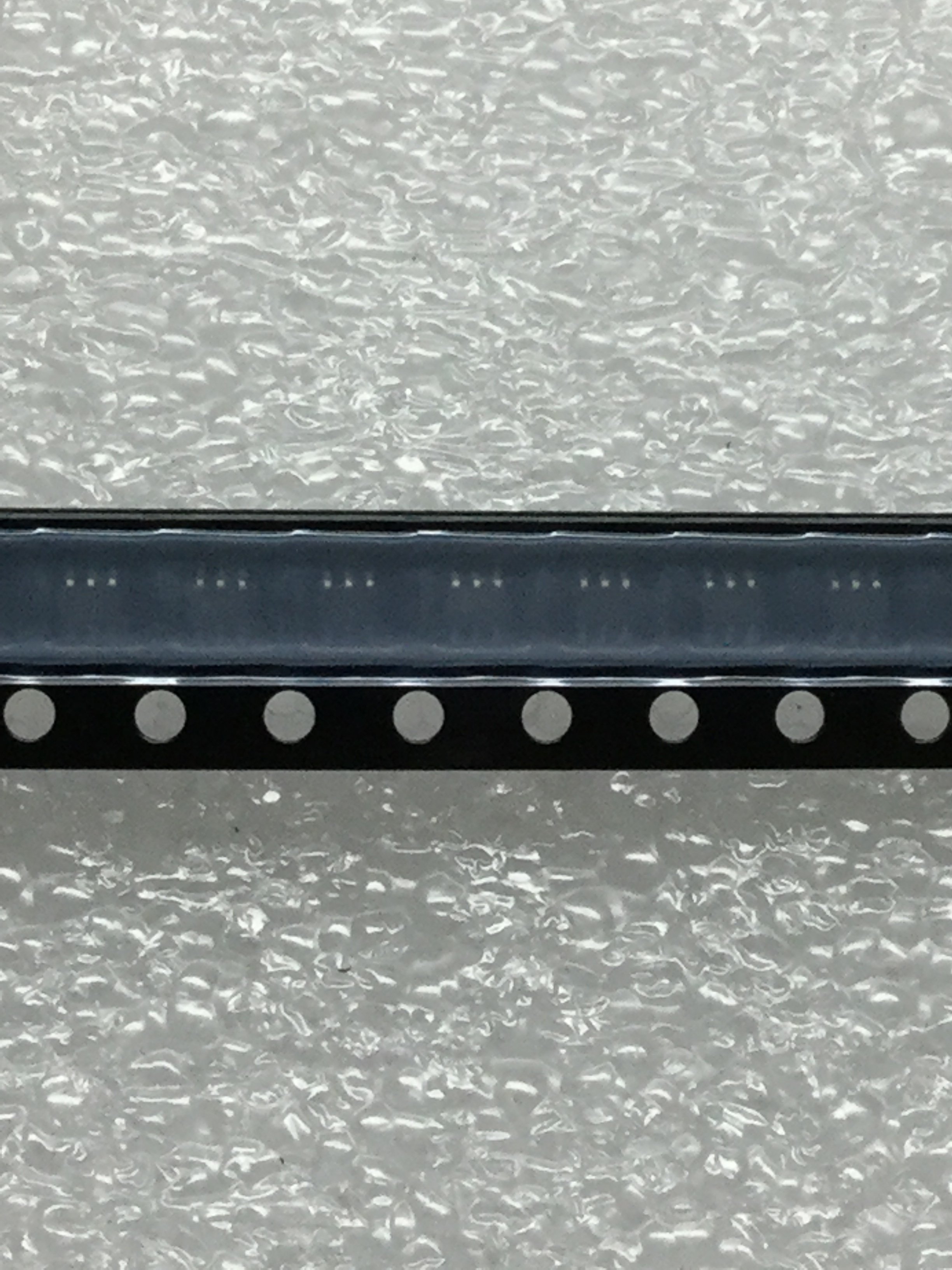

Description BFFR/DRVR 2CH NON-INV OPEN DRAIN CMOS 6PIN SC-70 - T&R
Category IC
Availability In Stock
Qty 5294
Qty Price
1 - 330 $0.75694
331 - 830 $0.60211
831 - 1,761 $0.56771
1,762 - 3,791 $0.52756
3,792 + $0.47022
Manufacturer Available Qty
Fairchild Semiconductor
Date Code: 0648
  • Shipping Freelance Stock: 2594
    Ships Immediately
Fairchild Semiconductor
Date Code: 0648
  • Shipping Freelance Stock: 2700
    Ships Immediately



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

© 2004 Fairchild Semiconductor Corporation DS500860 www.fairchildsemi.com
October 2003
Revised December 2004
NC7WV07 TinyLogic
ULP-A Dual Buffer (Open Drain Output)
NC7WV07
TinyLogic
ULP-A Dual Buffer (Open Drain Output)
General Description
The NC7WV07 is a dual buffer with open drain output from
Fairchild’s Ultra Low Power-A series of TinyLogic
. ULP-A
is ideal for applications that require extreme high speed,
high drive and low power. This product is designed for a
wide low voltage operating range (0.9V to 3.6V V
CC
) and
applications that require more drive and speed than the
TinyLogic ULP series, but still offer best in class low power
operation.
The NC7WV07 is uniquely designed for optimized power
and speed, and is fabricated with an advanced CMOS
technology to achieve high-speed operation while main-
taining low CMOS power dissipation.
Features
0.9V to 3.6V V
CC
supply operation
3.6V overvoltage tolerant I/O’s at V
CC
from 0.9V to 3.6V
Extremely High Speed t
PD
1.0 ns typ for 2.7V to 3.6V V
CC
1.2 ns typ for 2.3V to 2.7V V
CC
2.0 ns typ for 1.65V to 1.95V V
CC
3.2 ns typ for 1.4V to 1.6V V
CC
6.0 ns typ for 1.1V to 1.3V V
CC
13.0 ns typ for 0.9V V
CC
Power-Off high impedance inputs and outputs
High Static Drive (I
OH
/I
OL
)
±24 mA @ 3.00V V
CC
±18 mA @ 2.30V V
CC
±6 mA @ 1.65V V
CC
±4 mA @ 1.4V V
CC
±2 mA @ 1.1V V
CC
±0.1 mA @ 0.9V V
CC
Uses patented Quiet Series noise/EMI reduction
circuitry
Ultra small MicroPak
leadfree package
Ultra low dynamic power
Ordering Code:
Battery Life vs. V
CC
Supply Voltage
TinyLogic ULP and ULP-A with up to 50% less power consumption can
extend your battery life significantly.
Battery Life = (V
battery
*I
battery
*.9)/(P
device
)/24hrs/day
Where, P
device
= (I
CC
* V
CC
) + (C
PD
+ C
L
) * V
CC
2
* f
Assumes ideal 3.6V Lithium Ion battery with current rating of 900mAH and
derated 90% and device frequency at 10MHz, with C
L
= 15 pF load
TinyLogic is a registered trademark of Fairchild Semiconductor Corporation.
MicroPak and Quiet Series are trademarks of Fairchild Semiconductor Corporation.
Order Number
Package Product Code
Package Description Supplied As
Number Top Mark
NC7WV07P6X MAA06A V07 6-Lead SC70, EIAJ SC88, 1.25mm Wide 3k Units on Tape and Reel
NC7WV07L6X MAC06A BC 6-Lead MicroPak, 1.0mm Wide 5k Units on Tape and Reel
www.fairchildsemi.com 2
NC7WV07
Logic Symbol
IEEE/IEC
Pin Descriptions
Function Table
Y = A
H = HIGH Logic Level
L = LOW Logic Level
Connection Diagrams
Pin Assignments for SC70
(Top View)
Pin One Orientation Diagram
AAA represents Product Code Top Mark - see ordering code.
Note: Orientation of Top Mark determines Pin One location. Read the Top
Product Code Mark left to right, Pin One is the lower left pin (see diagram).
Pad Assignment for MicroPak
(Top Thru View)
Pin Names Description
A
1
, A
2
Data Inputs
Y
1
, Y
2
Output
Input Output
AY
LL
HH
3 www.fairchildsemi.com
NC7WV07
Absolute Maximum Ratings(Note 1) Recommended Operating
Conditions
(Note 3)
Note 1: Absolute Maximum Ratings: are those values beyond which the
safety of the device cannot be guaranteed. The device should not be oper-
ated at these limits. The parametric values defined in the Electrical Charac-
teristics tables are not guaranteed at the absolute maximum ratings. The
Recommended Operating Conditions table will define the conditions for
actual device operation.
Note 2: I
O
Absolute Maximum Rating must be observed.
Note 3: Unused inputs must be held HIGH or LOW. They may not float.
DC Electrical Characteristics
Supply Voltage (V
CC
) 0.5V to +4.6V
DC Input Voltage (V
IN
) 0.5V to +4.6V
DC Output Voltage (V
OUT
)
HIGH or LOW State (Note 2)
0.5V to V
CC
+0.5V
V
CC
= 0V 0.5V to +4.6V
DC Input Diode Current (I
IK
) V
IN
< 0V ±50 mA
DC Output Diode Current (I
OK
)
V
OUT
< 0V 50 mA
V
OUT
> V
CC
+50 mA
DC Output Source/Sink Current (I
OH
/I
OL
) ± 50 mA
DC V
CC
or Ground Current per
Supply Pin (I
CC
or Ground) ± 50 mA
Storage Temperature Range (T
STG
) 65°C to +150°C
Supply Voltage 0.9V to 3.6V
Input Voltage (V
IN
) 0V to 3.6V
Output Voltage (V
OUT
)
V
CC
= 0.0V 0V to 3.6V
HIGH or LOW State 0V to V
CC
Output Current in I
OH
/I
OL
V
CC
= 3.0V to 3.6V ±24 mA
V
CC
= 2.3V to 2.7V ±18 mA
V
CC
= 1.65V to 1.95V ±6 mA
V
CC
= 1.4V to 1.6V ±4 mA
V
CC
= 1.1V to 1.3V ±2 mA
V
CC
= 0.9V ±0.1 mA
Free Air Operating Temperature (T
A
) 40°C to +85°C
Minimum Input Edge Rate (
t/V)
V
IN
= 0.8V to 2.0V, V
CC
= 3.0V 10 ns/V
Symbol Parameter
V
CC
T
A
= +25°CT
A
= 40°C to +85°C
Units Conditions
(V) Min Max Min Max
V
IH
HIGH Level 0.90 0.65 x V
CC
0.65 x V
CC
V
Input Voltage 1.10 V
CC
1.30 0.65 x V
CC
0.65 x V
CC
1.40 V
CC
1.60 0.65 x V
CC
0.65 x V
CC
1.65 V
CC
1.95 0.65 x V
CC
0.65 x V
CC
2.30 V
CC
< 2.70 1.6 1.6
2.70 V
CC
3.60 2.0 2.0
V
IL
LOW Level 0.90 0.35 x V
CC
0.35 x V
CC
V
Input Voltage 1.10 V
CC
1.30 0.35 x V
CC
0.35 x V
CC
1.40 V
CC
1.60 0.35 x V
CC
0.35 x V
CC
1.65 V
CC
1.95 0.35 x V
CC
0.35 x V
CC
2.30 V
CC
< 2.70 0.7 0.7
2.70 V
CC
3.60 0.8 0.8
V
OL
LOW Level 0.90 0.1 0.1
V
I
OL
= 100 µA
Output Voltage 1.10 V
CC
1.30 0.1 0.1
1.40 V
CC
1.60 0.2 0.2
1.65 V
CC
1.95 0.2 0.2
2.30 V
CC
< 2.70 0.2 0.2
2.70 V
CC
3.60 0.2 0.2
1.10 V
CC
1.30 0.25 x V
CC
0.25 x V
CC
I
OL
= 2 mA
1.40 V
CC
1.60 0.25 x V
CC
0.25 x V
CC
I
OL
= 4 mA
1.65 V
CC
1.95 0.3 0.3 I
OL
= 6 mA
2.30 V
CC
< 2.70 0.4 0.4
I
OL
= 12 mA
2.70 V
CC
3.60 0.4 0.4
2.30 V
CC
< 2.70 0.6 0.6
I
OL
= 18 mA
2.70 V
CC
3.60 0.4 0.4
2.70 V
CC
3.60 0.55 0.55 I
OL
= 24 mA
I
IN
Input Leakage Current 0.90 to 3.60 ±0.1 ±0.5 µA0 V
I
3.6V
