MM74HC589N

Part # MM74HC589N
Description IC SHIFT REGISTER 8-BIT 16-DIP
Category IC
Availability In Stock
Qty 2
Qty Price
1 + $0.49227
Manufacturer Available Qty
National Semiconductor Corp
Date Code: 9030
  • Shipping Freelance Stock: 2
    Ships Immediately



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

www.fairchildsemi.com 4
MM74HC589
AC Electrical Characteristics
V
CC
= 5V, T
A
= 25°C, C
L
= 15 pF, t
r
= t
f
= 6 ns
AC Electrical Characteristics
V
CC
= 2.06V, C
L
= 50 pF, t
r
= t
f
= 6 ns (unless otherwise specified)
Symbol Parameter Conditions Typ Guaranteed Limit Units
f
MAX
Maximum Operating Frequency for SCK 50 30 MHz
t
PHL
, t
PLH
Maximum Propagation Delay from SCK to Q
H
30 ns
t
PHL
, t
PLH
Maximum Propagation Delay from SLOAD to Q
H
30 ns
t
PHL
, t
PLH
Maximum Propagation Delay from LCK to Q
H
SLOAD = logic 0 25 45 ns
t
PZH
, t
PZL
Output Enable Time R
L
= 1 k 18 28 ns
t
PHZ
, t
PLZ
Output Disable Time R
L
= 1 k, C
L
= 5 pF 19 25 ns
t
S
Minimum Setup Time from RCK to SCK 10 20 ns
t
S
Minimum Setup Time from SER to SCK 10 20 ns
t
S
Minimum Setup Time from Inputs A thru H to RCK 10 20 ns
t
H
Minimum Hold Time 0 5 ns
t
W
Minimum Pulse Width SCK, RCK, SLOAD 816ns
Symbol Parameter Conditions
V
CC
T
A
= 25°CT
A
= 40 to 85°CT
A
= 55 to 125°C
Units
Typ Guaranteed Limits
f
MAX
Maximum Operating 2.0V 6 4.8 4 MHz
Frequency for SCK 4.5V 30 24 20 MHz
6.0V 35 28 24 MHz
t
PHL
, t
PLH
Maximum Propagation 2.0V 62 175 220 265 ns
Delay from SCK or 4.5V 20 35 44 53 ns
SLOAD to Q
H
6.0V 18 30 37 45 ns
t
PHL
, t
PLH
Maximum Propagation 2.0V 120 225 280 340 ns
Delay from SCK or C
L
= 150 pF 4.5V 31 45 56 68 ns
SLOAD
to Q
H
6.0V 28 38 48 58 ns
t
PHL
, t
PLH
Maximum Propagation 2.0V 80 210 265 315 ns
Delay from RCK to Q
H
4.5V 25 42 53 63 ns
6.0V 21 36 45 54 ns
t
PHL
, t
PLH
Maximum Propagation 2.0V 80 210 265 313 ns
Delay RCK to Q
H
C
L
= 150 pF 4.5V 25 52 66 77 ns
6.0V 21 44 56 66 ns
t
PZH
, t
PZL
Output Enable Time R
L
= 1 k 2.0V 70 150 189 224 ns
4.5V 22 30 38 45 ns
6.0V 20 26 32 38 ns
t
PHZ
, t
PLZ
Output Disable Time R
L
= 1 k 2.0V 70 150 189 224 ns
4.5V 22 30 38 45 ns
6.0V 20 26 32 38 ns
t
S
Minimum Setup Time 2.0V 100 125 150 ns
from RCK to SCK 4.5V 20 25 30 ns
6.0V 17 22 25 ns
t
S
Minimum Setup Time 2.0V 100 125 150 ns
from SER to SCK 4.5V 20 25 30 ns
6.0V 17 22 25 ns
t
S
Minimum Setup Time 2.0V 100 125 150 ns
from Inputs A thru H 4.5V 20 25 30 ns
to RCK 6.0V 17 22 25 ns
t
H
Minimum Hold Time 2.0V 55 5 5 ns
4.5V 0 5 5 5 ns
6.0V 1 5 5 5 ns
t
W
Minimum Pulse Width 2.0V 30 80 100 120 ns
SCK, RCK, SLOAD, 4.5V 9 16 20 24 ns
SLOAD 6.0V 8 14 17 20 ns
5 www.fairchildsemi.com
MM74HC589
AC Electrical Characteristics (Continued)
Note 5: C
PD
determines the no load dynamic power consumption, P
D
= C
PD
V
CC
2
f + I
CC
V
CC
, and the no load dynamic current consumption,
I
S
= C
PD
V
CC
sf + I
CC
.
Symbol Parameter Conditions
V
CC
T
A
= 25°CT
A
= 40 to 85°CT
A
= 55 to 125°C
Units
Typ Guaranteed Limits
t
r
, t
f
Maximum Input Rise and 2.0V 1500 1500 1500 ns
Fall Time, Clock 4.5V 500 500 500 ns
6.0V 400 400 400 ns
t
THL
, t
TLH
Maximum Output 2.0V 25 60 75 90 ns
Rise and Fall Time 4.5V 6 12 15 18 ns
6.0V 5 10 12 15 ns
C
PD
Power Dissipation 87 pF
Capacitance (Note 5)
C
IN
Maximum Input Capacitance 5 10 10 10 pF
C
OUT
Maximum Output Capacitance 15 20 20 20 pF
www.fairchildsemi.com 6
MM74HC589

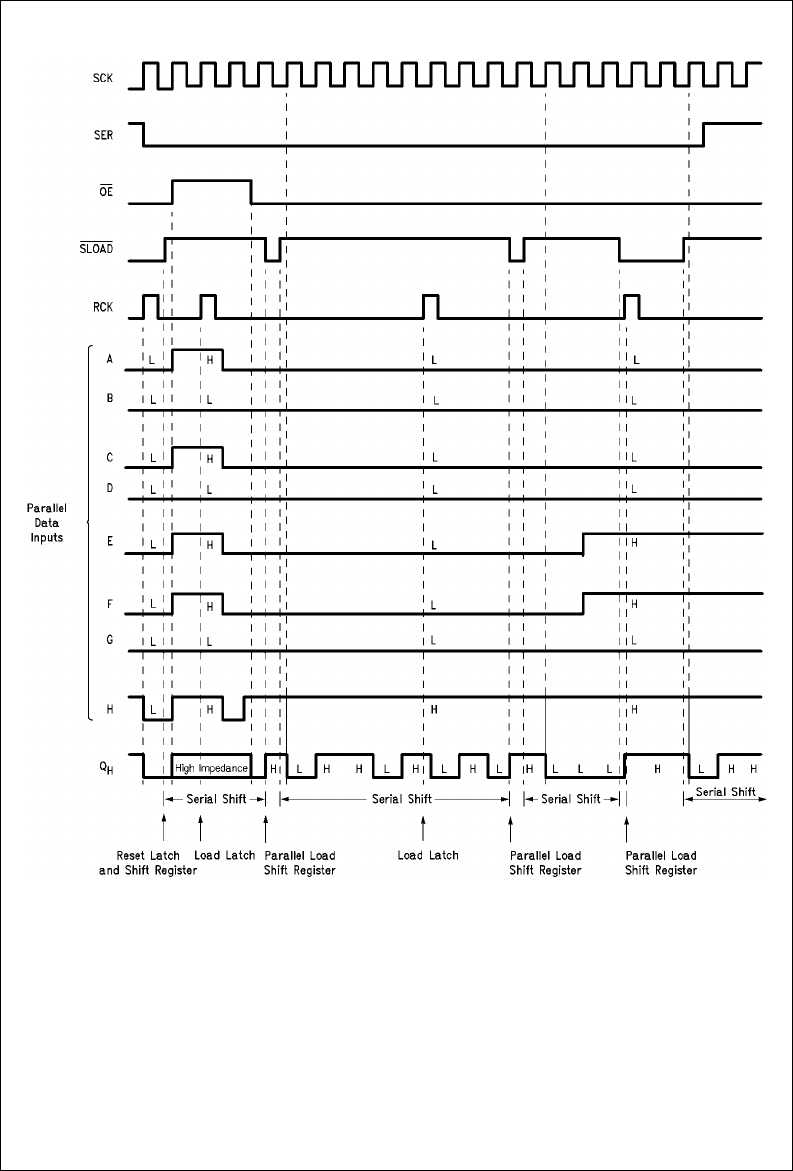

Timing Diagram
