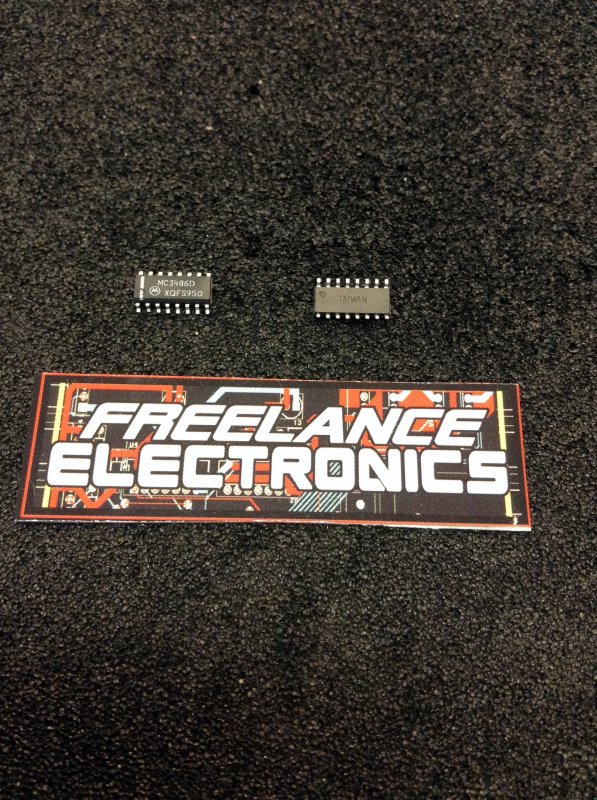

Part Number: MC3486D

Cross Number:

Item Description: QUADE LINE RCVR/LINEAR, INTERFACE - Rail/Tube

Qty Price
1 + $0.37260



Other Cross Reference

Manufacturer Date Code Qty Available Qty
TEX/MOT 8900
  • Freelance Stock: 40
    Ships Immediately


Motorola Corp 9536
  • Freelance Stock: 8
    Ships Immediately





Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

MC3486
QUADRUPLE DIFFERENTIAL LINE RECEIVER
WITH 3-STATE OUTPUTS
SLLS097B – JUNE 1980 – REVSIED MAY 1995
1
POST OFFICE BOX 655303 DALLAS, TEXAS 75265
Meets or Exceeds the Requirements of
ANSI Standards EIA/TIA-422-B and
EIA/TIA-423-B and ITU Recommendations
V.10 and V.11
3-State, TTL-Compatible Outputs
Fast Transition Times
Operates From Single 5-V Supply
Designed to Be Interchangeable With
Motorola MC3486
description
The MC3486 is a monolithic quadruple differential line receiver designed to meet the specifications of ANSI
Standards EIA/TIA-422-B and EIA/TIA-423-B and ITU Recommendations V.10 and V.11. The MC3486 offers
four independent differential-input line receivers that have TTL-compatible outputs. The outputs utilize 3-state
circuitry to provide a high-impedance state at any output when the appropriate output enable is at a low logic
level.
The MC3486 is designed for optimum performance when used with the MC3487 quadruple differential line
driver. It is supplied in a 16-pin package and operates from a single 5-V supply.
The MC3486 is characterized for operation from 0°C to 70°C.
FUNCTION TABLE
(each receiver)
DIFFERENTIAL INPUTS
ENABLE
OUTPUT
A–B
ENABLE
Y
V
ID
0.2 V H H
0.2 V < V
ID
< 0.2 V H ?
V
ID
0.2 V H L
Irrelevant L Z
Open H ?
H = high level, L = low level, Z = high impedance (off),
? = indeterminate
Copyright 1995, Texas Instruments Incorporated
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Motorola is a trademark of Motorola, Incorporated.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
1B
1A
1Y
1,2EN
2Y
2A
2B
GND
V
CC
4B
4A
4Y
3,4EN
3Y
3A
3B
D OR N PACKAGE
(TOP VIEW)
MC3486
QUADRUPLE DIFFERENTIAL LINE RECEIVER
WITH 3-STATE OUTPUTS
SLLS097B – JUNE 1980 – REVSIED MAY 1995
2
POST OFFICE BOX 655303 DALLAS, TEXAS 75265
logic symbol
EN
EN
4B
4A
3B
3A
3,4EN
13
11
4Y
3Y
15
14
9
10
12
2Y
1Y
2B
2A
1B
1A
1,2EN
7
6
1
2
4
5
3
This symbol is in accordance with ANSI/IEEE Std 91-1984
and IEC Publication 617-12.
logic diagram (positive logic)
4Y
3Y
2Y
1Y
15
14
9
10
12
7
6
1
2
4
4B
4A
3B
3A
3,4EN
2B
2A
1B
1A
1,2EN
13
11
5
3
schematics of inputs and outputs
16.8 k
NOM
Input
960
NOM
V
CC
EQUIVALENT OF EACH INPUT
EXCEPT OUTPUT ENABLE
EQUIVALENT OF OUTPUT ENABLE TYPICAL OF ALL OUTPUTS
V
CC
Output
Enable
Output
V
CC
4.9 k
NOM
85
NOM
8.3 k
NOM
960
NOM
MC3486
QUADRUPLE DIFFERENTIAL LINE RECEIVER
WITH 3-STATE OUTPUTS
SLLS097B – JUNE 1980 – REVSIED MAY 1995
3
POST OFFICE BOX 655303 DALLAS, TEXAS 75265
absolute maximum ratings over operating free-air temperature range (unless otherwise noted)
Supply voltage, V
CC
(see Note 1) 8 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input voltage, V
I
(A or B inputs) ±15 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Differential input voltage, V
ID
(see Note 2) ±25 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Enable input voltage 8 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Low-level output current, I
OL
50 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Continuous total power dissipation See Dissipation Rating Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating free-air temperature range, T
A
0°C to 70°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage temperature range, T
stg
–65°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds 260°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. All voltage values, except differential-input voltage, are with respect to network ground terminal.
2. Differential-input voltage is measured at the noninverting input with respect to the corresponding inverting input.
DISSIPATION RATING TABLE
PACKAGE
T
A
25°C DERATING FACTOR T
A
= 70°C
PACKAGE
A
POWER RATING ABOVE T
A
= 25°C
A
POWER RATING
D 950 mW 7.6 mW/°C 608 mW
N 1150 mW 9.2 mW/°C 736 mW
recommended operating conditions
MIN NOM MAX UNIT
Supply voltage, V
CC
4.75 5 5.25 V
Common-mode input voltage, V
IC
±7 V
Differential input voltage, V
ID
±6 V
High-level enable input voltage, V
IH
2 V
Low-level enable input voltage, V
IL
0.8 V
Operating free-air temperature, T
A
0 70 °C
