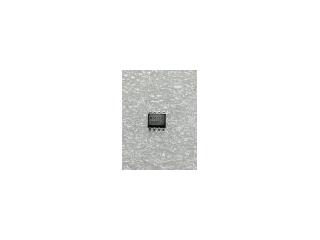

Item Description: IC MONITOR VOLTAGE UNIV 8DIP

Qty Price
1 + $0.21280



Other Cross Reference

Manufacturer Date Code Qty Available Qty
ON Semiconductor 0707
  • Freelance Stock: 5
    Ships Immediately





Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

Semiconductor Components Industries, LLC, 2000
April, 2000 – Rev. 2
1 Publication Order Number:
MC34161/D
The MC34161/MC33161 are universal voltage monitors intended
for use in a wide variety of voltage sensing applications. These devices
offer the circuit designer an economical solution for positive and
negative voltage detection. The circuit consists of two comparator
channels each with hysteresis, a unique Mode Select Input for channel
programming, a pinned out 2.54 V reference, and two open collector
outputs capable of sinking in excess of 10 mA. Each comparator
channel can be configured as either inverting or noninverting by the
Mode Select Input. This allows over, under, and window detection of
positive and negative voltages. The minimum supply voltage needed
for these devices to be fully functional is 2.0 V for positive voltage
sensing and 4.0 V for negative voltage sensing.
Applications include direct monitoring of positive and negative
voltages used in appliance, automotive, consumer, and industrial
equipment.
Unique Mode Select Input Allows Channel Programming
Over, Under, and Window Voltage Detection
Positive and Negative Voltage Detection
Fully Functional at 2.0 V for Positive Voltage Sensing and 4.0 V for
Negative Voltage Sensing
Pinned Out 2.54 V Reference with Current Limit Protection
Low Standby Current
Open Collector Outputs for Enhanced Device Flexibility
Simplified Block Diagram
(Positive Voltage Window Detector Application)
V
CC
6
1
7
V
S
2
3
+
1.27V
+
1.27V
+
2.8V
+
0.6V
+
8
5
2.54V
Reference
+
+
+
4
Device Package Shipping
ORDERING INFORMATION
MC34161D SO–8 98 Units/Rail
MC34161P PDIP–8
MC33161D SO–8
PDIP–8
P SUFFIX
CASE 626
1
8
http://onsemi.com
50 Units/Rail
98 Units/Rail
SO–8
D SUFFIX
CASE 751
1
8
MC33161DR2 SO–8 2500 Tape & Reel
MC34161DR2 SO–8 2500 Tape & Reel
MC33161P PDIP–8 50 Units/Rail
MARKING
DIAGRAMS
x = 3 or 4
A = Assembly Location
WL, L = Wafer Lot
YY, Y = Year
WW, W = Work Week
PIN CONNECTIONS
V
ref
Input 1
Input 2
Gnd
V
CC
Mode Select
Output 1
Output 2
1
2
3
4
8
7
6
5
(TOP VIEW)
ALYW
3x161
1
8
AWL
MC3x161P
1
8
YYWW
MC34161, MC33161
http://onsemi.com
2
MAXIMUM RATINGS
Rating Symbol Value Unit
Power Supply Input Voltage V
CC
40 V
Comparator Input Voltage Range V
in
– 1.0 to +40 V
Comparator Output Sink Current (Pins 5 and 6) (Note 1.) I
Sink
20 mA
Comparator Output Voltage V
out
40 V
Power Dissipation and Thermal Characteristics (Note 1.)
P Suffix, Plastic Package, Case 626
Maximum Power Dissipation @ T
A
= 70°C
Thermal Resistance, Junction–to–Air
D Suffix, Plastic Package, Case 751
Maximum Power Dissipation @ T
A
= 70°C
Thermal Resistance, Junction–to–Air
P
D
R
θJA
P
D
R
θJA
800
100
450
178
mW
°C/W
mW
°C/W
Operating Junction Temperature T
J
+150 °C
Operating Ambient Temperature (Note 3.)
MC34161
MC33161
T
A
0 to +70
– 40 to +85
°C
Storage Temperature Range T
stg
– 55 to +150 °C
ELECTRICAL CHARACTERISTICS (V
CC
= 5.0 V, for typical values T
A
= 25°C, for min/max values T
A
is the operating ambient
temperature range that applies [Notes 2. and 3.], unless otherwise noted.)
Characteristics
Symbol Min Typ Max Unit
COMPARATOR INPUTS
Threshold Voltage, V
in
Increasing (T
A
= 25°C)
Threshold Voltage, V
in
Increasing (T
A
= T
min
to T
max
)
V
th
1.245
1.235
1.27
1.295
1.295
V
Threshold Voltage Variation (V
CC
= 2.0 V to 40 V) V
th
7.0 15 mV
Threshold Hysteresis, V
in
Decreasing V
H
15 25 35 mV
Threshold Difference |V
th1
– V
th2
| V
D
1.0 15 mV
Reference to Threshold Difference (V
ref
– V
in1
), (V
ref
– V
in2
) V
RTD
1.20 1.27 1.32 V
Input Bias Current (V
in
= 1.0 V)
Input Bias Current (V
in
= 1.5 V)
I
IB
40
85
200
400
nA
MODE SELECT INPUT
Mode Select Threshold Voltage (Figure 5) Channel 1
Mode Select Threshold Voltage (Figure 5) Channel 2
V
th(CH 1)
V
th(CH 2)
V
ref
+0.15
0.3
V
ref
+0.23
0.63
V
ref
+0.30
0.9
V
COMPARATOR OUTPUTS
Output Sink Saturation Voltage (I
Sink
= 2.0 mA)
Output Sink Saturation Voltage (I
Sink
= 10 mA)
Output Sink Saturation Voltage (I
Sink
= 0.25 mA, V
CC
= 1.0 V)
V
OL
0.05
0.22
0.02
0.3
0.6
0.2
V
Off–State Leakage Current (V
OH
= 40 V) I
OH
0 1.0 µA
REFERENCE OUTPUT
Output Voltage (I
O
= 0 mA, T
A
= 25°C) V
ref
2.48 2.54 2.60 V
Load Regulation (I
O
= 0 mA to 2.0 mA) Reg
load
0.6 15 mV
Line Regulation (V
CC
= 4.0 V to 40 V) Reg
line
5.0 15 mV
Total Output Variation over Line, Load, and Temperature V
ref
2.45 2.60 V
Short Circuit Current I
SC
8.5 30 mA
TOTAL DEVICE
Power Supply Current (V
Mode
, V
in1
, V
in2
= Gnd) (V
CC
= 5.0 V)
Power Supply Current (V
Mode
, V
in
1, V
in
2 = Gd) (V
CC
= 40 V)
I
CC
450
560
700
900
µA
Operating Voltage Range (Positive Sensing)
Operating Voltage Range (Negative Sensing)
V
CC
2.0
4.0
40
40
V
1. Maximum package power dissipation must be observed.
2. Low duty cycle pulse techniques are used during test to maintain junction temperature as close to ambient as possible.
3. T
low
=0°C for MC34161 T
high
= +70°C for MC34161
–40°C for MC33161 +85°C for MC33161
MC34161, MC33161
http://onsemi.com
3
V
out
, CHANNEL OUTPUT VOLTAGE (V)
T
A
= 25°C
T
A
= –40°C
T
A
= –40°C
T
A
= 85°C
T
A
= 85°C
1.0 3.00 0.5 1.5 2.52.0 3.5
Channel 2 Threshold Channel 1 Threshold
V
CC
= 5.0 V
R
L
= 10 k to V
CC
V
Mode
, MODE SELECT INPUT VOLTAGE (V)
T
A
= 25°C
Figure 1. Comparator Input Threshold Voltage
V
CC
= 5.0 V
R
L
= 10 k to V
CC
T
A
=
25°C
V
T
A
= –40°C
T
A
= 85°C
T
A
= 25°C
1.22 1.281.23 1.24 1.25 1.26 1.27 1.29
V
in
, INPUT VOLTAGE (V)
out
, OUTPUT VOLTAGE (V)
T
A
= 85°C
T
A
= 25°C
T
A
= –40°C
Figure 2. Comparator Input Bias Current
versus Input Voltage
4.0 6.00 2.0
1
2
3
4
1. V
Mode
= Gnd, Output Falling
2. V
Mode
= V
CC
, Output Rising
3. V
Mode
= V
CC
, Output Falling
4. V
Mode
= Gnd, Output Rising
V
CC
= 5.0 V
T
A
= 25°C
8.0 10
, OUTPUT PROPAGATION DELAY TIME (ns)
PHL
t
PERCENT OVERDRIVE (%)
Figure 3. Output Propagation Delay Time
versus Percent Overdrive
Figure 4. Output Voltage versus Supply Voltage
I , INPUT BIAS CURRENT (nA)
IB
V
CC
= 5.0 V
V
Mode
= Gnd
T
A
= 25°C
1.0 3.02.00 4.0 5.0
V
in
, INPUT VOLTAGE (V)
Figure 5. Mode Select Thresholds
0 2.0 4.0 6.0 8.0
V
CC
, SUPPLY VOLTAGE (V)
V
out
, OUTPUT VOLTAGE (V)
T
A
= –40°C
T
A
= –25°C
T
A
= –85°C
Figure 6. Mode Select Input Current
versus Input Voltage
1.0 3.02.00 4.0 5.0
V
CC
= 5.0 V
T
A
= 25°C
V
Mode
, MODE SELECT INPUT VOLTAGE (V)
2.0
1.0
6.0
5.0
0
4.0
3.0
2.0
1.0
6.0
5.0
0
4.0
3.0
3600
3000
2400
1800
1200
600
500
400
300
200
100
0
8.0
6.0
4.0
2.0
0
40
35
30
25
20
15
10
5.0
0
, MODE SELECT INPUT CURRENT ( A)µ
Mode
I
Undervoltage Detector
Programmed to trip at 4.5 V
R
1
= 1.8 k, R
2
= 4.7 k
R
L
= 10 k to V
CC
Refer to Figure 16
