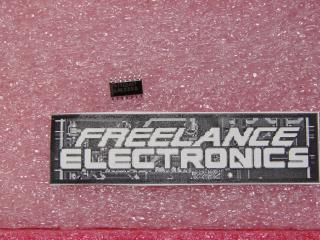

LM339AM

Part # LM339AM
Description COMPARATOR QUAD 18V/36V 14SOP- Rail/Tube
Category IC
Availability In Stock
Qty 160
Qty Price
1 + $0.09787
Manufacturer Available Qty
National Semiconductor Corp
  • Shipping Freelance Stock: 25
    Ships Immediately
National Semiconductor Corp
  • Shipping Freelance Stock: 52
    Ships Immediately
National Semiconductor Corp
  • Shipping Freelance Stock: 13
    Ships Immediately
National Semiconductor Corp
Date Code: 9048
  • Shipping Freelance Stock: 3
    Ships Immediately
National Semiconductor Corp
  • Shipping Freelance Stock: 1
    Ships Immediately
National Semiconductor Corp
  • Shipping Freelance Stock: 25
    Ships Immediately
National Semiconductor Corp
Date Code: 0030
  • Shipping Freelance Stock: 7
    Ships Immediately
National Semiconductor Corp
  • Shipping Freelance Stock: 34
    Ships Immediately

Related Items

LM339AD
Texas Instruments
IC
LM339AD
$0.95988
LM339ADR
Texas Instruments
IC
LM339ADR
$0.06197
LM339AJ
Motorola Corp
IC
LM339AJ
$3.42570
LM339AN
Texas Instruments
IC
LM339AN
$0.14228
LM339D
Philips Semiconductor
IC
LM339D
$0.07010
LM339DR
Texas Instruments
IC
LM339DR
$0.03085


Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

©2002 Fairchild Semiconductor Corporation
www.fairchildsemi.com
Rev. 1.0.2
Features
• Single or Dual Supply Operation
• Wide Range of Supply Voltage
LM2901,LM339/LM339A,LM239/LM239A: 2 ~ 36V
(or ±1 ~ ±18V)
LM3302: 2 ~ 28V (or ±1 ~ ±14V)
• Low Supply Current Drain 800µA Typ.
• Open Collector Outputs for Wired and Connectors
• Low Input Bias Current 25nA Typ.
• Low Input Offset Current ±2.3nA Typ.
• Low Input Offset Voltage ±1.4mV Typ.
• Input Common Mode Voltage Range Includes Ground.
• Low Output Saturation Voltage
• Output Compatible With TTL, DTL and MOS Logic
System
Description
The LM2901, LM339/LM339A ,LM239/LM239A, LM3302
consist of four independent voltage comparators designed
to operate from single power supply over a wide voltage
range.
14-SOP
14-DIP
1
1
Internal Block Diagram
14
1
13
12
11
10
9
8
2
3
4
5
6
7
-
+
-
-
+
+
+
-
OUT3
OUT4
IN4(+)
GND
IN4(-)
IN3(+)
IN3(-)
OUT2
OUT1
IN1(+)
IN1(-)
IN2(-)
IN2(+)
V
CC
LM2901,LM339/LM339A,LM3302
LM239/LM239A
Quad Comparator
LM2901,LM339/LM339A,LM3302 LM239/LM239A
2
Schematic Diagram
Absolute Maximum Ratings
Parameter Symbol Value Unit
Supply Voltage V
CC
±18 or 36 V
Supply Voltage only LM3302 V
CC
±14 or 28 V
Differential Input Voltage V
I(DIFF)
36 V
Differential Input Voltage Only LM3302 V
I(DIFF)
28 V
Input Voltage V
I
-0.3 to +36 V
Input Voltage Only LM3302 V
I
-0.3 to +28 V
Output Short Circuit to GND - Continuous -
Power Dissipation P
D
570 mW
Operating Temperature
LM339/LM339A
LM2901/LM3302
LM239/LM239A
T
OPR
0 ~ +70
-40 ~ +85
-25 ~ +85
°C
Storage Temperature T
STG
-65 ~ +150 °C
V
CC
Q9
Q12
Q14
Q3
Q1
Q2
Q7
Q13
Q8
Q5
Q6
Q4
D4
D5
D6
D1
D2
D3
R2
R1
GND
OUTPUT
IN(-)
IN(+)
LM2901,LM339/LM339A,LM3302 LM239/LM239A
3
Electrical Characteristics
(V
CC
= 5V, T
A
= 25°C, unless otherwise specified)
Note:
1. LM339/LM339A : 0 ≤ T
A
≤ +70°C
LM2901/LM3302 : -40 ≤ T
A
≤ +85°C
LM239/LM239A : -25 ≤ T
A
≤ +85°C
2. These parameters, although guaranteed, are not 100% tested in production.
Parameter Symbol Conditions
LM239A/LM339A LM239/LM339
Unit
Min. Typ. Max. Min. Typ. Max.
Input Offset
Voltage
V
IO
V
O(P)
=1.4V, R
S
= 0Ω -1 2 -1.45mV
Note1 - - 4.0 - - 9.0
Input Offset
Current
I
IO
I
IN(+)
- I
IN(-)
, V
CM
= 0V - 2.3 50 - 2.3 50 nA
Note1 - - 150 - - 150
Input Bias Current I
BIAS
V
CM
= 0V - 57 250 - 57 250
nA
Note1 - - 400 - - 400
Input Common
Mode Voltage
Range
V
I(R)
V
CC
= 30V 0 - V
CC
-1.5 0 - V
CC
-1.5
V
Note1 0 - V
CC
-2 0 - V
CC
-2
Supply Current I
CC
V
CC
= 5V, R
L
= ∞ - 1.1 2.0 - 1.1 2.0 mA
Voltage Gain G
V
V
CC
=15V, R
L
≥ 15kΩ
(for large swing)
50 200 - 50 200 - V/mV
Large Signal
Response Time
T
LRES
V
I
= TTL Logic Swing
V
REF
= 1.4V, V
RL
= 5V,
R
L
= 5.1kΩ (Note2)
- 300 - - 300 - ns
Response Time T
RES
V
RL
= 5V, R
L
= 5.1kΩ
(Note2)
-1.3 - -1.3- µs
Output Sink
Current
I
SINK
V
I(-)
≥ 1V, V
I(+)
= 0V,
V
O(P)
≤ 1.5V
618 - 618 - mA
Output Saturation
Voltage
V
SAT
V
I(-)
≥ 1V, V
I(+)
= 0V - 140 400 - 140 400
mV
I
SINK
= 4mA Note1 - - 700 - - 700
Output Leakage
Current
I
o(LKG)
V
I(-)
= 0V
V
I(+)
= 1V
V
O(P)
= 5V - 0.1 - - 0.1 - nA
V
O(P)
= 30V - - 1.0 - - 1.0 µA
Differential Voltage V
I(DIFF)
Note1 - - 36 - - 36 V
