H304.K (01/12)1
pulseelectronics.com
10/100 PC Card LAN
Magnetic Modules
RoHS peak reflow temperature rating 260°C
Low profile packages from .094” (2,39mm) to
.078” (1,98mm) for PC card and cardbus
applications
H0013NL, H0019NL
Mechanicals
USA 858 674 8100 Germany 49 7032 7806 0 Singapore 65 6287 8998 Shanghai 86 21 62787060 China 86 755 33966678 Taiwan 886 3 4356768
Electrical Specifications @ 25°C - Operating Temperature 0°C to +70°C
RoHS
Compliant
Part
Number
Turns Ratio
(±5%)
Insertion
Loss
(dB MAX)
Return Loss
(dB MIN)
Dierential to
Common
Mode Rejection
(dB MIN)
Crosstalk
(dB MIN)
Hipot
(Vrms MIN)
TX wRX
100 kHz-100
MHz 30 MHz 60 MHz 80 MHz 30 MHz 50 MHz 100 MHz 30 MHz 62 MHz 100 MHz
H0009NL 1:1 1:1 -0.9 -16 -12 -11 -35 -33 -20 -50 -45 -40 1500
H0013NL 1:1 1:1 -0.9 -16 -12 -11 -35 -33 -20 -50 -45 -40 1500
H0019NL 1:1 1:1 -0.9 -18 -12 -11 -40 -30 -45 -45 -37 1500
H0020NL 1:1 1:1 -1.0 -16 -12 -12 -42 -33 -45 -40 -35 1500

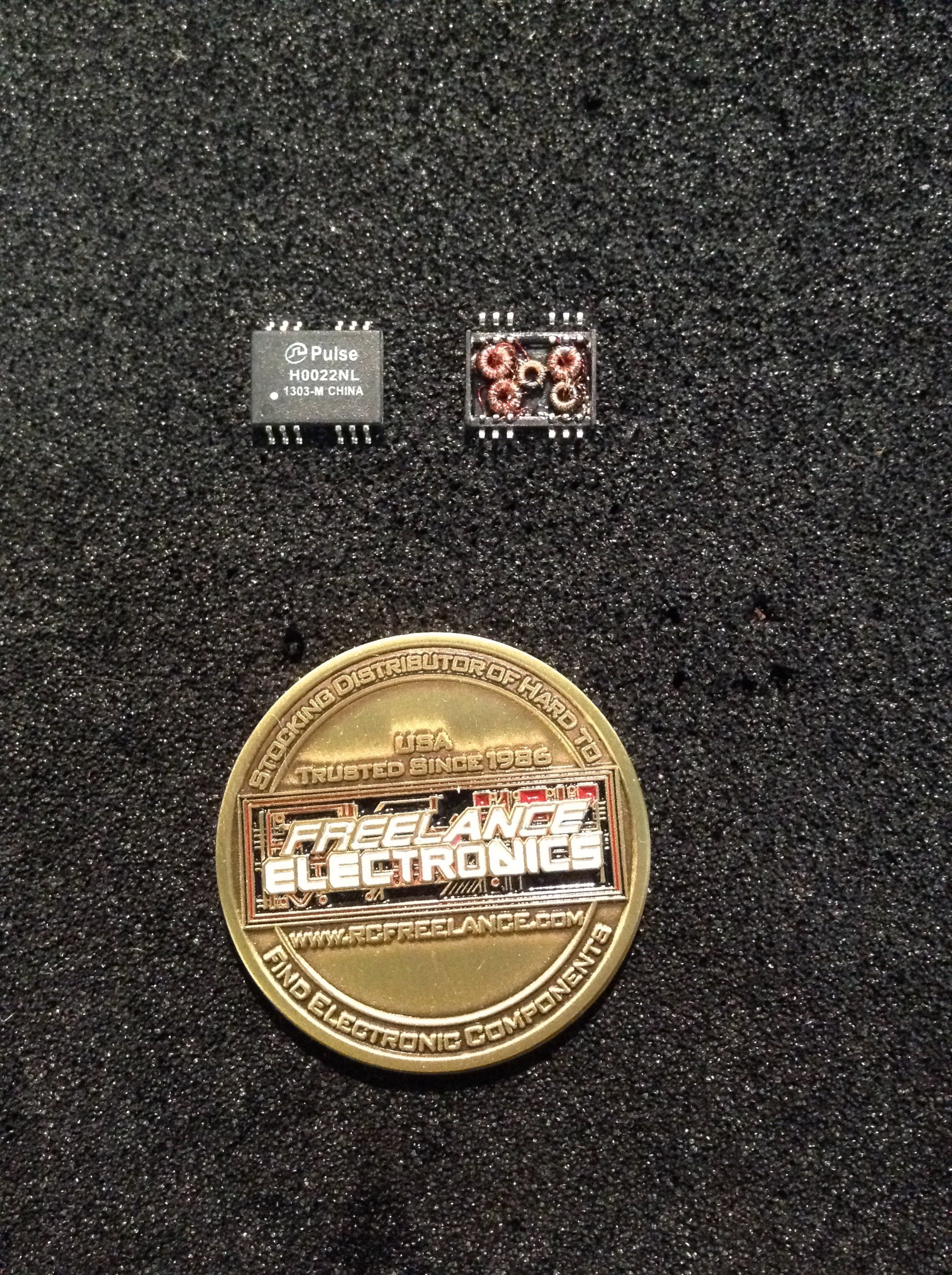

H0022NL 1:1 1:1 -2.0 -18 -14 -12 -40 -35 -30 -50 -45 -40 1500
H0025NL 1:1 1:1 -2.0 -18 -12 -12 -40 -35 -30 -45 -45 -37 1500
1:1 1:1 -1.0 -16 -14 -12 -40 -35 -30 -45 -40 -37 1500
HX0068ANL 1:1 1:1 -1.0 -16 -14 -12 -40 -35 -30 -45 -40 -35 1500
1. Extended operating temperature (-40°C to +85°C) Notes: When ordering Tape & Reel packaging, add the sux “T” to the end of the
2. MSL (Moisture Sensitivity Level): a = 1, b = 2, c = 3, d = 4, e = 5 part number. For example: HX0068ANLT.
2a
2a
2a
2a
2a
2a
1,2a
2a
H0009NL
Weight ......................3 grams
Tape & Reel ..........2000/Reel
Tube ..........................40/Tube
Weight ......................1.3 grams
Tape & Reel ...............900/Reel
Tube .............................25/Tube
Dimensions: Unless otherwise specified, all tolerances are ±
Inches
mm
.010
0,25
H0068ANL
