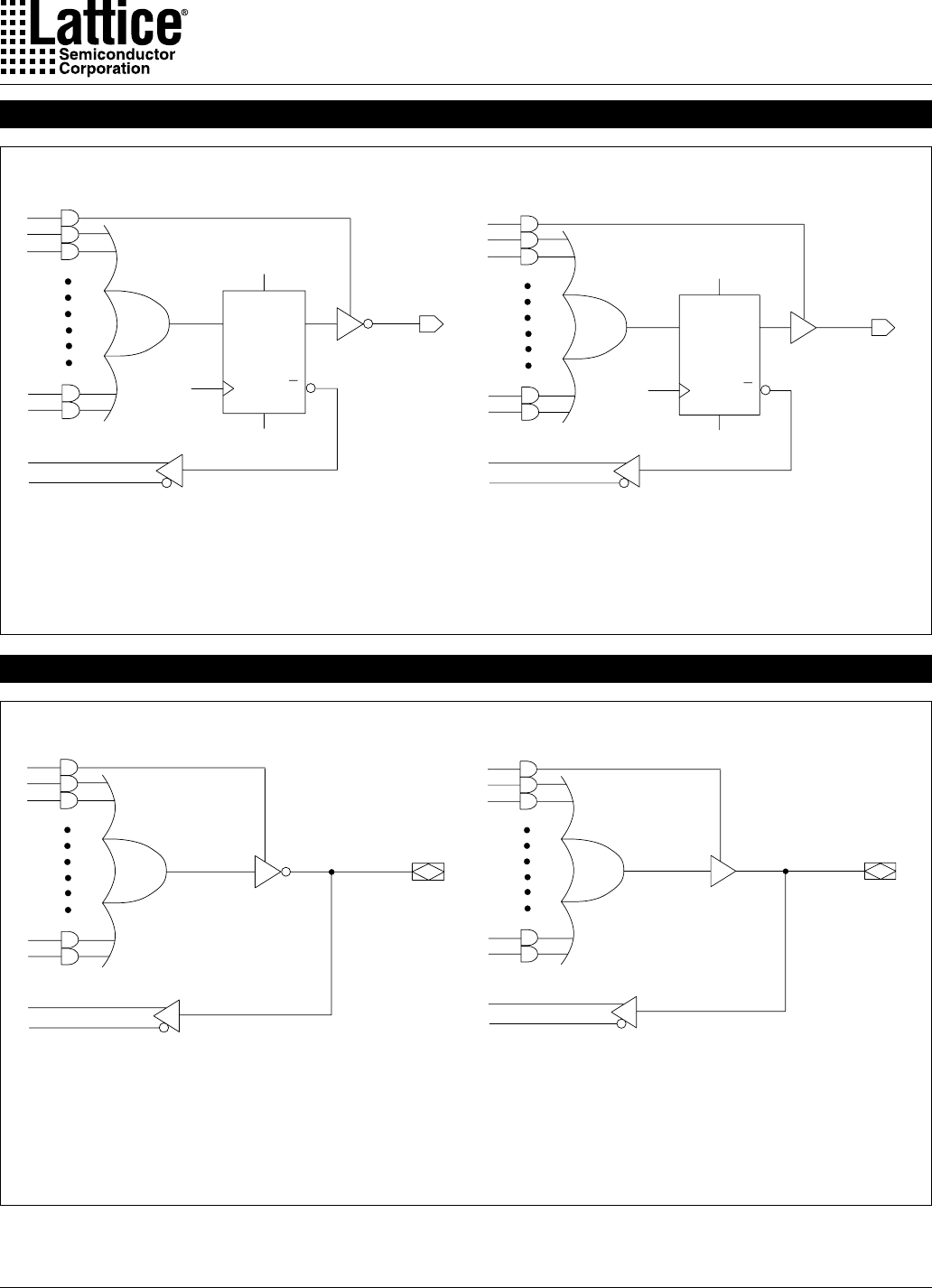

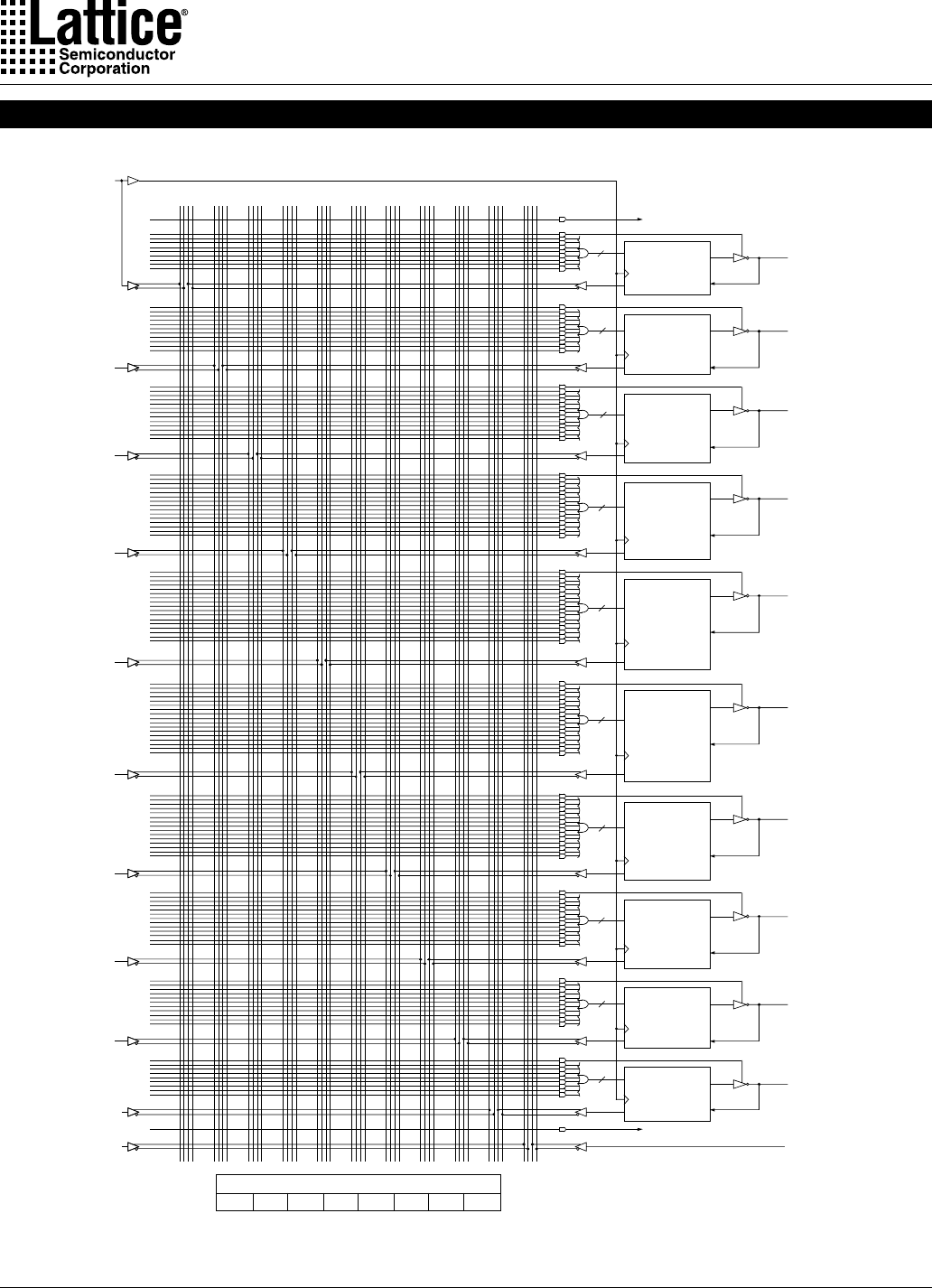

Specifications GAL22V10
6
Supply voltage V
CC
....................................... -0.5 to +7V
Input voltage applied ........................... -2.5 to V
CC
+1.0V
Off-state output voltage applied........... -2.5 to V
CC
+1.0V
Storage Temperature..................................-65 to 150°C
Ambient Temperature with
Power Applied .........................................-55 to 125°C
1. Stresses above those listed under the “Absolute Maximum
Ratings” may cause permanent damage to the device. These
are stress only ratings and functional operation of the device
at these or at any other conditions above those indicated in
the operational sections of this specification is not implied
(while programming, follow the programming specifications).
Commercial Devices:
Ambient Temperature (T
A
) .............................0 to +75°C
Supply voltage (V
CC
)
with Respect to Ground ..................... +4.75 to +5.25V
Industrial Devices:
Ambient Temperature (T
A
) ............................-40 to 85°C
Supply voltage (V
CC
)
with Respect to Ground ..................... +4.50 to +5.50V
Specifications GAL22V10D
COMMERCIAL
ICC Operating Power VIL = 0.5V VIH = 3.0V L-4/-5/-7 — 90 140 mA
Supply Current f
toggle = 15MHz Outputs Open L-10 — 90 130 mA
L-15/-25 — 75 90 mA
Q-10/-15/-25 — 45 55 mA
VIL Input Low Voltage Vss – 0.5 — 0.8 V
VIH Input High Voltage 2.0 — Vcc+1 V
IIL
1
Input or I/O Low Leakage Current 0V ≤ VIN ≤ VIL (MAX.) ——–100 µA
IIH Input or I/O High Leakage Current 3.5V ≤ VIN ≤ VCC ——10 µA
VOL Output Low Voltage IOL = MAX. Vin = VIL or VIH ——0.4 V
VOH Output High Voltage IOH = MAX. Vin = VIL or VIH 2.4 —— V
IOL Low Level Output Current ——16 mA
IOH High Level Output Current ——–3.2 mA
IOS
2
Output Short Circuit Current VCC = 5V VOUT = 0.5V T
A
= 25°C –30 —–130 mA
Over Recommended Operating Conditions (Unless Otherwise Specified)
SYMBOL PARAMETER CONDITION MIN. TYP.
3
MAX. UNITS
INDUSTRIAL
ICC Operating Power VIL = 0.5V VIH = 3.0V L-7/-10 — 90 160 mA
Supply Current f
toggle = 15MHz Outputs Open L-15/-20/-25 — 75 130 mA
1) The leakage current is due to the internal pull-up on all pins. See Input Buffer section for more information.
2) One output at a time for a maximum duration of one second. Vout = 0.5V was selected to avoid test problems caused by tester
ground degradation. Characterized but not 100% tested.
3) Typical values are at Vcc = 5V and TA = 25 °C
Absolute Maximum Ratings
1
Recommended Operating Conditions
DC Electrical Characteristics
