Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use.

Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.

−FC32−

Plastic Film Capacitors

Metallized Polyester Film Capacitor

Type: ECQE(F)

Non-inductive construction using metallized Polyester

film with flame retardant epoxy resin coating

■Features

•

Self-healing property

•

Excellent electrical characteristics

•

Flame retardant epoxy resin coating

•

RoHS directive compliant

■Recommended Applications

•

General purpose usage

❈ Please contact us when applications are CD , ignitor etc.

■Explanation of Part Numbers

123456789101112

E C Q E

Product code

Dielectric &

construction

Rated volt. Capacitance

Cap. Tol. Suffix Suffix

100 VDC

250 VDC

400 VDC

630 VDC

1000 VDC

1250 VDC

125 VAC

250 VAC

E C Q E

Product code

Dielectric &

construction

Rated volt. Capacitance

R F

Suffix Cap. Tol. Suffix

■Specifications

● Explanation of Part Number for Odd Size Taping

Category temp. range

(Including temperature-rise on unit surface)

Rated voltage

Capacitance range

Capacitance tolerance

Dissipation factor

(tan )

Withstand voltage

Insulation resistance (IR)

100 VDC, 250 VDC,400 VDC, 630 VDC, 1000 VDC, 1250 VDC,

125 VAC, 250 VAC

–40 ˚C to +105 ˚C

100 VDC, 250 VDC, 400 VDC, 630 VDC, 1000 VDC, 1250 VDC,

(Derating of rated voltage by 1.25 %/˚C at more than 85 ˚C)

125 VAC, 250 VAC

0.0010 µF to 10 µF (E12)

5 %(J),

10 %(K)

tan

1.0 % (20 ˚C, 1 kHz)

•

Rated volt. 100 V to 630 VDC

Between terminals

Rated volt.(VDC)

150

60 s

•

Rated volt. 1000 VDC, 1250 VDC

Between terminals

Rated volt. (VDC)

175

2 s to 5 s or 1000 VAC 60 s

Between terminals to enclosure : 1500 VAC 60 s

•

Rated volt. 125 VAC, 250 VAC

Between terminals

Rated volt.(VAC)

230

60 s

Between terminals to enclosure : 1500 VAC 60 s

100 V to 630 VDC:

0.33 µF : IR

9000 MΩ (20

˚C

, 100 VDC, 60 s)

C > 0.33 µF : IR

3000 MΩ

µF

1000 VDC, 1250 VDC: IR

10000 MΩ

(

20 ˚C, 100

VDC, 60 s)

2000 MΩ

(

20 ˚C, 500

VDC, 60 s)

125 VAC, 250 VAC:

0.47 µF : IR

2000 MΩ

(20

˚C

, 500 VDC, 60 s)

C > 0.47 µF : IR

3000 MΩ

µF

(20

˚C

, 100 VDC, 60 s)

❈

In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage, please

refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.

❈ Voltage to be applied to ECQE1A (F) & ECQE2A (F) is only sine wave (50 Hz or 60 Hz).

Suffix

Blank

Lead Form

Straight

Crimped lead

Cut lead

Crimped taping (Ammo)

p Œ ¯ ¶ ‚ /P33-52 12.11.14 19:29 y [ W 32

Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use.

Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.

−FC33−

Plastic Film Capacitors

■Dimensions in mm (not to scale)

Cutlead

■Packaging Specifications for Bulk Package

Packing quantity:100 pcs./bag

■Taping Specifications for Automatic Insertion

● Taping style

❈ Refer to the page of taping specifications.

100 VDC

250 VDC

400 VDC

630 VDC

1000 VDC

1250 VDC

125 VAC

250 VAC

ECQE (F)

AD AS AB

BCDE

0.56 to 0.68

○

Ammo

( )

0.82 to 1.0

○

Ammo

( )

1.2 to 3.3

○

Ammo

( )

1.2 to 3.3

○

Ammo R

( )

0.010 to 0.27

○

Ammo

( )

0.33

○

Ammo

( )

0.39 to 1.5

○

Ammo

( )

0.010 to 0.33

○

Ammo R

( )

0.39 to 1.5

○

Ammo R

( )

0.010 to 0.10

○

Ammo

( )

0.12 to 0.47

○

Ammo

( )

0.010 to 0.10

○

Ammo R

( )

0.12 to 0.47

○

Ammo R

( )

0.0010 to 0.033

○

Ammo

( )

0.039 to 0.047

○

Ammo

( )

0.056 to 0.22

○

Ammo

( )

0.0010 to 0.047

○

Ammo R

( )

0.056 to 0.22

○

Ammo R

( )

0.010 to 0.10

○

Ammo R

( )

0.0010 to 0.022

○

Ammo R

( )

0.010 to 0.068

○

Ammo

( )

0.010 to 0.068

○

Ammo R

( )

0.010 to 0.033

○

Ammo

( )

0.010 to 0.047

○

Ammo R

( )

0.056 to 0.22

○

Ammo R

( )

● Packaging Specifications

Cap. range

(

Taping style

Packing

suffixRated volt.

Type

Style

Lead Spacing

5.0 mm

7.5 mm

❈See the column

“Rating, Dimensions

& Quantity Box” for

packing quantity.

●Lead Spacing

Metallized Film

p Œ ¯ ¶ ‚ /P33-52 12.11.14 19:29 y [ W 33

Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use.

Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.

−FC34−

Plastic Film Capacitors

■Rating, Dimensions & Quantity/Ammo Box

● Rated voltage : 250 VDC, Capacitance tolerance :

(J),

(K)

Style D: 0.010 µF to 0.33 µF

Style B: 0.39 µF to 10.0 µF

Suffix for lead crimped or taped type

Cap. tol. code

▲ ▲

Suffix for lead crimped or taped type

Cap. tol. code

▲ ▲

■Rating, Dimensions & Quantity/Ammo Box

● Rated voltage : 100 VDC, Capacitance tolerance :

5 %(J),

10 %(K)

0.56 12.0 5.5 10.9 15.9 10.0 10.0 1.0 0.60

0.68 12.0 6.0 11.9 16.9 10.0 10.0 1.0 0.60

0.82 12.0 6.0 13.5 18.5 10.0 10.0 1.0 0.60

1.0 12.0 6.7 14.0 19.0 10.0 10.0 1.0 0.60

1.2 18.5 5.5 12.8 17.8 15.0 10.0 1.0 0.60

1.5 18.5 6.0 13.4 18.4 15.0 10.0 1.0 0.80

1.8 18.5 6.5 14.4 19.4 15.0 10.0 1.0 0.80

2.2 18.5 7.0 15.0 20.0 15.0 10.0 1.0 0.80

2.7 18.5 8.0 15.8 20.8 15.0 10.0 1.0 0.80

3.3 18.5 8.5 16.5 21.5 15.0 10.0 1.0 0.80

3.9 26.0 7.0 16.4 21.4 22.5 15.0 1.0 0.80

4.7 26.0 7.5 17.0 22.0 22.5 15.0 1.0 0.80

5.6 26.0 8.3 17.5 22.5 22.5 15.0 1.0 0.80

6.8 26.0 9.0 18.5 23.5 22.5 15.0 1.0 0.80

8.2 26.0 10.0 20.0 25.0 22.5 15.0 1.5 0.80

10.0 26.0 11.5 21.0 26.0 22.5 15.0 1.5 0.80

Part No.

Cap.

(µF)

Min. order Q'ty

Taping

500

−

−−

−

Dimensions

(

)

max.

Standard

5 mm

Odd size

5 mm

Odd size

7.5 mm

ø d

ECQE1564□F

()

ECQE1684□F

()

ECQE1824□F

()

ECQE1105□F

()

ECQE1125□F

()

ECQE1155□F

()

ECQE1185□F

()

ECQE1225□F

()

ECQE1275□F

()

ECQE1335□F

()

ECQE1395□F

()

ECQE1475□F

()

ECQE1565□F

()

ECQE1685□F

()

ECQE1825□F

()

ECQE1106□F

()

500

1,000

400

500

600

−

max.

Straight

Crimped lead

Straight

Crimped lead

Straight

max.

Bulk

500

style D: 0.056 µF to 1.0 µF

style B: 1.2 µF to 10.0 µF

Part No.

Cap.

(µF)

Dimensions

(

)

max.

ø d

ECQE2103□F

()

0.010 10.3 4.3 7.4 12.4 7.5 7.5 1.0 0.60

ECQE2123□F

()

0.012 10.3 4.4 7.5 12.5 7.5 7.5 1.0 0.60

ECQE2153□F

()

0.015 10.3 4.4 7.5 12.5 7.5 7.5 1.0 0.60

ECQE2183□F

()

0.018 10.3 4.4 7.5 12.5 7.5 7.5 1.0 0.60

ECQE2223□F

()

0.022 10.3 4.4 7.5 12.5 7.5 7.5 1.0 0.60

ECQE2273□F

()

0.027 10.3 4.4 7.5 12.5 7.5 7.5 1.0 0.60

ECQE2333□F

()

0.033 10.3 4.5 7.5 12.5 7.5 7.5 1.0 0.60

ECQE2393□F

()

0.039 10.3 4.5 7.5 12.5 7.5 7.5 1.0 0.60

ECQE2473□F

()

0.047 10.3 4.5 7.5 12.5 7.5 7.5 1.0 0.60

ECQE2563□F

()

0.056 10.3 4.8 7.9 12.9 7.5 7.5 1.0 0.60

ECQE2683□F

()

0.068 10.3 4.5 7.5 12.5 7.5 7.5 1.0 0.60

ECQE2823□F

()

0.082 10.3 4.9 8.0 13.0 7.5 7.5 1.0 0.60

ECQE2104□F

()

0.10 10.3 5.8 8.4 13.4 7.5 7.5 1.0 0.60

ECQE2124□F

()

0.12 10.3 6.0 9.0 14.0 7.5 7.5 1.0 0.60

ECQE2154□F

()

0.15 10.3 6.0 10.8 15.8 7.5 7.5 1.0 0.60

ECQE2184□F

()

0.18 12.0 5.0 10.3 15.3 10.0 10.0 1.0 0.60

ECQE2224□F

()

0.22 12.0 5.5 10.5 15.5 10.0 10.0 1.0 0.60

ECQE2274□F

()

0.27 12.0 6.0 11.5 16.5 10.0 10.0 1.0 0.60

ECQE2334□F

()

0.33 12.0 6.5 12.0 17.0 10.0 10.0 1.0 0.60

ECQE2394□F

()

0.39 18.5 4.9 12.0 17.0 15.0 10.0 1.0 0.60

ECQE2474□F

()

0.47 18.5 5.3 12.5 17.5 15.0 10.0 1.0 0.60

ECQE2564□F

()

0.56 18.5 5.5 13.0 18.0 15.0 10.0 1.0 0.60

ECQE2684□F

()

0.68 18.5 6.0 13.5 18.5 15.0 10.0 1.0 0.80

ECQE2824□F

()

0.82 18.5 6.5 14.5 19.5 15.0 10.0 1.0 0.80

ECQE2105□F

()

1.0 18.5 7.4 15.0 20.0 15.0 10.0 1.0 0.80

ECQE2125□F

()

1.2 18.5 8.0 15.9 20.9 15.0 10.0 1.0 0.80

ECQE2155□F

()

1.5 18.5 9.0 16.8 21.8 15.0 10.0 1.0 0.80

ECQE2185□F

()

1.8 26.0 7.5 15.5 20.5 22.5 15.0 1.0 0.80

ECQE2225□F

()

2.2 26.0 8.5 16.3 21.3 22.5 15.0 1.0 0.80

ECQE2275□F

()

2.7 26.0 9.4 17.0 22.0 22.5 15.0 1.0 0.80

ECQE2335□F

()

3.3 26.0 10.3 18.0 23.0 22.5 15.0 1.5 0.80

ECQE2395□F

()

3.9 26.0 11.0 20.5 25.5 22.5 15.0 1.5 0.80

ECQE2475□F

()

4.7 26.0 12.0 21.5 26.5 22.5 15.0 1.5 0.80

ECQE2565□F

()

5.6 31.0 11.8 21.0 26.0 27.5 22.5 1.5 0.80

ECQE2685□F

()

6.8 31.0 13.0 22.4 27.4 27.5 22.5 1.5 0.80

ECQE2825□F

()

8.2 31.0 14.3 23.5 28.5 27.5 22.5 1.5 0.80

ECQE2106□F

()

10.0 31.0 15.9 25.8 30.8 27.5 22.5 1.5 0.80

1000

−

1000

500

1000

400

500

400

300

−−

max.

Straight

Crimped lead

Straight

Crimped lead

Straight

max.

500

Min. order Q'ty

Taping

Standard

5 mm

Odd size

5 mm

Odd size

7.5 mm

Bulk

p Œ ¯ ¶ ‚ /P33-52 12.11.14 19:29 y [ W 34

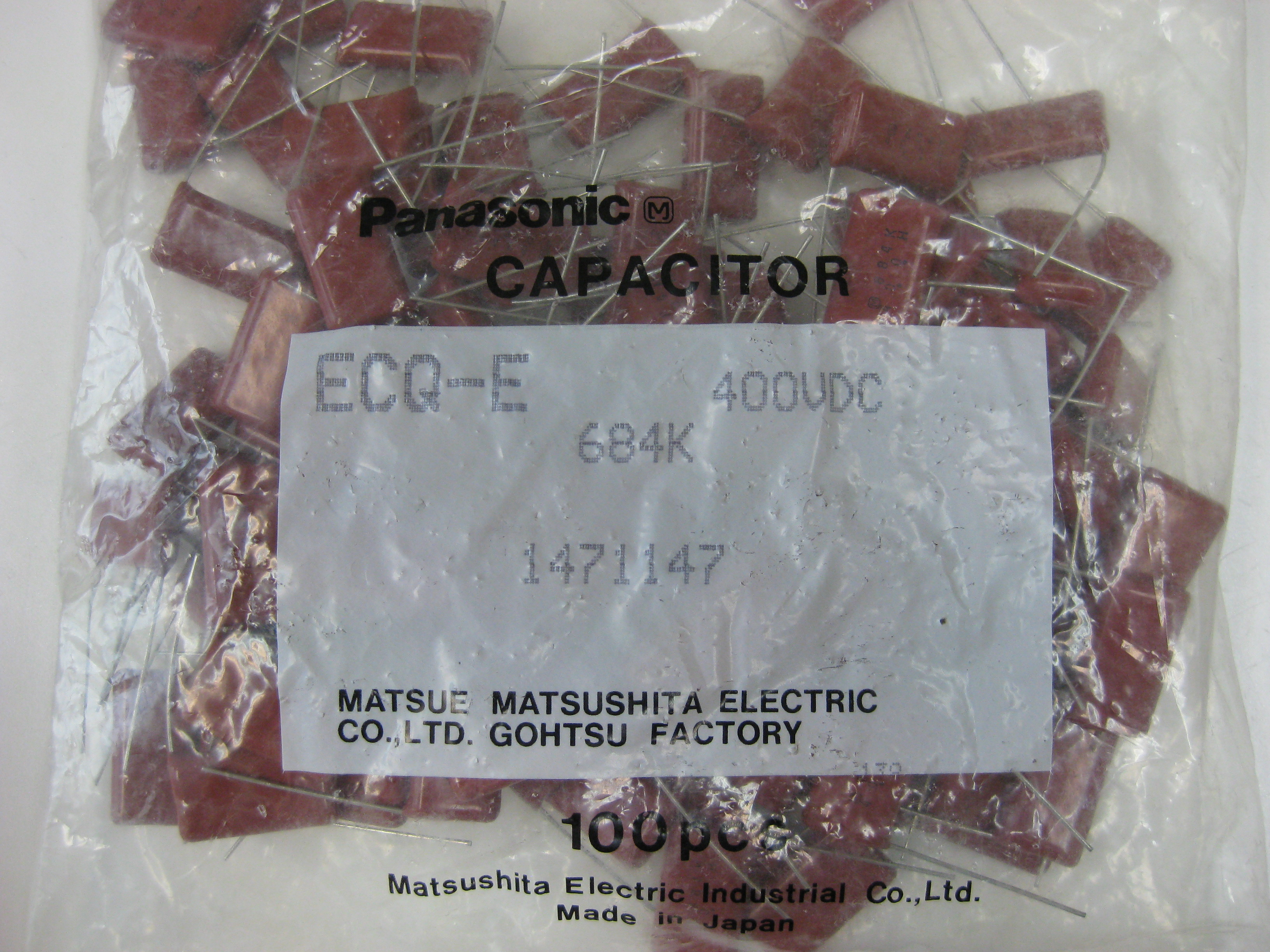

Part #	ECQ-E4684KF
