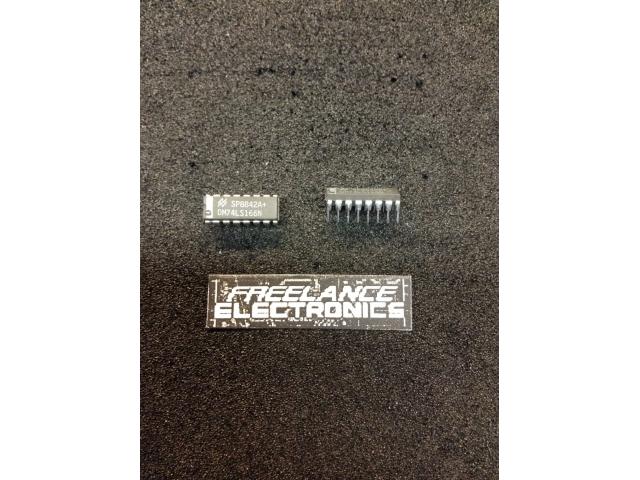

DM74LS166N

Part # DM74LS166N
Description Counter Shift Registers 8-BitSerial Sht Reg
Category IC
Availability In Stock
Qty 268
Qty Price
1 - 56 $0.57644
57 - 112 $0.46115
113 - 168 $0.38045
169 - 225 $0.35355
226 + $0.31512
Manufacturer Available Qty
National Semiconductor Corp
Date Code: 8842
  • Shipping Freelance Stock: 175
    Ships Immediately
National Semiconductor Corp
Date Code: 8842
  • Shipping Freelance Stock: 67
    Ships Immediately
National Semiconductor Corp
Date Code: 8436
  • Shipping Freelance Stock: 1
    Ships Immediately
National Semiconductor Corp
Date Code: 8806
  • Shipping Freelance Stock: 25
    Ships Immediately



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

© 2000 Fairchild Semiconductor Corporation DS006400 www.fairchildsemi.com
August 1986
Revised March 2000
DM74LS166 8-Bit Parallel-In/Serial-Out Shift Register
DM74LS166
8-Bit Parallel-In/Serial-Out Shift Register
General Description
These parallel-in or serial-in, serial-out shift registers fea-
ture gated clock inputs and an overriding clear input. All
inputs are buffered to lower the drive requirements to one
normalized load, and input clamping diodes minimize
switching transients to simplify system design. The load
mode is established by the shift/load input. When HIGH,
this input enables the serial data input and couples the
eight flip-flops for serial shifting with each clock pulse.
When LOW, the parallel (broadside) data inputs are
enabled and synchronous loading occurs on the next clock
pulse. During parallel loading, serial data flow is inhibited.
Clocking is accomplished on the LOW-to-HIGH level edge
of the clock pulse through a two-input NOR gate, permitting
one input to be used as a clock-enable or clock-inhibit func-
tion. Holding either of the clock inputs HIGH inhibits clock-
ing; holding either LOW enables the other clock input. This
allows the system clock to be free running, and the register
can be stopped on command with the other clock input.
The clock-inhibit input should be changed to the high level
only while the clock input is HIGH. A buffered, direct clear
input overrides all other inputs, including the clock, and
sets all flip-flops to zero.
Ordering Code:
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Connection Diagram
Order Number Package Number Package Description
DM74LS166M M16A 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
DM74LS166WM M16B 16-Lead Small Outline Intergrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
DM74LS166N N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
www.fairchildsemi.com 2
DM74LS166
Function Table
H = HIGH Level (steady state)
L = LOW Level (steady state)
X = Don’t Care (any input, including transitions)
= Transition from LOW-to-HIGH level
a…h = The level of steady-state input at inputs A through H, respectively
Q
A0
, Q
B0
, Q
H0
= The level of Q
A
, Q
B
, Q
H
, respectively, before the indicated steady-state input conditions were established
Q
An
, Q
Gn
, = The level of Q
A
, Q
G
, respectively, before the most recent transition of the clock
Logic Diagram
Timing Diagram
Typical Clear, Shift, Load, Inhibit and Shift Sequences
Inputs Internal Output
Clear
Shift/ Clock
Clock Serial
Parallel Outputs Q
H
Load Inhibit
A…H Q
A
Q
B
LXXXXXLLL
HXLLXXQ
A0
Q
B0
Q
H0
HLL X ahabh
HHL HXHQ
An
Q
Gn
HHL LXLQ
An
Q
Gn
HXH XXQ
A0
Q
B0
Q
H0
3 www.fairchildsemi.com
DM74LS166
Absolute Maximum Ratings(Note 1)
Note 1: The “Absolute Maximum Ratings” are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The “Recommended Operating Conditions” table will define the conditions
for actual device operation.
Recommended Operating Conditions
Note 2: C
L
= 15 pF, R
L
= 2 k, T
A
= 25°C and V
CC
= 5V.
Note 3: C
L
= 50 pF, R
L
= 2 k, T
A
= 25°C and V
CC
= 5V.
Note 4: T
A
= 25°C and V
CC
= 5V.
Electrical Characteristics
over recommended operating free air temperature range (unless otherwise noted)
Note 5: All typicals are at V
CC
= 5V, T
A
= 25°C.
Note 6: Not more than one output should be shorted at a time, and the duration should not exceed one second.
Note 7: With all outputs OPEN, 4.5V applied to the serial input, all other inputs except the CLOCK grounded, I
CC
is measured after a momentary ground,
then 4.5V is applied to the CLOCK.
Supply Voltage 7V
Input Voltage 7V
Operating Free Air Temperature Range 0°C to +70°C
Storage Temperature Range 65°C to +150°C
Symbol Parameter Min Nom Max Units
V
CC
Supply Voltage 4.75 5 5.25 V
V
IH
HIGH Level Input Voltage 2 V
V
IL
LOW Level Input Voltage 0.8 V
I
OH
HIGH Level Output Current 0.4 mA
I
OL
LOW Level Output Current 8 mA
f
CLK
Clock Frequency (Note 2) 0 25 MHz
Clock Frequency (Note 3) 0 20 MHz
t
W
Pulse Width (Note 4) Clock 20
ns
Clear 20
t
SU
Setup Time (Note 4) Mode 30
ns
Data 20
t
H
Hold Time (Note 4) 0 ns
T
A
Free Air Operating Temperature 0 70 °C
Symbol Parameter Conditions Min
Typ
Max Units
(Note 5)
V
I
Input Clamp Voltage V
CC
= Min, I
I
= 18 mA 1.5 V
V
OH
HIGH Level V
CC
= Min, I
OH
= Max
2.7 3.4 V
Output Voltage V
IL
= Max, V
IH
= Min
V
OL
LOW Level V
CC
= Min, I
OL
= Max
0.35 0.5
Output Voltage V
IL
= Max, V
IH
= Min V
I
OL
= 4 mA, V
CC
= Min 0.25 0.4
I
I
Input Current @ Max Input Voltage V
CC
= Max, V
I
= 7V 0.1 mA
I
IH
HIGH Level Input Current V
CC
= Max, V
I
= 2.7V 20 µA
I
IL
LOW Level Input Current V
CC
= Max, V
I
= 0.4V 0.4 mA
I
OS
Short Circuit Output Current V
CC
= Max (Note 6) 20 100 mA
I
CC
Supply Current V
CC
= Max (Note 7) 22 38 mA
