DM74LS138N

Part # DM74LS138N
Description Encoders, Decoders, Multiplexers & Demultiplexers 3-to-8 L
Category IC
Availability In Stock
Qty 63
Qty Price
1 - 13 $1.87293
14 - 26 $1.49834
27 - 39 $1.23613
40 - 52 $1.14873
53 + $1.02387
Manufacturer Available Qty

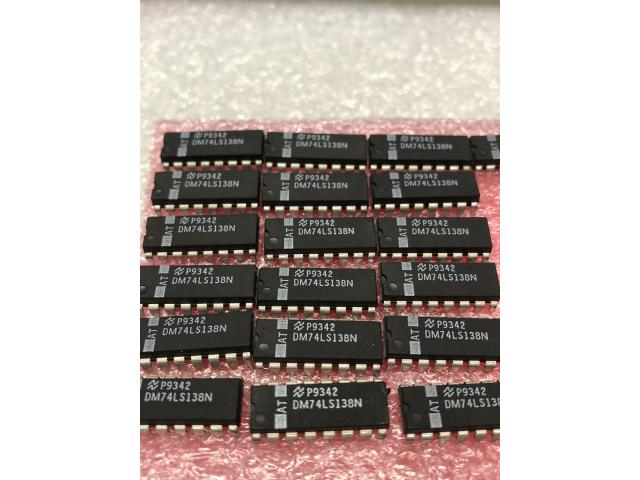

DM74LS138N
Date Code: 9342
  • Shipping Freelance Stock: 19
    Ships Immediately
National Semiconductor Corp
Date Code: 8544
  • Shipping Freelance Stock: 3
    Ships Immediately
National Semiconductor Corp
Date Code: 8742
  • Shipping Freelance Stock: 16
    Ships Immediately
National Semiconductor Corp
Date Code: 8504
  • Shipping Freelance Stock: 2
    Ships Immediately
National Semiconductor Corp
Date Code: 9730
  • Shipping Freelance Stock: 3
    Ships Immediately
National Semiconductor Corp
  • Shipping Freelance Stock: 10
    Ships Immediately
National Semiconductor Corp
Date Code: 9312
  • Shipping Freelance Stock: 2
    Ships Immediately
National Semiconductor Corp
Date Code: 9103
  • Shipping Freelance Stock: 8
    Ships Immediately



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

© 2000 Fairchild Semiconductor Corporation DS006391 www.fairchildsemi.com
August 1986
Revised March 2000
DM74LS138 • DM74LS139 Decoder/Demultiplexer
DM74LS138 • DM74LS139
Decoder/Demultiplexer
General Description
These Schottky-clamped circuits are designed to be used
in high-performance memory-decoding or data-routing
applications, requiring very short propagation delay times.
In high-performance memory systems these decoders can
be used to minimize the effects of system decoding. When
used with high-speed memories, the delay times of these
decoders are usually less than the typical access time of
the memory. This means that the effective system delay
introduced by the decoder is negligible.
The DM74LS138 decodes one-of-eight lines, based upon
the conditions at the three binary select inputs and the
three enable inputs. Two active-low and one active-high
enable inputs reduce the need for external gates or invert-
ers when expanding. A 24-line decoder can be imple-
mented with no external inverters, and a 32-line decoder
requires only one inverter. An enable input can be used as
a data input for demultiplexing applications.
The DM74LS139 comprises two separate two-line-to-four-
line decoders in a single package. The active-low enable
input can be used as a data line in demultiplexing applica-
tions.
All of these decoders/demultiplexers feature fully buffered
inputs, presenting only one normalized load to its driving
circuit. All inputs are clamped with high-performance
Schottky diodes to suppress line-ringing and simplify sys-
tem design.
Features
Designed specifically for high speed:
Memory decoders
Data transmission systems
DM74LS138 3-to-8-line decoders incorporates 3 enable
inputs to simplify cascading and/or data reception
DM74LS139 contains two fully independent 2-to-4-line
decoders/demultiplexers
Schottky clamped for high performance
Typical propagation delay (3 levels of logic)
DM74LS138 21 ns
DM74LS139 21 ns
Typical power dissipation
DM74LS138 32 mW
DM74LS139 34 mW
Ordering Code:
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Order Number Package Number Package Description
DM74LS138M M16A 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
DM74LS138SJ M16D 16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
DM74LS138N N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
DM74LS139M M16A 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
DM74LS139SJ M16D 16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
DM74LS139N N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
www.fairchildsemi.com 2
DM74LS138 • DM74LS139
Connection Diagrams
DM74LS138 DM74LS139
Function Tables
DM74LS138 DM74LS139
H = HIGH Level
L = LOW Level
X = Don’t Care
Note 1: G2 = G2A + G2B
Logic Diagrams
DM74LS138 DM74LS139
Inputs
Outputs
Enable Select
G1G2 (Note 1)CBAYOY1Y2Y3Y4Y5Y6Y7
X H XXXHHHHHHHH
L X XXXHHHHHHHH
H L LLLL HHHHHHH
H L LLHH LHHHHHH
H L LHLHHLHHHHH
H L LHHH HHLHHHH
H L HLLHHHHLHHH
H L HLHHHHHHLHH
H L HHLH HHHHHLH
H L HHHHHHHHHHL
Inputs
Outputs
Enable Select
G BAY0Y1Y2Y3
HXXHHHH
LLLLHHH
LLHHLHH
LHLHHLH
LHHHHHL
3 www.fairchildsemi.com
DM74LS138 • DM74LS139
Absolute Maximum Ratings(Note 2)
Note 2: The “Absolute Maximum Ratings” are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The “Recommended Operating Conditions” table will define the conditions
for actual device operation.
DM74LS138 Recommended Operating Conditions
DM74LS138 Electrical Characteristics
over recommended operating free air temperature range (unless otherwise noted)
Note 3: All typicals are at V
CC
= 5V, T
A
= 25°C.
Note 4: Not more than one output should be shorted at a time, and the duration should not exceed one second.
Note 5: I
CC
is measured with all outputs enabled and OPEN.
DM74LS138 Switching Characteristics
at V
CC
= 5V and T
A
= 25°C
Supply Voltage 7V
Input Voltage 7V
Operating Free Air Temperature Range 0°C to +70°C
Storage Temperature Range 65°C to +150°C
Symbol Parameter Min Nom Max Units
V
CC
Supply Voltage 4.75 5 5.25 V
V
IH
HIGH Level Input Voltage 2 V
V
IL
LOW Level Input Voltage 0.8 V
I
OH
HIGH Level Output Current 0.4 mA
I
OL
LOW Level Output Current 8 mA
T
A
Free Air Operating Temperature 0 70 °C
Symbol Parameter Conditions Min
Typ
Max Units
(Note 3)
V
I
Input Clamp Voltage V
CC
= Min, I
I
= 18 mA 1.5 V
V
OH
HIGH Level Output Voltage V
CC
= Min, I
OH
= Max, V
IL
= Max, V
IH
= Min 2.7 3.4 V
V
OL
LOW Level V
CC
= Min, I
OL
= Max, V
IL
= Max, V
IH
= Min 0.35 0.5
V
Output Voltage I
OL
= 4 mA, V
CC
= Min 0.25 0.4
I
I
Input Current @ Max Input Voltage V
CC
= Max, V
I
= 7V 0.1 mA
I
IH
HIGH Level Input Current V
CC
= Max, V
I
= 2.7V 20 µA
I
IL
LOW Level Input Current V
CC
= Max, V
I
= 0.4V 0.36 mA
I
OS
Short Circuit Output Current V
CC
= Max (Note 4) 20 100 mA
I
CC
Supply Current V
CC
= Max (Note 5) 6.3 10 mA
From (Input) Levels
R
L
= 2 k
Symbol Parameter
To (Output) of Delay
C
L
= 15 pF C
L
= 50 pF Units
Min Max Min Max
t
PLH
Propagation Delay Time
Select to Output 2 18 27 ns
LOW-to-HIGH Level Output
t
PHL
Propagation Delay Time
Select to Output 2 27 40 ns
HIGH-to-LOW Level Output
t
PLH
Propagation Delay Time
Select to Output 3 18 27 ns
LOW-to-HIGH Level Output
t
PHL
Propagation Delay Time
Select to Output 3 27 40 ns
HIGH-to-LOW Level Output
t
PLH
Propagation Delay Time
Enable to Output 2 18 27 ns
LOW-to-HIGH Level Output
t
PHL
Propagation Delay Time
Enable to Output 2 24 40 ns
HIGH-to-LOW Level Output
t
PLH
Propagation Delay Time
Enable to Output 3 18 27 ns
LOW-to-HIGH Level Output
t
PHL
Propagation Delay Time
Enable to Output 3 28 40 ns
HIGH-to-LOW Level Output
