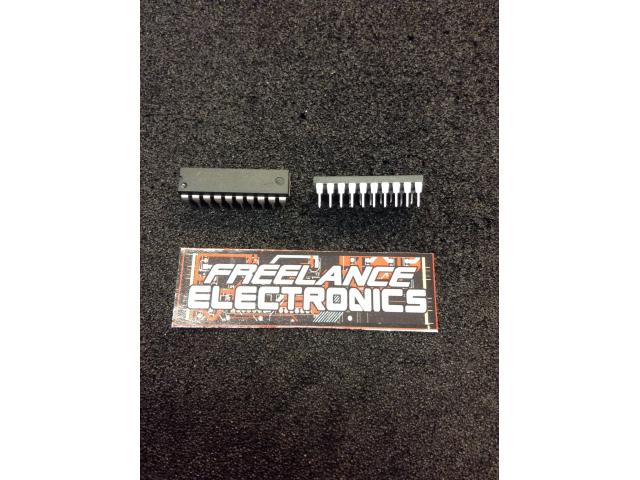

DM74ALS645AN

Part # DM74ALS645AN
Description IC TRANSCVR TRI-ST 8BIT 20DIP
Category IC
Availability In Stock
Qty 2948
Qty Price
1 - 218 $0.68705
219 - 545 $0.54964
546 - 1,212 $0.45345
1,213 - 1,839 $0.42139
1,840 + $0.37558
Manufacturer Available Qty
Fairchild Semiconductor
Date Code: 9942
  • Shipping Freelance Stock: 1026
    Ships Immediately
Fairchild Semiconductor
Date Code: 0218
  • Shipping Freelance Stock: 1
    Ships Immediately
Fairchild Semiconductor
Date Code: 9942
  • Shipping Freelance Stock: 16
    Ships Immediately
Fairchild Semiconductor
Date Code: 0248
  • Shipping Freelance Stock: 15
    Ships Immediately
Fairchild Semiconductor
Date Code: 0218
  • Shipping Freelance Stock: 18
    Ships Immediately
Fairchild Semiconductor
Date Code: 0218
  • Shipping Freelance Stock: 6
    Ships Immediately
Fairchild Semiconductor
Date Code: 9936
  • Shipping Freelance Stock: 840
    Ships Immediately
Fairchild Semiconductor
Date Code: 9942
  • Shipping Freelance Stock: 70
    Ships Immediately
Fairchild Semiconductor
Date Code: 9930
  • Shipping Freelance Stock: 956
    Ships Immediately



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

© 2000 Fairchild Semiconductor Corporation DS009304 www.fairchildsemi.com
March 1987
Revised February 2000
DM74ALS645A Octal Bus Transceivers
DM74ALS645A
Octal Bus Transceivers
General Description
These octal bus transceivers are designed for asynchro-
nous two-way communication between data busses. These
devices transmit data from the A bus to the B bus or from
the B bus to the A bus depending upon the level at the
direction control (DIR) input. The enable input (G) can be
used to disable the device so the busses are effectively
isolated.
Features
Advanced Oxide-isolated Ion-implanted Schottky TTL
process
Switching performance is guaranteed over full tempera-
ture and V
CC
supply range
Switching performance specified at 50 pF
PNP input design reduces input loading
Ordering Code:
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Connection Diagram
Function Table
L = LOW Logic Level
H = HIGH Logic Level
X = Either LOW or HIGH Logic Level
Logic Diagram
Order Number Package Number Package Description
DM74ALS645AWM M20B 20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
DM74ALS645AN N20A 20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Control
Inputs Operation
G
DIR
L L B Data to A Bus
L H A Data to B Bus
HX Isolation
www.fairchildsemi.com 2
DM74ALS645A
Absolute Maximum Ratings(Note 1)
Note 1: The “Absolute Maximum Ratings” are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The “Recommended Operating Conditions” table will define the conditions
for actual device operation.
Recommended Operating Conditions
Electrical Characteristics
Over Recommended Free Air Temperature Range
Note 2: For I/O ports, I
IH
and I
IL
parameters include the 3-STATE output current (I
OZL
and I
OZH
).
Switching Characteristics
Over Recommended Operating Free Air Temperature Range
Supply Voltage 7V
Input Voltage;
Control Inputs 7V
I/O Ports 5.5V
Operating Free Air Temperature Range 0°C to +70°C
Storage Temperature Range 65°C to +150°C
Typical θ
JA
N Package 53.0°C/W
M Package 72.0°C/W
Symbol Parameter Min Typ Max Units
V
CC
Supply Voltage 4.5 5 5.5 V
V
IH
HIGH Level Input Voltage 2 V
V
IL
LOW Level Input Voltage 0.8 V
I
OH
HIGH Level Output Current 15 mA
I
OL
LOW Level Output Current 24 mA
T
A
Operating Free Air Temperature Range 0 70 °C
Symbol Parameter Test Conditions Min Typ Max Units
V
IC
Input Clamp Voltage V
CC
= Min, I
I
= 18 mA 1.5 V
V
OH
HIGH Level Output Voltage V
CC
= 4.5 to 5.5V I
OH
= 0.4 mA V
CC
2
V
CC
= Max I
OH
= 3 mA 2.4 3.2 V
I
OH
= Max 2
V
OL
LOW Level Output Voltage V
CC
= Min I
OL
= 12 mA 0.25 0.4
V
I
OL
= 24 mA 0.35 0.5
I
I
Input Current at V
CC
= Max I/O Ports, V
I
= 5.5V 100
µA
Maximum Input Voltage Control Inputs, V
I
= 7V 100
I
IH
HIGH Level Input Current V
CC
= Max, V
I
= 2.7V (Note 2) 20 µA
I
IL
LOW Level Input Current V
CC
= Max, V
I
= 0.4V (Note 2) 100 µA
I
O
Output Drive Current V
CC
= Max, V
O
= 2.25V 30 112 mA
I
CC
Supply Current V
CC
= Max Outputs HIGH 30 45
Outputs LOW 36 55 mA
Outputs Disabled 38 58
Symbol Parameter
From To
Conditions Min Max Units
(Input) (Output)
t
PLH
Propagation Delay Time
A or B B or A
V
CC
= 4.5 to 5.5V,
310ns
LOW-to-HIGH Level Output C
L
= 50 pF,
t
PHL
Propagation Delay Time
A or B B or A
R1 = R2 = 500
310ns
HIGH-to-LOW Level Output
t
PZH
Output Enable Time to HIGH Level Output G A or B 5 20 ns
t
PZL
Output Enable Time to LOW Level Output G A or B 5 20 ns
t
PHZ
Output Disable Time from HIGH Level Output G A or B 2 10 ns
t
PLZ
Output Disable Time from LOW Level Output G A or B 4 15 ns
3 www.fairchildsemi.com
DM74ALS645A
Physical Dimensions inches (millimeters) unless otherwise noted
20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
Package Number M20B
