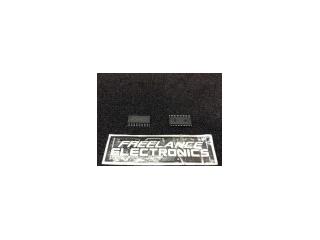

CS4391A-KZZ

Part # CS4391A-KZZ
Description DAC DUAL DELTA-SIGMA 24BIT 20TSSOP - Rail/Tube
Category IC
Availability In Stock
Qty 1
Qty Price
1 + $4.80078
Manufacturer Available Qty
CIRRUS LOGIC
Date Code: 0744
  • Shipping Freelance Stock: 1
    Ships Immediately



Technical Document


DISCLAIMER: The information provided herein is solely for informational purposes. Customers must be aware of the suitability of this product for their application, and consider that variable factors such as Manufacturer, Product Category, Date Codes, Pictures and Descriptions may differ from available inventory.

Preliminary Product Information
This document contains information for a new product.
Cirrus Logic reserves the right to modify this product without notice.
1
Copyright Cirrus Logic, Inc. 2004
(All Rights Reserved)
www.cirrus.com
CS4391A
24-Bit, 192 kHz Stereo DAC with Volume Control
Features
Complete Stereo DAC System: Interpolation,
D/A, Output Analog Filtering
108 dB Dynamic Range
94 dB THD+N
Direct Stream Digital Mode
Low Clock Jitter Sensitivity
+5 V Power Supply
ATAPI Mixing
On-Chip Digital De-emphasis for 32, 44.1,
and 48 kHz
Volume Control with Soft Ramp
– 119 dB Attenuation
– 1 dB Step Size
– Zero Crossing Click-Free Transitions
Direct Interface with 5 V to 1.8 V Logic
Description
The CS4391A is a complete stereo digital-to-analog sys-
tem including digital interpolation, fourth-order delta-
sigma digital-to-analog conversion, digital de-emphasis,
volume control, channel mixing and analog filtering. The
advantages of this architecture include: ideal differential
linearity, no distortion mechanisms due to resistor
matching errors, no linearity drift over time and tempera-
ture and a high tolerance to clock jitter.
The CS4391A accepts PCM data at sample rates from
4 kHz to 192 kHz, DSD audio data, consumes very little
power and operates over a wide power supply range.
These features are ideal for DVD, A/V receivers, CD and
set-top box systems.
ORDERING INFORMATION
CS4391A-KS 20-pin SOIC -10 to 70 °C
CS4391A-KZ 20-pin TSSOP -10 to 70 °C
CS4391A-KZZ 20-pin TSSOP, Lead Free -10 to 70 °C
CDB4391A Evaluation Board
I
LRCK
SDATA
(SDA/CDIN)
MCLK
AMUTEC
AOUTA-
AOUTB-
SERIAL
PORT
INTERPOLATION
INTERPOLATOR
(CONTROL PORT)
∆Σ
DAC
DAC
EXTERNAL
ANALOG
FILTER
ANALOG
FILTER
∆Σ
MUTE CONTROL
FILTER
FILTER
RST
SCLK
VOLUME
CONTROL
VOLUME
CONTROL
MIXER
(SCL/CCLK) (AD0/CS)
AOUTA+
AOUTB+
CMOUT
REFERENCE
FILT+BMUTEC
M1
M3
M2
MODE SELECT
M0
JUL ‘04
DS600PP3
CS4391A
2 DS600PP3
TABLE OF CONTENTS
1. CHARACTERISTICS/SPECIFICATIONS ................................................................................. 5
2. TYPICAL CONNECTION DIAGRAMS ................................................................................... 13
3. REGISTER QUICK REFERENCE .......................................................................................... 15
3.1 Mode Control 1 (address 01h) .......................................................................................... 15
3.2 Volume and Mixing Control (address 02h)........................................................................ 16
3.3 Channel A Volume Control (address 03h) ........................................................................ 16
3.4 Channel B Volume Control (address 04h) ........................................................................ 16
3.5 Mode Control 2 (address 05h) .......................................................................................... 17
4. REGISTER DESCRIPTION .................................................................................................... 18
4.1 Mode Control 1 - Address 01h .......................................................................................... 18
4.1.1 Auto-Mute (Bit 7) ................................................................................................. 18
4.1.2 Digital Interface Formats (Bits 6:4) ...................................................................... 18
4.1.3 De-Emphasis Control (Bits 3:2) ........................................................................... 18
4.1.4 Functional Mode (Bits 1:0) .................................................................................. 18
4.2 Volume and Mixing Control (Address 02h) ....................................................................... 19
4.2.1 Channel A Volume = Channel B Volume (Bit 7) ................................................. 19
4.2.2 Soft Ramp or Zero Cross Enable (Bits 6:5) ......................................................... 19
4.2.3 ATAPI Channel Mixing and Muting (Bits 4:0) ...................................................... 19
4.3 Channel A Volume Control - Address 03h........................................................................ 19
4.4 Channel B Volume Control - Address 04h ....................................................................... 20
4.4.1 Mute (Bit 7) .......................................................................................................... 20
4.4.2 Volume Control (Bits 6:0) .................................................................................... 20
4.5 Mode Control 2 - Address 05h .......................................................................................... 20
4.5.1 Invert Signal Polarity (Bits 7:6) ............................................................................ 20
4.5.2 Control Port Enable (Bit 5) .................................................................................. 20
4.5.3 Power Down (Bit 4) ............................................................................................. 20
4.5.4 AMUTEC = BMUTEC (Bit 3) ............................................................................... 20
4.5.5 Freeze (Bit 2) ...................................................................................................... 21
4.5.6 Master Clock Divide (Bit 1) .................................................................................. 21
Contacting Cirrus Logic Support
For all product questions and inquiries contact a Cirrus Logic Sales Representative.
To find one nearest you go to http://www.cirrus.com
IMPORTANT NOTICE
"Preliminary" product information describes products that are in production, but for which full characterization data is not yet available. "Advance" product infor-
mation describes products that are in development and subject to development changes. Cirrus Logic, Inc. and its subsidiaries ("Cirrus") believe that the infor-
mation contained in this document is accurate and reliable. However, the information is subject to change without notice and is provided "AS IS" without warranty
of any kind (express or implied). Customers are advised to obtain the latest version of relevant information to verify, before placing orders, that information being
relied on is current and complete. All products are sold subject to the terms and conditions of sale supplied at the time of order acknowledgment, including those
pertaining to warranty, patent infringement, and limitation of liability. No responsibility is assumed by Cirrus for the use of this information, including use of this
information as the basis for manufacture or sale of any items, or for infringement of patents or other rights of third parties. This document is the property of Cirrus
and by furnishing this information, Cirrus grants no license, express or implied under any patents, mask work rights, copyrights, trademarks, trade secrets or
other intellectual property rights. Cirrus owns the copyrights associated with the information contained herein and gives consent for copies to be made of the
information only for use within your organization with respect to Cirrus integrated circuits or other parts of Cirrus. This consent does not extend to other copying
such as copying for general distribution, advertising or promotional purposes, or for creating any work for resale.
An export permit needs to be obtained from the competent authorities of the Japanese Government if any of the products or technologies described in this ma-
terial and controlled under the "Foreign Exchange and Foreign Trade Law" is to be exported or taken out of Japan. An export license and/or quota needs to be
obtained from the competent authorities of the Chinese Government if any of the products or technologies described in this material is subject to the PRC Foreign
Trade Law and is to be exported or taken out of the PRC.
CERTAIN APPLICATIONS USING SEMICONDUCTOR PRODUCTS MAY INVOLVE POTENTIAL RISKS OF DEATH, PERSONAL INJURY, OR SEVERE
PROPERTY OR ENVIRONMENTAL DAMAGE ("CRITICAL APPLICATIONS"). CIRRUS PRODUCTS ARE NOT DESIGNED, AUTHORIZED, OR WARRANT-
ED TO BE SUITABLE FOR USE IN LIFE-SUPPORT DEVICES OR SYSTEMS OR OTHER CRITICAL APPLICATIONS. INCLUSION OF CIRRUS PRODUCTS
IN SUCH APPLICATIONS IS UNDERSTOOD TO BE FULLY AT THE CUSTOMER'S RISK.
Purchase of I
2
C components of Cirrus Logic, Inc., or one of its sublicensed Associated Companies conveys a license under the Phillips I
2
C Patent Rights to use
those components in a standard I
2
C system.
Cirrus Logic, Cirrus, and the Cirrus Logic logo designs are trademarks of Cirrus Logic, Inc. All other brand and product names in this document may be trade-
marks or service marks of their respective owners.
CS4391A
DS600PP3 3
5. PIN DESCRIPTION - PCM DATA MODE ............................................................................... 22
6. PIN DESCRIPTION - DSD MODE .......................................................................................... 26
7. APPLICATIONS ..................................................................................................................... 33
7.1 Recommended Power-up Sequence for Hardware Mode ............................................... 33
7.2 Recommended Power-up Sequence and Access to Control Port Mode ......................... 33
7.3 Analog Output and Filtering ............................................................................................. 33
8. CONTROL PORT INTERFACE .............................................................................................. 34
8.1 SPI Mode ......................................................................................................................... 34
8.2 I2C Mode ......................................................................................................................... 34
9. PARAMETER DEFINITIONS .................................................................................................. 38
10. REFERENCES ...................................................................................................................... 38
11. PACKAGE DIMENSIONS ................................................................................................. 39
LIST OF TABLES
Table 1. Digital Interface Formats - PCM Modes ................................................................................ 27
Table 2. Digital Interface Formats - DSD Mode...................................................................................27
Table 3. De-Emphasis Mode Selection .............................................................................................. 27
Table 4. Functional Mode Selection .................................................................................................... 27
Table 5. Soft Cross or Zero Cross Mode Selection ............................................................................ 27
Table 6. ATAPI Decode....................................................................................................................... 28
Table 7. Digital Volume Control........................................................................................................... 28
Table 8. Single Speed (4 to 50 kHz sample rates) Common Clock Frequencies................................ 29
Table 9. Double Speed (50 to 100 kHz sample rates) Common Clock Frequencies ......................... 29
Table 10. Quad Speed (100 to 200 kHz sample rates) Common Clock Frequencies........................ 29
Table 11. Single Speed (4 to 50 kHz) Digital Interface Format, Stand-Alone Mode Options .............. 29
Table 12. Single Speed Only (4 to 50 kHz) De-Emphasis, Stand-Alone Mode Options ..................... 29
Table 13. Double Speed (50 to 100 kHz) Digital Interface Format, Stand-Alone Mode Options......... 29
Table 14. Quad Speed (100 to 200 kHz) Digital Interface Format, Stand-Alone Mode Options ......... 30
Table 15. Direct Stream Digital (DSD), Stand-Alone Mode Options ................................................... 30
Table 16. Memory Address Pointer (MAP)..........................................................................................35
